Charging the Terminal

The terminal might lose some of its charge during transit. The terminal comes with a power cord. However, the terminal ships with a battery shield. You must remove the shield before you can charge the terminal.

To unlock the battery compartment, turn the terminal over, and slide the bottom latch to the right.

Lift the cover off.

Remove the battery by lifting from the bottom.

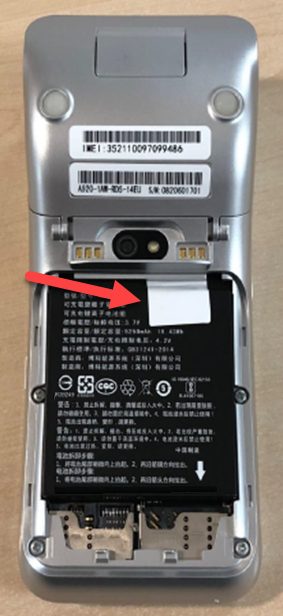

Remove the white protective cover from the battery terminals and discard it.

ADDITIONAL INFORMATION

View of PAX A920 Battery

Insert the battery, top end first, and replace the cover.

Lock the cover by sliding the latch to the left.

Plug the micro USB end of the charge cord into the port on the left side of the terminal, and plug the USB end into the USB port of another device or into the provided wall plug.
