Configuring DHCP Access

With DHCP, the terminal is randomly assigned IP addresses by your service provider when you access the Internet. Set up your Wi-Fi network from the Android Settings.
  1. On the IDLE screen, tap
    Settings
    .
  2. When prompted for a password, touch the field to display a keyboard. Enter 9876 as the Settings password, tap the green check mark at the bottom of the keyboard, and choose
    OK
    .

    ADDITIONAL INFORMATION

  3. On the Settings screen that appears, slide the
    Wi-Fi
     toggle switch to the right to enable Wi-Fi. The switch is green when enabled.

    ADDITIONAL INFORMATION

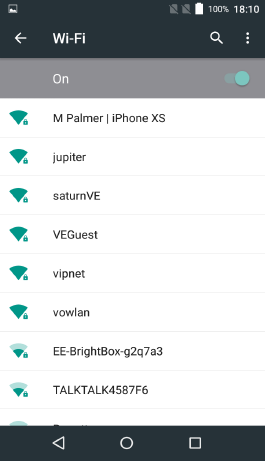

  4. Tap the
    Wi-Fi
     field. The Wi-Fi screen appears, listing the detected Wi-Fi networks.

    ADDITIONAL INFORMATION

  5. Choose a network. A password field for network access appears.

    ADDITIONAL INFORMATION

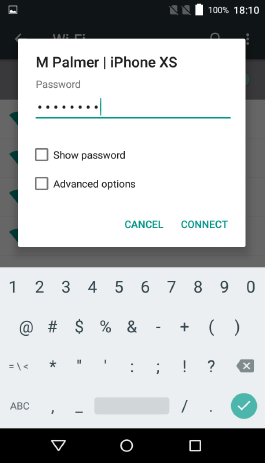

  6. Enter the password and tap
    Connect

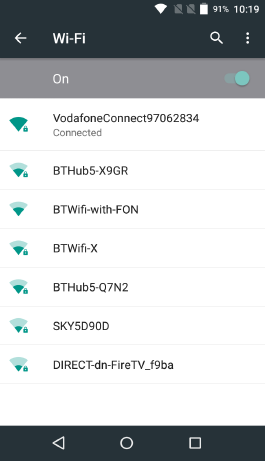

    . The password is case-sensitive. When the terminal connects to the network, a
    Connected
     status appears beneath the network listing.

    ADDITIONAL INFORMATION
