Local Mode Payment Services

Use this information to process payment services available in the Acceptance Devices app when operated in Local mode.
These are some Local mode features:
  • The point-of-sale (POS) system communicates with the Acceptance Devices app on the terminal over a local Wi-Fi network.
  • You can retrieve the Root CA certificate to validate the Acceptance Devices app server’s certificate.
  • You have the option to activate an mTLS connection in the Acceptance Devices app.
  • You have the option to implement hostname validation in your client.
For information about other modes available in the Acceptance Devices app, see:

Communication Protocol Used in Local Mode

When using the solution in Local mode, the communication protocol used between the Acceptance Devices app and the point-of-sale (POS) system is a single WebSocket channel. Through this channel, simultaneous, two-way communication occurs between the Acceptance Devices app and the POS system.

Retrieving the Root CA Certificate

When the app is operating in Local mode, you can validate the Acceptance Devices app server’s certificate by adding the Root CA certificate to your trust store. This action is required if you want to use an mTLS connection. For more information, see Activating a Secure mTLS Connection.
You can retrieve the Root CA certificate in the
Business Center
 or by using a REST API request.

Retrieve the Root CA Certificate in the
Business Center

Follow these steps to retrieve the Root CA certificate in the Business Center:
  1. In the
    Business Center
    , go to the left navigation panel and choose
    Acceptance Devices > Activation Codes
    . The Activation Codes page appears.
  2. Click
    Download Root CA Certificate
    . When the download is complete, the browser window shows a download completion message.
  3. In the local folder directory of your computer, navigate to the Download folder to access the Root CA certificate file.

Retrieve the Root CA Certificate Using a REST API Request

You can use a REST API request to retrieve the Acceptance Devices app server’s Root CA certificate when the app is operating in Local mode. You would then add the certificate to your trust store.
You must authenticate each API request you send to a
Cybersource
 API by using a REST shared secret key or a REST certificate. For more information about authentication requirements, see the .

Endpoints

Test:
GET
https://apitest.cybersource.com
/dms/v2/devices/certificates/rootca
Production:
GET
https://api.cybersource.com
/dms/v2/devices/certificates/rootca

Required Fields to Retrieve the Root CA Certificate Using a REST API Request

The body of the API request is empty.

REST Example: Retrieve the Root CA Certificate Using a REST API Request

Request
The body of the request is empty.
{
}
Response to a Successful Request
The response includes a PEM–encoded certificate chain.
{
    "certificateChain": "-----BEGIN CERTIFICATE-----Your certificate response data appears here.-----END CERTIFICATE-----"
}

Activating a Secure mTLS Connection

When the app is operating in Local mode, using a Mutual Transport Layer Security (mTLS) connection creates an additional layer of security for communication between the Acceptance Devices app running on your PAX terminal and point-of-sale (POS) system.
Using the mTLS protocol is recommended because it employs two-way verification. The minimum requirement for providing end-to-end data security is using the Transport Layer Security (TLS) protocol.
Before activating an mTLS connection, you must retrieve the Root CA certificate. For more information, see Retrieving the Root CA Certificate.

Endpoints

The endpoint is the same for the test and production environments.
Test:
POST https://{terminal IP address:port number}/ or wss://{terminal IP address:port number}/
Production:
POST https://{terminal IP address:port number}/ or wss://{terminal IP address:port number}/

Generate a POS Connection Code for the Point-of-Sale System

Before you can sync the terminal with the point-of-sale (POS) system to establish a secure connection, you must activate the terminal. For more information, see Activating a Terminal in the Acceptance Devices App.
To ensure the security of the data sent over the internet between your POS system and the PAX terminal, you must establish a secure connection (sync) between your system and the terminal. You must complete this procedure one time only for each POS system you are using.
If Mutual Transport Layer Security (mTLS) is enabled, and terminal activation is complete, the Generate Code screen appears during terminal set up.
Follow these steps to generate a POS connection code for a POS system in the Acceptance Devices app:

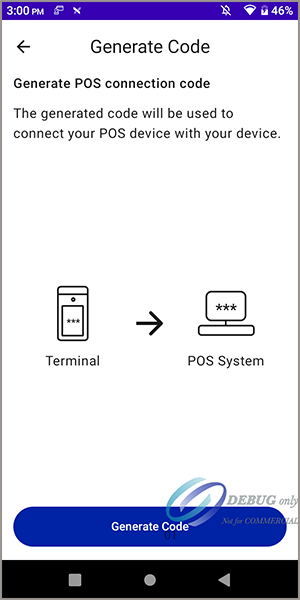

  1. On the Generate Code screen, tap
    Generate Code
    .

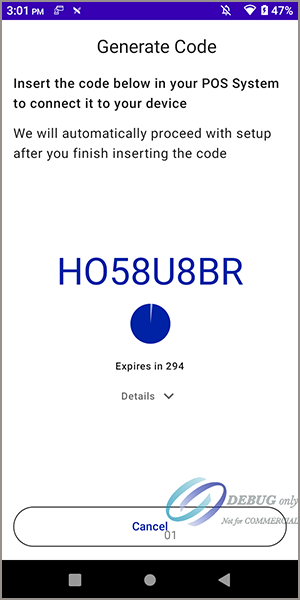

  2. Record the eight-character code that appears on the screen. You will use this code to request a certificate from the POS system. The screen shows an expiration timer for the code, which refreshes every 300 seconds.

Request Certificates for the Point-of-Sale System

Before you can request certificates, you must generate a set-up code for the POS system.
To finish activating the secure mTLS connection, request certificates for the POS system by sending a request to the PAX terminal through the POS system.

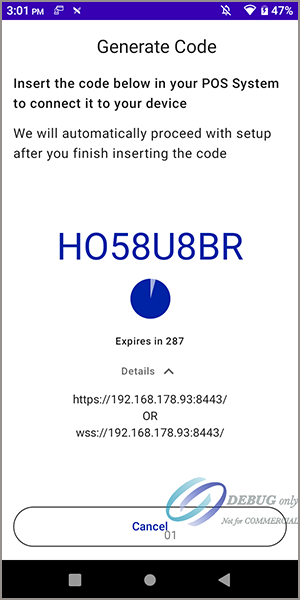

  1. On the Generate Code screen, tap the
    Details
     arrow. The Details section expands to show the HTTP and WSS (WebSocket) addresses and the port number.
  2. Record the HTTP and WSS addresses and port number shown in the Details section. You will use this information to request a certificate through the POS system, using the HTTPS or WSS address.
  3. To request the certificates, send an API request through the POS system to the HTTP or WSS address and port number, along with the POS connection code shown on the terminal and a unique POS ID.

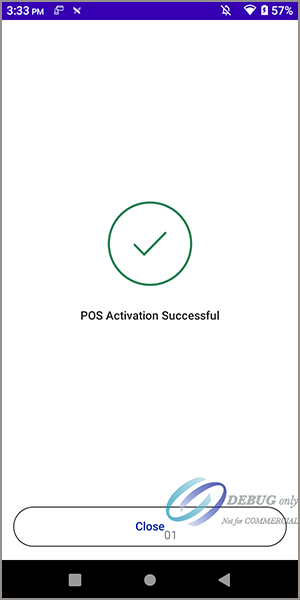

  4. After the certificates are retrieved by the POS system and the sync between your POS system and the PAX terminal is complete, the
    POS Activation Successful
     message appears. Tap
    Close
    . The next set-up screen appears.

Required Fields to Request Certificates for the Point-of-Sale System

posId
Set the value to a unique, user-defined ID for the POS system.
setupCode
Set the value to the POS connection code shown on the Generate POS Connection Code screen in the Acceptance Devices app.

REST Example: Request Certificates for the Point-of-Sale System

Request
{
  "posId" : "123",
  "setupCode" : "8QW1YS1D"
}
Response to a Successful Request
The response includes the private key and certificates required to establish the secure Mutual Transport Layer Security (mTLS) connection between the PAX terminal and the POS system. For security reasons, this example does not show actual private key and certificate response data.
-----BEGIN RSA PRIVATE KEY-----
Your RSA private key response data appears here.
-----END RSA PRIVATE KEY-----
-----BEGIN CERTIFICATE-----
Your certificate response data appears here.
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
Your certificate response data appears here.
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
Your certificate response data appears here.
-----END CERTIFICATE-----

Implementing Hostname Validation in Local Mode

When operating in Local mode, your app can optionally perform hostname validation for enhanced security. When the terminal is activated, a certificate is generated on the device. The certificate includes a Subject Alternative Name (SAN). This SAN appears as a Domain Name System (DNS) entry for the Acceptance Devices app server.
This is the SAN format:
{terminal-serial-number}.cybs.seclib.io
To enable hostname validation or connect to the terminal using the SAN instead of its IP address, update your system’s
hosts
 file to include both the terminal’s IP address and its corresponding SAN.

Sale

Use this information to process a sale transaction when the app is in Local mode. This type of transaction combines an authorization and a capture into a single transaction.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Sale

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
      "amountDetails" : {
        "amount" : "1.00",
        "currency" : "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "1541387b383d456aabb81cdf558b4e8e",
        "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc" : "2023-12-01T20:24:47+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "1.00",
          "refundableAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014622903166318504010"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Refund

Use this information to process a refund when the app is in Local Mode mode. This type of refund includes a reference to the original transaction for a full or partial transaction amount. Stand-alone credits are also supported in this Acceptance Devices solution. For more information, see Stand-Alone Credit.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Refund

type
Set the value to
LinkedRefundRequest
.
transactionId
Set the value to the
id
 field value from the original transaction.

Optional Fields for a Refund

Use the optional amount and currency fields to process a partial refund. Otherwise, the full amount will be refunded.
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Refund

Request
{
      "type": "LinkedRefundRequest",
      "transactionId": "8fe5fa21d0814424bcec4997c9dc89c4",
      "amountDetails": {
        "amount": "1.00",
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "LinkedRefundResponse",
      "message" : "Refund approved",
      "transactionDetails" : {
        "id" : "8fe5fa21d0814424bcec4997c9dc89c4",
        "merchantReferenceCode" : "e94e3aa304514140ae1700ba0959c7c5",
        "submitTimeUtc" : "2023-12-01T20:57:30+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "0.00",
          "refundableAmount" : "0.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014642534986108604008"
      },
      "linkedOperations" : [ {
        "id" : "b383db1aecab46d89f1dbec8b0a9aa90",
        "type" : "REFUND",
        "amount" : "1.00",
        "status" : "APPROVED",
        "submitTimeUtc" : "2023-12-01T20:57:48+0000"
      } ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nVoid\n-£1.00\n\n\nReversal accepted.\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Keyed\n\nAuthorization: -\nMerchant ID: **37599\nTerminal ID: ****0063\n\nb383db1aecab46d89f1dbec8b0a9aa90\n21:57:50: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Void"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "b383db1aecab46d89f1dbec8b0a9aa90"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:57:50"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Reversal accepted."
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nVoid\n-£1.00\n\n\nReversal accepted.\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Keyed\n\nAuthorization: -\nMerchant ID: **37599\nTerminal ID: ****0063\n\nb383db1aecab46d89f1dbec8b0a9aa90\n21:57:50: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Void"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "b383db1aecab46d89f1dbec8b0a9aa90"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:57:50"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Reversal accepted."
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Stand-Alone Credit

Use this information to process a stand-alone credit when the app is in Local mode. This type of transaction is used to process a credit without reference to the original transaction. The customer is required to present their card for this type of transaction.
WARNING
When processing a stand-alone credit, there is no limit on the credit amount because there is no reference to the original transaction amount. The recommendation is to use a refund transaction whenever possible. For more information, see Refund.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Stand-Alone Credit

type
Set the value to
StandaloneRefundRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Stand-Alone Credit

Request
{
      "type": "StandaloneRefundRequest",
      "merchantReferenceCode": "2490c8ec0e2f4b509526815714313e33",
      "amountDetails": {
        "amount": "1.00",
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "StandaloneRefundResponse",
      "message" : "Refund approved",
      "transactionDetails" : {
        "id" : "3043e0b61fad4c5483db3d498309460f",
        "merchantReferenceCode" : "2490c8ec0e2f4b509526815714313e33",
        "submitTimeUtc" : "2023-12-01T21:04:19+0000",
        "amountDetails" : {
          "amount" : "1.00",
          "currency" : "GBP"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "AMERICAN_EXPRESS",
          "maskedPan" : "374245XXXXX0001"
        }
      },
      "additionalInformation" : {
        "requestId" : "7014646720206287504012"
      },
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nRefund\n-£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks AMEX\nAccount: *** **** **** 0001\nEntry Mode: Chip\nAID: A0000000250100\n\nTransaction: -\nAuthorization: -\nMerchant ID: *****67890\nTerminal ID: ****0026\n\n3043e0b61fad4c5483db3d498309460f\n10:04:19 PM: 12/1/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks AMEX"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "*** **** **** 0001"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000250100"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Chip"
              },
              "CLEARING_DETAILS_TRANSACTION_IDENTIFIER" : {
                "label" : "Transaction",
                "value" : "-"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "*****67890"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0026"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Refund"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "3043e0b61fad4c5483db3d498309460f"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "12/1/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "10:04:19 PM"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nRefund\n-£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks AMEX\nAccount: *** **** **** 0001\nEntry Mode: Chip\nAID: A0000000250100\n\nTransaction: -\nAuthorization: -\nMerchant ID: *****67890\nTerminal ID: ****0026\n\n3043e0b61fad4c5483db3d498309460f\n10:04:19 PM: 12/1/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks AMEX"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "*** **** **** 0001"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000250100"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Chip"
              },
              "CLEARING_DETAILS_TRANSACTION_IDENTIFIER" : {
                "label" : "Transaction",
                "value" : "-"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "*****67890"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0026"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Refund"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "3043e0b61fad4c5483db3d498309460f"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "12/1/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "10:04:19 PM"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Request a Check Transaction Status

Use this information to request a check transaction status when the app is in Local mode. This transaction is used to obtain response data for a transaction that was lost or timed out.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields to Request a Check Transaction Status

type
Set the value to
TransactionLookupRequest
.
idType
Set the value to
TRANSACTION_ID
 or
MERCHANT_REFERENCE_CODE
.
id
Set the value to the
id
 or
merchantReferenceCode
 field value from the original transaction.

REST Example: Request a Check Transaction Status

Request
{
      "type": "TransactionLookupRequest",
      "idType": "TRANSACTION_ID",
      "id": "1541387b383d456aabb81cdf558b4e8e"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "TransactionLookupResponse",
      "transactionDetails" : {
        "id" : "1541387b383d456aabb81cdf558b4e8e",
        "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc" : "2023-12-01T20:24:47+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "1.00",
          "refundableAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014622903166318504010"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Cancel Transaction

Use this information to process a cancel transaction request in Local mode. This request is sent to interrupt an in-process transaction.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields to Cancel Transaction

type
Set the value to
CancelRequest
.

REST Example: Cancel Transaction

Request
{
      "type": "CancelRequest"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment aborted",
      "transactionDetails" : {
        "id" : "b6522aeb9d8d49b386f7c67852581145",
        "merchantReferenceCode" : "50c86aaa02ed4c0bb4b4b596379713f7",
        "submitTimeUtc" : "2023-12-01T20:30:05+0000",
        "captured" : false,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "0.00",
          "refundableAmount" : "0.00"
        }
      },
      "processingDetails" : {
        "status" : "ABORTED",
        "verificationMethod" : "UNKNOWN",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "00",
          "expirationYear" : "00",
          "type" : "UNKNOWN",
          "maskedPan" : ""
        }
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nCanceled transaction.\n\n\nEntry Mode: Contactless\nAID: NULL\n\n\nb6522aeb9d8d49b386f7c67852581145\n21:30:05: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "NULL"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "b6522aeb9d8d49b386f7c67852581145"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:30:05"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Canceled transaction."
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nCanceled transaction.\n\n\nEntry Mode: Contactless\nAID: NULL\n\n\nb6522aeb9d8d49b386f7c67852581145\n21:30:05: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "NULL"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "b6522aeb9d8d49b386f7c67852581145"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:30:05"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Canceled transaction."
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Sale with On-Reader Tipping

Use this information to process a sale with on-reader tipping in Local mode. At the start of each transaction, the terminal prompts the customer to add a tip by showing suggested tip amounts. The customer selects or enters a tip amount on the terminal before presenting their payment card.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale with On-Reader Tipping

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
askForTip
Set the value to
ON_DEVICE
.

REST Example: Sale with On-Reader Tipping

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "adf0fa5ca70d462ba5fc0249436b656c",
      "amountDetails" : {
        "amount" : "5.00",
        "currency" : "GBP"
      },
      "askForTip" : "ON_DEVICE"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "55678c8b152046f7b1d77fd2286ce392",
        "merchantReferenceCode" : "adf0fa5ca70d462ba5fc0249436b656c",
        "submitTimeUtc" : "2023-12-01T21:01:23+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "6.00",
          "capturedAmount" : "6.00",
          "refundableAmount" : "6.00",
          "includedTipAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014644863036208304012"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\nPurchase Amount: £5.00\nTip Amount: £1.00\nTotal Amount: £6.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938252\nMerchant ID: **37599\nTerminal ID: ****0063\n\n55678c8b152046f7b1d77fd2286ce392\n22:01:27: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938252"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "55678c8b152046f7b1d77fd2286ce392"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£6.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "22:01:27"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\nPurchase Amount: £5.00\nTip Amount: £1.00\nTotal Amount: £6.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938252\nMerchant ID: **37599\nTerminal ID: ****0063\n\n55678c8b152046f7b1d77fd2286ce392\n22:01:27: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938252"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "55678c8b152046f7b1d77fd2286ce392"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£6.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "22:01:27"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Sale with On-Receipt Tipping

Use this information to process a sale with on-receipt tipping when the app is in Local mode. After the original transaction is pre-authorized, the customer writes the tip or total amount on the printed receipt. A follow-on tip adjust request must be sent within 24 hours to capture the transaction. For more information, see Tip Adjust.
WARNING
By using this feature, you assume the risk of overcaptures being declined and increased chargebacks, so use it only when necessary. Process sales with on-reader tipping, whenever possible. For more information, see Sale with On-Reader Tipping.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale with On-Receipt Tipping

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
capture
Set the value to
false
.
askForTip
Set the value to
ON_RECEIPT
.

REST Example: Sale with On-Receipt Tipping

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "1ce594be142142f4913cca805830a176",
      "amountDetails" : {
        "amount" : "20.00",
        "currency" : "USD"
      },
      "capture" : false,
      "askForTip" : "ON_RECEIPT"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
  "type" : "PaymentResponse",
  "message" : "Payment approved",
  "transactionDetails" : {
    "id" : "c6174c80b81f4413a4b9f2065c5431c7",
    "merchantReferenceCode" : "1ce594be142142f4913cca805830a176",
    "submitTimeUtc" : "2024-03-20T09:19:41+0000",
    "captured" : false,
    "amountDetails" : {
      "currency" : "USD",
      "amount" : "20.00",
      "capturedAmount" : "20.00",
      "refundableAmount" : "20.00"
    }
  },
  "processingDetails" : {
    "status" : "APPROVED",
    "verificationMethod" : "NONE",
    "entryMode" : "NFC_ICC",
    "card" : {
      "expirationMonth" : "12",
      "expirationYear" : "2025",
      "type" : "VISA",
      "maskedPan" : "476173XXXXXX0119",
      "countryCode" : "840"
    }
  },
  "additionalInformation" : {
    "instrumentId" : "7030000000022690119",
    "requestId" : "7109263864326505004007"
  },
  "linkedOperations" : [ ],
  "tipAdjustStatus" : "ADJUSTABLE",
  "receipts" : {
    "merchantReceipt" : {
      "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n1234567\n\nSale\n$20.00\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 002000\nMerchant ID: **37599\nTerminal ID: ****0063\n\n\nc6174c80b81f4413a4b9f2065c5431c7\n\n\n\n10:19:46: 20/03/2024\n\n\n\nTIP:\n___________________\n\nTOTAL:\n___________________\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "55555"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "New York"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United States"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks VISA"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0119"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000031010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Contactless"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "None"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****0063"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Merchant Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Sale"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "c6174c80b81f4413a4b9f2065c5431c7"
          },
          "AMOUNT_AND_CURRENCY" : {
            "label" : "Amount",
            "value" : "$20.00"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "10:19:46"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : true,
        "totalLineRequired" : true
      }
    },
    "customerReceipt" : {
      "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n1234567\n\nSale\n$20.00\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 002000\nMerchant ID: **37599\nTerminal ID: ****0063\n\n\nc6174c80b81f4413a4b9f2065c5431c7\n\n\n\n10:19:46: 20/03/2024\n\n\n\nTIP:\n___________________\n\nTOTAL:\n___________________\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "55555"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "New York"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United States"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks VISA"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0119"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000031010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Contactless"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "None"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****0063"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Cardholder Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Sale"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "c6174c80b81f4413a4b9f2065c5431c7"
          },
          "AMOUNT_AND_CURRENCY" : {
            "label" : "Amount",
            "value" : "$20.00"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "10:19:46"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : true,
        "totalLineRequired" : true
      }
    }
  }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Tip Adjust

Use this information to process a tip adjust when the app is in Local Mode mode. This follow-on transaction is required when processing an on-receipt tipping transaction. The tip adjust request must be sent within 24 hours to capture the transaction.
After the original transaction is pre-authorized, the customer writes the tip or total amount on the printed receipt. A follow-on tip adjust request is then sent to capture the additional tip amount. This transaction is also referred to as an
overcapture
. For more information, see Sale with On-Receipt Tipping.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Tip Adjust

type
Set the value to
TipAdjustRequest
.
transactionId
Set the value to the
id
 field value from the original transaction.
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Tip Adjust

Request
{
      "type": "TipAdjustRequest",
      "transactionId": "c6174c80b81f4413a4b9f2065c5431c7",
      "amountDetails": {
        "amount": "4.00",
        "currency": "USD"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
  "type" : "TipAdjustResponse",
  "message" : "Payment approved",
  "transactionDetails" : {
    "id" : "c6174c80b81f4413a4b9f2065c5431c7",
    "merchantReferenceCode" : "1ce594be142142f4913cca805830a176",
    "submitTimeUtc" : "2024-03-20T09:19:41+0000",
    "captured" : true,
    "amountDetails" : {
      "currency" : "USD",
      "amount" : "24.00",
      "capturedAmount" : "24.00",
      "refundableAmount" : "24.00",
      "includedTipAmount" : "4.00"
    }
  },
  "processingDetails" : {
    "status" : "APPROVED",
    "verificationMethod" : "NONE",
    "entryMode" : "NFC_ICC",
    "card" : {
      "expirationMonth" : "12",
      "expirationYear" : "2025",
      "type" : "VISA",
      "maskedPan" : "476173XXXXXX0119",
      "countryCode" : "840"
    }
  },
  "additionalInformation" : {
    "instrumentId" : "7030000000022690119",
    "requestId" : "7109265975966653104007"
  },
  "linkedOperations" : [ ],
  "tipAdjustStatus" : "ADJUSTED",
  "receipts" : {
    "merchantReceipt" : {
      "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n1234567\n\nCapture\nPurchase Amount: $20.00\nTip Amount: $4.00\nTotal Amount: $24.00\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 002000\nMerchant ID: **37599\nTerminal ID: ****7478\n\n\nc6174c80b81f4413a4b9f2065c5431c7\n\n10:23:17: 20/03/2024\n\n\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "55555"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "New York"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United States"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks VISA"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0119"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000031010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Contactless"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "None"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****7478"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Merchant Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Capture"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "c6174c80b81f4413a4b9f2065c5431c7"
          },
          "AMOUNT_AND_CURRENCY" : {
            "label" : "Amount",
            "value" : "$24.00"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "10:23:17"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : false,
        "totalLineRequired" : false
      }
    },
    "customerReceipt" : {
      "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n1234567\n\nCapture\nPurchase Amount: $20.00\nTip Amount: $4.00\nTotal Amount: $24.00\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 002000\nMerchant ID: **37599\nTerminal ID: ****7478\n\n\nc6174c80b81f4413a4b9f2065c5431c7\n\n10:23:17: 20/03/2024\n\n\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "55555"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "New York"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United States"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks VISA"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0119"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000031010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Contactless"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "None"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****7478"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Cardholder Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Capture"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "c6174c80b81f4413a4b9f2065c5431c7"
          },
          "AMOUNT_AND_CURRENCY" : {
            "label" : "Amount",
            "value" : "$24.00"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "10:23:17"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : false,
        "totalLineRequired" : false
      }
    }
  }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Token Refund

Use this information to process a token refund when the app is in Local mode. A token refund transaction enables you to process a stand-alone credit against a tokenized card. To process a credit through a token, you must have the
Token Management Service
 product enabled and an existing (saved) token from a tokenized transaction. For more information, see .

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Token Refund

type
Set the value to
TokenRefundRequest
.
instrumentId
Set the value to the Instrument Identifier token.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Token Refund

Request
{
      "type": "TokenRefundRequest",
      "instrumentId": "7030000000022690119",
      "merchantReferenceCode": "30ed45dc7b3f4fb9905413940ac30363",
      "amountDetails": {
        "amount": "1.00",
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "TokenRefundResponse",
      "message" : "Refund approved",
      "transactionDetails" : {
        "id" : "596b797178fe45e39ce3a8b8fdf432d6",
        "merchantReferenceCode" : "30ed45dc7b3f4fb9905413940ac30363",
        "submitTimeUtc" : "2023-12-01T21:02:50+0000",
        "amountDetails" : {
          "amount" : "1.00",
          "currency" : "GBP"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "MANUAL",
        "card" : {
          "expirationMonth" : "00",
          "expirationYear" : "00",
          "type" : "VISA",
          "maskedPan" : "703000XXXXXXXXX0119"
        }
      },
      "additionalInformation" : {
        "requestId" : "7014645711206245404009"
      },
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nRefund\n-£1.00\n\n\nPlease retain receipt!\n\n\nCard: VISA\nAccount: *** **** **** **** 0119\nEntry Mode: Keyed\n\nTransaction: -\nAuthorization: -\nMerchant ID: **37599\nTerminal ID: *************L_ID\n\n596b797178fe45e39ce3a8b8fdf432d6\n10:02:50 PM: 12/1/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "*** **** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "CLEARING_DETAILS_TRANSACTION_IDENTIFIER" : {
                "label" : "Transaction",
                "value" : "-"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "*************L_ID"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Refund"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "596b797178fe45e39ce3a8b8fdf432d6"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "12/1/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "10:02:50 PM"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nRefund\n-£1.00\n\n\nPlease retain receipt!\n\n\nCard: VISA\nAccount: *** **** **** **** 0119\nEntry Mode: Keyed\n\nTransaction: -\nAuthorization: -\nMerchant ID: **37599\nTerminal ID: *************L_ID\n\n596b797178fe45e39ce3a8b8fdf432d6\n10:02:50 PM: 12/1/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "*** **** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "CLEARING_DETAILS_TRANSACTION_IDENTIFIER" : {
                "label" : "Transaction",
                "value" : "-"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "-"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "*************L_ID"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Refund"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "596b797178fe45e39ce3a8b8fdf432d6"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "-£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "12/1/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "10:02:50 PM"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Pre-Authorization

Use this information to process a pre-authorization for an initial amount in Local mode. A pre-authorization transaction places a temporary hold on the customer's payment card. The transaction amount can be captured at a later time.
Most authorizations expire in 5 to 7 days. The issuing bank sets the length of time before expiration. When an authorization expires with the issuing bank, your bank or processor might require you to re-submit an authorization request and include a request for capture in the same message. For more information, see Capture.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Pre-Authorization

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
capture
Set the value to
false
.

REST Example: Pre-Authorization

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "47bd9ed54f3f4bfabb9d3ee94cfa3008",
      "amountDetails" : {
        "amount" : "1.00",
        "currency" : "GBP"
      },
      "capture" : false
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "e43069fbf85543659e478edd8d50f244",
        "merchantReferenceCode" : "47bd9ed54f3f4bfabb9d3ee94cfa3008",
        "submitTimeUtc" : "2023-12-01T20:38:14+0000",
        "captured" : false,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "0.00",
          "refundableAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014630972006630604008"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nAuth only\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938242\nMerchant ID: **37599\nTerminal ID: ****0063\n\ne43069fbf85543659e478edd8d50f244\n21:38:18: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938242"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Auth only"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "e43069fbf85543659e478edd8d50f244"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:38:18"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nAuth only\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938242\nMerchant ID: **37599\nTerminal ID: ****0063\n\ne43069fbf85543659e478edd8d50f244\n21:38:18: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938242"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Auth only"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "e43069fbf85543659e478edd8d50f244"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:38:18"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Incremental Authorization

Use this information to process an incremental authorization in Local mode. This type of request can be made on a pre-authorization transaction to increase the authorized amount before it is captured.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for an Incremental Authorization

type
Set the value to
IncrementalAuthorizationRequest
.
transactionId
Set the value to the
id
 field value from the original transaction.
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Incremental Authorization

Request
{
      "type": "IncrementalAuthorizationRequest",
      "transactionId": "e43069fbf85543659e478edd8d50f244",
      "amountDetails": {
        "amount": "2.00",
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "IncrementalAuthorizationResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "6da4aff381e8483ebc65ebf4fbb27ec8",
        "merchantReferenceCode" : "47bd9ed54f3f4bfabb9d3ee94cfa3008",
        "submitTimeUtc" : "2023-12-01T20:39:43+0000",
        "captured" : false,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "2.00",
          "capturedAmount" : "0.00",
          "refundableAmount" : "0.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "MANUAL",
        "card" : {
          "expirationMonth" : "00",
          "expirationYear" : "00",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119"
        }
      },
      "additionalInformation" : {
        "requestId" : "7014631843806649604009"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nTop-up\n£2.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Keyed\nVerification: None\n\nAuthorization: 938243\nMerchant ID: **37599\nTerminal ID: ****0063\n\n6da4aff381e8483ebc65ebf4fbb27ec8\n21:39:45: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938243"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Top-up"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "6da4aff381e8483ebc65ebf4fbb27ec8"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£2.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:39:45"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nTop-up\n£2.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Keyed\nVerification: None\n\nAuthorization: 938243\nMerchant ID: **37599\nTerminal ID: ****0063\n\n6da4aff381e8483ebc65ebf4fbb27ec8\n21:39:45: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938243"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Top-up"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "6da4aff381e8483ebc65ebf4fbb27ec8"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£2.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:39:45"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Capture

Use this information to capture a pre-authorized transaction in Local mode. The capture request references the approved pre-authorization request.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Capture

type
Set the value to
CaptureRequest
.
transactionId
Set the value to the
id
 field value from the original transaction.

Optional Fields for a Capture

Use the optional amount and currency fields to process a partial capture. Otherwise, the full amount will be captured.
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Capture

Request
{
      "type": "CaptureRequest",
      "transactionId": "cb6475bafbb94d03b0f984629c63c294",
      "amountDetails": {
        "amount": "3.00",
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "CaptureResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "cb6475bafbb94d03b0f984629c63c294",
        "merchantReferenceCode" : "dd02499055544be18ba7fa0397909d65",
        "submitTimeUtc" : "2023-12-01T20:43:03+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "3.00",
          "capturedAmount" : "3.00",
          "refundableAmount" : "3.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014633860196734504012"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£3.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938244\nMerchant ID: **37599\nTerminal ID: ****0063\n\ncb6475bafbb94d03b0f984629c63c294\n21:43:07: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938244"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "cb6475bafbb94d03b0f984629c63c294"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£3.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:43:07"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£3.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938244\nMerchant ID: **37599\nTerminal ID: ****0063\n\ncb6475bafbb94d03b0f984629c63c294\n21:43:07: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938244"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "cb6475bafbb94d03b0f984629c63c294"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£3.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:43:07"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Mail Order or Telephone Order

Use this information to process a mail order or telephone order (MOTO) sale and other transactions in Local mode. The payment card is not presented physically at the terminal for a MOTO transaction because it is a card-not-present transaction.
You can also process these MOTO transactions in Local mode:
Account Verification
A MOTO account verification request submits a zero-amount authorization request to validate the payment card.
Pre-authorization
A MOTO pre-authorization request places a temporary hold on the customer’s payment card, enabling the transaction to be captured at a later time. Most authorizations expire within 5 to 7 days. However, the exact duration is determined by the issuing bank.
When an authorization expires, your bank, the payment processor, or issuing bank might require you to re-submit the authorization request. In such cases, you might be required to include the capture instructions in the same message to ensure successful processing.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for Mail Order or Telephone Order

type
Set the value to
PaymentRequest
 for a sale or to
AccountVerificationRequest
 for an account verification.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
paymentMode
Set the value to
MOTO
.

Optional Fields for Mail Order or Telephone Order

capture
Set the value to
false
 for a pre-authorization.

REST Example: Mail Order or Telephone Order Sale

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "a7fbcdc92425456fa0db29c8670a3150",
      "amountDetails" : {
        "amount" : "1.00",
        "currency" : "GBP"
      },
      "paymentMode": "MOTO"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment approved",
      "transactionDetails" : {
        "id" : "4348c35f258c4f8d8c89b9898e3f1b63",
        "merchantReferenceCode" : "a7fbcdc92425456fa0db29c8670a3150",
        "submitTimeUtc" : "2023-12-01T20:51:09+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "1.00",
          "refundableAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "MANUAL",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "411111******1111"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7038380000019631111",
        "requestId" : "7014638853776978504011"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nCVV MATCH ONLY\n\n\nCard: VISA\nAccount: **** **** **** 1111\nEntry Mode: Keyed\nVerification: Cardholder Not Present\n\nAuthorization: 938246\nMerchant ID: **37599\nTerminal ID: ****0063\n\n4348c35f258c4f8d8c89b9898e3f1b63\n21:51:27: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 1111"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "Cardholder Not Present"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938246"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "4348c35f258c4f8d8c89b9898e3f1b63"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:51:27"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "CVV MATCH ONLY"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: VISA\nAccount: **** **** **** 1111\nEntry Mode: Keyed\nVerification: Cardholder Not Present\n\nAuthorization: 938246\nMerchant ID: **37599\nTerminal ID: ****0063\n\n4348c35f258c4f8d8c89b9898e3f1b63\n21:51:27: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 1111"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Keyed"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "Cardholder Not Present"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938246"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "4348c35f258c4f8d8c89b9898e3f1b63"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:51:27"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Account Verification

Use this information to process an account verification when the app is in Local mode. The account verification transaction submits a zero-amount authorization request to validate the payment card.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for an Account Verification

type
Set the value to
AccountVerificationRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.currency
Set the value to the currency code.

REST Example: Account Verification

Request
{
      "type": "AccountVerificationRequest",
      "merchantReferenceCode": "ec119c3b377542b09132867d236dc834",
      "amountDetails": {
        "currency": "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
 {
      "type" : "AccountVerificationResponse",
      "message" : "Verification successful",
      "transactionDetails" : {
        "id" : "2dd6beb00d8d4bb8bf1a4718917a3003",
        "merchantReferenceCode" : "ec119c3b377542b09132867d236dc834",
        "submitTimeUtc" : "2023-12-01T20:27:02+0000",
        "amountDetails" : {
          "currency" : "GBP"
        }
      },
      "processingDetails" : {
        "status" : "APPROVED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014624258386432804007"
      },
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nAccount Verification\n£0.00\n\n\nAccount Valid.\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938239\nMerchant ID: **37599\nTerminal ID: ****0063\n\n2dd6beb00d8d4bb8bf1a4718917a3003\n21:27:07: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938239"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Account Verification"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "2dd6beb00d8d4bb8bf1a4718917a3003"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£0.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:27:07"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Account Valid."
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nAccount Verification\n£0.00\n\n\nAccount Valid.\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938239\nMerchant ID: **37599\nTerminal ID: ****0063\n\n2dd6beb00d8d4bb8bf1a4718917a3003\n21:27:07: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938239"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Account Verification"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "2dd6beb00d8d4bb8bf1a4718917a3003"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£0.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:27:07"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Account Valid."
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Offline Transactions

Offline mode is an optional feature that you can use to process offline sale and refund transactions when an internet connection is not available. The device must be operating in Local mode to enable or disable this feature. The default setting is
Disabled
.
You can enable or disable Offline mode in the Acceptance Devices app, through a REST API request, or in the
Business Center
, where you can also customize settings. For more information, see Customizing the Acceptance Devices App.
WARNING
By using this feature, you assume the risk of failed transactions and the possibility of increased fraud and chargebacks. Process transactions offline only when required, such as during an internet outage. Whenever possible, process transactions online instead. For more information, see Sale.
When an internet connect is available, you must submit the offline transactions batch for authorization while the app is in Offline mode. For more information, see Submit an Offline Transactions Batch for Authorization.

Enable or Disable Offline Mode in the Acceptance Device App

IMPORTANT
The recommendation is to resume operating in online mode as soon as an internet connection is available. To do so, you must first disable Offline mode.
Follow these steps to enable or disable Offline mode in the Acceptance Device App:
  1. In the Acceptance Devices app, tap
    Settings
    .
  2. Enter your Acceptance Devices app passcode.
  3. Tap
    Offline Mode
    .
  4. Toggle Enable Offline Mode to
    ON
     or
    OFF
    .
  5. Tap the back navigation arrow to return to the home screen.

Enable or Disable Offline Mode Using a REST API Request

Use this information to enable or disable Offline mode in your POS system by using a REST API request.
When Offline mode is disabled, the offline transactions batch is automatically submitted for authorization. Make sure that an internet connection is available before disabling Offline mode.
IMPORTANT
The recommendation is to resume operating in online mode as soon as an internet connection is available. To do so, you must first disable Offline mode.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields to Enable or Disable Offline Mode Using a REST API Request

type
Set the value to
OfflineModeRequest
.
enabled
Set the value to
true
 to enable Offline mode or to
false
 to disable Offline mode.

REST Example: Enable or Disable Offline Mode Using a REST API Request

Request
{
  "type": "OfflineModeRequest",
  "enabled": true
}
Mid-Transaction Status Updates
During the operation, you might receive one or more update responses indicating the current status of the operation. You can choose to display these updates on your point-of-sale (POS) system.
{
  "type": "OperationStatusResponse",
  "message": "Status update to display."
}
Response to a Successful Request
{
  "type": "OfflineModeResponse",
  "message": "Offline mode enabled."
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
    "type": "ErrorResponse",
    "message": "Error message to display.",
    "developerDescription": "Detailed description of error."
}

Offline Sale

Use this information to process an offline sale when the app is in Local mode and Offline mode is enabled to process transactions. This type of transaction combines an authorization and a capture into a single transaction.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for an Offline Sale

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

REST Example: Offline Sale

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
      "amountDetails" : {
        "amount" : "1.00",
        "currency" : "GBP"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
      "type" : "PaymentResponse",
      "message" : "Payment accepted",
      "transactionDetails" : {
        "id" : "1541387b383d456aabb81cdf558b4e8e",
        "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc" : "2023-12-01T20:24:47+0000",
        "captured" : true,
        "amountDetails" : {
          "currency" : "GBP",
          "amount" : "1.00",
          "capturedAmount" : "1.00",
          "refundableAmount" : "1.00"
        }
      },
      "processingDetails" : {
        "status" : "ACCEPTED",
        "verificationMethod" : "NONE",
        "entryMode" : "NFC_ICC",
        "card" : {
          "expirationMonth" : "12",
          "expirationYear" : "2025",
          "type" : "VISA",
          "maskedPan" : "476173XXXXXX0119",
          "countryCode" : "840"
        }
      },
      "additionalInformation" : {
        "instrumentId" : "7030000000022690119",
        "requestId" : "7014622903166318504010"
      },
      "linkedOperations" : [ ],
      "receipts" : {
        "merchantReceipt" : {
          "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Merchant Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        },
        "customerReceipt" : {
          "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nSale\n£1.00\n\n\nPlease retain receipt!\n\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: None\n\nAuthorization: 938238\nMerchant ID: **37599\nTerminal ID: ****0063\n\n1541387b383d456aabb81cdf558b4e8e\n21:24:51: 01/12/2023\n\n\n",
          "receiptData" : {
            "lines" : {
              "MERCHANT_DETAILS_PUBLIC_NAME" : {
                "label" : "Name",
                "value" : "CP Test"
              },
              "MERCHANT_DETAILS_ADDRESS" : {
                "label" : "Address",
                "value" : "Sample Street"
              },
              "MERCHANT_DETAILS_ZIP" : {
                "label" : "Zip",
                "value" : "UB3 2EA"
              },
              "MERCHANT_DETAILS_CITY" : {
                "label" : "City",
                "value" : "London"
              },
              "MERCHANT_DETAILS_COUNTRY" : {
                "label" : "Country",
                "value" : "United Kingdom"
              },
              "MERCHANT_DETAILS_CONTACT" : {
                "label" : "Contact",
                "value" : "1234567"
              },
              "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
                "label" : "Additional Information",
                "value" : ""
              },
              "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
                "label" : "Card",
                "value" : "Payworks VISA"
              },
              "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
                "label" : "Account",
                "value" : "**** **** **** 0119"
              },
              "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
                "label" : "AID",
                "value" : "A0000000031010"
              },
              "PAYMENT_DETAILS_SOURCE" : {
                "label" : "Entry Mode",
                "value" : "Contactless"
              },
              "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
                "label" : "Verification",
                "value" : "None"
              },
              "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
                "label" : "Authorization",
                "value" : "938238"
              },
              "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
                "label" : "Merchant ID",
                "value" : "**37599"
              },
              "CLEARING_DETAILS_TERMINAL_ID" : {
                "label" : "Terminal ID",
                "value" : "****0063"
              },
              "RECEIPT_TYPE" : {
                "label" : "Receipt Type",
                "value" : "Cardholder Receipt"
              },
              "TRANSACTION_TYPE" : {
                "label" : "Type",
                "value" : "Sale"
              },
              "SUBJECT" : {
                "label" : "Description",
                "value" : ""
              },
              "IDENTIFIER" : {
                "label" : "PWID",
                "value" : "1541387b383d456aabb81cdf558b4e8e"
              },
              "AMOUNT_AND_CURRENCY" : {
                "label" : "Amount",
                "value" : "£1.00"
              },
              "DATE" : {
                "label" : "Date",
                "value" : "01/12/2023"
              },
              "TIME" : {
                "label" : "Time",
                "value" : "21:24:51"
              },
              "STATUS_TEXT" : {
                "label" : "Information",
                "value" : "Please retain receipt!"
              }
            },
            "signatureLineRequired" : false
          }
        }
      }
}

Offline Refund

Follow these steps to process an offline refund when the app is in Local mode and Offline mode is enabled to process transactions.
  1. In the Acceptance Devices app, tap
    Settings
    .
  2. Enter your Acceptance Devices app passcode.
  3. Tap
    Offline Mode
    .
  4. Tap the transaction you want to refund.
  5. Tap
    Refund
    .
  6. Enter the transaction amount.
  7. Tap
    Refund
     to start the transaction.

Submit an Offline Transactions Batch for Authorization

IMPORTANT
The recommendation is to submit the batch for authorization as soon as an internet connection is available. To submit a batch, Offline mode must be enabled.
Follow these steps to submit an offline transactions batch for authorization when Offline mode is enabled.
  1. In the Acceptance Devices app, tap
    Settings
    .
  2. Enter your Acceptance Devices app passcode.
  3. Tap
    Offline Mode
    .
  4. Tap
    Submit Offline Batch
    .

Cashback

Use this information to process a cashback transaction when the app is in Local mode. This type of transaction enables customers to request that a specified amount of cash to be given to them as part of the transaction. A cashback transaction can be processed with or without a purchase.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Cashback

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
amountDetails.cashbackAmount
Set the value to the cashback amount.

REST Example: Cashback

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "bd74d30930e349548fd9d125f88291bc",
      "amountDetails" : {
        "amount" : "20.00",
        "currency" : "GBP",
        "cashbackAmount" : "5.00"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
  "type" : "PaymentResponse",
  "message" : "Payment approved",
  "transactionDetails" : {
    "id" : "218b28d38bf3424ab4ade95b9be1c75b",
    "merchantReferenceCode" : "bd74d30930e349548fd9d125f88291bc",
    "submitTimeUtc" : "2024-03-20T08:55:37+0000",
    "captured" : true,
    "amountDetails" : {
      "currency" : "GBP",
      "amount" : "20.00",
      "capturedAmount" : "25.00",
      "refundableAmount" : "20.00",
      "cashbackAmount" : "5.00"
    }
  },
  "processingDetails" : {
    "status" : "APPROVED",
    "verificationMethod" : "PIN",
    "entryMode" : "ICC",
    "card" : {
      "expirationMonth" : "12",
      "expirationYear" : "2025",
      "type" : "MASTERCARD",
      "maskedPan" : "541333XXXXXX0011",
      "countryCode" : "276"
    }
  },
  "additionalInformation" : {
    "instrumentId" : "7030000000232230011",
    "requestId" : "7109249459396751504008"
  },
  "linkedOperations" : [ ],
  "tipAdjustStatus" : "NOT_ADJUSTABLE",
  "receipts" : {
    "merchantReceipt" : {
      "preformattedReceipt" : "Merchant Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nCashback\n£25.00\nPurchase Amount: £20.00\nCashback: £5.00\nPlease retain receipt!\n\nCard: Payworks MASTER\nAccount: **** **** **** 0011\nEntry Mode: Chip\nAID: A0000000041010\nCard Number: 0\nVerification: PIN\n\nAuthorization: 002500\nMerchant ID: **37599\nTerminal ID: ****0063\n\n\n218b28d38bf3424ab4ade95b9be1c75b\n\n09:55:46: 20/03/2024\n\n\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "UB3 2EA"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "London"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United Kingdom"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks MASTER"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0011"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000041010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Chip"
          },
          "PAYMENT_DETAILS_ACCOUNT_SEQUENCE_NUMBER" : {
            "label" : "Card Number",
            "value" : "0"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "PIN"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002500"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****0063"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Merchant Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Cashback"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "218b28d38bf3424ab4ade95b9be1c75b"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "09:55:46"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : false,
        "totalLineRequired" : false
      }
    },
    "customerReceipt" : {
      "preformattedReceipt" : "Cardholder Receipt\nCP Test\nSample Street\nUB3 2EA London\nUnited Kingdom\n1234567\n\nCashback\n£25.00\nPurchase Amount: £20.00\nCashback: £5.00\nPlease retain receipt!\n\nCard: Payworks MASTER\nAccount: **** **** **** 0011\nEntry Mode: Chip\nAID: A0000000041010\nCard Number: 0\nVerification: PIN\n\nAuthorization: 002500\nMerchant ID: **37599\nTerminal ID: ****0063\n\n\n218b28d38bf3424ab4ade95b9be1c75b\n\n09:55:46: 20/03/2024\n\n\n",
      "receiptData" : {
        "lines" : {
          "MERCHANT_DETAILS_PUBLIC_NAME" : {
            "label" : "Name",
            "value" : "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS" : {
            "label" : "Address",
            "value" : "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP" : {
            "label" : "Zip",
            "value" : "UB3 2EA"
          },
          "MERCHANT_DETAILS_CITY" : {
            "label" : "City",
            "value" : "London"
          },
          "MERCHANT_DETAILS_COUNTRY" : {
            "label" : "Country",
            "value" : "United Kingdom"
          },
          "MERCHANT_DETAILS_CONTACT" : {
            "label" : "Contact",
            "value" : "1234567"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION" : {
            "label" : "Additional Information",
            "value" : ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL" : {
            "label" : "Card",
            "value" : "Payworks MASTER"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT" : {
            "label" : "Account",
            "value" : "**** **** **** 0011"
          },
          "PAYMENT_DETAILS_EMV_APPLICATION_ID" : {
            "label" : "AID",
            "value" : "A0000000041010"
          },
          "PAYMENT_DETAILS_SOURCE" : {
            "label" : "Entry Mode",
            "value" : "Chip"
          },
          "PAYMENT_DETAILS_ACCOUNT_SEQUENCE_NUMBER" : {
            "label" : "Card Number",
            "value" : "0"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION" : {
            "label" : "Verification",
            "value" : "PIN"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE" : {
            "label" : "Authorization",
            "value" : "002500"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER" : {
            "label" : "Merchant ID",
            "value" : "**37599"
          },
          "CLEARING_DETAILS_TERMINAL_ID" : {
            "label" : "Terminal ID",
            "value" : "****0063"
          },
          "RECEIPT_TYPE" : {
            "label" : "Receipt Type",
            "value" : "Cardholder Receipt"
          },
          "TRANSACTION_TYPE" : {
            "label" : "Type",
            "value" : "Cashback"
          },
          "SUBJECT" : {
            "label" : "Description",
            "value" : ""
          },
          "IDENTIFIER" : {
            "label" : "PWID",
            "value" : "218b28d38bf3424ab4ade95b9be1c75b"
          },
          "DATE" : {
            "label" : "Date",
            "value" : "20/03/2024"
          },
          "TIME" : {
            "label" : "Time",
            "value" : "09:55:46"
          },
          "STATUS_TEXT" : {
            "label" : "Information",
            "value" : "Please retain receipt!"
          }
        },
        "signatureLineRequired" : false,
        "tipLineRequired" : false,
        "totalLineRequired" : false
      }
    }
  }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Sale with Installment Details

Use this information to process a sale transaction with installment details when the app is in Local mode. This type of transaction can be used to include the required installment details as part of the sale transaction.
This transaction is available only in the Latin American and Caribbean (LAC) region.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale with Installment Details

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

Optional Fields for a Sale with Installment Details

Use one or more of the optional
installmentDetails
 fields to provide additional installment details.
installmentDetails.numberOfInstallments
Set the value to the number of installments.
installmentDetails.planType
Set the value to
MERCHANT_FUNDED
 or
ISSUER_FUNDED
.
installmentDetails.interestPlan
Set the value to
true
 or
false
.
installmentDetails.governmentPlan
Set the value to
true
 or
false
.

REST Example: Sale with Installment Details

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
      "amountDetails" : {
        "amount" : "20.00",
        "currency" : "USD"
      },
      "installmentDetails": {
        "numberOfInstallments": 5,
        "planType": "MERCHANT_FUNDED",
        "interestPlan": true,
        "governmentPlan": true
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
    "type": "PaymentResponse",
    "message": "Payment approved",
    "transactionDetails": {
        "id": "8ccb150a88bd4c6f9a00a687f39ca97d",
        "merchantReferenceCode": "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc": "2024-09-20T08:15:12+0000",
        "captured": true,
        "amountDetails": {
            "amount": "20.00",
            "currency": "USD",
            "capturedAmount": "20.00",
            "refundableAmount": "20.00"
        }
    },
    "processingDetails": {
        "status": "APPROVED",
        "verificationMethod": "NONE",
        "entryMode": "NFC_ICC",
        "card": {
            "expirationMonth": "12",
            "expirationYear": "2025",
            "type": "VISA",
            "maskedPan": "476173XXXXXX0119",
            "countryCode": "840"
        }
    },
    "additionalInformation": {
        "requestId": "7268201146336069504011"
    },
    "linkedOperations": [],
    "receipts": {
        "merchantReceipt": {
            "preformattedReceipt": "Merchant Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$20.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 546712\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n8ccb150a88bd4c6f9a00a687f39ca97d\n\n4:15:12 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "546712"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Merchant Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "8ccb150a88bd4c6f9a00a687f39ca97d"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$20.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "4:15:12 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        },
        "customerReceipt": {
            "preformattedReceipt": "Cardholder Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$20.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 546712\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n8ccb150a88bd4c6f9a00a687f39ca97d\n\n4:15:12 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "546712"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Cardholder Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "8ccb150a88bd4c6f9a00a687f39ca97d"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$20.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "4:15:12 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        }
    },
    "installmentDetails": {
        "numberOfInstallments": 5,
        "planType": "MERCHANT_FUNDED",
        "interestPlan": true,
        "governmentPlan": true
    }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Sale with Payment Facilitator Details

Use this information to process a sale transaction with payment facilitator details when the app is in Local mode. This type of transaction can be used to include the required payment facilitator details as part of the sale transaction.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale with Payment Facilitator Details

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

Optional Fields for a Sale with Payment Facilitator Details

Use one or more of the optional
merchantDetails
 fields to provide additional payment facilitator details.
merchantDetails.salesOrganizationId
Set the value to the sales organization identifier.
merchantDetails.subMerchantId
Set the value to the sub-merchant identifier.
merchantDetails.descriptorName
Set the value to the descriptor name.

REST Example: Sale with Payment Facilitator Details

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
      "amountDetails" : {
        "amount" : "1.00",
        "currency" : "USD"
      },
      "merchantDetails": {
        "salesOrganizationId": "12345",
        "subMerchantId": "SM67890",
        "descriptorName": "ExampleMerchant"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
    "type": "PaymentResponse",
    "message": "Payment approved",
    "transactionDetails": {
        "id": "940d49ee94444764acb1c898e2254954",
        "merchantReferenceCode": "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc": "2024-09-20T07:53:36+0000",
        "captured": true,
        "amountDetails": {
            "amount": "1.00",
            "currency": "USD",
            "capturedAmount": "1.00",
            "refundableAmount": "1.00"
        }
    },
    "processingDetails": {
        "status": "APPROVED",
        "verificationMethod": "NONE",
        "entryMode": "NFC_ICC",
        "card": {
            "expirationMonth": "12",
            "expirationYear": "2025",
            "type": "VISA",
            "maskedPan": "476173XXXXXX0119",
            "countryCode": "840"
        }
    },
    "additionalInformation": {
        "requestId": "7268188188226629104009"
    },
    "linkedOperations": [],
    "receipts": {
        "merchantReceipt": {
            "preformattedReceipt": "Merchant Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$1.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 545814\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n940d49ee94444764acb1c898e2254954\n\n3:53:36 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "545814"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Merchant Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "940d49ee94444764acb1c898e2254954"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$1.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "3:53:36 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        },
        "customerReceipt": {
            "preformattedReceipt": "Cardholder Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$1.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 545814\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n940d49ee94444764acb1c898e2254954\n\n3:53:36 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "545814"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Cardholder Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "940d49ee94444764acb1c898e2254954"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$1.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "3:53:36 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        }
    },
    "merchantDetails": {
        "salesOrganizationId": "12345",
        "subMerchantId": "SM67890",
        "descriptorName": "ExampleMerchant"
    }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Sale with Tax Details

Use this information to process a sale transaction with tax details when the app is in Local mode. This type of transaction can be used to include the required tax details as part of the sale transaction.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for a Sale with Tax Details

type
Set the value to
PaymentRequest
.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.

Optional Fields for a Sale with Tax Details

Use one or more of the optional
taxDetails
 fields to provide additional tax details.
taxDetails.taxId
Set the value to the merchant tax identifier.
taxDetails.salesSlipNumber
Set the value to the sales slip number.
taxDetails.includedTaxAmount
Set the value to the tax amount.
taxDetails.includedLocalTaxAmount
Set the value to the local tax amount.
taxDetails.includedNationalTaxAmount
Set the value to the national tax amount.

REST Example: Sale with Tax Details

Request
{
      "type" : "PaymentRequest",
      "merchantReferenceCode" : "058ed6c3430e436dab91b782f4113fd2",
      "amountDetails" : {
        "amount" : "20.00",
        "currency" : "USD"
      },
      "taxDetails": {
        "taxId": "TaxID1234",
        "salesSlipNumber": 12345678,
        "includedTaxAmount": "5.00",
        "includedLocalTaxAmount": "1.00",
        "includedNationalTaxAmount": "2.00"
      }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "TransactionStatusResponse",
      "message": "Status update to display.",
      "canBeAborted": true/false
}
Response to a Successful Request
{
    "type": "PaymentResponse",
    "message": "Payment approved",
    "transactionDetails": {
        "id": "4bebd72cf0ff4a9ea212baca0c6d9faf",
        "merchantReferenceCode": "058ed6c3430e436dab91b782f4113fd2",
        "submitTimeUtc": "2024-09-20T07:15:25+0000",
        "captured": true,
        "amountDetails": {
            "amount": "20.00",
            "currency": "USD",
            "capturedAmount": "20.00",
            "refundableAmount": "20.00"
        }
    },
    "processingDetails": {
        "status": "APPROVED",
        "verificationMethod": "NONE",
        "entryMode": "NFC_ICC",
        "card": {
            "expirationMonth": "12",
            "expirationYear": "2025",
            "type": "VISA",
            "maskedPan": "476173XXXXXX0119",
            "countryCode": "840"
        }
    },
    "additionalInformation": {
        "requestId": "7268165283576248404007"
    },
    "linkedOperations": [],
    "receipts": {
        "merchantReceipt": {
            "preformattedReceipt": "Merchant Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$20.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 129702\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n4bebd72cf0ff4a9ea212baca0c6d9faf\n\n3:15:25 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "129702"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Merchant Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "4bebd72cf0ff4a9ea212baca0c6d9faf"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$20.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "3:15:25 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        },
        "customerReceipt": {
            "preformattedReceipt": "Cardholder Receipt\nTest\nSample Street 123\n34351 New York\nUnited States\n12345678\n\nPayment\nUSD$20.00\n\nPlease retain receipt!\n\nCard: Payworks VISA\nAccount: **** **** **** 0119\nEntry Mode: Contactless\nAID: A0000000031010\nVerification: No Verification\n\nTransaction: 129702\nAuthorization: 831000\nMerchant ID: ************st051\nTerminal ID: ****7069\n\n\n4bebd72cf0ff4a9ea212baca0c6d9faf\n\n3:15:25 AM: 9/20/2024\n\n\n",
            "receiptData": {
                "signatureLineRequired": false,
                "lines": {
                    "MERCHANT_DETAILS_PUBLIC_NAME": {
                        "label": "Name",
                        "value": "Test"
                    },
                    "MERCHANT_DETAILS_ADDRESS": {
                        "label": "Address",
                        "value": "Sample Street 123"
                    },
                    "MERCHANT_DETAILS_ZIP": {
                        "label": "Zip",
                        "value": "34351"
                    },
                    "MERCHANT_DETAILS_CITY": {
                        "label": "City",
                        "value": "New York"
                    },
                    "MERCHANT_DETAILS_COUNTRY": {
                        "label": "Country",
                        "value": "United States"
                    },
                    "MERCHANT_DETAILS_CONTACT": {
                        "label": "Contact",
                        "value": "12345678"
                    },
                    "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
                        "label": "Additional Information",
                        "value": ""
                    },
                    "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
                        "label": "Card",
                        "value": "Payworks VISA"
                    },
                    "PAYMENT_DETAILS_MASKED_ACCOUNT": {
                        "label": "Account",
                        "value": "**** **** **** 0119"
                    },
                    "PAYMENT_DETAILS_EMV_APPLICATION_ID": {
                        "label": "AID",
                        "value": "A0000000031010"
                    },
                    "PAYMENT_DETAILS_SOURCE": {
                        "label": "Entry Mode",
                        "value": "Contactless"
                    },
                    "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
                        "label": "Verification",
                        "value": "No Verification"
                    },
                    "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
                        "label": "Transaction",
                        "value": "129702"
                    },
                    "CLEARING_DETAILS_AUTHORIZATION_CODE": {
                        "label": "Authorization",
                        "value": "831000"
                    },
                    "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
                        "label": "Merchant ID",
                        "value": "************st051"
                    },
                    "CLEARING_DETAILS_TERMINAL_ID": {
                        "label": "Terminal ID",
                        "value": "****7069"
                    },
                    "RECEIPT_TYPE": {
                        "label": "Receipt Type",
                        "value": "Cardholder Receipt"
                    },
                    "TRANSACTION_TYPE": {
                        "label": "Type",
                        "value": "Payment"
                    },
                    "SUBJECT": {
                        "label": "Description",
                        "value": ""
                    },
                    "IDENTIFIER": {
                        "label": "PWID",
                        "value": "4bebd72cf0ff4a9ea212baca0c6d9faf"
                    },
                    "AMOUNT_AND_CURRENCY": {
                        "label": "Amount",
                        "value": "USD$20.00"
                    },
                    "DATE": {
                        "label": "Date",
                        "value": "9/20/2024"
                    },
                    "TIME": {
                        "label": "Time",
                        "value": "3:15:25 AM"
                    },
                    "STATUS_TEXT": {
                        "label": "Information",
                        "value": "Please retain receipt!"
                    }
                },
                "tipLineRequired": false,
                "totalLineRequired": false
            }
        }
    },
    "taxDetails": {
        "taxId": "TaxID1234",
        "salesSlipNumber": 12345678,
        "includedTaxAmount": "5.00",
        "includedLocalTaxAmount": "1.00",
        "includedNationalTaxAmount": "2.00"
    }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
      "type": "ErrorResponse",
      "message": "Error message to display.",
      "developerDescription": "Detailed description of error."
}

Electronic Benefits Transfer

Public assistance programs in the United States use Electronic Benefits Transfer (EBT) payment cards to issue monthly food and cash benefits to eligible people. EBT cards function like prepaid debit cards that can be used at authorized retailers. Food benefits are issued through the Supplemental Nutrition Assistance Program (SNAP), which helps people with low incomes purchase eligible food items.
Use this information to process EBT SNAP (food benefits) and EBT Cash transactions when the app is in Local mode.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields for Electronic Benefits Transfer

type
Set the value to
PaymentRequest
 for a sale or to
StandaloneRefundRequest
 for a stand-alone credit.
merchantReferenceCode
Set the value to a unique, user-defined reference code. The code can consist of up to 50 alphanumeric characters, underscores (_), and dashes (-). Avoid using formatting that resembles a telephone number (XXX-XXX-XXXX) or a Social Security number (XXX-XX-XXXX).
amountDetails.amount
Set the value to the transaction amount.
amountDetails.currency
Set the value to the currency code.
paymentMode
Set the value to
EBT
.
ebtDetails.category
Set the value to
FOOD
 for EBT SNAP (food benefits) and
CASH
 for EBT Cash.

Optional Fields for Electronic Benefits Transfer

ebtDetails.isBalanceInquiry
Set the value to
true
 for a balance inquiry. The transaction amount must be set to
0
.
ebtDetails.isVoucher
Set the value to
true
 for a voucher transaction.
amountDetails.cashbackAmount
Set the value to the cashback amount for a cashback transaction.

REST Example: Electronic Benefits Transfer SNAP Sale

Request
{
  "type": "PaymentRequest",
  "merchantReferenceCode": "82910b8b430a414dbe224e4494545b02",
  "paymentMode": "EBT",
  "amountDetails": {
    "amount": "1.00",
    "currency": "USD"
  },
  "ebtDetails": {
    "category": "FOOD"
  }
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
  "type": "TransactionStatusResponse",
  "message": "Status update to display.",
  "canBeAborted": true
}
Response to a Successful Request
{
  "type": "PaymentResponse",
  "message": "Payment approved",
  "transactionDetails": {
    "id": "bd9c4ddd5bb84aafa42f16f2660f76c7",
    "merchantReferenceCode": "82910b8b430a414dbe224e4494545b02",
    "submitTimeUtc": "2025-09-29T09:04:02+0000",
    "captured": true,
    "amountDetails": {
      "currency": "USD",
      "amount": "1.00",
      "capturedAmount": "1.00",
      "refundableAmount": "1.00"
    }
  },
  "processingDetails": {
    "status": "APPROVED",
    "verificationMethod": "PIN",
    "entryMode": "MAGNETIC_STRIPE",
    "card": {
      "expirationMonth": "00",
      "expirationYear": "00",
      "type": "EBT",
      "maskedPan": "507719XXXXXX4720"
    }
  },
  "additionalInformation": {
    "requestId": "7591366618376609904603"
  },
  "linkedOperations": [],
  "tipAdjustStatus": "NOT_ADJUSTABLE",
  "receipts": {
    "merchantReceipt": {
      "preformattedReceipt": "Merchant Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n555555555\n\nPayment\n$1.00\n\nPlease retain receipt!\n\nCard: EBT\nAccount: **** **** **** 4720\nEntry Mode: Magstripe\nVerification: Verified by PIN\n\nTransaction: 673579\nAuthorization: 831000\nMerchant ID: ******************nt001\nTerminal ID: ****1459\n\n\nbd9c4ddd5bb84aafa42f16f2660f76c7\n\n2:34:22 PM: 9/29/2025\n\n\n",
      "receiptData": {
        "lines": {
          "MERCHANT_DETAILS_PUBLIC_NAME": {
            "label": "Name",
            "value": "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS": {
            "label": "Address",
            "value": "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP": {
            "label": "Zip",
            "value": "55555"
          },
          "MERCHANT_DETAILS_CITY": {
            "label": "City",
            "value": "New York"
          },
          "MERCHANT_DETAILS_COUNTRY": {
            "label": "Country",
            "value": "United States"
          },
          "MERCHANT_DETAILS_CONTACT": {
            "label": "Contact",
            "value": "555555555"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
            "label": "Additional Information",
            "value": ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
            "label": "Card",
            "value": "EBT"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT": {
            "label": "Account",
            "value": "**** **** **** 4720"
          },
          "PAYMENT_DETAILS_SOURCE": {
            "label": "Entry Mode",
            "value": "Magstripe"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
            "label": "Verification",
            "value": "Verified by PIN"
          },
          "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
            "label": "Transaction",
            "value": "673579"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE": {
            "label": "Authorization",
            "value": "831000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
            "label": "Merchant ID",
            "value": "******************nt001"
          },
          "CLEARING_DETAILS_TERMINAL_ID": {
            "label": "Terminal ID",
            "value": "****1459"
          },
          "RECEIPT_TYPE": {
            "label": "Receipt Type",
            "value": "Merchant Receipt"
          },
          "TRANSACTION_TYPE": {
            "label": "Type",
            "value": "Payment"
          },
          "SUBJECT": {
            "label": "Description",
            "value": ""
          },
          "IDENTIFIER": {
            "label": "PWID",
            "value": "bd9c4ddd5bb84aafa42f16f2660f76c7"
          },
          "AMOUNT_AND_CURRENCY": {
            "label": "Amount",
            "value": "$1.00"
          },
          "DATE": {
            "label": "Date",
            "value": "9/29/2025"
          },
          "TIME": {
            "label": "Time",
            "value": "2:34:22 PM"
          },
          "STATUS_TEXT": {
            "label": "Information",
            "value": "Please retain receipt!"
          }
        },
        "signatureLineRequired": false,
        "tipLineRequired": false,
        "totalLineRequired": false
      }
    },
    "customerReceipt": {
      "preformattedReceipt": "Cardholder Receipt\nCP Test\nSample Street\n55555 New York\nUnited States\n555555555\n\nPayment\n$1.00\n\nPlease retain receipt!\n\nCard: EBT\nAccount: **** **** **** 4720\nEntry Mode: Magstripe\nVerification: Verified by PIN\n\nTransaction: 673579\nAuthorization: 831000\nMerchant ID: ******************nt001\nTerminal ID: ****1459\n\n\nbd9c4ddd5bb84aafa42f16f2660f76c7\n\n2:34:22 PM: 9/29/2025\n\n\n",
      "receiptData": {
        "lines": {
          "MERCHANT_DETAILS_PUBLIC_NAME": {
            "label": "Name",
            "value": "CP Test"
          },
          "MERCHANT_DETAILS_ADDRESS": {
            "label": "Address",
            "value": "Sample Street"
          },
          "MERCHANT_DETAILS_ZIP": {
            "label": "Zip",
            "value": "55555"
          },
          "MERCHANT_DETAILS_CITY": {
            "label": "City",
            "value": "New York"
          },
          "MERCHANT_DETAILS_COUNTRY": {
            "label": "Country",
            "value": "United States"
          },
          "MERCHANT_DETAILS_CONTACT": {
            "label": "Contact",
            "value": "555555555"
          },
          "MERCHANT_DETAILS_ADDITIONAL_INFORMATION": {
            "label": "Additional Information",
            "value": ""
          },
          "PAYMENT_DETAILS_SCHEME_OR_LABEL": {
            "label": "Card",
            "value": "EBT"
          },
          "PAYMENT_DETAILS_MASKED_ACCOUNT": {
            "label": "Account",
            "value": "**** **** **** 4720"
          },
          "PAYMENT_DETAILS_SOURCE": {
            "label": "Entry Mode",
            "value": "Magstripe"
          },
          "PAYMENT_DETAILS_CUSTOMER_VERIFICATION": {
            "label": "Verification",
            "value": "Verified by PIN"
          },
          "CLEARING_DETAILS_TRANSACTION_IDENTIFIER": {
            "label": "Transaction",
            "value": "673579"
          },
          "CLEARING_DETAILS_AUTHORIZATION_CODE": {
            "label": "Authorization",
            "value": "831000"
          },
          "CLEARING_DETAILS_MERCHANT_IDENTIFIER": {
            "label": "Merchant ID",
            "value": "******************nt001"
          },
          "CLEARING_DETAILS_TERMINAL_ID": {
            "label": "Terminal ID",
            "value": "****1459"
          },
          "RECEIPT_TYPE": {
            "label": "Receipt Type",
            "value": "Cardholder Receipt"
          },
          "TRANSACTION_TYPE": {
            "label": "Type",
            "value": "Payment"
          },
          "SUBJECT": {
            "label": "Description",
            "value": ""
          },
          "IDENTIFIER": {
            "label": "PWID",
            "value": "bd9c4ddd5bb84aafa42f16f2660f76c7"
          },
          "AMOUNT_AND_CURRENCY": {
            "label": "Amount",
            "value": "$1.00"
          },
          "DATE": {
            "label": "Date",
            "value": "9/29/2025"
          },
          "TIME": {
            "label": "Time",
            "value": "2:34:22 PM"
          },
          "STATUS_TEXT": {
            "label": "Information",
            "value": "Please retain receipt!"
          }
        },
        "signatureLineRequired": false,
        "tipLineRequired": false,
        "totalLineRequired": false
      }
    }
  },
  "ebtDetails": {
    "category": "FOOD"
  }
}

Custom Card Read

Use this information to obtain data from custom cards such as gift cards, loyalty program cards, and employee cards when the app is in Local mode. This service cannot be used to perform payment functions.
IMPORTANT
Custom Card Read is supported for non-PCI cards only. To use this service, the card type must be on your allowlist. To add a card type to your allowlist, contact your implementation manager.
To retrieve the card data, swipe the card’s magnetic stripe through the payment device. The custom card read-only function reads and returns the raw card identifier to your app or point-of-sale (POS) system. You can then use the raw data within your app or POS system.
These are examples of how you might use the Custom Card Read feature:
  • Custom gift card:
     Use the card number to check a balance or process a payment in your private gift card network.
  • Employee card:
     Use the card number to look up an employee's profile or account.

Endpoints

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields to Perform a Custom Card Read

type
Set the value to
ReadCardRequest
.

REST Example: Custom Card Read

Request
{
   "type" : "ReadCardRequest"
}
Mid-Transaction Status Updates
During the transaction, you might receive one or more update responses indicating the current status of the transaction. You can choose to display these updates on your point-of-sale (POS) system.
{
   "type": "OperationStatusResponse",
   "message": "Status update to display."
}
Response to a Successful Request
{
  "type": "ReadCardResponse",
  "message": "Read Card Successfully",
  "cardDetails": {
    "expiryMonth": 12,
    "expiryYear": 2025,
    "track1": "%B4111111111111111^DOE/JOHN^2512101?",
    "track2": "4111111111111111=25121010000?",
    "cardNumber": "4111111111111111"
  }
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
   "type": "ErrorResponse",
   "message": "Error message to display.",
   "developerDescription": "Detailed description of error."
}

Printing a Customer or Merchant Receipt

Use this information to print a customer or merchant receipt from a previous transaction when the app is in Local mode. This feature can only be used with terminals that have integrated printers.

Endpoint

The endpoint is the same for the test and production environments.
Test:
wss://{terminal IP address:port number}/
Production:
wss://{terminal IP address:port number}/

Required Fields to Print a Customer or Merchant Receipt

type
Set the value to
PrintReceiptRequest
.
transactionId
Set the value to the ID field value from the original transaction.
receiptType
Set the value to
CUSTOMER
 or
MERCHANT
.

REST Example: Print a Customer or Merchant Receipt

Request
{
    "type": "PrintReceiptRequest",
    "transactionId": "8fe5fa21d0814424bcec4997c9dc89c4",
    "receiptType": "CUSTOMER"
}
Mid-Operation Status Updates
During the operation, you might receive one or more update responses indicating the current status of the operation. You can choose to display these updates on your point-of-sale (POS) system.
{
      "type": "OperationStatusResponse",
      "message": "Status update to display."
}
Response to a Successful Request
{
    "type": "PrintReceiptResponse",
    "message": "Receipt printed successfully."
}
Response to an Unsuccessful Request
When the request is unsuccessful, you receive an error response with details.
{
    "type": "ErrorResponse",
    "message": "Error message to display.",
    "developerDescription": "Detailed description of error."
}
RELATED TO THIS PAGE
