provides a single interface with which you can
accept numerous types of card, digital, and alternative payments.
Unified Checkout
calls other follow-on services such as Payments,
Decision Manager
,
Payer Authentication
, and
Token Management Service
(
TMS
).
Unified Checkout
consists of a server-side component and a
client-side JavaScript library.
The server-side component authenticates your merchant identity and instructs the
system to act within your payment environment. The response contains limited-use public
keys. The keys are for end-to-end encryption and contain merchant-specific payment
information that drives the interaction of the application. The client-side JavaScript
library dynamically and securely places digital payment options onto your e-commerce
page.
The provided JavaScript library enables you to securely accept many payment
options within your e-commerce environment.
Unified Checkout
can be
embedded seamlessly into your existing webpage, simplifying payment acceptance.
When a customer selects a payment method from the button widget,
Unified Checkout
handles all interactions with the payment method that was
chosen.
Unified Checkout
is also able to orchestrate requests for to
follow-on services such as Payments,
Decision Manager
,
Payer Authentication
, and
TMS
before it provides a
response to your e-commerce system.
The figure below shows
Unified Checkout
with customer checkout
payment options.
Figure:
Button Widget
For examples of different payment method UIs through
: You can use as few as three lines of JavaScript
to accept payments, as well as add or remove payment methods through portal
configuration without changing your integration code.
PCI SAQ-A compliant
: Payment data never touches your systems.
Fully customizable
: You can match the payment experience to your
brand with theming, fonts, and layout options. Embed inline or display as a
sidebar overlay.
Service orchestration
: You can use
Decision Manager
,
Payer Authentication
(
3-D Secure
), and
Token Management Service
(
TMS
) throughout the session.
Unified Checkout
Quick Start
Unified Checkout
is a powerful and flexible payment solution that
simplifies the integration process and enhances the customer checkout experience. This
guide will help you get up and running with
Unified Checkout
.
Key Features
Seamless integration with your existing e-commerce platform.
Support for multiple payment methods.
Customizable checkout flow.
Enhanced security features.
Responsive design for mobile and desktop.
Benefits
Simplified integration process.
Improved conversion rates.
Reduced cart abandonment.
Enhanced customer experience.
Compliance with industry security standards.
This graphic provides an overview of the steps you must follow to get set up with
Unified Checkout
:
Figure:
Unified Checkout
Integration Overview
Step 1: Enable
Unified Checkout
To begin using
Unified Checkout
, you must first ensure that your
merchant ID (MID) is configured to use the service and that any payment methods you
intend to use are properly set up.
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:

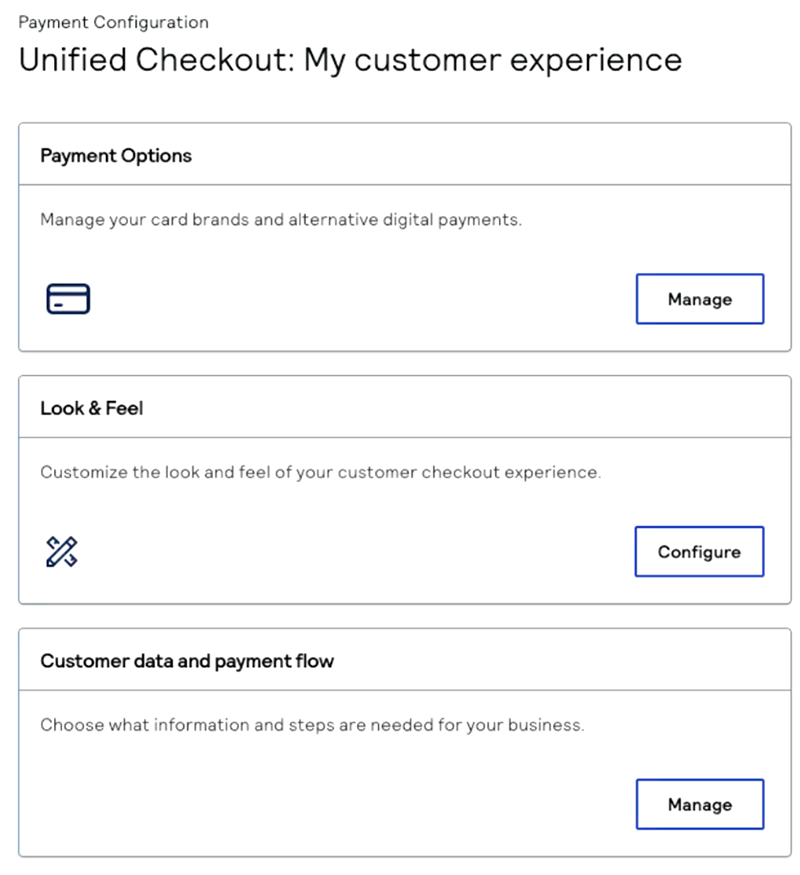

Figure:
Unified Checkout
Customer Experience
The
Unified Checkout
configuration interface provides complete
low-code control over your checkout experience by using dedicated configuration
screens accessible through the
Business Center
. The configuration
interface is organized into separate screens, each accessible from the
My
customer experience
page. Configure each of these components of the
checkout experience:

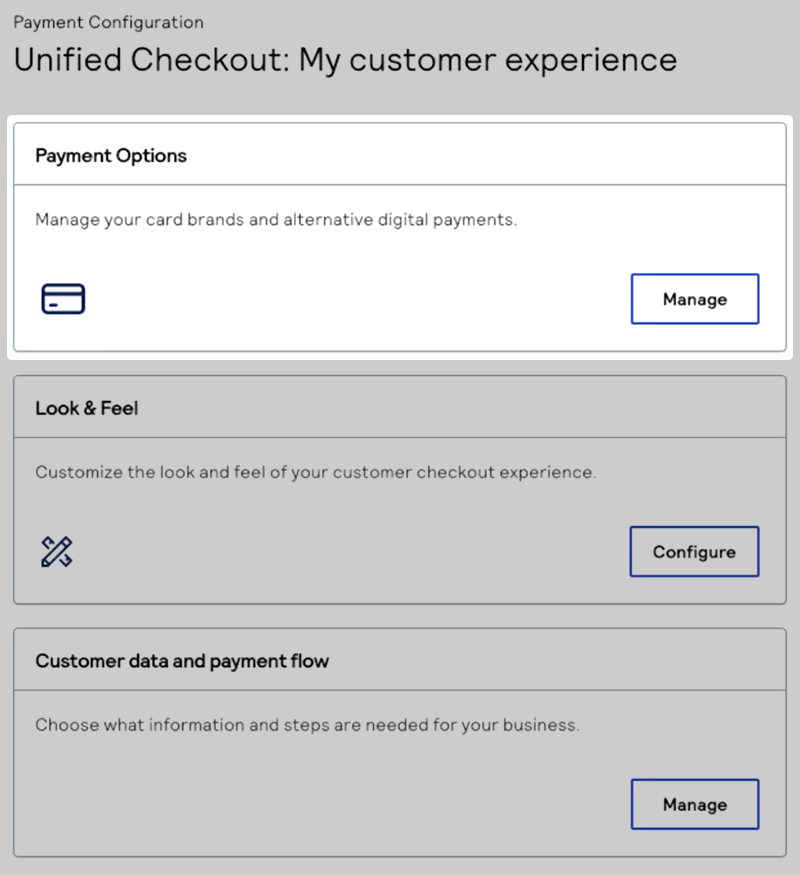

Payment Options
: Add, remove, and arrange payment methods. For
information about configuring payment methods, see Configure Payment Options.
within your webpage, you need to set
up the server-side component. This task involves generating a capture context. A capture
context is a signed JSON Web Token (JWT) that contains your merchant configuration,
one-time encryption keys, and payment parameters.
Follow these steps to make a
server-to-server call to the sessions API to authenticate your merchant credentials
and establish how the
Unified Checkout
front-end components will
function:
Implement a server-to-server call to the sessions API.
ADDITIONAL INFORMATION
This call should include parameters that define how
Unified Checkout
performs.
Handle the response from the sessions API.
ADDITIONAL INFORMATION
The response will contain:
A transaction-specific public key for securing the transaction in the
customer's browser.
An authenticated context description package that manages the payment
experience on the client side, including available payment options,
interface styling, and payment methods.
Store and manage the JSON Web Token (JWT) object, referred to as the
capture
context
.
This JWT contains all the functions compiled from the sessions API
response:
array must include every
origin that will host the SDK. The response JWT is passed to the client-side
library.
This capture context contains only the minimum required fields.
For information about the components of the capture context and how to
create one using the
. This attaches the payment UI to
your page. The argument determines the display mode:
Sidebar Mode
The payment screen appears as an overlay sidebar. Pass a CSS selector for the
payment button list, or omit it
entirely:
// Full sidebar — buttons and payment screen both in sidebar
const result = await checkout.mount();
// Buttons embedded, payment screen in sidebar
const result = await checkout.mount('#payment-buttons');
Embedded Mode
Both the button list and payment screen render inline within your page
layout:
const result = await checkout.mount({
paymentSelection: '#payment-buttons',
paymentScreen: '#payment-form'
});
Mount Result
When
autoProcessing
is enabled,
mount()
resolves with the completed payment result JWT once the customer finishes the
payment flow.
When
autoProcessing
is disabled,
mount()
resolves with a transient token JWT. You then call
Proper configuration ensures that your checkout process aligns with your business
needs and provides a smooth experience for your customers. You can configure the
checkout process in the
Business Center
:
Select and configure the payment methods you support:
, it's crucial to thoroughly test
your integration to ensure it works correctly and provides a smooth checkout experience
for your customers. This section outlines the steps to test your
Unified Checkout
integration.
Set up your test environment:
Log in to the
Business Center
account using your test
credentials.
Switch to the test environment if not already in test mode.
Set up a test website or application that integrates
Unified Checkout
.
Use test card numbers to simulate different payment scenarios.
Verify that the capture context object that you get from the sessions API is
correct and that your integration can handle tokens.
Ensure that your integration correctly handles the capture context and
transient tokens throughout the payment process.
Test error handling and edge cases.
Simulate various error scenarios to ensure your integration gracefully
handles and reports errors to the user.
Verify webhook notifications, if configured.
If you set up webhook notifications, ensure that your system correctly
receives and processes them for various transaction events. For information
about configuring your webhook notifications, see Webhooks Support.
AFTER COMPLETING THE TASK
After completing these testing steps, you should have confidence in your
integration. Remember to test in both the test and production environments before going
live.
Unified Checkout
Flow
To integrate
Unified Checkout
into your
platform, you must follow several integration steps. This section gives a high-level
overview of how to integrate and launch
Unified Checkout
on your
webpage and process a transaction. You can find the detailed specifications of the
APIs later in this document.
Information that is captured by
Unified Checkout
, including the billing
and shipping address, can be retrieved using the payment details API.
The figure below shows the
Unified Checkout
payment flow using the
sessions API to generate the capture context:
Figure:
Unified Checkout
Payment Flow
For more information on the specific APIs referenced, see these topics:
Sessions API: This
generates the capture context and determines what fields are displayed to
the customer in the UI during checkout.
Payment Details API: This
API can be used to retrieve personally identifiable information that is
associated with a
Unified Checkout
transient token, such as
the cardholder name and billing and shipping details, without retrieving
payment credentials.
Payment Methods
This section describes the payment methods you can use in your
Unified Checkout
integration. After you successfully integrate one payment
method, you can add another from the same category with minimal adjustments to your
existing configuration.
You can use these token types to pay with a token in
Unified Checkout
:
Customer Tokens
When you include the customer token, your UI displays the default payment
instrument that is inked to a customer. To display a customer token, you
must include the
paymentConfigurations.TMS_TOKEN.customer.id
field
in your sessions API request.
IMPORTANT
When you include a customer token ID here with
tokenCreate
for a
paymentInstrument
or
instrumentIdentifier
, the complete mandate
creates a new payment instrument or instrument identifier within the
level of the customer token that you provide.
When you include an instrument identifier token, your UI displays the
payment instrument that is associated with the specified instrument
identifier. To display an instrument identifier token, you must include the
When you include a payment instrument, your UI displays the payment
instrument that is associated with the specified payment instrument token
identifier. To display a payment instrument, you must include the
When you meet these requirements, a new payment instrument or instrument
identifier is created under the specified customer token.
eCheck/ACH Service
Unified Checkout
supports the acceptance of eCheck information.
Sensitive eCheck data is securely captured and replaced with a token. Acceptance of
eCheck information enables merchants to collect funds from a customer's bank account
through both the ACH service and eCheck service (US only) for either of these flows:
ACH services are a set of connections composed of the legacy gateway
solutions where
Cybersource
serves as the gateway.
eCheck, the new service on Payments 2.0, is the acquirer solution where
Cybersource
is the acquirer.
Unified Checkout replaces these eCheck information fields in your payment input form:
Routing number
Account number
Account type (non-sensitive)
Enrolling in eCheck/ACH Services
Unified Checkout
can accept bank account payments using the eCheck product.
To accept eCheck payments through
Unified Checkout
, you must have the
eCheck processing service enabled. To request access to eCheck processing and enable
eCheck, you must submit an application in the
Business Center
. Once your
application is approved, you can accept eCheck payments.
For step-by-step instructions on enrolling and enabling eCheck, see the “Getting
Started with the eCheck Service” section of the
. If
eCheck is not listed in the Available Products section in the
Business Center
, you must contact your portfolio owner to enable your account to apply for
eCheck.
IMPORTANT
If you have a business account or a financial relationship
with Bank of America, Wells Fargo, or Chase, and you would like them to process
your transactions, you must contact our Sales or Support team for more
information on our ACH product.
Pay with eCheck/ACH Service UI
These screen captures show the sequence of events your customer can expect when
completing a payment with the eCheck/ACH service.
Figure:
eCheck/ACH Service Account Order Summary
Figure:
Pay with eCheck/ACH Service Checkout
Figure:
Pay with eCheck/ACH Service Review and Confirm
Digital Wallets
Digital wallets are secure applications or services that enable users to store payment
details, such as debit or credit cards electronically.
Digital wallets such as Apple Pay, and Google Pay are accessible with smartphones,
computers, or even directly in web browsers. Digital wallets allow customers to pay for
goods and services both online and in physical stores without a physical card, often
using biometrics, a device passcode, or wallet login, and approve the payment in just a
few clicks.
For online transactions, the wallet securely passes a payment token to the merchant or
payment processor. This means that you do not handle sensitive customer data directly.
This reduces friction at checkout, improves conversion rates, and enhances security
through built‑in authentication and tokenization.
Wallets are best suited for one‑time online purchases and express checkout experiences.
Support for subscriptions and recurring payments varies by wallet, so you must ensure
compatibility if future charges or merchant‑initiated transactions are required.
Unified Checkout
supports these wallet-based payment options:
Apple Pay
Google Pay
Click to Pay
Paze
This is how payments with digital wallets work:
Apple Pay
Apple Pay is a digital payment solution that enables your customers to make secure
and convenient purchases without requiring them to enter their card details or
shipping information. This section includes information about accepting Apple Pay
payments with your
Unified Checkout
integration.
Enrolling in Apple Pay
Apple Pay is a digital payment service that enables users to make secure and convenient
transactions using their Apple devices. Users can add their credit or debit cards to the
Wallet app and use them to pay online or in apps in a safe and convenient consumer
experience.
To enable Apple Pay you must first host a public certificate on your
web page and then pass your merchant name and domain name to Apple. Apple crawls out
to your web page to validate the presence of this certificate to ensure the web
pages are properly vetted and registered with Apple.
Follow these steps to
validate your domain and enroll in Apple Pay:
These screen captures show the sequence of events your customer can expect when
completing a payment with Google Pay.
Figure:
Google Pay UI
Click to Pay
Click to Pay
is a secure online checkout method that enables
customers to make purchases without entering their payment details for every
purchase. This section includes information about accepting
Click to Pay
payments with your
Unified Checkout
integration.
Enabling
Click to Pay
To begin your integration, you must first enable
Click to Pay
.
Click to Pay
is a digital payment solution that allows customers
to pay with their preferred card network and issuer without entering their card details
on every website. Customers can use Visa, Mastercard, and American Express cards to
streamline their purchase experience.
Click to Pay
provides a fast,
secure, and consistent checkout experience across devices and browsers.
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:
Figure:
Unified Checkout
Customer Experience
In the Payment Options section, click
Manage
. The Payment Options page
appears.
Click
Manage
next to
Click to Pay
. The
Click to Pay
configuration page appears.
Enter your business name and website URL.
Click
Submit
.
Contact your implementation contact
or
technical account manager
to request that you be enabled for
tokenization within
Click to Pay
. Your implementation
contact
or technical account
manager
will confirm that you were configured successfully and that you
can now accept digital payments with
Click to Pay
.
IMPORTANT
Click to Pay
uses network
tokenization for transactions. These network tokens are stored in the vault
of the token requestor ID (TRID) for the card scheme.
Set Up Customer Authentication for Visa
Click to Pay
Follow these steps to use the
Business Center
to enable customer
authentication through
Click to Pay
. Authentication methods differ in
each region and are dependent on the issuer, the cardholder device, and the
Click to Pay
configuration. These authentication methods are
available:
3-D Secure
FIDO
Card verification value (CVV)
One-time password (OTP)
IMPORTANT
After you complete these steps, Visa determines which
authentication method to use. When Visa determines that they will authenticate,
they authenticate each
Click to Pay
transaction through the
appropriate method. This may be a frictionless authentication or the customer
may need to provide more information when required by the issuer. This is
available only through Visa.
IMPORTANT
Visa
Click to Pay
authentication is not the same as consumer
authentication using the complete mandate. See Test Authentication.
If you are unable to access this page, contact your sales
representative.

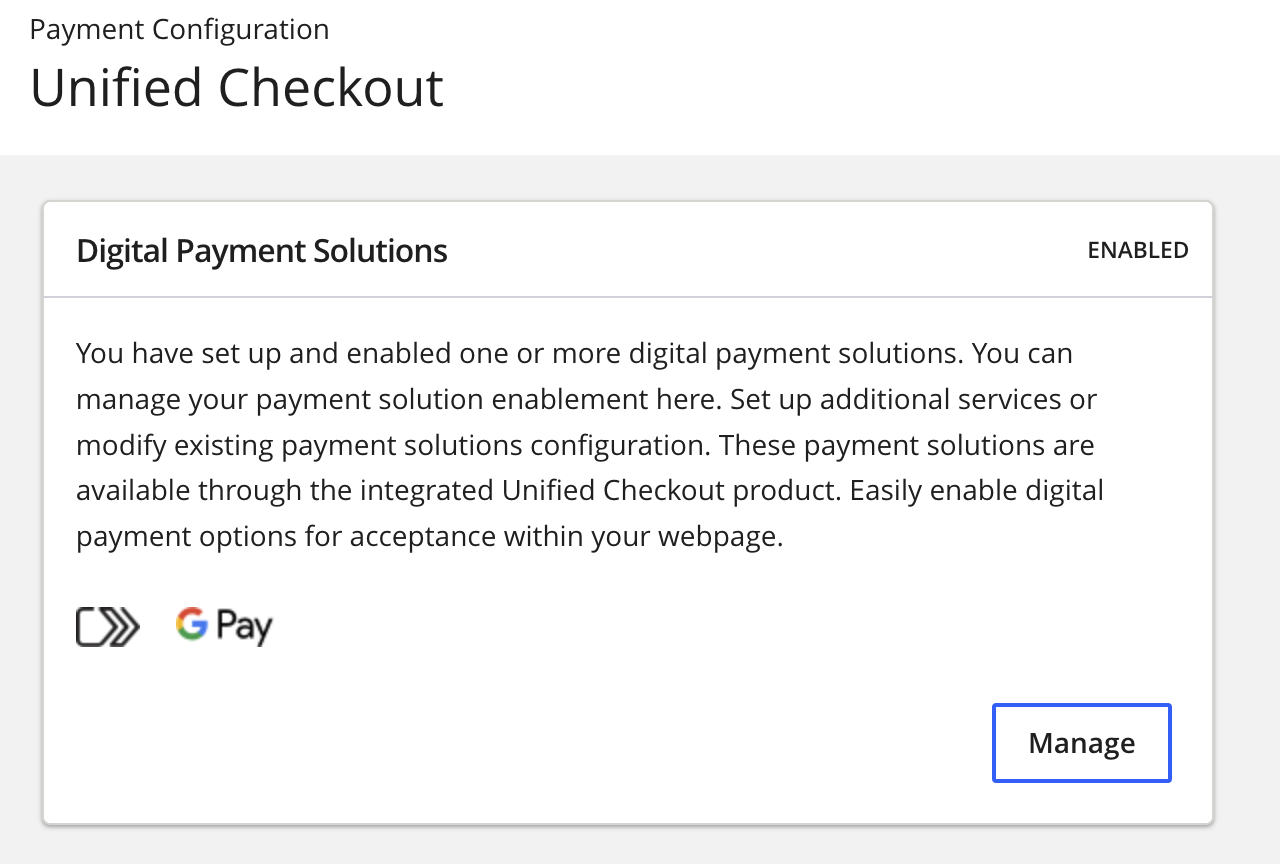

In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
.
You must have
Click to Pay
enabled as a digital payment
method in order to use this method of authentication. Click
Manage
to
view the digital payment methods that you have enabled.

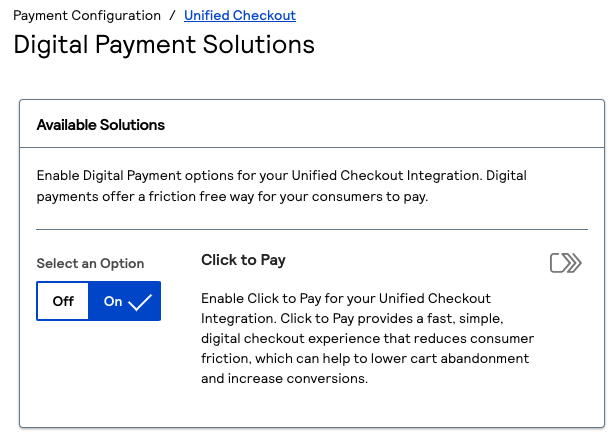

If
Click to Pay
is not enabled, click
On
next to
Click to Pay
.
Click
Set up
under Value Added Solutions. The Value Added Solutions page
appears.
Click
Set up
to set up
3-D Secure

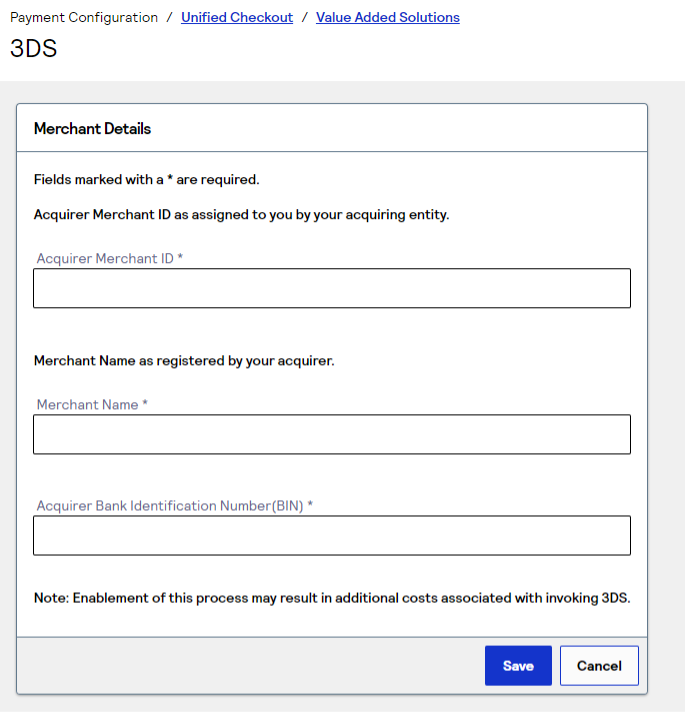

. The 3DS page
appears.
Enter the required information in the Merchant Details section. You must enter
the information that is provided to you by
your acquirer or processor
.
Step Result
This completes the authentication setup for the entered acquirer
merchant ID and BIN. If you do not know what these values are, you must contact
your acquirer
. Completing this information
enables
Cybersource
to send Visa the information that is
required for authentication.
IMPORTANT
Charges for
3-D Secure
may apply. You must speak with
your acquirer
for more
information about the charges associated with
3-D Secure
.
Click to Pay
Customer Authentication
When you enable customer authentication through
Click to Pay
, you give
Cybersource
permission to send Visa the required authentication
information for each transaction. When the customer completes a transaction using a Visa
card that is already stored in
Click to Pay
, authentication is managed
within
Click to Pay
.
Click to Pay
authentication is only available for Visa branded cards that
are tokenized with
Click to Pay
. If
Click to Pay
does not
authenticate the transaction, but you are using the complete mandate with the
consumerAuthentication
field set to
true
,
authentication is attempted as part of this request. When you do not use the complete
mandate, you must check the result of the
cardholderAuthenticationStatus
field in the transient token and
request
Payer Authentication
directly when it is required.
IMPORTANT
American Express and Mastercard card brands cannot be
authenticated through
Click to Pay
customer authentication.
Authentication Flow
Click to Pay
UI
These screen captures show the sequence of events your customer can expect when
completing a payment with
Click to Pay
.
Figure:
Click to Pay
UI
Click to Pay
UI Guidelines
The UI that is built in
Unified Checkout
for
Click to Pay
is built based on the EMV
Click to Pay
XC Guidelines V1.1.
Unified Checkout
has simplified the integration of the UI. The only UI
work that you must complete is the placement of the payment option.
IMPORTANT
You must include
Click to Pay
as one of the
presented payment methods and not as a separate payment method.
Unified Checkout
captures all card details that are manually entered by the
cardholder. This enables the cardholder to enroll in
Click to Pay
and removes the requirement for the cardholder to manually enter their card details the
next time they check out.
Unified Checkout
provides a standard payment label in the
Unified Checkout
JavaScript that is loaded in your checkout page. One of these
scenarios occurs when the cardholder selects the button:
The cardholder is recognized.
The cardholder is not recognized but has a
Click to Pay
account.
The cardholder does not have a
Click to Pay
account.
You can also trigger the
Unified Checkout
flow using a custom button. If
you are using your own custom button, your payment button or widget must display the
Your implementation consultant will ask you for a mock-up of your
payment flow for confirmation that it is compliant with the
Click to Pay
UI design standards.
Recognized
Click to Pay
Customer
The cardholder is presented with their stored
Click to Pay
cards
in the UI when they are on a recognized device:
Figure:
Recognized
Click to Pay
Customer UI
Unrecognized
Click to Pay
Customer
When the cardholder has a
Click to Pay
account but is not on a
registered device, they receive a one-time password to their registered email
address and phone number to authenticate their identity before their stored
Click to Pay
credentials are shown:
Figure:
Unrecognized
Click to Pay
Customer on a Recognized
Device UI
No
Click to Pay
Account
When the cardholder does not have a
Click to Pay
account, they
can provide a new email address to perform a new lookup or they can choose to enter
their card details manually. The cardholder can make a one-time payment or complete
the payment and choose to create a
Click to Pay
account for
future use:
Figure:
No
Click to Pay
Account UI
Click to Pay
UI Examples
This section contains UI examples of how you should display
Click to Pay
on your payment page. For information about how to display
the UI, see JavaScript API Reference.
Click to Pay
Replaces PAN Capture
Click to Pay
is the card entry payment option within your payment
page.
JavaScript flow within your payment
page without requiring the cardholder to select a card payment option. This example
shows a recognized user payment flow where the cardholder's information is shown
automatically next to the other payment methods hosted within your payment page. For
information about customizing how to trigger
payment button as a separate
payment method from the card payment button. If you do this, the cardholder is not
prompted with their
Click to Pay
cards and must manually enter
their payment details. They will also not have the option to store their card within
Click to Pay
for future use.
These examples show multiple card payment options and
Click to Pay
in a UI:
Figure:
Multiple Card Payment Options in UI Example 1
Figure:
Multiple Card Payment Options in UI Example 2
Figure:
Multiple Card Payment Options in UI Example 3
Paze
Paze is an online checkout option, or
digital wallet
, that enables you to
offer customers a fast and secure way to make purchases online. This section
includes information about accepting Paze payments with your
Unified Checkout
integration.

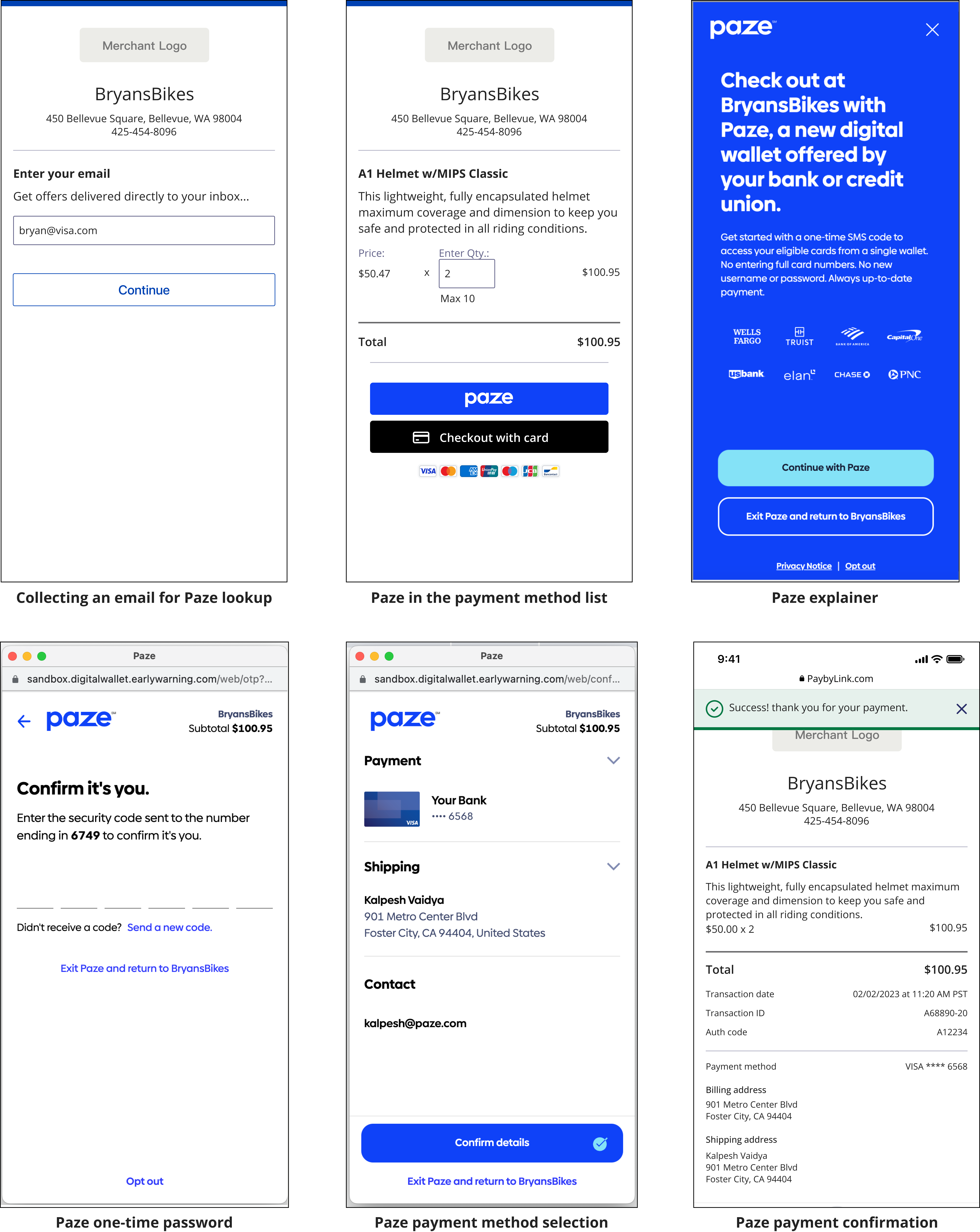

Paze UI
These screen captures show the sequence of events your customer can expect when
completing a payment with Paze.
Figure:
Paze UI
Alternative Payment Methods
This section describes the alternative payment methods you can use in your
Unified Checkout
integration. After you successfully integrate one payment
method, you can add another from the same category with minimal adjustments to your
existing configuration.
Online bank transfers enable customers to complete their purchase by securely logging
into their online banking environment. This method is secure, trusted, and widely used
in many European countries.
IMPORTANT
Before you can enroll in these alternative payment method on
Unified Checkout
, you must first be enabled for the alternative
payment platform. Contact your portfolio administrator for more information.
This is how online bank transfers work:
Figure:
Online Bank Transfers
The customer chooses online bank transfer as their payment method during
checkout.
The customer chooses their bank from the list of available banks and is
redirected to their bank's website or application where they are prompted to
enter their account credentials.
The customer confirms their payment and completes the authorization
process.
The customer is notified that the payment is complete.
The customer returns to your website for payment confirmation.
Unified Checkout
supports these online bank transfer payment methods:
Bancontact
DragonPay
iDeal
Multibanco
MyBank
Przelewy24|P24
Tink Pay By Bank
Online Bank Transfer Payment Methods
Payment Method
Capture Context
allowedPaymentTypes
Capture Context
completeMandate.type
Separate Capture?
Payment Confirmation
Customer Country (Country Code)
Customer ISO Currency Code
iDEAL
IDEAL
CAPTURE
or
PREFER_AUTH
No
Immediate
Netherlands (NL)
EUR
Multibanco
MULTIBANCO
CAPTURE
or
PREFER_AUTH
No
Immediate
Portugal (PT)
EUR
Przelewy24
PRZELEWY24
CAPTURE
or
PREFER_AUTH
No
Immediate
Poland (PL)
PLN
Bancontact
BANCONTACT
CAPTURE
or
PREFER_AUTH
No
Immediate
Belgium (BE)
EUR
MyBank
MYBANK
CAPTURE
or
PREFER_AUTH
No
Immediate
Italy (IT)
EUR
Belgium (BE)
Portugal (PT)
Spain (ES)
DragonPay
DRAGONPAY
CAPTURE
or
PREFER_AUTH
No
Immediate
Philippines (PH)
PHP
Tink Pay by Bank
TINKPAYBYBANK
CAPTURE
or
PREFER_AUTH
No
Immediate
United Kingdom (GB)
GBP
Bancontact
Bancontact enables customers to make secure online and in-store purchases directly from
their bank accounts. Bancontact is a leading payment method in Belgium.
When the total amount of the order is outside the range of accepted transaction amounts,
the Bancontact payment button is not displayed in
Unified Checkout
. These
are the accepted transaction amounts:
Minimum transaction amount
: EUR 0.01
Maximum transaction amount
: Not applicable
Opt in to Bancontact on
Unified Checkout
Follow these steps to opt in to Bancontact on
Unified Checkout
:
Add Bancontact to your integration by adding
BANCONTACT
to the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you support more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds will be captured immediately
for the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
orderInformation.billTo.email
DragonPay
DragonPay provides Filipino customers and businesses with a secure payment channel that
does not require customers to be banked or have a credit card. Customers can make
purchases online and pay by bank transfer.
When the total amount of the order is outside the range of accepted transaction amounts,
the DragonPay payment button is not displayed in
Unified Checkout
. These
are the accepted transaction amounts:
Minimum transaction amount
: PHP 50.01
Maximum transaction amount
: Not applicable
Opt in to DragonPay on
Unified Checkout
Follow these steps to opt in to Multibanco on
Unified Checkout
:
Add DragonPay to your integration by adding
DRAGONPAY
to the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds are captured immediately for
the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
orderInformation.billTo.email
Tink Pay By Bank
Tink is an alternative payment method that uses the
pay by bank
payment method.
Tink Pay By Bank enables customers to make payments directly from their bank account to
the seller's account and bypasses traditional payment methods such as credit cards.
When the total amount of the order is outside the range of accepted transaction amounts,
Tink Pay By Bank is not displayed in
Unified Checkout
. These are the
accepted transaction amounts:
Minimum transaction amount
: Not applicable
Maximum transaction amount
: GBP 8,500
Opt in to Tink Pay By Bank on
Unified Checkout
Follow these steps to opt in to Tink Pay By Bank on
Unified Checkout
:
Add Tink Pay by Bank to your integration by adding
TINKPAYBYBANK
to the
allowedPaymentTypes
field object within the capture context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds are captured immediately for
the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.shipTo.address1
orderInformation.shipTo.address2
orderInformation.shipTo.country
orderInformation.shipTo.district
orderInformation.shipTo.firstName
orderInformation.shipTo.lastName
orderInformation.shipTo.locailty
orderInformation.shipTo.postalCode
iDeal
iDEAL enables customers to pay online through their mobile banking app or online bank
account and provides you with a payment guarantee. iDEAL supports these banks:
ABN AMRO
ASN Bank
bunq
ING
Knab
Rabobank
RegioBank
Revolut
SNS
Svenska Handelsbanken
Triodos Bank
Van Lanschot
When the total amount of the order is outside the range of accepted transaction amounts,
the iDeal payment button is not displayed in
Unified Checkout
. These are
the accepted transaction amounts:
Minimum transaction amount
: EUR 0.01
Maximum transaction amount
: Subject to transaction approval from the
customer's account.
Opt in to iDeal on
Unified Checkout
Follow these steps to opt in to iDeal on
Unified Checkout
:
Add iDeal to your integration by adding
IDEAL
to the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds are captured immediately for
the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
orderInformation.billTo.email
MyBank
MyBank enables customers to pay for their online purchases in an easy and safe way using
real-time bank transfers. MyBank customers complete payments by selecting their bank and
logging in with their online banking credentials.
When the total amount of the order is outside the range of accepted transaction amounts,
the MyBank payment button is not displayed in
Unified Checkout
. These are
the accepted transaction amounts:
Minimum transaction amount
: EUR 0.01
Maximum transaction amount
: EUR 999,999,999.99
Opt in to MyBank on
Unified Checkout
Follow these steps to opt in to MyBank on
Unified Checkout
:
Add MyBank to your integration by adding
MYBANK
to the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds are captured immediately for
the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
orderInformation.billTo.email
Multibanco
Multibanco enables customers to pay for a range of goods and services by bank transfer.
These services include e-commerce, licenses, and taxes post-purchase. Multibanco is
supported by all banks in Portugal.
When the total amount of the order is outside the range of accepted transaction amounts,
the Multibanco payment button is not displayed in
Unified Checkout
. These
are the accepted transaction amounts:
Minimum transaction amount
: No minimum
Maximum transaction amount
: EUR 99,999
Opt in to Multibanco on
Unified Checkout
Follow these steps to opt in to Multibanco on
Unified Checkout
:
Add Multibanco to your integration by adding
MULTIBANCO
to the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds are captured immediately for
the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
orderInformation.billTo.email
Przelewy24|P24
Przelewy24, or P24, is a Poland-based real-time online bank transfer payment method. P24
is one of the most popular payment methods in Poland covering all major consumer
banks.
When the total amount of the order is outside the range of accepted transaction amounts,
the P24 payment button is not displayed in
Unified Checkout
. These are the
accepted transaction amounts:
Minimum transaction amount
: PLN 0.01, EUR 0.01
Maximum transaction amount
: PLN 55,000.00, EUR 12,500.00
Opt in to Przelewy24|P24 on
Unified Checkout
Follow these steps to opt in to Przelewy24|P24 on
Unified Checkout
:
Add Przelewy24|P24 to your integration by adding
PRZELEWY24
to
the
allowedPaymentTypes
field object within the capture
context request:
Set the
completeMandate.type
field value to
CAPTURE
or
PREFER_AUTH
.
You can capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you support more than one payment type and must perform an
authorization where funds are collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. The funds will be captured immediately
for the online bank transfer.
Include these required fields for online bank transfers in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
Include this optional field for online bank transfers in the capture context request:
orderInformation.billTo.address1
Verify Status for Online Bank Transfers
When the status of your payment request is
PENDING
, you can verify
the status by using the URL method and the payload that is included in the
You can also send a request to this endpoint to verify the
status:
Production:
POST
https://api.cybersource.com
/pts/v2/refresh-payment-status/
{id}
Test:
POST
https://apitest.cybersource.com
/pts/v2/refresh-payment-status/
{id}
The
{id}
is the ID that is returned in the webhook response. For more information, see Webhooks Support.
Handle Responses
When
Unified Checkout
automatically processes a payment with
autoProcessing
is set to
true
or you have set
autoProcessing
to
false
and are using
checkout.Complete()
, you must handle both successful responses
and various errors. After the payment is complete, the
completeResponse
field object contains information about the
transaction outcome.
When a payment is processed successfully, you must parse the response to confirm the
payment status, update their order records, and trigger any post-payment workflows.
Post-payment workflows include sending confirmation emails or updating inventory. See
JavaScript Example: Processing a Payment.
Your error handling should account for specific cases such as
COMPLETE_TRANSACTION_CANCELED
and
COMPLETE_TRANSACTION_FAILED
.
COMPLETE_TRANSACTION_CANCELED
occurs when the user cancels the
transaction and
COMPLETE_TRANSACTION_FAILED
indicates that the
consumer’s transaction failed.
For PPRO-enabled online bank transfers, only cancellation errors are returned, and Tink
Pay By Bank returns failure and cancellation errors. For information about possible
errors that can occur when calling the complete API see UnifiedCheckoutError in Handle Errors.
Buy Now, Pay Later
Buy Now, Pay Later payment methods enable customers to purchase goods or services
immediately and pay in installments over time. With Buy Now, Pay Later, you are paid
immediately and in full, while your customers pay nothing or only a portion of the total
at the time of purchase. The remaining balance is typically spread over equal, often
interest-free, payments.
Buy Now, Pay Later is increasingly popular for both online and in-store purchases.
IMPORTANT
Before you can enroll in these alternative payment method on
Unified Checkout
, you must first be enabled for the alternative
payment platform. Contact your portfolio administrator for more information.
This is how Buy Now, Pay Later works:
Figure:
Buy Now, Pay Later
The customer chooses their Buy Now, Pay Later payment method during
checkout.
The customer chooses how much they want to pay, such as nothing, installments,
or the total amount.
The unpaid amount is divided into equal installments that are paid over a fixed
amount of time.
You receive the full payment after the customer completes checkout, and the Buy
Now, Pay Later provider collects the installment payments from your
customer.
Unified Checkout
supports the Afterpay/Clearpay and Paypal Buy Now, Pay
Later payment methods.
Afterpay is a Buy Now, Pay Later service that allows customers to purchase items
immediately and pay for them in four interest-free installments over a period of 6
weeks. Afterpay is also known as Clearpay in the UK, and Cash App Afterpay in the US.
When the total amount of the order is outside the range of accepted transaction amounts,
the Afterpay/Clearpay payment button is not displayed in
Unified Checkout
.
These are the accepted transaction amounts:
Minimum transaction amount
: 1 (CAD, AUD, NZD, USD, and GBP)
Maximum transaction amount
: Not applicable
Opt in to Afterpay on
Unified Checkout
Follow these steps to opt in to the Afterpay/Clearpay payment method in
Unified Checkout
:
Add Afterpay to your integration by adding
AFTERPAY
to the
allowedPaymentTypes
field within the capture context
request. The default field value is
AFTERPAY
even if you want
to support Cash App Afterpay in the US or Clear Pay in the UK.
Set the
completeMandate.type
field value to
AUTH
,
CAPTURE
or
PREFER_AUTH
.
You can perform a sale and capture the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
You can capture the
funds later if you include the
completeMandate.type
field in the capture context request and set the value to
AUTH
. When you capture the funds later, you must
perform a capture using the payments API. See Captures.
If you accept more
than one payment type and must perform an authorization where funds are
collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. You must perform a capture using the
payments API when an authorization is performed. A capture is performed
automatically if an authorization is not allowed by the payment
type.
Include these required fields in the capture context request:
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.address1
orderInformation.billTo.locality
orderInformation.billTo.postalCode
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
Include these optional fields in the capture context request:
IMPORTANT
These fields are required when the
requestShipping
field is set to
true
.
orderInformation.shipTo.firstName
orderInformation.shipTo.lastName
orderInformation.shipTo.address1
orderInformation.shipTo.locality
orderInformation.shipTo.postalCode
orderInformation.shipTo.administrativeArea
orderInformation.shipTo.country
Verify Status for Afterpay
When the status of your payment request is
PENDING
, you can verify
the status by sending a POST request to the URL that is included in the
You can also send a request to this endpoint to verify the status:
Production:
POST
https://api.cybersource.com
/pts/v2/refresh-payment-status/
{id}
Test:
POST
https://apitest.cybersource.com
/pts/v2/refresh-payment-status/
{id}
The
{id}
is ID that is returned in the webhook response. For
more information, see Webhooks Support.
Handle Responses
When
Unified Checkout
automatically processes a payment with
autoProcessing
is set to
true
or you have set
autoProcessing
to
false
and are using
checkout.Complete()
, you must handle both successful responses
and various errors. After the payment is complete, the
completeResponse
field object contains information about the
transaction outcome.
When a payment is processed successfully, you must parse the response to confirm the
payment status, update their order records, and trigger any post-payment workflows.
Post-payment workflows include sending confirmation emails or updating inventory. See
JavaScript Example: Processing a Payment.
Your error handling should account for specific cases such as
COMPLETE_TRANSACTION_CANCELED
and
COMPLETE_TRANSACTION_FAILED
.
COMPLETE_TRANSACTION_CANCELED
occurs when the user cancels the
transaction and
COMPLETE_TRANSACTION_FAILED
indicates that the
consumer’s transaction failed.
Captures
When you set the
completeMandate.type
field value to
AUTH
or
PREFER_AUTH
, you must send a request to capture an authorized
payment. Full and partial captures are supported.
Endpoint
Production:
POST
https://api.cybersource.com
/pts/v2/payments/
{id}
/captures
Test:
POST
https://apitest.cybersource.com
/pts/v2/payments/
{id}
/captures
The
{id}
is the transaction ID
returned in the authorization response.
responds to your capture request with one of these statuses:
FAILED
: The capture request failed.
PENDING
: The capture request is accepted but not captured.
Send a request to the check status service to retrieve status updates.
SETTLED
: The capture request is settled for the amount
requested.
Post-Pay Reference Payments
Post-pay reference payments provide an alternative way for your customers to complete
online purchases using cash. During checkout, customers select a voucher payment option
and receive a unique code or payment slip. To finalize their purchase, they visit a
designated offline location, such as a convenience store or payment kiosk, and pay the
required amount in person. Once the payment is made, the merchant receives a
notification that they can process the order.
Post-pay reference payments are widely used in countries where cash transactions are
common or where many customers don’t have access to credit or debit cards.
IMPORTANT
Before you can enroll in these alternative payment method on
Unified Checkout
, you must first be enabled for the alternative
payment platform. Contact your portfolio administrator for more information.
This is how post-pay reference payments work:
The customer selects a convenience store/voucher payment method during
checkout.
The customer receives their payment code/voucher or QR code.
The customer presents the payment code/voucher or QR in-store to complete the
payment.
The customer receives a notification that the payment is complete.
Unified Checkout
supports the Konbini voucher-based payment option:
Post-Pay Reference Payment Support
Payment Method
Capture Context
allowedPaymentTypes
Capture Context
completeMandate.type
Separate Capture?
Payment Confirmation
Customer Country (Country Code)
Customer ISO Currency Code
Konbini
KONBINI
CAPTURE
or
PREFER_AUTH
No
Immediate
Japan (JP)
JPY
Konbini
Konbini is used to make cash payments in Japan. Konbini payments enable your customers to
pay for bills and online purchases at convenience stores in Japan.To complete a
transaction, your customers receive payment codes for specific convenience stores and a
confirmation number. Customers must then bring the information to a convenience store to
make a cash payment. Your customers can pay at these convenience stores in Japan:
7-Eleven
Family Mart
Lawson
Ministop
Seicomart
You receive the payment confirmation immediately and the funds are available after 4
business days.
When the total amount of the order is outside the range of accepted transaction amounts,
the Konbini payment button is not displayed in
Unified Checkout
. These are
the accepted transaction amounts:
Minimum transaction amount
: JPY 1
Maximum transaction amount
: Not applicable
Opt in to Konbini on
Unified Checkout
Follow these steps to opt in to the Konbini payment method in
Unified Checkout
:
Add Konbini to your integration by adding
KONBINI
to the
allowedPaymentTypes
field within the capture context
request.
Set the
completeMandate.type
field value to
AUTH
,
CAPTURE
or
PREFER_AUTH
.
You can perform a sale and capture
the funds immediately if you include the
completeMandate.type
field in the capture context
request and set the value to
CAPTURE
.
If you accept more
than one payment type and must perform an authorization where funds are
collected at a later time, set the
completeMandate.type
field to
PREFER_AUTH
. You must perform a capture using the
payments API when an authorization is performed. A capture is performed
automatically if an authorization is not allowed by the payment
type.
Include these required fields in the capture context request:
orderInformation.billTo.country
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.phoneNumber
Include these optional fields in the capture context request:
IMPORTANT
These fields are required when the
requestShipping
field is set to
true
.
orderInformation.billTo.address1
orderInformation.billTo.email
Verify Status for Post-Pay Reference
When the status of your payment request is
PENDING
, you can verify
the status by sending a POST request to the URL that is included in the
You can also send a request to this endpoint to verify the
status:
Production:
GET
https://api.cybersource.com
/tss/v2/transactions/
{id}
Test:
GET
https://apitest.cybersource.com
/tss/v2/transactions/
{id}
The
{id}
is the ID that is returned in the webhook response.
For more information, see Webhooks Support.
Handle Responses
When
Unified Checkout
automatically processes a payment with
autoProcessing
is set to
true
or you have set
autoProcessing
to
false
and are using
checkout.Complete()
, you must handle both successful responses
and various errors. After the payment is complete, the
completeResponse
field object contains information about the
transaction outcome.
When a payment is processed successfully, you must parse the response to confirm the
payment status, update their order records, and trigger any post-payment workflows.
Post-payment workflows include sending confirmation emails or updating inventory. See
JavaScript Example: Processing a Payment.
Your error handling should account for specific cases such as
COMPLETE_TRANSACTION_CANCELED
which is returned when the user
cancels the transaction.
For PPRO-enabled online bank transfers, only cancellation errors are returned. For
information about possible errors that can occur when calling the complete API see
UnifiedCheckoutError in Handle Errors.
Server-Side Set Up
This section contains the information you need to
set up your server. Initializing
Unified Checkout
within your webpage
begins with a server-to-server call to the sessions API. This step authenticates your
merchant credentials, and establishes how the
Unified Checkout
frontend
components will function. The sessions API request contains parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key is used by the customer's browser to protect
the transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and payment methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
This section contains the information you need to set up your server. Initializing
Unified Checkout
within your webpage begins with a server-to-server call to
the
sessions
API. This step authenticates your merchant
credentials, and establishes how the frontend components will function. The
sessions
API request contains parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key is used by the customer's browser to protect the
transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and payment methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
The capture context request is a signed JSON Web Token
(JWT) that includes all of the merchant-specific parameters. This request tells the
frontend JavaScript library how to behave within your payment experience. The
request provides authentication, one-time keys, the target origin to the
Unified Checkout
integration in addition to allowed card networks and
payment types.
Browser Support
Unified Checkout
supports these browser versions:
Safari 16
Firefox 121
Google Chrome/Chium-based browsers 118
Microsoft Edge 118
Capture Context Example
Use the
targetOrigins
and the
allowedPaymentTypes
fields to define the target origin and
the accepted digital payment methods in your capture context. Use the
completeMandate
to orchestrate follow-on services such as
Payments,
: breaking changes that require code modifications
MINOR
: new features that are backwards compatible
PATCH
: bug fixes and improvements that are backwards compatible
The server controls which SDK version is loaded for each session that you request.
When your server creates a session, the response JWT includes a
clientLibrary
field that contains the full URL to the correct
version of the SDK. Your server parses the JWT, extracts the URL, and passes it to
the frontend to load dynamically.
IMPORTANT
The
clientVersion
field in the session
request is optional. When you do not include this field, the server
automatically resolves the appropriate version for every session. This ensures
that the client-side library and server-side features are compatible.
Cybersource
recommends that you do not include the
clientVersion
field in your request and that you use the
most recent version. When you do this, your integration benefits from new
features, payment methods, and improvements and there are no code changes
required.
Pin to a Version
If you must set your integration to a specific version, you can set the
clientVersion
field to a
MAJOR
version such as
1
, or a
MAJOR.MINOR
version such as
1.2
. The server uses the latest compatible patch release within
that range. This ensures that you continue to receive security fixes and bug
fixes.
IMPORTANT
You cannot pin to a specific patch version
(
MAJOR.MINOR.PATCH
). This ensures that all integrations
receive critical patches.
Cybersource
recommends omitting
clientVersion
from your request unless you have a
specific need for pinned behavior.
Below is a list of client versions and the features that are included in each
version.
IMPORTANT
Cybersource
recommends that you use the most recent client version in your integration.
0.23
Accepts these card networks in the
allowedCardNetworks
field for manual card entry:
Carnet
Cartes Bancaires
China UnionPay with card verification value (CVV)
EFTPOS
ELO
JCrew PLCC
mada
Meeza
Ordering controls for the
allowedPaymentTypes
button.
De-coupling of PANENTRY from other payment types in the
allowedPaymentTypes
field.
0.24
Support for enabling combo cards in the capture context.
Support for eight-digit BINs.
Support for enabling card save in the capture context.
0.25
Addition of
Skip Verification next time
in the
Click to Pay
payment flow.
Support for CPF in the capture context.
0.26
Support for auto-lookup in
Click to Pay
when an email is
included in the capture context.
Inclusion of the
cardDetails
field object in the
transient token response.
Support for the
cardholderAuthenticationStatus
field
object in the transient token response.
Support for the complete mandate.
0.28
Complete mandate enhancement to support
Payer Authentication
for
manual card entry for Visa, Mastercard, American Express, Discover, JCB,
Cartes Bancaires, China UnionPay, and ELO card brands.
Support for Afterpay as an
allowedPaymentType
.
Support for PayPak as an
allowedCardNetwork
.
Auto-enrollment for
Click to Pay
in supported
markets.
Removal of the confirm or continue screen for specific use cases.
Static button for
Click to Pay
flows.
0.30
Support for iDeal, Multibanco, and Przelewy24|P24.
Complete mandate enhancement to support
Payer Authentication
for
Google Pay and
Click to Pay
.
Support for Pakistan locales (en_PK and ur_PK).
New look and feel of
Unified Checkout
in line with EMVCO best
practices.
0.31
Addition of the
data
object of the
orderInformation
field object and pass-through
fields.
Support for
tokenCreate
in the complete mandate.
Support of pass-through fields, including challenge codes and data only, for
Payer Authentication
.
Support for Jaywan as an
allowedCardNetwork
.
Updated the payment details response to return detected card types. Multiple
card types are shown when more than one card type is detected.
Support for Bancontact, Dragonpay, MyBank, and Tink Pay By
Bank.
0.32
Support for KCP and UATP in the
allowedCardNetwork
field.
Support for Konbini as a post-pay reference payment
method.
A radio button in the UI for Cartes Bancaires
dual-branded cards.
0.33
Support for mobile as identity for
Click to Pay
accounts.
Japanese language translation updates.
UX captures billing and shipping information when they are not included in
the capture context.
0.34
Iframes are used instead of pop-ups to reduce pop-up blocking and
streamlining mobile deployment.
Additional BIN range for Jaywan card types.
0.35
Look and feel customization.
1.0
Configure payment options.
Configure customer data and payment flow.
Client-Side Set Up
This section contains the information you need to set up the client side. You use the
Unified Checkout
JavaScript library to add the payment interface to
your e-commerce site. It has two primary components:
The button widget, which lists the payment methods available to the customer.
The payment acceptance page, which captures payment information from the cardholder.
You can set up the payment acceptance page to be embedded with your webpage or added
as a sidebar.
Follow these steps to set up the client:
Load the JavaScript library.
Initialize the accept object, the capture context JWT. For information JSON Web
Tokens, see JSON Web Tokens.
Initialize the unified payment object with optional parameters.
Show the button list or payment acceptance page or both.
Process the payment request using the instructions included within the capture
mandate.
The response to these interactions is a transient token that you can use to retrieve the
payment information captured by the UI.
For information about handling the errors that may occur on the client-side, see Handle Errors.
Loading the JavaScript Library
Use the client library asset path and client library integrity value that is returned by
the capture context response to invoke
Unified Checkout
on your page.
You must retrieve these values from the
clientLibrary
and
clientLibraryIntegrity
fields that are returned in the JWT from
https://apitest.cybersource.com
/uc/v1/sessions
. You can
use these values to create your script tags.
You must perform this process for each transaction, as these values are unique for each
transaction. You must avoid hard-coding values for the
clientLibrary
and
clientLibraryIntegrity
fields to prevent client-side errors.
For example, a response from
https://apitest.cybersource.com
/uc/v1/sessions
would
include:
"data": {
"clientLibrary":"[EXTRACT clientLibrary VALUE from here]",
"clientLibraryIntegrity": "[EXTRACT clientLibraryIntegrity VALUE from here]"
}
Below is an example script
tag:
<script src="[INSERT clientLibrary VALUE HERE]"
integrity=”[INSERT clientLibraryIntegrity VALUE HERE]”
crossorigin=”anonymous”></script>
IMPORTANT
Use the
clientLibrary
and
clientLibraryIntegrity
parameter values in the capture context
response to obtain the
Unified Checkout
JavaScript library URL and the
integrity value. This ensures that you are always using the most up-to-date library and
protects against fraud. Do not hard-code the
Unified Checkout
JavaScript
library URL or integrity value.
When you load the library, the capture context from your initial server-side request is
used to invoke the accept function.
object, you can add the
payment application and payment acceptance pages to your webpage. You can attach the
embedded
Unified Checkout
tool and payment acceptance pages to any
named element within your HTML. Typically, they are attached to explicit named
components that are replaced with
Unified Checkout
’s iframes.
// Sidebar
const result = await checkout.mount('#buttons');
// Embedded
const result = await checkout.mount({
paymentSelection: '#buttons',
paymentScreen: '#form'
});
JavaScript Example: Client-Defined Trigger for
Click to Pay
or PAN
Entry
When you display
CLICKTOPAY
or
PANENTRY
as allowed
payment types, you can load the UI without displaying the
Unified Checkout
checkout button. You can do this by creating a trigger
that defines what event loads the UI.
// Automatic (default when completeMandate is in session)
const checkout = await client.createCheckout({ autoProcessing: true });
const result = await checkout.mount('#buttons');
// result is the completed transaction — no need to call complete()
// Manual - similar to v0
const checkout = await client.createCheckout({ autoProcessing: false });
const token = await checkout.mount('#buttons');
const result = await checkout.complete(token);
JavaScript Example: Authorization
Collect payment information and process an authorization. You must initiate a
separate capture request to move funds and complete the transaction.
async function launchCheckout() {
try {
const client = await VAS.UnifiedCheckout(sessionJWT);
const checkout = await client.createCheckout();
const result = await checkout.mount('#payment-buttons');
// result contains the completed payment result JWT
// Send result to your server for verification
sendToServer(result);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
checkout.destroy();
client.destroy();
}
}
launchCheckout();
Because the session includes
completeMandate
,
autoProcessing
defaults to
true
and
mount()
returns the completed payment result directly.
JavaScript Example: Sale
Collect payment information and process a sale. A sale is a combined authorization
and capture in a single step.
async function launchCheckout() {
try {
const client = await VAS.UnifiedCheckout(sessionJWT);
const checkout = await client.createCheckout();
const result = await checkout.mount('#payment-buttons');
// result contains the completed payment result JWT
// Send result to your server for verification
sendToServer(result);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
checkout.destroy();
client.destroy();
}
}
launchCheckout();
JavaScript Example: Sale with
Decision Manager
Collect payment information and process a sale while running
Decision Manager
fraud screening before the payment is initiated.
async function launchCheckout() {
try {
const client = await VAS.UnifiedCheckout(sessionJWT);
const checkout = await client.createCheckout();
const result = await checkout.mount('#payment-buttons');
// result contains the completed payment result JWT
// Send result to your server for verification
sendToServer(result);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
checkout.destroy();
client.destroy();
}
}
launchCheckout();
JavaScript Example: No Service Orchestration
Collect payment information and receive a transient token. Your server handles
payment authorization and any follow-on services directly.
async function launchCheckout() {
try {
const client = await VAS.UnifiedCheckout(sessionJWT);
const checkout = await client.createCheckout({ autoProcessing: false });
const transientToken = await checkout.mount('#payment-buttons');
// transientToken is a JWT — send it to your server
// Your server uses the transient token to authorize the payment
sendToServer(transientToken);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
checkout.destroy();
client.destroy();
}
}
launchCheckout();
Without a
completeMandate
,
autoProcessing
defaults to
false
and the
mount()
call returns a transient token
that you pass to your server for payment authorization. For information about how to use the
transient token in an authorization request, see Transient Tokens.
JavaScript Example: Setting Up with Full Sidebar
<html>
<head>
<script
src="[INSERT clientLibrary VALUE HERE]"
integrity="[INSERT clientLibraryIntegrity VALUE HERE]”
crossorigin=”anonymous"
></script>
</head>
<body>
<h1>Unified Checkout Integration</h1>
<input
type="hidden"
name="sessionJWT"
value="[INSERT sessionJWT HERE]"
/>
<script type="text/javascript">
const sessionJWT = document.getElementById("sessionJWT").value;
async function launchCheckout() {
try {
const client = await VAS.UnifiedCheckout(sessionJWT);
const checkout = await client.createCheckout();
const result = await checkout.mount('#payment-buttons');
// result contains the completed payment result JWT
// Send result to your server for verification
sendToServer(result);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
checkout.destroy();
client.destroy();
}
}
launchCheckout();
</script>
</body>
</html>
JavaScript Example: Setting Up with the Embedded Component
The main difference between using an embedded component and the sidebar is that the
accept.unifiedPayments
object is set to
false
, and the
location of the payment screen is passed in the containers argument.
IMPORTANT
If you do not specify a location for the payment acceptance page, it
is placed in the side bar.
<html>
<head>
<script
src="[INSERT clientLibrary VALUE HERE]"
integrity="[INSERT clientLibraryIntegrity VALUE HERE]"
crossorigin="anonymous"
></script>
</head>
<body>
<h1>Unified Checkout Integration</h1>
<input
type="hidden"
id="sessionJWT"
name="sessionJWT"
value="[INSERT sessionJWT HERE]"
/>
<script type="text/javascript">
const sessionJWT = document.getElementById("sessionJWT").value;
async function launchCheckout() {
let client;
let checkout;
try {
client = await VAS.UnifiedCheckout(sessionJWT);
checkout = await client.createCheckout();
const result = await checkout.mount('#payment-buttons');
// result contains the completed payment result JWT
// Send result to your server for verification
sendToServer(result);
} catch (error) {
if (error.name === 'UnifiedCheckoutError') {
handleError(error.reason, error.message);
}
} finally {
if (checkout) {
checkout.destroy();
}
if (client) {
client.destroy();
}
}
}
launchCheckout();
</script>
</body>
</html>
Complete Integration Examples
These examples show how to integrate
Unified Checkout
with different payment
scenarios. Each example includes the session configuration and client-side
JavaScript.
For information about session fields, see Sessions API.
Configuration
This section contains the information required to configure
Unified Checkout
.
Configure the
Unified Checkout
Merchant Experience
The
Unified Checkout
merchant experience interface provides complete
control over your checkout experience by using dedicated configuration screens
accessible through the
Business Center
:
Figure:
Unified Checkout
Customer Experience
This option is low-code and provides a user-friendly approach to customization of your
Unified Checkout
UI.
Configure each of these components of the checkout experience:
You can also manage permissions as a direct merchant or as a portfolio administrator. For
information about managing permissions, see Manage Permissions.
Enable
Unified Checkout
To begin using
Unified Checkout
, you must first ensure that your merchant ID (MID)
is configured to use the service and that any payment methods you intend to use are
properly set up.
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:
Figure:
Unified Checkout
Customer Experience
The
Unified Checkout
configuration interface provides complete
low-code control over your checkout experience by using dedicated configuration
screens accessible through the
Business Center
. The configuration
interface is organized into separate screens, each accessible from the
My
customer experience
page. Configure each of these components of the
checkout experience:
Payment Options
: Add, remove, and arrange payment methods. For
information about configuring payment methods, see Configure Payment Options.
enable you to control which payment
methods appear in your checkout and in what order. Follow these steps to customize
the available payment options in
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:
Figure:
Unified Checkout
Payment Options Merchant
Experience
In the Payment Options section, click
Manage
. The Payment Options page
appears.
Under Payment options, click the checkbox next to each payment method that you
want to display in your checkout UI. Click the drag icon (
) to rearrange the order of the payment options.
IMPORTANT
Some payment options are set at the portfolio level and
cannot be reordered. When you see a pin icon next to a payment option, you
cannot move that payment option in the list of available methods. You must
contact your portfolio administrator if you want to reorder the list of
available payment options.
next to each payment type that you want to configure. The
configuration page for the selected payment type appears.
Under card brands, slide the toggle (
) to display the card brand logos in your button
list.
Click the checkbox next to each card brand that you want to display in your
checkout UI. Click the drag icon (
) to rearrange the order of the card brands.
Click
Save and publish
to save your payment options configuration
settings.
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:
Figure:
Unified Checkout
Look and Feel Merchant
Experience
In the Look & Feel section, click
Configure
. The Look and feel page
appears.
If you want to use AI to determine the look and feel, under AI brand studio,
click
Browse
the upload a screenshot of your website. These components
are updated using the colors from the screenshot you provide:
Button list background color
Card checkout outline and text colors
Header and checkout font background colors
Proceed to the next steps to manually customize these and other components
of the
Unified Checkout
appearance.
Under Button customizations, select the options for your button list. These
customizations are available:
Universal Button Shape
Use the Button shape drop-down menu to select if you want a sharp
corner, rounded corner, or pill button:
Figure:
Unified Checkout
Button Shapes
Button List
Use the color selector or enter a HEX code in the Button list
background color text box to customize the background color of your
button list. To review the button list preview, see Button List.
If you uploaded a screenshot in the AI brand studio section, a color
is entered in this space based on the colors present in your
screenshot.
Card Checkout and
Click to Pay
Button
Use the card checkout button label drop-down menu to select the text
that appears on the checkout button. These text options are available:
Pay with card
Card payment
Checkout with card (default)
Debit/Credit payment
Donate with card
Subscribe with card
Card Checkout Buttons
Use the button style drop-down menu to select if you want an
outlined or filled checkout button. Select the button fill and text
colors using the color selector or HEX code:
Figure:
Unified Checkout
Button Style
If you uploaded a screenshot in the AI brand studio section, a color
is entered in this space based on the colors present in your
screenshot.
Under Checkout customizations, select the options for your checkout experience.
These customizations are available:
Font
Use the font drop-down menu to select the font you want to use.
These fonts are available:
Inter
Monserrat
Open Sans
Raleway
Roboto Slab
Figure:
Unified Checkout
Fonts
Select the background color using the color selector or HEX
code.
If you uploaded a screenshot in the AI brand studio section, a color
is entered in this space based on the colors present in your
screenshot.
Header Customization
Select the color you want to use in your header using the color
selector or HEX code.
If you uploaded a screenshot in the AI brand studio section, a color
is entered in this space based on the colors present in your
screenshot.
Click
Save and publish
to save your look and feel customization. The
Ready to publish popup window appears.
If you are done editing, click
Publish now
to publish your changes. If
you need to make more changes, click
Keep editing
to return to the Look
and feel page. To review your changes, click through the example screens. For
more information about the UI previews, see Look and Feel UI Examples.
Look and Feel UI Examples
These examples show the different preview screens for each look and feel customization
feature:
Button List
This example shows the button list:
Figure:
Screen 1: Button List
Contact Details
This example shows the contact details that appear during checkout:
Figure:
Screen 2: Contact Details
Saved Cards
This example shows the saved card payment details that appear during checkout:
Figure:
Screen 3: Saved Cards
Card Entry
This example shows the card entry payment details that appear during checkout:
Figure:
Screen 4: Card Entry
Review Details
This example shows the review contact details that appear at the end of checkout:
Figure:
Screen 5: Review
Configure Customer Data and Payment Flow
Use the Customer data and payment flow section of the
Business Center
to
configure the information that you want to collect during checkout. Follow these
steps to customize the appearance of
If you are unable to access this page, contact your sales
representative.
In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
. The
Unified Checkout
customer experience
page appears:
Figure:
Unified Checkout
Customer Data and Payment Flow
Merchant Experience
In the Customer data and payment flow section, click
Manage
. The
Customer information and payment flow page appears.
Under Contact details, slide the toggle (
) next to Email address and Mobile phone number
to collect the customer email address and phone number during checkout.
Under Payment details, slide the toggle (
) next to Billing address to collect the
cardholder billing address.
Under Payment details, in the Billing address drop-down menu, select the
billing address information for payment verification:
ADDITIONAL INFORMATION
Full address
: Request the full cardholder billing address during
checkout.
Zip code only
: Request only the zip code of the cardholder
billing address during checkout.
Under Payment details, slide the toggle (
) next to Shipping address to collect the
cardholder shipping address.
Under Payment details, in the Shipping address drop-down menu, select the
countries that you ship to.
Under Checkout review step, slide the toggle (
) to display a review page for the customer to
confirm the payment and shipping address.
Under payment processing and & service orchestration, slide the toggle
(
) in the Payment processing section to control
how to process transactions:
You can turn payment processing on or off:
Payment Processing ON
:
Unified Checkout
handles the
complete payment for you automatically. When payment processing is on,
you can select how transactions are processed:
Preferred auth
: Choose this option to authorize the
payment when possible.
Sale
: Choose this option to capture the funds
immediately.
Payment Processing OFF
: You must complete the payment
independently using VISA or another selected gateway.
For information about enabling or disabling payment processing in
Under save customer information in payment processing and & service
orchestration, slide the toggle to the right to prompt the user to save their
payment information for future use.
Saving customer payment details can significantly improve the checkout
experience for returning customers. There are two approaches that you can use:
Ask for consent to save payment information for future use
:
This option displays a checkbox during checkout that asks customers
if they want their payment details saved. You can enable this option
regardless of if payment processing is enabled at any time.
Store payment details securely in your
TMS
vault
: This option saves payment information using secure
encryption and links directly to your
TMS
vault. This enables faster checkout for returning customers by using
tokens rather than raw card data.
IMPORTANT
If you already have cardholder consent (for example,
if it was obtained during account creation or through another verified
process) or consent is not required for your flow, you should not
display or request consent again in the UI.
Under Fraud detection in payment processing and & service orchestration,
use the drop-down menu to turn fraud detection with
Decision Manager
or
Fraud Management Essentials
On
or
Skip
.
Under Localized payment settings, slide the toggle (
) to enable these features:
ADDITIONAL INFORMATION
Combo cards
: Enable cardholders to decide how to process their
payments.
Brazil tax ID
: Collect a customer's CPF or CNPJ at checkout.
IMPORTANT
Combo cards and tax IDs are only available in
Brazil.
Click
Save and publish
to save your customer payment settings.
Capture Context Fields in the
Business Center
There are some components of
Unified Checkout
that are available in the
API, the
Business Center
or both. This section describes which components of the
sessions API capture context object can be configured using the
Business Center
. For
a complete list of fields that are available, see the API Reference in the
Cybersource
Developer Center.
API Parameters
Parameter
Business Center
API
Notes
allowedCardNetworks
Yes
Override
Optional. This is the override priority order:
API
Merchant experience profile
Portfolio profile
allowedPaymentTypes
Yes
Override
Optional. This is the priority order:
API (payment types that are not enabled are removed)
Merchant experience profile (payment types that are not enabled
are removed)
Portfolio profile (all payment types are enabled at the profile
level)
IMPORTANT
SRCVISA
,
SRCMASTERCARD
, and
SRCAMEX
are
not supported. You must use
CLICKTOPAY
.
paymentConfigurations
Partial
Yes
Allows per-transaction payment type configuration overrides. This is
available only in
This payment configuration is part of the merchant
experience.
Capture Mandate
Capture Mandate Parameters
Parameter
Business Center
API
Default Value
showConfirmationStep
Yes
Override
billingType
Yes
Override
requestEmail
Yes
Override
requestPhone
Yes
Override
requestShipping
Yes
Override
shipToCountries
Yes
Override
showAcceptedNetworkIcons
Yes
Override
comboCard
Yes
Override
requestSaveCredentials
Yes
Override
cpf
Yes
Override
cpf.required
Yes
Override
Complete Mandate
Complete Mandate Parameters
Parameter
Business Center
API
Default Value
type
Yes
Override
SALE
decisionManager
Yes
Override
true
consumerAuthentication
Yes
Override
false
tms
Yes
Optional
tms.tokenCreate
Yes
Override
true
Appearance Variables
Top-Level Appearance Parameters and Variables
Parameter / Variable
Business Center
API
Default Value
Example
buttonType
Yes
Override
CHECKOUT
"CHECKOUT"
variables
Partial
Override
backgroundColor
Yes
Override
"#FFFFFF"
textColor
Yes
Override
"#000000"
headerBackground
Yes
Override
"#1A237E"
headerForeground
Yes
Override
"#FFFFFF"
buttonBackground
Yes
Override
"#E0E0E0"
buttonForeground
Yes
Override
"#333333"
buttonBorderRadius
Yes
Override
"4px"
fontFamily
Yes
Override
"Roboto Slab, serif"
paymentSelectionBackground
Yes
Override
"#F5F5F5"
Manage Permissions
Portfolio administrators
can set permissions for new or existing
Business Center
user roles for
Unified Checkout
.
Administrators retain full read and write permissions. They enable you to regulate
access to specific pages and specify who can access, view, or amend digital products
within
Unified Checkout
.
Portfolio administrators
must apply the appropriate user role
permission for any existing or newly created
If you are a transacting merchant, you might find that your permissions are restricted.
If your permissions are restricted, a message appears indicating that you do not have
access, or buttons might appear gray. To make changes to your digital products within
Unified Checkout
that have restricted permissions, contact
your portfolio administrator's customer support
representative
Follow these steps to configure and manage user permissions in the
Business Center
for
Unified Checkout
as a direct merchant:
On the left navigation panel, navigate to
Account
Management
.
Click
Roles
to display a list of your user roles.
Click the pencil icon next to the user role that you want to update.
Click
Payment Configuration Permission
.
Select the relevant permission for the specific user role you are editing. You
can select from these
Unified Checkout
permissions:
Unified Checkout View
Unified Checkout Manage
IMPORTANT
If you are a transacting merchant without view permissions,
Unified Checkout
will
still appear on the navigation bar, however, a
no access
message
appears when you access
Unified Checkout
.
If you are a transacting merchant
with view permissions but not management permissions, you can access the
Unified Checkout
screens and view the different
payment methods configurations, however, you cannot edit or enroll new
products.
Managing Permissions as
a Portfolio Administrator
Follow these steps to configure and manage user permissions in the
Business Center
for
Unified Checkout
as a portfolio
administrator:
On the left navigation panel, navigate to
Account
Management
.
Click
Roles
to see a list of your user roles.
Click the pencil icon next to the user role that you want to update.
Click
Payment Configuration Permission
.
Select the relevant permission for the specific user role you are editing. You
can choose from these
Unified Checkout
permissions:
Unified Checkout View
Unified Checkout Manage
Unified Checkout Portfolio View (available for portfolio users
only)
Unified Checkout Portfolio Manage (available for portfolio users
only)
IMPORTANT
If all permissions are left unselected, the user has restricted permission. A
no access
message appears when the user tries to access the
Unified Checkout
digital product enablement pages. The user is
advised to contact a customer representative.
If a portfolio user has view permissions and does not have a
management role, they can access the
Unified Checkout
pages, but they cannot modify toggles for different digital
payments.
Process Payments with
Unified Checkout
Payment processing is a payment completion option in your merchant configuration. Your
configuration determines if your checkout system automatically handles and finalizes
customer payments. When payment processing is enabled,
Unified Checkout
handles the complete payment for you automatically. When payment processing not enabled,
you complete payments independently using your selected gateway.
Payment Processing Enabled
Cybersource
recommends that you enable payment processing if you meet
these requirements:
Your integration is configured with the payment completion step. For more
information about
You do not have a designated technical team to process payments.
Your integration includes any of these features:
Fraud checks with
Decision Manager
or
Fraud Management Essentials
3-D Secure
/
Payer Authentication
Stored customer credentials with the
Token Management Service
(
TMS
)
Multiple payment methods
When payment processing is enabled, you can choose how payments should be handled:
Preferred Authorization
: The payment is authorized first and captured
at a later time. This method works well for businesses that ship products to
their customers. For example, you authorize the payment when the customer
places and order and capture the payment when you ship it.
Sale
: The payment is captured immediately. This method works well for
service businesses, digital products, and immediate purchases.
IMPORTANT
Not all payment methods are compatible with all processing
types. Different payment methods work with different payment processing types.
You must configure your payment processing settings to be compatible with your
integration and review which payment methods are compatible. For information
about payment methods and their processing compatibility, see Payment Methods.
Payment Processing Disabled
Cybersource
recommends
that you disable payment processing if you meet these requirements:
You want to process payments on
our platform
using your own API
requests instead of relying on the automatic payment completion step.
You want full control over your checkout and payment orchestration flow.
You only use
Unified Checkout
to collect encrypted payment
information and you handle the completion phase through
our platform
APIs or your custom back-end. The completion phase
includes authorization, sale, fraud checks,
3-D Secure
and card
storage.
When disable payment processing, the checkout system will collect payment
information from your customers but you will need to process the actual payment on
your end. When payment processing is disabled, you must consider the following:
Customer payments are not completed automatically.
Fraud checks and
3-D Secure
using automatic orchestration are
disabled.
Saved credentials and token management using automatic processing are
disabled.
You must handle payment completion yourself.
Webhooks Support
Unified Checkout
supports webhooks. You can use webhooks to obtain the
complete response from the
completeMandate
call. To receive a webhook
notification, you must first subscribe to the webhook.
Prerequisite
Webhook payloads are encrypted. In order to receive a
Unified Checkout
webhook notification, you must enabled message-level encryption (MLE). For
information about enabling MLE, see Enable Message-Level Encryption
in the
Getting Started with REST Developer Guide
.
Webhook Events
Unified Checkout
Webhook Events
Product ID
Event Types
Description
unifiedCheckout
uc.orders.transactionresults
Full payload response from the payment service call made by
field object contains the same fields as the response
from a direct payment authorization request. Use the
id
field for
capture requests or to look up a transaction.
Sessions API
Use the sessions API to generate a capture context. The capture context contains all of the
merchant-specific parameters that tell the front-end JavaScript library what to do within
your payment experience.
This section
Capture Context Components
The capture context is a signed JSON Web Token (JWT) containing this information:
Merchant-specific parameters that dictate the customer payment experience for the
current payment transaction.
A one-time public key that secures the information flow during the current payment
transaction.
recommends that you dynamically parse the response
for the fields that you are looking for when you integrate with
Cybersource
APIs.
Cybersource
may add additional
fields in the future.
You must ensure that your integration can handle new fields that are returned in
the response. Even though the underlying data structures do not change, you must
also ensure that your integration can handle changes to the order in which the
data is returned.
Cybersource
uses semantic versioning
practices, which enables you to retain backwards compatibility as new fields are
introduced in minor version updates.
To support dual-branded or co-badged cards, you must list your supported
card type values for the
allowedCardNetworks
field
based on your preference for processing card numbers. For example, if a
card is dual-branded as Visa and Cartes Bancaires, and Cartes Bancaires
is listed first, the card type is set to Cartes Bancaires after the card
number is entered in your
Unified Checkout
card collection
form. For information on dual-branded or co-badged cards, see Dual-Branded Cards.
IMPORTANT
Some card types, such as KCP and UATP, do not have security codes
(CVV or CVN). If you include only card types that do not have
security codes in the
allowedCardNetworks
field,
Unified Checkout
does not display the
security code field in the UI.
If you include card types that do not have security codes and cards types
that do have security codes in the
allowedCardNetworks
field,
Unified Checkout
displays the security code field in
the UI. The field is disabled in the UI when the cardholder enters a card
number for a card type with no security code
Target Origins
The target origin is defined by
the scheme (protocol), hostname (domain), and port number (if used).
You must use the https:// protocol. Sub domains must also be included in
the target origin.
Any valid top-level domains, such as .com, .co.uk, and .gov.br, are
supported. Wildcards are not supported.
For example, if you are launching
Unified Checkout
on
example.com, the target origin could be any of the following:
recommends that you do no include this field in your
uc/v1/sessions
API request. When you do not include this field,
Unified Checkout
automatically uses the latest available version.
This ensures access to the most recent enhancements and updates without requiring
integration changes.
When you include this field, the value must be provided in
MAJOR.MINOR
format (for example,
1.1
or
1.2
). For information about semantic versioning, see Versioning.
IMPORTANT
This field cannot be configured through the merchant
experience screens in the
Business Center
.
Auto-check Enrollment
You can have the
Click to Pay
box pre-checked when a user is
manually entering their card details and
Click to Pay
is
enabled. The customer can uncheck the box if necessary, which means the request is
processed as a one-time manual PAN transaction. This is available when you set the
billingType
field to
PARTIAL
or
FULL
in the capture context. This ensures that the customer's
billing country can be validated in the UI.
Click to Pay
enrollment pre-check is available in these countries:
loads, the payment buttons displayed are based on
what you include in the
allowedPaymentTypes
object in the capture
context.
Unified Checkout
enables you to customize the text on the
payment buttons. You can do this by setting the
buttonType
field
object in the capture context to one of these values:
ADD_CARD
CARD_PAYMENT
CHECKOUT_AND_CONTINUE
DEBIT_CREDIT
DONATE
PAY
PAY_WITH_CARD
SUBSCRIBE_WITH_CARD
If you do not include the
buttonType
field in your request, the
payment button text defaults to
Checkout with card
. For example:
Customize Button Text
Use the
buttonType
field to customize the text on payment
buttons:
Button Text Options
buttonType
Value
Button Display Text
ADD_CARD
Add card
CARD_PAYMENT
Card payment
CHECKOUT_AND_CONTINUE
Checkout and continue
DEBIT_CREDIT
Debit or credit
DONATE
Donate
PAY
Pay
PAY_WITH_CARD
Pay with card
SUBSCRIBE_WITH_CARD
Subscribe with card
When you do not include this field in your request, the default button text is
“Checkout with card.”
Complete Mandate
The complete mandate feature provides service orchestration within
Unified Checkout
and simplifies your integration. Service orchestration
enables
Unified Checkout
to orchestrate services on your behalf. The
complete mandate feature provides instructions to the
unifiedPayment.complete()
method in the JavaScript. You must
include both the
unifiedPayment.complete()
object in the
Javascript and the
completeMandate
field object in your capture
context to enable
Unified Checkout
to initiate services on your behalf
from the browser.
IMPORTANT
If you are updating an existing
Unified Checkout
configuration to use the complete mandate, you must update your JavaScript to
include the
unifedPayment.complete()
function.
IMPORTANT
When the
billingType
field is set to
NONE
you must include the required fields within the capture
context request to ensure that the required fields are included for payment
processing. For information about the fields that are required for payment services,
see the Payments Developer Guide.
completeMandate.type
This field is required to run the complete mandate and is used to indicate how a
payment should be processed.
Possible values:
AUTH
: Authorize the payment and capture the funds
at a later date.
CAPTURE
: Perform a sale. A sale is a combined
authorization and capture in a single request.
PREFER_AUTH
: Perform an authorization if possible.
If a payment method requires the funds to be captured immediately,
then
Unified Checkout
captures the payment.
completeMandate.decisionManager
This field determines whether
Decision Manager
is run. Set this field to
true
and include
completeMandate.type
in
your request to run
Decision Manager
and device fingerprinting services.
When
Decision Manager
runs, it uses the associated
Decision Manager
configuration based on the merchant ID that is included in the request.
When you meet these requirements, a new payment instrument or instrument
identifier is created under the specified customer token.
completeMandate.tms.tokenTypes
: This is an optional
field that you can use to indicate the token type for the token that is
created. When this field is not included in the request, a token is
created based on your
TMS
vault configuration.
You can set this field to these values:
customer
instrumentIdentifier
paymentInstrument
shippingAddress
If you want
Unified Checkout
to capture the
cardholder's consent to save the card before a request to create a
token is completed, then you must set
captureMandate.requestSaveCredentials
to
true
. When this field is set to
true
,
Unified Checkout
presents a
Save card for future payments
checkbox within the UI and
enables the cardholder to give consent. Do not include
captureMandate.requestSaveCredentials
in your
request if you have already gained cardholder consent to create a
TMS
token or do not require
consent.
This table indicates if a token is created given the
requested payment method:
Payment Method
Capture Context
Result
PAN Entry and
Click to Pay
completeMandate.tms.tokenCreate
=
true
TMS
token is created
at the token level(s) specified in the request or
based on the default for the token vault.
completeMandate.tms.tokenCreate
=
true
and
captureMandate.requestSaveCredentials
=
true
Cardholder can check
Save Payment
Information
in
Unified Checkout
.
The request to create a token is made when the
cardholder checks this field in the UI. When it is
not checked, ni token is created.
Apple Pay, Google Pay
, and Paze
completeMandate.tms.tokenCreate
=
true
TMS
token is created
at the token level(s) specified in the request or
based on the default for the token vault.
completeMandate.tms.tokenCreate
=
true
and
captureMandate.requestSaveCredentials
=
true
Unified Checkout
cannot obtain
consent to create a token and no token is created
when the customer completes the payment.
Echeck
completeMandate.tms.tokenCreate
=
true
TMS
token is created
at the token level(s) specified in the request or
based on the default for the token vault.
completeMandate.tms.tokenCreate
=
true
and
captureMandate.requestSaveCredentials
=
true
Unified Checkout
cannot obtain
consent to create a token and no token is created
when the customer completes the payment.
Capture Mandate
The capture mandate enables you to define which fields are captured within
Unified Checkout
. You must include the fields and set the values in the
capture context based on the information that you want
Unified Checkout
to collect. This enables the cardholder to review and edit their details where
the UI includes these fields. When the UI is used to capture cardholder information,
all captured information is available within the payment details API response. When
you want the cardholder to review existing address data, you can include the known
customer data in the capture context and this information is pre-filled in the
A combo card is a single card in Brazil that functions as both a debit and a credit
card.
Unified Checkout
enables the cardholder to choose whether to pay
for a transaction using a debit or credit card. The cardholder can choose the card
that they want to use when they enter their card details or when they choose a
stored Visa card from their
Click to Pay
wallet during checkout.
While in the card details section of the payment form, the cardholder is prompted
for a debit or credit card. Credit is the default option.
To enable combo cards during checkout, you must include the
comboCard
field in your capture context request and set the
field value to
true
. When the
comboCard
field
value is set to
true
, the option to use a debit or credit card
appears for all Visa cards that are entered in
Unified Checkout
and for all
cards that are already stored in
Click to Pay
. If you do not
want to offer a combo card at checkout, do not include the
comboCard
field in your capture context
request:
"captureMandate" : {
"comboCard": true
}
IMPORTANT
This feature is available only in
Brazil.
captureMandate.CPF
The Cadastro de Pessoas Físicas (CPF) Brazilian tax ID feature is for customers in
Brazil and provides your customers with a way to include their Consumer National
Identifier when it is requested at checkout. Include this field in the capture
context to display this field within the flow for manual card entry and
, you
can remove the final summary confirmation screens from the checkout experience. When
the UI displays cardholder data, the cardholder can review and, if necessary, edit
their payment details before checkout is complete.
: Only the billing postal code and billing country are
collected in the UI. Set to this value when you use relaxed address verification
services (AVS). This includes markets where postal code and billing country are
enough for successful payment processing.
NONE
: No fields are shown in the UI to capture cardholder billing
details. If you are using the Complete Mandate, you must provide billing details in
the capture context. All information that is collected from these fields is
tokenized in the transient token and sent for payment processing. For information
about which fields are required for payment processing, see the Payments Developer Guide.
FULL
: These fields are shown in the UI to capture cardholder billing
details. When you include the billing details in the capture context, these details
are pre-filled in the
Unified Checkout
UI. All information that is
collected from these fields are tokenized in the transient token and sent for
payment processing where the Complete Mandate is used.
captureMandate.requestEmail
False: No email address is shown in the UI. If you are using
Click to Pay
, this email address is used to find the cardholder's
Click to Pay
account and it appears in the UI when
requestEmail
is set to
false
.
True: The email address is shown and captured in the UI. If you are using
Click to Pay
, this email address is used to find the cardholder's
Click to Pay
account.
captureMandate.requestPhone
False: No phone number is shown or captured in the UI.
True: The phone number is shown and captured in the UI.
captureMandate.requestShipping
False: No shipping information is captured in the UI. When shipping details are
required for payment processing and are used for follow on services such as
Decision Manager
, you can include these fields in the capture context. These details are
tokenized and passed through.
True: Shipping fields are shown in the UI and are collected by
Unified Checkout
. When you include the shipping details in the capture
context, the information appears prefilled in the UI.
captureMandate.shipToCountries
When the
requestShipping
field is set to
true
,
only the countries that are included in this field can be selected by the cardholder for
their shipping address.
Include Card Prefix
You can control the length of the card number prefix to be received in the
response to the capture context
/sessions
request:
Six digits
Eight digits
No prefix
To specify your preferred card number prefix length, include or exclude the
transientTokenResponseOptions.includeCardPrefix
field in the
capture context
/sessions
request.
To receive a six-digit card
number prefix in the response, follow this step:
Do not
include the
transientTokenResponseOptions.includeCardPrefix
field in the
capture context
/sessions
request.
This example shows how a six-digit card number prefix
, an automatic email lookup occurs when an
email address is included in the capture context request. If the user has a
Click to Pay
account but is not on a recognized device, a one-time
password (OTP) screen appears and the user is prompted to enter their OTP. If the user
does not have a
Click to Pay
account, the user must enter their card
information manually. They will have the option to create a
Click to Pay
account.
To enable email autolookup, you must include
CLICKTOPAY
as a value in the
allowedPaymentTypes
field and include an email address in the
capture context.
Mobile as Identity for
Click to Pay
Click to Pay
supports mobile numbers as way to identify
a user. This enables cardholders to use their mobile number instead of their
email address in certain markets for Visa and Mastercard transactions.
When the
requestEmail
field is set to
false
and the
requestPhone
field is
set to
true
, the cardholder is identified using the
provided mobile number. When the
requestEmail
field is
set to
true
and the
requestPhone
field
is set to
false
, the cardholder is identified using the
provided email address. When the
requestEmail
field is
set to
true
and the
requestPhone
field
is also set to
true
, the cardholder is identified using the
provided email address first and then the mobile number if there is no
match.
The capture context that you generate is a JSON Web Token (JWT) data object. The JWT is
digitally signed using a public key and confirms the validity of the JWT and that it
comes from
Cybersource
. When you do not have a key in the JWT header,
Cybersource
recommends that you follow cryptography best practices
and validate the capture context signature.
To validate a JWT, you must obtain its public key. This public RSA key is in JSON Web Key
(JWK) format. The public key is associated with the capture context on the
Cybersource
domain.
To get the public key of a capture context from the header of the capture context itself,
you must retrieve the key ID associated with the public key and then pass the key ID to
the
/flex/v2/public-keys
endpoint:
From the header of the capture context, get the key ID
(
kid
):
{
"kid": "3g",
"alg": "RS256"
}
Send a GET request to the
/flex/v2/public-keys
endpoint and
include the key ID. For example:
Test:
GET
https://apitest.cybersource.com
/flex/v2/public-keys/{3g}
Production:
GET
https://api.cybersource.com
/flex/v2/public-keys/{3g}
Production in
Saudi Arabia:
GET
https://api.sa.cybersource.com
/flex/v2/public-keys/{3g}
Test in Saudi
Arabia:
GET
https://apitest.sa.cybersource.com
/flex/v2/public-keys/{3g}
Depending on the cryptographic method you use to validate the public key, you
might need to convert the key to privacy-enhanced mail (PEM) format.
The session JWT is digitally signed using RS256. You must confirm that it was issued by
Cybersource
and has not been tampered with. Follow these steps to
validate the signature:
Parse the session JWT header to extract the key ID
(
kid
):
{
"kid": "3g",
"alg": "RS256"
}
Retrieve the public key by sending a request to the
/flex/v2/public-keys/{kid}
endpoint:
Test
: GET
apitest.cybersource.com
flex/v2/public-keys/{kid}
Production
: GET
api.cybersource.com
flex/v2/public-keys/{kid}
Use the returned RSA public key in JSON Web Key format to verify the JWT
signature.
IMPORTANT
Depending on the cryptographic library that tou use, you
may need to convert the key to Privacy-Enhanced Mail (PEM) format.
Transient Tokens
The response to a successful customer interaction with
Unified Checkout
is
a transient token. This is returned in the response from the
checkout.mount()
function. The transient token is a reference to
the payment data collected on your behalf. Transient tokens allow secure card payments
to occur without risk of exposure to sensitive payment information. The transient token
is a short-term token that expires after 15 minutes. This reduces your PCI
burden/responsibility and ensures that sensitive information is not exposed to your
back-end systems.
Transient tokens can be included requests sent to the Payment Details API for the
customer payment data that is collected.
Transient Token Format
The transient token is issued as a JSON Web Token (JWT) (RFC 7519).
For information on JSON Web Tokens, see JSON Web Tokens.
The payload portion of the token is a Base64URL-encoded JSON string and contains various
claims. For more information, see JSON Web Tokens.
The empty field values in the transient token indicate which fields
were captured by the application without exposing you to personally identifiable
information directly.
PAN BIN in
metadata
Object
The
cardDetails
object, including the PAN BIN, is included in the
transient token
metadata
when a
Click to Pay
network token is used as a payment method. This allows you to display information about
the card on invoices and see the BIN details that are linked to the underlying card.
and enables you to determine if the payload is fully
authenticated. When
cardholderAuthenticationStatus
is set to
true
, the payload is fully authenticated. When
cardholderAuthenticationStatus
is set to
false
, the
transaction is not authenticated.
If you are using
Unified Checkout
with
unifiedPayment.complete()
and
consumerAuthentication
is set to
true
in the
complete mandate request, then
Payer Authentication
is called automatically if it
is available for the selected payment method and card network. If you use a transient
token to request follow-on services directly, the value of this field indicates if the
transaction has been
authenticated.
When you receive the transient token, you should cryptographically verify its integrity
using the public key embedded within the capture context. Doing so verifies that
Cybersource
issued the token and that the data has not been tampered
with in transit. Verifying the transient token JWT involves verifying the signature and
various claims within the token. Programming languages each have their own specific
libraries to assist.
accepts dual-branded cards. To use this feature, you must
include the card networks that have overlapping BIN ranges in the capture context
request. For
example:
When a card number within an overlapping BIN range is entered, the network that is listed
first in the value array for the
allowedCardNetworks
field is used.
Based on the previous example, if the card number 403550XXXXXXXXXX is entered, the
payment network for payment processing is Visa.
During the transaction, the card type is populated with the first network in the list,
and the
detectedCardTypes
field returned in the transient token includes all of
the detected card types in the transient token.
The
detectedCardTypes
field is returned in the transient token
response only when more than one card type is detected.
If you include Cartes Bancaires as a supported dual-branded card type,
Unified Checkout
displays a radio button with Visa and Mastercard options at
checkout. This enables the customer to select which payment scheme they want to use to
process the payment. The radio button defaults to the card type that you specify in the
capture context request, but the payment is processed using the option selected by the
customer during checkout.
Authorizations with a Transient Token
This section provides the information required in order to perform a successful authorization
with a
Unified Checkout
transient token. You can use this method to construct
more complex payment scenarios that are not supported by the
unifiedPayments.complete()
payment method.
IMPORTANT
When you process payments through
Unified Checkout
using
unifiedPayments.complete()
,
Unified Checkout
invokes
service orchestration directly. When you send an authorization request using a transient
token, you must request the follow-on services that you want to use. For information about
the required fields for the payment services that you request, see the Payments Developer Guide.
The transient token is a short-term token that expires after 15 minutes. Doing so eliminates
the need to send sensitive payment data along with the request. For more information on
transient tokens, see Transient Tokens.
To send the transient token with a request, use the
tokenInformation.transientTokenJwt
field.
This example shows a transient token in the context of an authorization
request:
endpoint. This data includes cardholder name and billing and shipping details. For more information, see Payment Details API.
IMPORTANT
Fields supplied directly in an API request supersede those that are also present in the transient token. For example, in the request below, the total amount might have been overridden because of a tax calculation.
Endpoint
Production:
POST
https://api.cybersource.com
/pts/v2/payments
Test:
POST
https://apitest.cybersource.com
/pts/v2/payments
Production in Saudi
Arabia:
POST
https://api.sa.cybersource.com
/pts/v2/payments
Test in Saudi
Arabia:
POST
https://apitest.sa.cybersource.com
/pts/v2/payments
Required Field for an Authorization with a Transient Token
A Google device must be used with biometric authentication for
Google authentication.
A user authenticates themselves on a Google device with a
tokenized Google Pay credential – the returned payload from Google
will be Authenticated
Google Pay
Payer Authentication
through
Unified Checkout
Authorization and
Payer Authentication
You must use a device, such as a web browser, that does not
authenticate the cardholder as part of the authorization
process.
Google will return an un-authenticated payload to Unified
Checkout . Unified Checkout will step in and process Authentication
via Payer Authentication when the Complete Mandate function is used
with consumerAuthentication
Handle Errors
The
Unified Checkout
SDK uses a structured error object for all error
scenarios. Errors are returned as exceptions from asynchronous methods and are also
returned as events for centralized handling.
UnifiedCheckoutError
All SDK errors are instances of
UnifiedCheckoutError
with these
properties:
UnifiedCheckoutError
Properties
Property
Type
Description
correlationId
string?
The correlation ID from an underlying API call, when
applicable.
details
unknown?
Additional error-specific information. This is often an array of
objects.
informationLink
string?
The URL linked to the online documentation for this
error.
message
string
This property is a human-readable description of the
error.
name
string
The value is always
"UnifiedCheckoutError"
.
reason
string
This property is a machine-readable error code, such as
recommends that you do this as it catches errors from all
checkouts, triggers, and buttons created from this client instance.
Error Codes
Initialization Errors
These errors are returned during
VAS.UnifiedCheckout(sessionJWT)
:
Initialization Reason Values
Reason
Description
CAPTURE_CONTEXT_EXPIRED
The supplied JWT has expired. Generate a new session.
CAPTURE_CONTEXT_INVALID
The session JWT is not valid. For example, it has a bad signature
or is malformed.
UNUSED_TARGET_ORIGINS
One or more
targetOrigins
in the session do not
match the current page origin. The
details
array
lists the unused origins.
Mount Errors
These errors are returned during
checkout.mount()
or
trigger.mount()
:
Mount Reason Values
Reason
Description
CHECKOUT_ALREADY_MOUNTED
The checkout or trigger is already mounted. Call
unmount()
first, or create a new
instance.
MOUNT_CONTAINER_SELECTOR
The CSS selector does not match any Document Object Model (DOM)
element. Check that the container exists before calling
mount()
.
MOUNT_ERROR
A problem occurred loading the payment iframe.
MOUNT_INVALID_CONTAINER
The supplied container parameter is not a valid CSS selector
string or
HTMLElement
.
MOUNT_PAYMENT_TIMEOUT
A payment method timed out during initialization.
MOUNT_PAYMENT_UNAVAILABLE
No payment types could be presented to the customer. This may be
due to browser or device support, or errors during checkout
initialization.
MOUNT_SIDEBAR_OPTIONS
The supplied container parameter is invalid for sidebar
mode.
MOUNT_TOKEN_TIMEOUT
Token creation timed out during mount. This may indicate a
network issue.
MOUNT_TOKEN_XHR_ERROR
A network error occurred during token creation. Check the
customer’s connectivity.
Complete Errors
These errors are returned during
checkout.complete()
or
trigger.complete()
:
Complete Reason Values
Reason
Description
COMPLETE_AUTHENTICATION_CANCELED
The customer cancelled the
3-D Secure
authentication
step-up.
COMPLETE_AUTHENTICATION_FAILED
The
3-D Secure
authentication step-up
failed.
COMPLETE_ERROR
A general error occurred during transaction completion.
COMPLETE_IN_PROGRESS
complete()
has already been called and has not
yet finished. Wait for the current call to resolve.
COMPLETE_NOT_ALLOWED
Complete is not allowed for this transaction, such as when
autoProcessing
is set to
true
.
COMPLETE_TRANSACTION_CANCELLED
The customer cancelled the transaction.
COMPLETE_TRANSACTION_FAILED
The transaction failed during processing.
COMPLETE_VALIDATION_ERROR
The parameters supplied to
complete()
have a
validation error. Check the
details
for
specifics
Checkout Errors
Checkout Reason Values
Reason
Description
CHECKOUT_ERROR
A general checkout error occurred.
CHECKOUT_PAYMENT_PARAMETERS
One or more payment parameters have a validation error.
CHECKOUT_VALIDATION_PARAMS
One or more checkout parameters have a validation error.
Trigger Errors
Trigger Reason Values
Reason
Description
TRIGGER_PAYMENT_TYPE_NOT_SUPPORTED
The specified payment type cannot be used with a trigger. Only
PANENTRY
and
CLICKTOPAY
values
are supported.
Payment-Specific Errors
Payment-Specific Reason Values
Reason
Description
CLICK_TO_PAY_SDK_LOAD_ERROR
The
Click to Pay
SDK failed to
load.
ENCRYPT_CARD_FOR_SRC_ENROLMENT_ERROR
Card encryption for
Click to Pay
enrollment failed.
GOOGLEPAY_CHECKOUT_ERROR
A Google Pay checkout error occurred.
LAUNCH_SRC_CHECKOUT_ERROR
Launching the
Click to Pay
checkout
failed.
TRIGGER_PAYMENT_TYPE_NOT_SUPPORTED
The payment type is not supported for triggers.
General Errors
Reason Code
Description
UNKNOWN_ERROR
An unknown error has occurred.
Reason Codes
This section describes the server-side HTTP status codes and reason values that are
returned when you send requests to
Unified Checkout
. For information
about client-side SDK error codes, see Handle Errors.
HTTP Status Codes
Code
Description
200
Request processed successfully
201
Session created
400
Bad request. The response body contains a reason value with
details
404
Resource not found
500
Unexpected server error
Reason Values (HTTP
400
)
When the API returns a status code value of
400
, the response body
includes the
reason
field. This section lists all possible values
for the
reason
field:
Initialization Reason Values
Reason
Description
CAPTURE_CONTEXT_EXPIRED
The session JWT is expired. Generate a new session.
CAPTURE_CONTEXT_INVALID
The session JWT is not valid. For example, it has a bad signature
or is malformed.
INVALID_APIKEY
The API key is not valid.
Checkout Reason Values
Reason
Description
CHECKOUT_ERROR
A general checkout error occurred.
UNIFIED_PAYMENTS_ALREADY_SHOWN
The checkout is already displayed.
UNIFIED_PAYMENTS_PAYMENT_PARAMETERS
One or more payment parameters have a validation error.
UNIFIED_PAYMENTS_VALIDATION_FIELDS
One or more fields have a validation error.
UNIFIED_PAYMENTS_VALIDATION_PARAMS
One or more checkout parameters have a validation error.
Mount Reason Values
Reason
Description
SHOW_LOAD_CONTAINER_SELECTOR
The CSS selector does not match any element.
SHOW_LOAD_ERROR
A problem occurred loading the payment iframe.
SHOW_LOAD_INVALID_CONTAINER
The container parameter is not valid.
SHOW_LOAD_SIDEBAR_OPTIONS
The container parameter is not valid for sidebar mode.
SHOW_PAYMENT_TIMEOUT
A payment method timed out during initialization.
SHOW_PAYMENT_UNAVAILABLE
No payment types could be presented to the customer.
SHOW_TOKEN_TIMEOUT
Token creation timed out during mount.
SHOW_TOKEN_XHR_ERROR
A network error occurred during token creation.
Complete Reason Values
Reason
Description
COMPLETE_AUTHENTICATION_CANCELED
The customer cancelled
3-D Secure
authentication.
COMPLETE_AUTHENTICATION_FAILED
3-D Secure
authentication failed.
COMPLETE_ERROR
A general error occurred during completion.
COMPLETE_IN_PROGRESS
A complete call is already in progress.
COMPLETE_NOT_ALLOWED
Complete is not allowed, such as when auto-processing is
enabled.
COMPLETE_TRANSACTION_CANCELLED
The customer cancelled the transaction.
COMPLETE_TRANSACTION_FAILED
The transaction failed during processing.
COMPLETE_VALIDATION_ERROR
Parameters supplied to complete have a validation error.
Tokenization Reason Values
Reason
Description
CREATE_TOKEN_TIMEOUT
Token creation request timed out.
CREATE_TOKEN_XHR_ERROR
A network error occurred during token creation.
SDK_XHR_ERROR
A general SDK network error occurred.
TOKENIZATION_ERROR
Tokenization of payment data failed.
Payment-Specific Reason Values
Reason
Description
CLICK_TO_PAY_SDK_LOAD_ERROR
The
Click to Pay
SDK failed to load.
ENCRYPT_CARD_FOR_SRC_ENROLMENT_ERROR
Card encryption for
Click to Pay
enrollment
failed.
GOOGLEPAY_CHECKOUT_ERROR
A Google Pay checkout error occurred.
LAUNCH_SRC_CHECKOUT_ERROR
Launching the
Click to Pay
checkout
failed.
TRIGGER_PAYMENT_TYPE_NOT_SUPPORTED
The payment type is not supported for triggers.
Payment Details API
This section contains the information you need to retrieve the non-sensitive data associated
with a
Unified Checkout
transient token and the payment details API. This API
can be used to retrieve personally identifiable information, such as the cardholder name and
billing and shipping details, without retrieving payment credentials, which helps ease the PCI
compliance burden.
There are two methods of authentication, and they are described in the
recommends that you dynamically parse the response
for the fields that you are looking for when you integrate with
Cybersource
APIs.
Cybersource
may add additional
fields in the future.
You must ensure that your integration can handle new fields that are returned in
the response. Even though the underlying data structures do not change, you must
also ensure that your integration can handle changes to the order in which the
data is returned.
Cybersource
uses semantic versioning
practices, which enables you to retain backwards compatibility as new fields are
introduced in minor version updates.
Endpoint
Production:
GET
https://api.cybersource.com
/flex/v2/payment-details/
{jti}
Test:
GET
https://apitest.cybersource.com
/flex/v2/payment-details/
{jti}
Production in Saudi Arabia:
GET
https://api.sa.cybersource.com
/flex/v2/payment-details/
{jti}
Test in Saudi Arabia:
GET
https://apitest.sa.cybersource.com
/flex/v2/payment-details/
{jti}
The
{jti}
is the ID of the
JWT within the transient token that is returned by
Unified Checkout
.
The transient token is a JWT object that you retrieved as part of a successful
capture of payment information from a cardholder.
JSON Web Tokens (JWTs) are digitally signed JSON objects based on the open standard RFC 7519. These tokens provide a compact, self-contained
method for securely transmitting information between parties. These tokens are
signed with an RSA-encoded public/private key pair. The signature is calculated
using the header and body, which enables the receiver to validate that the content
has not been tampered with.
A JWT takes the form of a string, and consists of three parts separated by dots:
<Header>.<Payload>.<Signature>
The header and payload is
Base64-encoded JSON
and contains these claims:
Header
: The algorithm and token type. For
example:
{
"kid": "zu",
"alg": "RS256"
}
Payload
: The claims of what the token represents. For
example:
: The signature is computed from the header and payload using a
secret or private key.
IMPORTANT
When working with JWTs,
Cybersource
recommends that you use a well- maintained JWT library to ensure proper decoding
and parsing of the JWT.
IMPORTANT
When parsing the JWT’s JSON payload, you must ensure that you
implement a robust solution for transversing JSON. Additional elements can be
added to the JSON in future releases. Follow JSON parsing best practices to
ensure that you can handle the addition of new data elements in the future.
Supported Countries for Digital Payments
Supported Countries for Digital Payments A-D
Supported Countries (A through D)
Country
Apple
Pay
Click to Pay
eCheck
Google
Pay
Afghanistan
Albania
Algeria
Andorra
Angola
Antigua and
Barbuda
Argentina
Armenia
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Brazil
Belize
Benin
Bhutan
Bolivia
Bosnia and
Herzegovina
Botswana
Brunei
Darussalam
Bulgaria
Burkina
Faso
Burundi
Cambodia
Cameroon
Canada
Cape
Verde
Central
African Republic
Chad
Chile
China
Colombia
Comoros
Costa
Rica
Côte
d'Ivoire
Croatia
Cyprus
Czech
Republic
Democratic
Republic of the Congo
Denmark
Djibouti
Dominica
Dominican
Republic
Supported Countries for Digital Payments E-K
Supported Countries (E through K)
Country
Apple Pay
Click to Pay
Google Pay
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Eswatini
Ethiopia
Faroe Islands
Fiji
Finland
France
Gabon
Gambia
Georgia
Germany
Ghana
Gibraltar
Greece
Greenland
Guernsey
Grenada
Guatemala
Guinea
Guinea-Bissau
Guyana
Haiti
Honduras
Hong Kong
Hungary
Iceland
Indonesia
Iraq
Ireland
Isle of Man
Israel
Italy
Jamaica
Japan
Jersey
Jordan
Kazakhstan
Kenya
Kiribati
Kuwait
Kyrgyzstan
Supported Countries for Digital Payments L-R
Supported Countries (L through R)
Country
Apple Pay
Click to Pay
Google Pay
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya
Liechtenstein
Lithuania
Luxembourg
Macau
Madagascar
Malawi
Malaysia
Maldives
Mali
Malta
Marshall Islands
Mauritania
Mauritius
Mexico
Micronesia, Federated States of
Moldova
Monaco
Mongolia
Montenegro
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
Netherlands
New Zealand
Nicaragua
Niger
Nigeria
North Macedonia
Norway
Oman
Pakistan
Palau
Palestinian Territories
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Poland
Portugal
Qatar
Republic of the Congo
Romania
Rwanda
Supported Countries for Digital Payments S-Z
Supported Countries (S through Z)
Country
Apple
Pay
Click to Pay
eCheck
Google
Pay
Paze
Saint Kitts
and Nevis
Saint
Lucia
Saint
Vincent and the Grenadines
Samoa
San
Marino
Sao Tome and
Principe
Saudi
Arabia
Senegal
Serbia
Seychelles
Sierra
Leone
Singapore
Slovakia
Slovenia
Solomon
Islands
Somalia
South
Africa
Korea,
Republic of (South)
South
Sudan
Spain
Sri
Lanka
Sudan
Suriname
Sweden
Switzerland
Switzerland
-Italian
Taiwan
Tajikistan
Tanzania
Thailand
Timor-Leste
Togo
Tonga
Trinidad and
Tobago
Tunisia
Turkey
Turkmenistan
Tuvalu
Uganda
Ukraine
United Arab
Emirates
United
Kingdom
United
States
Uruguay
Uzbekistan
Vanuatu
Vatican City
(Holy See)
Venezuela
Vietnam
Yemen
Zambia
Zimbabwe
Supported Locales
The locale field within the capture context request consists of an ISO 639 language
code, an underscore (_), and an ISO 3166 region code. Set the
locale
field in your session request to display the checkout
UI in the customer's language.
Unified Checkout
supports these locales:
Supported Locales
Locale
ISO Language
ISO Region
ar_AE
Arabic
United Arab Emirates
bg_BG
Bulgarian
Bulgaria
ca_ES
Catalan
Spain
cs_CZ
Czech
Czechia
da_DK
Danish
Denmark
de_AT
German
Austria
de_DE
German
Germany
el_GR
Greek
Greece
en_AU
English
Australia
en_CA
English
Canada
en_GB
English
United Kingdom
en_IE
English
Ireland
en_NZ
English
New Zealand
en_PK
English
Pakistan
en_US
English
United States
es_AR
Spanish
Argentina
es_CL
Spanish
Chile
es_CO
Spanish
Colombia
es_ES
Spanish
Spain
es_MX
Spanish
Mexico
es_PE
Spanish
Peru
es_US
Spanish
United States
fi_FI
Finnish
Finland
fr_CA
French
Canada
fr_FR
French
France
he_IL
Hebrew
Israel
hr_HR
Croatian
Croatia
hu_HU
Hungarian
Hungary
id_ID
Indonesian
Indonesia
it_IT
Italian
Italy
ja_JP
Japanese
Japan
km_KH
Khmer
Cambodia
ko_KR
Korean
South Korea
lo_LA
Lao
Laos
ms_MY
Malay
Malaysia
nb_NO
Norwegian Bokmål
Norway
nl_NL
Dutch
Netherlands
pl_PL
Polish
Poland
pt_BR
Portuguese
Brazil
ro_RO
Romanian
Romania
ru_RU
Russian
Russia
sk_SK
Slovak
Slovakia
sl_SI
Slovenian
Slovenia
sv_SE
Swedish
Sweden
th_TH
Thai
Thailand
tl_PH
Tagalog
Philippines
tr_TR
Turkish
Türkiye
ur_PK
Urdu
Pakistan
vi_VN
Vietnamese
Vietnam
zh_CN
Chinese
China
zh_HK
Chinese
Hong Kong
zh_MO
Chinese
Macao
zh_SG
Chinese
Singapore
zh_TW
Chinese
Taiwan
Update to
Unified Checkout
Version 1
The version 1 (v1) SDK simplifies your integration with fewer lines of code, a
streamlined API, and enhancements such as auto-processing and a
full event
system. The core flow is the same in v1, and migrating to v1 involves only
straightforward method renames.
Summary of Changes
Aspect
v0
v1
Initialization
new Accept(session).unifiedPayments()
VAS.UnifiedCheckout(session)
Display the payment UI
up.show(options)
checkout.mount(target)
Completing transactions
up.complete(token)
checkout.complete(token)
or automatic using
autoProcessing
Events
None
Full event system on client and checkout
Cleanup
up.dispose()
checkout.destroy()
+
client.destroy()
Hide UI
up.hide()
checkout.unmount()
Summary of v0 and v1 Changes
Feature
Pre V1 Support
V1 Support
Description
Status
Business Center
Capture context endpoint
/up/v1/capture-contexts
/up/v1/sessions
Capture context management
API only
API only or API and
Business Center
Unified Checkout
Look and Feel in
Business Center
Payment methods
API only
API or API and
Business Center
Real-time preview in
Business Center
Three-decimal currency support
SDK
Legacy Unified Payments SDK supported (link)
New UC SDK (link)
Payment Details API
/up/v1/payment-details/
{id}
JTI used in place of transient token
Future enhancements
Manual opt-in is required.
Automatic.
Legacy versions receive critical updates only.
Initialization
Initialization with
Unified Checkout
v1 is done in a single
asynchronous factory call. There is no intermediate
Accept
object:
v0 Initialization
const accept = new Accept(sessionJWT);
const up = accept.unifiedPayments();
v1 Complete Transactions Manually or Automatically
// Automatic (default when completeMandate is in session)
const checkout = await client.createCheckout({ autoProcessing: true });
const result = await checkout.mount('#buttons');
// result is the completed transaction — no need to call complete()
// Manual - similar to v0
const checkout = await client.createCheckout({ autoProcessing: false });
const token = await checkout.mount('#buttons');
const result = await checkout.complete(token);
Events
Unified Checkout
v0 does not include an event system, as the
integration resolution or rejection from
show()
and
complete()
. v1 includes a full event system as the client and
integration levels.
const trigger = client.createTrigger('CLICKTOPAY');
const result = await trigger.mount('#screen');
Update Reason Codes
Some reason codes were renamed in v1. This table shows the v0 reason code name and the
corresponding name in the v1 client-side SDK:
v0 Reason Code
v1 Reason Code
SHOW_LOAD_CONTAINER_SELECTOR
MOUNT_CONTAINER_SELECTOR
SHOW_LOAD_ERROR
MOUNT_ERROR
SHOW_LOAD_INVALID_CONTAINER
MOUNT_INVALID_CONTAINER
SHOW_LOAD_SIDEBAR_OPTIONS
MOUNT_SIDEBAR_OPTIONS
SHOW_PAYMENT_TIMEOUT
MOUNT_PAYMENT_TIMEOUT
SHOW_PAYMENT_UNAVAILABLE
MOUNT_PAYMENT_UNAVAILABLE
SHOW_TOKEN_TIMEOUT
MOUNT_TOKEN_TIMEOUT
SHOW_TOKEN_XHR_ERROR
MOUNT_TOKEN_XHR_ERROR
UNIFIED_PAYMENTS_ALREADY_SHOWN
CHECKOUT_ALREADY_MOUNTED
UNIFIED_PAYMENTS_PAYMENT_PARAMETERS
CHECKOUT_PAYMENT_PARAMETERS
UNIFIED_PAYMENTS_VALIDATION_PARAMS
CHECKOUT_VALIDATION_PARAMS
IMPORTANT
The server-side API continues to return these v0 reason
codes. The v1 reason codes listed here are used only in the client-side SDK. For
all v1 client-side error codes, see Handle Errors.
Version 1 Update Checklist
You must complete these tasks before you can complete your migration from
Add event listeners for observability. For example,
client.on('error')
and
checkout.on('ready')
.
Security Recommendations
Unified Checkout
is compliant with Payment Card Industry (PCI)
Self-Assessment Questionnaire A (SAQ-A).
Cybersource
recommends that
you consider these security policies so you can maintain a secure integration.
Content Security Policy
Implement a Content Security Policy (CSP) to mitigate cross-site scripting (XSS)
attacks. Add these directives for
Unified Checkout
:
CSP Directives
Directive
Test
Production
connect-src
https://apitest.cybersource.com
https://api.cybersource.com
frame-src
https://apitest.cybersource.com
https://api.cybersource.com
child-src
https://apitest.cybersource.com
https://api.cybersource.com
script-src
https://apitest.cybersource.com
https://api.cybersource.com
These directives enable the SDK to load secure iframes and communicate with
Cybersource
services.
IMPORTANT
When you use additional payment methods such as Google Pay or
PayPal, you must also add their respective domains to your CSP
directives.
Iframe Isolation
Unified Checkout
renders all payment UI inside cross-origin iframes
hosted by
Cybersource
. This architecture provides several security benefits:
Data isolation
: Your page cannot access payment data within the
iframe due to the browser’s same-origin policy.
Reduced attack surface
: Attackers cannot extract card data from the
isolated iframe if your merchant page is compromised.
Origin verification
: The SDK validates that the hosting page origin
matches the
targetOrigins
that is declared in the session
before displaying any UI.
Do not attempt to access or manipulate the contents of the payment iframes. The
browser blocks cross-origin access by design.
Token Security
A session is a signed JWT with a short lifespan.
Cybersource
recommends that you follow these practices:
Generate a new session for each checkout. Do not reuse sessions across
checkouts or customers.
Keep the session server-side until needed. Pass it to the client only when
the customer is ready to pay.
Set
targetOrigins
to only the domains that host the SDK. Do
not use wildcard origins or include domains that do not need access.
The transient token returned by
mount()
or
complete()
expires after 15 minutes.
Cybersource
recommends that you follow these practices:
Send the transient token to your server immediately after receiving it.
Verify the token signature using the public key from the session before
authorizing the payment. For verification details, see Transient Tokens.
Do not store transient tokens in browser storage
(
localStorage
,
sessionStorage
, or
cookies). Process them server-side and discard.
Immutable API
The client interface that is returned by
VAS.UnifiedCheckout()
is
frozen with
Object.freeze()
. This prevents runtime tampering, which
means that no properties can be added, removed, or modified on the client, checkout,
trigger, or button objects. Do not attempt to modify or extend the SDK objects. If
you need custom behavior, use the event system to react to SDK state changes.
Cleanup
You must always call
destroy()
on the client when the payment flow
is complete or the customer navigates away. This removes all iframes and clears
internal state:
checkout.destroy();
client.destroy();
If you do not destroy the client, you could leave payment iframes in the page after
they are no longer needed.
PCI Compliance
The least burdensome level of Payment Card Industry (PCI) compliance is Self-Assessment Questionnaire A (SAQ-A). To be compliant
with SAQ-A, you must securely capture sensitive payment data with a validated
payment provider.
Unified Checkout
meets this requirement by rendering
secure iframes hosted by
Cybersource
. Payment data is submitted
directly to
Cybersource
and never touches your systems.
Security Architecture
Unified Checkout
uses many layers of protection to be compliant with
PCI SAQ-A guidelines:
Iframe isolation
: All payment UI renders inside cross-origin iframes
hosted by
Cybersource
. Your page cannot access payment data
within the iframe due to the browser’s same-origin policy.
Origin verification
: The SDK validates that the hosting page origin
matches the
targetOrigins
declared in the session.
Immutable API
: The client interface returned by
VAS.UnifiedCheckout()
is frozen with
Object.freeze()
. This prevents runtime tampering.
Closure-based privacy
: The internal SDK state is not accessible from
outside the SDK. There are no public properties that expose session data or
credentials.
Short-lived tokens
: The session and transient tokens expire after a
short period, limiting the window for misuse
Because
Unified Checkout
handles payment data capture within secure
iframes, your page never receives, processes, or stores cardholder data. This means
that you qualify for SAQ-A over the more burdensome SAQ A-EP or SAQ D and your PCI
audit scope is significantly reduced compared to direct API integrations.
Even with all that
Unified Checkout
handles, you must still do the
following to remain SAQ-A compliant:
All pages that load the SDK must use Transport Layer Security (TLS).
You must restrict which domains can load scripts and frames. For information
about the required directives, see Security Recommendations.
You must generate a new session for each checkout and restrict
targetOrigins
to only your domains.
You must send transient tokens to your server over HTTPS and verify their
signatures before authorizing payments.
VISA Platform Connect: Specifications and Conditions for
Resellers/Partners
The following are specifications and conditions that apply to a Reseller/Partner enabling
its merchants through
Cybersource for
Visa Platform Connect
(“VPC”)
processing
. Failure to meet any of the specifications and conditions below is
subject to the liability provisions and indemnification obligations under
Reseller/Partner’s contract with Visa/Cybersource.
Before boarding merchants for payment processing on a VPC acquirer’s connection,
Reseller/Partner and the VPC acquirer must have a contract or other legal agreement
that permits Reseller/Partner to enable its merchants to process payments with the
acquirer through the dedicated VPC connection and/or traditional connection with
such VPC acquirer.
Reseller/Partner is responsible for boarding and enabling its merchants in
accordance with the terms of the contract or other legal agreement with the relevant
VPC acquirer.
Reseller/Partner acknowledges and agrees that all considerations and fees associated
with chargebacks, interchange downgrades, settlement issues, funding delays, and
other processing related activities are strictly between Reseller and the relevant
VPC acquirer.
Reseller/Partner acknowledges and agrees that the relevant VPC acquirer is
responsible for payment processing issues, including but not limited to, transaction
declines by network/issuer, decline rates, and interchange qualification, as may be
agreed to or outlined in the contract or other legal agreement between
Reseller/Partner and such VPC acquirer.
DISCLAIMER: NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR ANY ERRORS OR
OMISSIONS BY THE
Visa Platform Connect
ACQUIRER IN PROCESSING TRANSACTIONS. NEITHER VISA
NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR RESELLER/PARTNER BOARDING MERCHANTS OR
ENABLING MERCHANT PROCESSING IN VIOLATION OF THE TERMS AND CONDITIONS IMPOSED BY THE
RELEVANT
IfClick to Payis not enabled, clickOnnext toClick to Pay.
) to rearrange the order of the payment options.IMPORTANTSome payment options are set at the portfolio level and cannot be reordered. When you see a pin icon next to a payment option, you cannot move that payment option in the list of available methods. You must contact your portfolio administrator if you want to reorder the list of available payment options.These payment options are supported byUnified Checkout:
) to display the card brand logos in your button
list.Click the checkbox next to each card brand that you want to display in your checkout UI. Click the drag icon (
