Updated the list of supported countries to include Bulgaria, Greece, Japan, Romania,
Slovenia, Thailand, and Vietnam. See Supported Countries for Click to Pay.
Updated the capture context request sections to include the most recent client version
and allowed payment types. See Capture Context and Capture Context API.
VISA Platform Connect: Specifications and Conditions for
Resellers/Partners
The following are specifications and conditions that apply to a Reseller/Partner enabling
its merchants through
Cybersource for
Visa Platform Connect
(“VPC”)
processing
. Failure to meet any of the specifications and conditions below is
subject to the liability provisions and indemnification obligations under
Reseller/Partner’s contract with Visa/Cybersource.
Before boarding merchants for payment processing on a VPC acquirer’s connection,
Reseller/Partner and the VPC acquirer must have a contract or other legal agreement
that permits Reseller/Partner to enable its merchants to process payments with the
acquirer through the dedicated VPC connection and/or traditional connection with
such VPC acquirer.
Reseller/Partner is responsible for boarding and enabling its merchants in
accordance with the terms of the contract or other legal agreement with the relevant
VPC acquirer.
Reseller/Partner acknowledges and agrees that all considerations and fees associated
with chargebacks, interchange downgrades, settlement issues, funding delays, and
other processing related activities are strictly between Reseller and the relevant
VPC acquirer.
Reseller/Partner acknowledges and agrees that the relevant VPC acquirer is
responsible for payment processing issues, including but not limited to, transaction
declines by network/issuer, decline rates, and interchange qualification, as may be
agreed to or outlined in the contract or other legal agreement between
Reseller/Partner and such VPC acquirer.
DISCLAIMER: NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR ANY ERRORS OR
OMISSIONS BY THE
Visa Platform Connect
ACQUIRER IN PROCESSING TRANSACTIONS. NEITHER VISA
NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR RESELLER/PARTNER BOARDING MERCHANTS OR
ENABLING MERCHANT PROCESSING IN VIOLATION OF THE TERMS AND CONDITIONS IMPOSED BY THE
RELEVANT
Visa Platform Connect
ACQUIRER.
Introduction to
the
Click to Pay Drop-In UI
The
Click to Pay Drop-In UI
powered by
Unified Checkout
provides an interface for easy acceptance of
Click to Pay
payments from Visa, Mastercard, and American Express cards.
Throughout this guide we refer to both
Click to Pay Drop-In UI
and
Unified Checkout
.
Click to Pay Drop-In UI
consists of a server-side component and a client-side
JavaScript library.
The server-side component authenticates your merchant identity and instructs the system
to act within your payment environment. The response contains limited-use public keys.
The keys are used for end-to-end encryption and contain merchant-specific payment
information that drives the interaction of the application. The client-side JavaScript
library dynamically and securely places digital payment options into your e-commerce
page.
The provided JavaScript library enables you to place a payment application within your
e-commerce environment. This embedded component offers
Click to Pay
and card entry to your customers.
Whether a customer uses a stored
Click to Pay
card or enters their
payment information manually,
the
Click to Pay Drop-In UI
handles all user
interactions and provides a response to your e-commerce system.
The figure below shows the
Click to Pay Drop-In UI
for a recognized user.
Figure:
Embedded Component
IMPORTANT
Each request that you send to
Cybersource
requires header information. For information about constructing the headers for your
request, see the
is designed to provide customers with a
friction-free payment experience across many payment experiences. The user experience
has been optimized for mobile use and performs equally well on mobile and desktop
devices.
Click to Pay
recognizes customers as follows:
The customer is a recognized
Click to Pay
customer.
The customer is not recognized but is a
Click to Pay
customer.
The customer is a guest at checkout.
These workflows show you the pages a customer encounters based on their status:
recognized
experience. This interaction occurs when a customer’s device is recognized by the
Click to Pay Drop-In UI
.
A customer's device is recognized under these conditions:
When the customer has used
Click to Pay
on their device
through any
Click to Pay
channel.
If the customer chose to have their device remembered during a previous
transaction.
Figure:
Recognized
Click to Pay
Customer
Unrecognized
Click to Pay
Customer
This section provides an overview of the
Click to Pay Drop-In UI
unrecognized
experience. This interaction occurs when a customer's device is not recognized by the
Click to Pay Drop-In UI
. This condition occurs when the customer has a
Click to Pay
account but has not used it on their device
previously.
Figure:
Unrecognized
Click to Pay
Customer
Guest Customer
This section provides an overview of the
Click to Pay Drop-In UI
guest
experience. This interaction occurs when the customer has not created a
Click to Pay
account, or their issuer has not provisioned their card into
Click to Pay
.
Figure:
Guest Customer
Click to Pay Drop-In UI
Flow
To integrate
Unified Checkout
into your
platform, you must follow several integration steps. This section gives a high-level
overview of how to integrate and launch
Unified Checkout
on your
webpage and process a transaction. You can find the detailed specifications of the
APIs later in this document.
You send a server-to-server API request for a capture context.
This request is fully authenticated and returns a JSON Web Token (JWT)
that is necessary to invoke the frontend JavaScript library.
For information on setting up the server side, see
Server-Side Set Up.
You invoke the
Unified Checkout
JavaScript library using the JWT
response from the capture context request. For information on setting up the
client side, see Client-Side Set Up.
You use the response from
the
Click to Pay Drop-In UI
to retrieve
payment credentials for payment processing or other steps.
This figure illustrates the system's payment flow.
Figure:
Click to Pay
Payment Flow
For more information on the specific APIs referenced, see these topics:
This section contains the information you need to
set up your server. Initializing
Unified Checkout
within your webpage
begins with a server-to-server call to the sessions API. This step authenticates your
merchant credentials, and establishes how the
Unified Checkout
frontend
components will function. The sessions API request contains parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key that is used by the customer's browser to protect
the transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and interaction methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
This section contains the information you need to set up your server. Initializing
Unified Checkout
within your webpage begins with a server-to-server
call to the sessions API. This step authenticates your merchant credentials, and
establishes how the frontend components will function. The sessions API request contains
parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key is used by the customer's browser to protect the
transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and payment methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
The capture context request is a signed JSON Web Token
(JWT) that includes all of the merchant-specific parameters. This request tells the
frontend JavaScript library how to behave within your payment experience. The
request provides authentication, one-time keys, the target origin to the
Unified Checkout
integration in addition to allowed card networks and
payment types. The capture context request includes these elements:
allowedCardNetworks
allowedPaymentTypes
clientVersion
targetOrigin
completeMandate
Use the
targetOrigins
and the
allowedPaymentTypes
fields to define the target origin and the accepted digital payment methods in your capture
context. For example:
For more information on requesting the capture context, see Capture Context API.
Client-Side Set Up
This section contains the information you need to set up the client side. You use the
Unified Checkout
JavaScript library to integrate with your e-commerce
website. It has two primary components:
The button widget, which lists the payment methods available to the customer.
The payment acceptance page, which captures payment information from the cardholder.
You can integrate the payment acceptance page with your webpage or add it as a
sidebar.
The
Unified Checkout
JavaScript library supports
Click to Pay
and manual card entry payment methods.
Follow these steps to set up the client:
Load the JavaScript library.
Initialize the accept object the capture context JWT. For information JSON Web
Tokens, see JSON Web Tokens.
Initialize the unified payment object with optional parameters.
Show the button list or payment acceptance page or both.
The response to these interactions is a transient token that you use to retrieve the
payment information captured by the UI.
Loading the JavaScript Library and Invoking the Accept Function
Use the client library asset path and client library integrity value that is returned by
the capture context response to invoke
Unified Checkout
on your page.
You can retrieve these values from the
clientLibrary
and
clientLibraryIntegrity
fields that are returned in the JWT from
https://apitest.cybersource.com
/up/v1/capture-contexts
. You can use these
values to create your script tags.
You must perform this process for each transaction, as these values may be unique for
each transaction. You must avoid hard-coding values for the
clientLibrary
and
clientLibraryIntegrity
fields to prevent client-side errors.
For example, a response from
https://apitest.cybersource.com
/up/v1/capture-contexts
would
include:
"data": {
"clientLibrary":"[EXTRACT clientLibrary VALUE from here]",
"clientLibraryIntegrity": "[EXTRACT clientLibraryIntegrity VALUE from here]"
}
Below is an example script
tag:
<script src="[INSERT clientLibrary VALUE HERE]"
integrity=”[INSERT clientLibraryIntegrity VALUE HERE]”
crossorigin=”anonymous”></script>
IMPORTANT
Use the
clientLibrary
and
clientLibraryIntegrity
parameter values in the capture context
response to obtain the
Unified Checkout
JavaScript library URL and the
integrity value. This ensures that you are always using the most up-to-date library and
protects against fraud. Do not hard-code the
Unified Checkout
JavaScript
library URL or integrity value.
When you load the library, the capture context from your initial server-side request is
used to invoke the accept function.
JavaScript Example: Initializing the SDK
try{const accept = await Accept(captureContext);const up = await accept.unifiedPayments(sidebar);}catch(error){// merchant logic for handling issues
console.error("something went wrong: "+ error);}
In this example,
captureContext
refers to the capture context
JWT.
JavaScript Example: Displaying the Button List
After you initialize the
Unified Checkout
object, you can add the
payment application and payment acceptance pages to your webpage. You can attach the
embedded
Unified Checkout
tool and payment acceptance pages to any
named element within your HTML. Typically, they are attached to explicit named
components that are replaced with
Unified Checkout
’s iframes.
try{const accept = await Accept(captureContext);const up = await accept.unifiedPayments(sidebar);const tt = await up.show(showArgs);}catch(error){// merchant logic for handling issues
console.error("something went wrong: "+ error);}
To display the
Unified Checkout
Button List within your payment page, a
call is made to the unifiedPayments.Show() function. This function accepts a JSON
object that links the
The response to the unifiedPayment.show() method is a JWT data object referred to
here as a transient token. The transient token contains all the payment information
captured during the
Unified Checkout
payment journey.
Adding the Payment Application and Payment Acceptance
After you initialize the
Unified Checkout
object, you can add the payment
application and payment acceptance pages to your webpage. You can attach the
Unified Checkout
embedded tool and payment acceptance pages to any named
element within your HTML. Typically, they are attached to explicit named
<div>
components that are replaced with
Click to Pay Drop-In UI
iframes
.
IMPORTANT
If you do not specify a location for the payment acceptance page, it
is placed in the sidebar.
JavaScript Example: Setting Up with Full Sidebar
<html><head><scriptsrc="[INSERT clientLibrary VALUE HERE]"integrity="[INSERT clientLibraryIntegrity VALUE HERE]”
crossorigin=”anonymous"></script></head><body><h1>Unified Checkout Integration</h1><inputtype="hidden"name="captureContext"value="[INSERT captureContext HERE]"/><scripttype="text/javascript">const sidebar =true;const captureContext = document.getElementById("captureContext").value;const showArgs ={ containers:{
paymentSelection:'#buttonPaymentListContainer',}};
async function launchCheckout(){try{const accept = await Accept(captureContext);const up = await accept.unifiedPayments(sidebar);const tt = await up.show(showArgs);const completeResponse = await up.complete(tt);
console.log(completeResponse);// merchant logic for handling complete response}catch(error){// merchant logic for handling issues
console.error("something went wrong: "+ error);}}// Call the function
launchCheckout();</script></body>
JavaScript Example: Setting Up with the Embedded Component
The main difference between using an embedded component and the sidebar is that the
accept.unifiedPayments
object is set to
false
, and the
location of the payment screen is passed in the containers argument.
IMPORTANT
If you do not specify a location for the payment acceptance page, it
is placed in the side bar.
<html><head><scriptsrc="[INSERT clientLibrary VALUE HERE]"integrity="[INSERT clientLibraryIntegrity VALUE HERE]”
crossorigin=”anonymous"></script></head><body><h1>Unified Checkout Integration</h1><inputtype="hidden"name="captureContext"value="[INSERT captureContext HERE]"/><scripttype="text/javascript">const sidebar =false;const captureContext = document.getElementById("captureContext").value;const showArgs ={
containers:{ paymentSelection:"#buttonPaymentListContainer",
paymentScreen:'#embeddedPaymentContainer'}};
async function launchCheckout(){try{const accept = await Accept(captureContext);const up = await accept.unifiedPayments(sidebar);const tt = await up.show(showArgs);const completeResponse = await up.complete(tt);
console.log(completeResponse);// merchant logic for handling complete response}catch(error){// merchant logic for handling issues
console.error("something went wrong: "+ error);}}// Call the function
launchCheckout();</script></body>
Transient Tokens
The response to a successful customer interaction with
the
Click to Pay Drop-In UI
is a transient token. The
transient token is a reference to the payment data collected on your behalf. Tokens
enable secure card payments without risking exposure to sensitive payment information.
The transient token is a short-term token with a duration of 15 minutes.
Transient Token Format
The transient token is issued as a JSON Web Token (JWT) (RFC 7519).
For information on JSON Web Tokens, see JSON Web Tokens.
The payload portion of the token is a Base64-encoded JSON string and contains various
claims. For more information, see JSON Web Tokens.
Token Verification
When you receive the transient token, you should cryptographically verify its integrity
using the public key embedded within the capture context. Doing so verifies that
Cybersource
issued the token and that the data has not been tampered
with in transit. Verifying the transient token JWT involves verifying the signature and
various claims within the token. Programming languages each have their own specific
libraries to assist.
accepts dual-branded cards. To use this feature, you must
include the card networks that have overlapping BIN ranges in the capture context
request. For
example:
When a card number within an overlapping BIN range is entered, the network that is listed
first in the value array for the
allowedCardNetworks
field is used.
For example, if the card number 403550XXXXXXXXXX is entered, the payment network is
Visa.
During the transaction, the card type is populated with the first network in the list,
and the
detectedCardTypes
field includes all of the detected card types in the
transient token.
The
detectedCardTypes
field is returned in the transient token
response only when more than one card type is detected.
Capture Context API
This section contains the information you need to request the capture context using the
capture context API.
The capture context request contains all of the merchant-specific parameters that tell the
frontend JavaScript library how to behave within your payment experience.
The capture context is a signed JSON Web Token (JWT) containing this information:
Merchant-specific parameters that dictate the customer payment experience for the
current payment transaction.
A one-time public key that secures the information flow during the current payment
transaction.
The capture context request includes these elements:
You can define the payment cards and digital payments that you want to accept in the
capture context.
Allowed Card Networks
Use the
allowedCardNetworks
field to define the card types.
These card networks are available for card entry:
American Express
Carnet
Cartes Bancaires
China UnionPay
Diners Club
Discover
EFTPOS
ELO
JCB
JCrew
mada
Maestro
Mastercard
Meeza
PayPak
Visa
To support dual-branded or co-badged cards, you must list your supported card types
values for the
allowedCardNetworks
field based on your preference
for processing card numbers. For example, if a card is dual-branded as Visa and Cartes
Bancaires and Cartes Bancaires is listed first, the card type is set to Cartes
Bancaires after the card number is enter in your
Unified Checkout
card
collection form. For information on dual-branded or co-badged cards, see Dual-Branded Cards.
Include Card Prefix
You can control the length of the card number prefix to be received in the response to
the capture context
/sessions
request:
6 digits
8 digits
no prefix at all
IMPORTANT
When you request the card number prefix for a
Click to Pay
tokenized credential, 6 digits are returned.
To
specify your preferred card number prefix length, include or exclude the
transientTokenResponseOptions.includeCardPrefix
field in the
capture context
/sessions
request.
If you want to receive a 6-digit card number prefix in the response
Do not
include the
transientTokenResponseOptions.includeCardPrefix
field in the capture context
/sessions
request.
This example shows how a 6-digit card number prefix
411111
is returned in the transient token
response:
"maskedValue":"XXXXXXXXXXXX1111”,
"" : "411111"
If you want to receive an 8-digit card number prefix in the response
Include the
transientTokenResponseOptions.includeCardPrefix
field in the capture context request, and set the value to
true
.
IMPORTANT
Per PCI DSS
requirements, this requirement applies only to card numbers
longer than 15 digits and for Discover, JCB, Mastercard,
UnionPay, and Visa brands.
If the card type entered is not part of these brands, a
6-digit card number prefix is returned instead.
If the card type entered is not part of these brands but
is
co-branded
with these brands, an 8-digit card
number prefix is returned.
This example shows how an 8-digit card prefix
41111102
is returned in the transient token
response:
"maskedValue":"XXXXXXXXXXXX1111”,
"" : "41111102"
If you do not want to receive a card number prefix in the response
Include the
transientTokenResponseOptions.includeCardPrefix
field in the capture context request, and set the value to
false
.
This example shows how a card number is returned without a card
number prefix in the transient token
response:
"maskedValue":"XXXXXXXXXXXX1111"
Best practice:
If your application does not require card number prefix
information for routing or identification purposes,
Cybersource
recommends that you include the
transientTokenResponseOptions.includeCardPrefix
field in the
capture context request and set its value to
false
. Doing so limits the
exposure of payment data to only what is necessary for your processing needs.
recommends that you dynamically
parse the response for the fields that you are looking for. Additional fields may be added
in the future.
You must ensure that your integration can handle new fields that are
returned in the response. While the underlying data structures will not change, you must
also ensure that your integration can handle changes to the order in which the data is
returned.
Cybersource
uses semantic versioning practices, which enables
you to retain backwards compatibility as new fields are introduced in minor version
updates.
Features
This section includes information on the features that are supported in
Click to Pay
.
Save Card
Save Card is supported for the
Click to Pay
payment
method. When the feature is enabled, the
Click to Pay
payment flow offers the customer the option to save their card
information for future purchases placed at your website.
IMPORTANT
This feature is available only for card credentials
that are manually entered during checkout. If
Click to Pay
is an available payment method, do
not
select
Save this card with
Click to Pay
.
When the customer selects the checkbox and finalizes their purchase, you
receive a notification in the transient token response to your capture
context request. The transient token payload includes the
consumerPreference.saveCard
field value set to
true
.
Combo Cards
A combo card is a single card that functions as both a debit and a credit
card.
Click to Pay
enables the cardholder to choose
whether to pay for a transaction using a debit or credit card. The
cardholder can select the card that they want to use when they enter their
card details or when they choose a stored Visa card from their
Click to Pay
wallet during checkout. While in the card
details section of the payment form, the cardholder is prompted to decide if
they would like to pay using a debit or credit card. Credit is selected as
the default option.
IMPORTANT
Combo cards are supported on client version 0.24
and later.
IMPORTANT
Combo cards are required for issuers that are
located in Brazil.
To enable combo cards during checkout, you must include the
comboCard
field in your capture context request
and set the field value to
true
. When the
comboCard
field value is set to
true
, the option to use a debit or credit card
appears for all Visa cards that are entered in
Click to Pay
and for all cards that are already stored in
Click to Pay
. If you do not want to offer combo
card at checkout, do not include the
comboCard
field
in your capture context request.
Tax ID
The tax ID feature provides your customers with a way to include their
Consumer National Identifier when it is requested at checkout.
IMPORTANT
This feature is required for customers in
Brazil.
Email Autolookup
Automatic email lookup occurs when an email address is included in the
capture context request. If the user has a
Click to Pay
account but is not on a recognized device, a one-time password (OTP) screen
appears and the user is prompted to enter their OTP. If the user does not
have a
Click to Pay
account, the user must enter their
card information manually and they will have the option to create a
Click to Pay
account.
To enable email autolookup, you must
include
CLICKTOPAY
as a value in the
allowedPaymentTypes
field and include an email
address in the capture context.
Requesting the Capture Context
This section shows you how to request the capture context.
Endpoint
Production:
POST
https://api.cybersource.com
/up/v1/capture-contexts
Test:
POST
https://apitest.cybersource.com
/up/v1/capture-contexts
Required Fields for Requesting the Capture Context
Use these required fields to request the capture context:
Required Fields for Requesting the Capture
Context
Your capture context request must include these fields:
{{"targetOrigins":["https://unified-payments.appspot.com"],"clientVersion":"0.23","allowedCardNetworks":["VISA","MASTERCARD","AMEX"],"allowedPaymentTypes":["CLICKTOPAY"],"country":"US","locale":"en_US","captureMandate":{"billingType":"FULL","requestEmail":true,"requestPhone":true,"requestShipping":true,"shipToCountries":["US","UK"],"showAcceptedNetworkIcons":true},"orderInformation":{"amountDetails":{"totalAmount":"21.00","currency":"USD"},"billTo":{"address1":"1111 Park Street","address2":"Apartment 24B","administrativeArea":"NY","country":"US","district":"district","locality":"New York","postalCode":"00000","company":{"name":"Visa Inc","address1":"900 Metro Center Blvd","administrativeArea":"CA","buildingNumber":"1","country":"US","district":"district","locality":"Foster City","postalCode":"94404"},"email":"maya.tran@company.com","firstName":"Maya","lastName":"Tran","middleName":"S","title":"Ms","phoneNumber":"1234567890","phoneType":"phoneType"},"shipTo":{"address1":"Visa","address2":"123 Main Street","address3":"Apartment 102","administrativeArea":"CA","buildingNumber":"string","country":"US","locality":"Springfield","postalCode":"99999","firstName":"Joe","lastName":"Soap"}}}}
Decrypted Capture Context Body with Selected Fields
123456789101112131415
{"flx":{// filled with token metadata },"ctx":[{// filled with data related to your capture context request parameters "data":{"clientLibrary":"https://https://apitest.cybersource.com/up/v1/assets/0.23.0/SecureAcceptance.js"},"type":"gda-0.9.0"}],"iss":"Flex API","exp":1710964780,"iat":1710963880,"jti":"8Ik8lu64Hw6jCT8l"}
Validating the Capture Context
The capture context that you generate is a JSON Web Token (JWT) data object. The JWT is
digitally signed using a public key and confirms the validity of the JWT and that it
comes from
Cybersource
. When you do not have a key in the JWT header,
Cybersource
recommends that you follow cryptography best practices
and validate the capture context signature.
To validate a JWT, you must obtain its public key. This public RSA key is in JSON Web Key
(JWK) format. The public key is associated with the capture context on the
Cybersource
domain.
To get the public key of a capture context from the header of the capture context itself,
you must retrieve the key ID associated with the public key and then pass the key ID to
the
/flex/v2/public-keys
endpoint:
From the header of the capture context, get the key ID
(
kid
):
{
"kid": "3g",
"alg": "RS256"
}
Send a GET request to the
/flex/v2/public-keys
endpoint and
include the key ID. For example:
Test:
GET
https://apitest.cybersource.com
/flex/v2/public-keys/{3g}
Production:
GET
https://api.cybersource.com
/flex/v2/public-keys/{3g}
Depending on the cryptographic method you use to validate the public key, you
might need to convert the key to privacy-enhanced mail (PEM) format.
This section contains the information you need to retrieve the non-sensitive data associated
with a
Unified Checkout
transient token and the payment details API. This API
can be used to retrieve personally identifiable information, such as the cardholder name and
billing and shipping details, without retrieving payment credentials, which helps ease the PCI
compliance burden.
There are two methods of authentication, and they are described in the
recommends
that you dynamically parse the response for the fields that you are looking for when you
integrate with
Cybersource
APIs.
Cybersource
may add
additional fields in the future.
You must ensure that your integration can handle new
fields that are returned in the response. Even though the underlying data structures do
not change, you must also ensure that your integration can handle changes to the order
in which the data is returned.
Cybersource
uses semantic versioning
practices, which enables you to retain backwards compatibility as new fields are
introduced in minor version updates.
Endpoint
Production:
GET
https://api.cybersource.com
/up/v1/payment-details/
{id}
Test:
GET
https://apitest.cybersource.com
/up/v1/payment-details/
{id}
The
{id}
is the full
JWT received from
Unified Checkout
as the result of capturing payment
information. The transient token is a JWT object that you retrieved as part of a
successful capture of payment information from a cardholder.
Required Field for Retrieving Transient Token Payment Details
Your payment credentials request must include this field:
{"paymentInformation":{"card":{"expirationYear":"2024","number":"XXXXXXXXXXXX1111","expirationMonth":"05","type":"001"}},"orderInformation":{"amountDetails":{"totalAmount":"21.00","currency":"USD"},"billTo":{"lastName":"Lee","country":"US","firstName":"Tanya","email":"tanyalee@example.com"},"shipTo":{"locality":"Small Town","country":"US","administrativeArea":"CA","address1":"123 Main Street","postalCode":"98765"}}}
Payment Credentials API
This section contains the information you need to retrieve the full payment credentials collected by the
Unified Checkout
tool using the payment credentials API. The payment information is returned in a redundantly signed and encrypted payment object. It uses the JSON Web Tokens (JWTs) as the data standard for communicating this sensitive data.
IMPORTANT
Payment information returned by the
payment-credentials
endpoint will contain Personal Identifiable Information (PII). Retrieving this sensitive information requires your system to comply with PCI security standards. For more information on PCI security standards, see: https://www.pcisecuritystandards.org/
The response is returned using a JWE data object that is encrypted with your public key created during the
To decrypt the JWE response, use your private key created during the
Unified Checkout
tool's integration. The decrypted content is a JWS data object containing a JSON payload. This payload can be validated with the
Unified Checkout
public signature key.
IMPORTANT
Cybersource
recommends
that you dynamically parse the response for the fields that you are looking for when you
integrate with
Cybersource
APIs.
Cybersource
may add
additional fields in the future.
You must ensure that your integration can handle new
fields that are returned in the response. Even though the underlying data structures do
not change, you must also ensure that your integration can handle changes to the order
in which the data is returned.
Cybersource
uses semantic versioning
practices, which enables you to retain backwards compatibility as new fields are
introduced in minor version updates.
Returned Credentials
A payment account number (PAN) or network token is returned on your request depending on
your payment method and
Click to Pay
account status:
Payment Credentials Returned by Card Type and
Click to Pay
Account Status
Click to Pay
Account Status
American Express
Mastercard
Visa
New card not saved in
Click to Pay
PAN
PAN
PAN
New card saved in
Click to Pay
PAN
Network Token
Network Token
Existing card stored in
Click to Pay
PAN
Network Token
Network Token
When you retrieve PAN information from the Payment Credentials API, the response
includes the PAN, card expiration date, and the card verification value (CVV). When you
retrieve network token information, the response includes the network token and network
token cryptogram.
IMPORTANT
Visa and Mastercard always attempt to provision a network token.
When a network token is not provisioned, the default payment method is the PAN. When there
is a PAN transaction, the PAN is not stored in the consumers wallet and it is treated as a
single transaction.
Network tokens are generated in the wallet of the
Click to Pay
token requestor ID (TRID). When tokenization is successful, Visa
attempts to complete authentication during the
platform by
invoking the Payment Credentials API. This API retrieves all of the data captured by
Unified Checkout
. This information is transmitted in an encrypted
format to ensure the security of the payment information while in transit.
You must generate an encryption key pair to retrieve this encrypted payment information,
and the public encryption key must uploaded to the
Unified Checkout
system.
Generate a Public Private Key Pair
You must generate a public-private key pair to upload to the
Unified Checkout
system. The public key is uploaded to the
Unified Checkout
platform and
is used to encrypt sensitive information in transit. The private key is used to decrypt
the sensitive payment information on your server. Only the private key can properly
decrypt the payment information.
IMPORTANT
You must secure your private decryption key. This key must never be
exposed to any external systems or it will risk the integrity of the secure
channel.
Unified Checkout
accepts only keys that meet these requirements:
Only RSA keys are supported. Elliptical curves are not supported.
The minimum accepted RSA key size is 2048 bits.
RSA keys must be in JWK format. More information on JWK format is available
here:
When you have generated your encryption key pairs, you can upload your key to the
Unified Checkout
platform. Keys can be loaded at any hierarchy that is
enabled for them and are used for all child entities that do not have keys loaded. You
can upload a key at parent and child levels, but child keys override parent
keys.

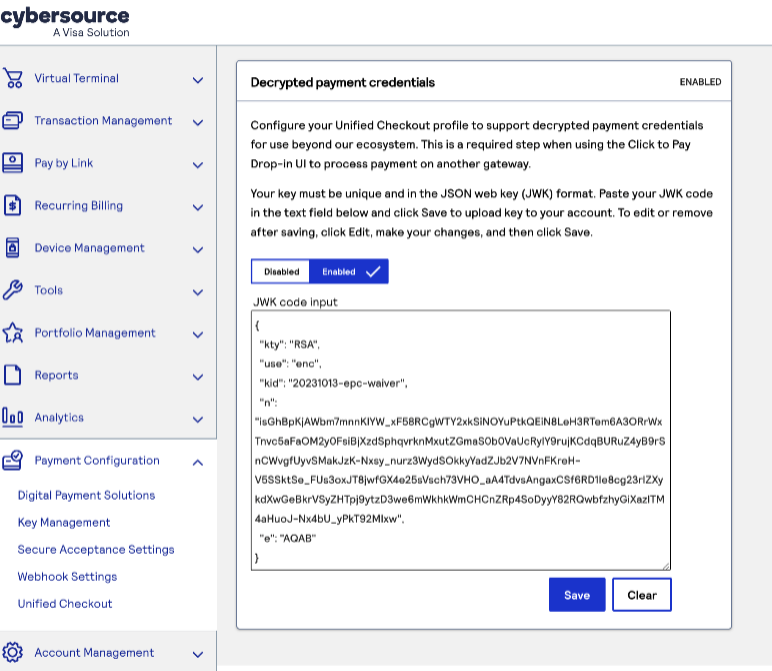

Follow these steps to upload your key pair:
Navigate to
Payment Configuration > Unified Checkout
.
The
Unified Checkout
configuration page opens.

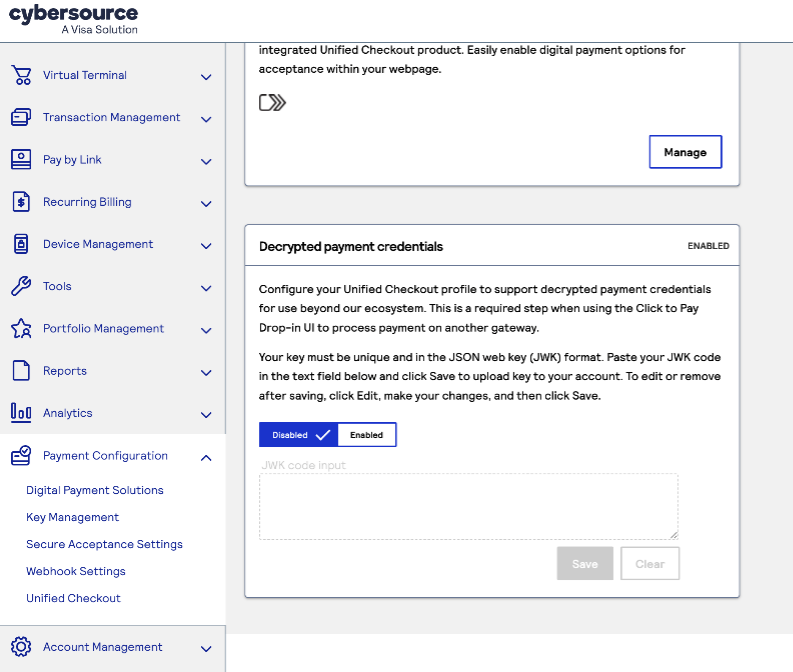

Click
Enabled
. You can upload your key in the
appropriate section.
Upload the public encryption key in JWK format, and click
Save
.
Enable
Click to Pay
To enable
Click to Pay
on
Unified Checkout
, you must
first register
Click to Pay
. This process sends the appropriate
information to the digital payment systems and registers your page with each system.
Enable
Click to Pay
for
Unified Checkout
in the
Business Center
.
Click to Pay
is listed as an available
digital payment method offered by
Unified Checkout
.
Enabling
Click to Pay
Click to Pay
is a digital payment solution that allows
customers to pay with their preferred card network and issuer without entering their
card details on every website. Customers can use Visa, Mastercard, and American Express
cards to streamline their purchase experience.
Click to Pay
provides
a fast, secure, and consistent checkout experience across devices and browsers.
Follow
these steps to enable in
Click to Pay
on
Unified Checkout
:
Navigate to
Payment Configuration >
Unified Checkout
.
In the Click to Pay section, click
Set Up
.
Enter your business name and website URL.
Click
Submit
.
Contact your implementation contact
or
technical account manager
to request that you be enabled for
tokenization within
Click to Pay
. Your implementation
contact
or technical account
manager
will confirm that you were configured successfully and that you
can now accept digital payments with
Click to Pay
.
Manage Permissions
Portfolio administrators
can set permissions for new or existing
Business Center
user roles for
Unified Checkout
.
Administrators retain full read and write permissions. They enable you to regulate
access to specific pages and specify who can access, view, or amend digital products
within
Unified Checkout
.
Portfolio administrators
must apply the appropriate user role
permission for any existing or newly created
If you are a transacting merchant, you might find that your permissions are restricted.
If your permissions are restricted, a message appears indicating that you do not have
access, or buttons might appear gray. To make changes to your digital products within
Unified Checkout
that have restricted permissions, contact
your portfolio administrator's customer support
representative
. Authentication methods differ in
each region and are dependent on the issuer, the cardholder device, and the
Click to Pay
configuration. These authentication methods are
available:
3-D Secure
FIDO
Card verification value (CVV)
One-time password (OTP)
IMPORTANT
After you complete these steps, Visa determines which
authentication method to use. When Visa determines that they will authenticate,
they authenticate each
Click to Pay
transaction through the
appropriate method. This may be a frictionless authentication or the customer
may need to provide more information when required by the issuer.
If you are unable to access this page, contact your sales
representative.

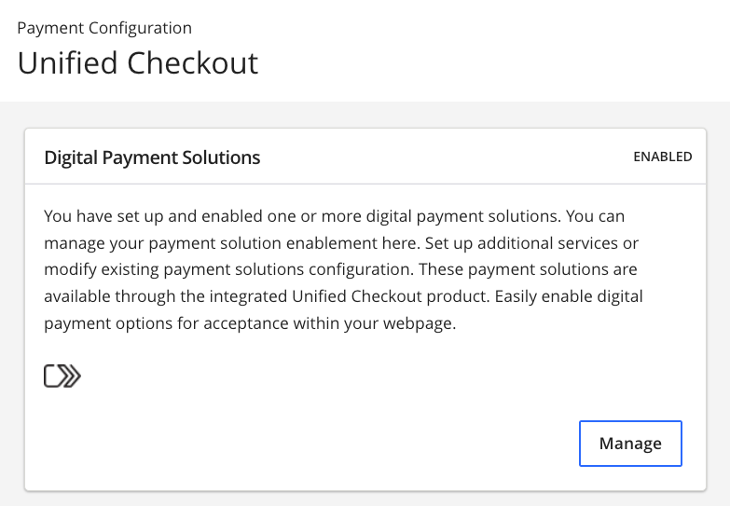

In the
Business Center
, go to the left navigation panel and choose
Payment Configuration
>
Unified
Checkout
.
You must have
Click to Pay
enabled as a digital payment
method in order to use this method of authentication. Click
Manage
to
view the digital payment methods that you have enabled.
If
Click to Pay
is not enabled, click
On
next to
Click to Pay
.
Click
Set up
under Value Added Solutions. The Value Added Solutions page
appears.
Click
Set up
to set up
3-D Secure
. The 3DS page
appears.
Enter the required information in the Merchant Details section. You must enter
the information that is provided to you by
your acquirer or processor
.
Step Result
This completes the authentication setup for the entered acquirer
merchant ID and BIN. If you do not know what these values are, you must contact
your acquirer
. Completing this information
enables
Cybersource
to send Visa the information that is
required for authentication.
IMPORTANT
Charges for
3-D Secure
may apply. You must speak with
your acquirer
for more
information about the charges associated with
3-D Secure
.
Authentication Methods
Cybersource
recommends that you review the response in the transient
token and compare it with the information below in order to determine the authentication
status.
For more information about transient
tokens, see Transient Tokens.
This table
describes the possible authentication results and the associated
Use these test cards to test these authentication methods. Replace the X with a
0.
Authentication Test Cards
Authentication Method
Card Number
CVV
Expiration Date
3-D Secure
/Passkey Challenge
43958XXX0449X11X
509
12/25
3-D Secure
/Passkey Challenge
439584XXX282X11X
693
12/25
Frictionless
439584XX91X1XX11
676
12/25
Frictionless
439584XX9119XX11
789
12/25
Click to Pay
Appendix
Client Version History
Below is a list of client versions and the features that are included in each
version.
IMPORTANT
Cybersource
recommends that you use the most recent client version in your integration.
0.23
Accepts these card networks in the
allowedCardNetworks
field for manual card entry:
Carnet
Cartes Bancaires
China UnionPay with card verification value (CVV)
EFTPOS
ELO
JCrew PLCC
mada
Meeza
Ordering controls for the
allowedPaymentTypes
button.
De-coupling of PANENTRY from other payment types in the
allowedPaymentTypes
field.
0.24
Support for enabling combo cards in the capture context.
Support for eight-digit BINs.
Support for enabling card save in the capture context.
0.25
Addition of
Skip Verification next time
in the
Click to Pay
payment flow.
Support for CPF in the capture context.
0.26
Support for auto-lookup in
Click to Pay
when an email is
included in the capture context.
Inclusion of the
cardDetails
field object in the
transient token response.
Support for the
authenticationStatus
field object in the
transient token response.
Support for the complete mandate.
0.28
Complete mandate enhancement to support
Payer Authentication
for
manual card entry for Visa, Mastercard, American Express, Discover, JCB,
Cartes Bancaires, China UnionPay, and ELO card brands.
Support for Afterpay as an
allowedPaymentType
.
Support for PayPak as an
allowedCardNetwork
.
Auto-enrollment for
Click to Pay
in supported
markets.
Removal of the confirm or continue screen for specific use cases.
Static button for
Click to Pay
flows.
JSON Web Tokens
JSON Web Tokens (JWTs) are digitally signed JSON objects based on the open standard RFC 7519. These tokens provide a compact, self-contained
method for securely transmitting information between parties. These tokens are
signed with an RSA-encoded public/private key pair. The signature is calculated
using the header and body, which enables the receiver to validate that the content
has not been tampered with.
A JWT takes the form of a string, and consists of three parts separated by dots:
<Header><Payload><Signature>
The header and payload is
Base64-encoded JSON
and contains these claims:
Header
: The algorithm and token type. For
example:
{"kid":"zu","alg":"RS256"}
Payload
: The claims of what the token represents. For
example:
: The signature is computed from the header and payload using a
secret or private key.
IMPORTANT
When working with JWTs,
Cybersource
recommends that you use a well- maintained JWT library to ensure proper decoding
and parsing of the JWT.
IMPORTANT
When parsing the JWT’s JSON payload, you must ensure that you
implement a robust solution for transversing JSON. Additional elements can be
added to the JSON in future releases. Follow JSON parsing best practices to
ensure that you can handle the addition of new data elements in the future.
Reason Codes
A
Unified Checkout
request response returns one of the following reason
codes:
Reason Codes
Reason Code
Description
200
Successful response.
201
Capture context created.
400
Bad request.
Possible
reason
values:
CAPTURE_CONTEXT_EXPIRED
CAPTURE_CONTEXT_INVALID
CREATE_TOKEN_TIMEOUT
CREATE_TOKEN_XHR_ERROR
INVALID_APIKEY
SDK_XHR_ERROR
SHOW_LOAD_CONTAINER_SELECTOR
SHOW_LOAD_INVALID_CONTAINER
SHOW_PAYMENT_TIMEOUT
SHOW_TOKEN_TIMEOUT
SHOW_TOKEN_XHR_ERROR
UNIFIEDPAYMENT_PAYMENT_PARAMITERS
UNIFIEDPAYMENTS_VALIDATION_FIELDS
UNIFIEDPAYMENTS_VALIDATION_PARAMS
404
The specified resource not found in the
system.
500
Unexpected server error.
Supported Countries for
Click to Pay
Click to Pay
is supported in these countries:
Argentina
Australia
Austria
Brazil
Bulgaria
Canada
China
Colombia
Costa Rica
Czech Republic
Denmark
Dominican Republic
Ecuador
El Salvador
Finland
France
Germany
Greece
Honduras
Hong Kong
Hungary
India
Indonesia
Ireland
Italy
Japan
Jordan
Kuwait
Malaysia
Mexico
Netherlands
New Zealand
Nicaragua
Norway
Panama
Paraguay
Peru
Poland
Qatar
Romania
Saudi Arabia
Singapore
Slovakia
Slovenia
South Africa
Spain
Sweden
Switzerland
Thailand
Ukraine
United Arab Emirates
United Kingdom
United States
Uruguay
Vietnam
Supported Locales
The locale field within the capture context request consists of an ISO 639 language code,
an underscore (_), and an ISO 3166 region code. The locale controls the language in
which the application is rendered. The following locales are supported:
ar_AE
bg_BG
ca_ES
cs_CZ
da_DK
de_AT
de_DE
el_GR
en_AU
en_CA
en_GB
en_IE
en_NZ
en_US
es_AR
es_CL
es_CO
es_ES
es_MX
es_PE
es_US
fi_FI
fr_CA
fr_FR
he_IL
hr_HR
hu_HU
id_ID
it_IT
ja_JP
km_KH
ko_KR
lo_LA
ms_MY
nb_NO
nl_NL
pl_PL
pt_BR
ro_RO
ru_RU
sk_SK
sl_SI
sv_SE
th_TH
tl_PH
tr_TR
vi_VN
zh_CN
zh_HK
zh_MO
zh_SG
zh_TW
Click to Pay
UI
Completing a payment with
Unified Checkout
requires the customer to
navigate through a sequence of interfaces. This section includes examples of the
interfaces that your customers can expect when completing a payment with
Click to Pay
.
Figure:
Click to Pay
UI
Capture Context API
The capture context request contains all of the merchant-specific parameters that tell the
front-end JavaScript library what to do within your payment experience.
The capture context is a signed JSON Web Token (JWT) containing this information:
Merchant-specific parameters that dictate the customer payment experience for the
current payment transaction.
A one-time public key that secures the information flow during the current payment
transaction.
The capture context request includes these fields:
You can define the payment cards and digital payments that you want to accept in the
capture context.
Allowed Card Networks
Use the
allowedCardNetworks
field to define the card types.
These card networks are available for card entry:
American Express
Cartes Bancaires
Carnet
China UnionPay
Diners Club
Discover
EFTPOS
ELO
JCB
JCrew
mada
Maestro
Mastercard
Meeza
PayPak
Visa
To support dual-branded or co-badged cards, you must list your supported card type
values for the
allowedCardNetworks
field based on your preference
for processing card numbers. For example, if a card is dual-branded as Visa and Cartes
Bancaires, and Cartes Bancaires is listed first, the card type is set to Cartes
Bancaires after the card number is entered in your
Unified Checkout
card
collection form. For information on dual-branded or co-badged cards, see Dual-Branded Cards.
Allowed Payment Types
You can specify the type of
Unified Checkout
digital payment methods
that you want to accept in the capture context.
Use the
allowedPaymentTypes
field to define the payment type:
APPLEPAY
CHECK
CLICKTOPAY
GOOGLEPAY
PANENTRY
PAZE
AFTERPAY
IDEAL
MULTIBANCO
IMPORTANT
Click to Pay
accepts American Express,
Mastercard, and Visa for saved cards. Visa and Mastercard tokenize payment credentials
using network tokenization for all
Click to Pay
requests.
Click to Pay
uses
Click to Pay
Token Requester IDs
(TRIDs) rather than your existing TRIDs to generate network tokens.
For more
information on enabling and managing these digital payment methods, see these
topics:
recommends
that you dynamically parse the response for the fields that you are looking for when you
integrate with
Cybersource
APIs.
Cybersource
may add
additional fields in the future.
You must ensure that your integration can handle new
fields that are returned in the response. Even though the underlying data structures do
not change, you must also ensure that your integration can handle changes to the order
in which the data is returned.
Cybersource
uses semantic versioning
practices, which enables you to retain backwards compatibility as new fields are
introduced in minor version updates.
Server-Side Set Up
This section contains the information you need to
set up your server. Initializing
Unified Checkout
within your webpage
begins with a server-to-server call to the sessions API. This step authenticates your
merchant credentials, and establishes how the
Unified Checkout
frontend
components will function. The sessions API request contains parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key is used by the customer's browser to protect
the transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and payment methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
This section contains the information you need to set up your server. Initializing
Unified Checkout
within your webpage begins with a server-to-server
call to the sessions API. This step authenticates your merchant credentials, and
establishes how the frontend components will function. The sessions API request contains
parameters that define how
Unified Checkout
performs.
The server-side component provides this information:
A transaction-specific public key is used by the customer's browser to protect the
transaction.
An authenticated context description package that manages the payment experience on
the client side. It includes available payment options such as card networks,
payment interface styling, and payment methods.
The functions are compiled in a JSON Web Token (JWT) object referred to as the
The capture context request is a signed JSON Web Token
(JWT) that includes all of the merchant-specific parameters. This request tells the
frontend JavaScript library how to behave within your payment experience. The
request provides authentication, one-time keys, the target origin to the
Unified Checkout
integration in addition to allowed card networks and
payment types. The capture context request includes these elements:
allowedCardNetworks
allowedPaymentTypes
clientVersion
targetOrigin
completeMandate
Use the
targetOrigins
and the
allowedPaymentTypes
fields to define the target origin and
the accepted digital payment methods in your capture context. Use the
comppleteMandate
to orchestrate follow-on services such as
Payments,
This section contains the information you need to set up the client side. You use the
Unified Checkout
JavaScript library to add the payment interface to
your e-commerce site. It has two primary components:
The button widget, which lists the payment methods available to the customer.
The payment acceptance page, which captures payment information from the cardholder.
You can set up the payment acceptance page to be embedded with your webpage or added
as a sidebar.
Follow these steps to set up the client:
Load the JavaScript library.
Initialize the accept object, the capture context JWT. For information JSON Web
Tokens, see JSON Web Tokens.
Initialize the unified payment object with optional parameters.
Show the button list or payment acceptance page or both.
Process the payment request using the instructions included within the capture
mandate.
The response to these interactions is a transient token that you use to retrieve the
payment information captured by the UI.
Transient Tokens
The response to a successful customer interaction with
Unified Checkout
is
a transient token. This is returned in the response from the
unifiedPayment.show()
function. The transient token is a
reference to the payment data collected on your behalf. Tokens allow secure card
payments to occur without risk of exposure to sensitive payment information. The
transient token is a short-term token that expires after 15 minutes. This reduces your
PCI burden/responsibility and ensures that sensitive information is not exposed to your
back-end systems.
Transient tokens can be included requests sent to the Payment Details and Payment
Credentials APIs in exchange for the customer payment data that is collected. This data
can include the payment account number (PAN) or tokenized credentials.
Managing Google Pay Authentication Types
Additional controls are available for Google Pay on
Unified Checkout
.
When you enable Google Pay on
Unified Checkout
, you can specify optional
parameters that define the types of card authentication you receive from Google Pay.
To manage the types of credentials that Google Pay sends, use this expanded payment type object
within the
Apple Pay is a digital payment service that enables users to make secure and convenient
transactions using their Apple devices. Users can add their credit or debit cards to the
Wallet app and use them to pay online or in apps in a safe and convenient consumer
experience.
To enable Apple Pay you must first host a public certificate on your
web page and then pass your merchant name and domain name to Apple. Apple crawls out
to your web page to validate the presence of this certificate to ensure the web
pages are properly vetted and registered with Apple.
Follow these steps to
validate your domain and enroll in Apple Pay:
IfClick to Payis not enabled, clickOnnext toClick to Pay.
