Token Management Service
 Developer Guide

This developer guide is written for merchants who want to tokenize customers’ sensitive personal information and eliminate payment data from their networks to ensure that it is not compromised. The purpose of this guide is to help you create and manage tokens.

Conventions

These special statements are used in this document:
IMPORTANT
An
Important
 statement contains information essential to successfully completing a task or learning a concept.
WARNING
A
Warning
 contains information or instructions, which, if not heeded, can result in a security risk, irreversible loss of data, or significant cost in time or revenue or both.

Recent Revisions to This Document

25.09.01

Customer Tokens
Added information about authorizing a payment with a customer token. See Authorizing a Payment with a Customer Token.
Added information about crediting a payment with a customer token. See Making a Credit with a Customer Token.
Instrument Identifier Tokens
Added information about authorizing a payment with an instrument identifier token. See Authorize a Payment with an Instrument Identifier.
Added information about crediting a payment with an instrument identifier token. See Making a Credit with an Instrument Identifier
Updated the response for retrieving an instrument identifier to include card art data. See Retrieve an Instrument Identifier.
Multiple Tokens
Added information about creating multiple tokens in a single request. See Create Multiple Tokens.
Network Tokens
Added information about simulating life-cycle management events. See Simulate Life-Cycle Management Events.
Added information about network token life-cycle management. See Network Token Life-Cycle Management and Network Token Life-Cycle Management Reports.
Added information about authorizing a payment while ignoring a network token. See Authorize a Payment While Ignoring Network Token.
Payment Instrument Tokens
Added information about authorizing a payment with a payment instrument token. See Authorizing a Payment with a Payment Instrument.
Added information about crediting a payment with a payment instrument token. See Making a Credit with a Payment Instrument.
Shipping Address Tokens
Added information about authorizing a payment with a non-default shipping address. See Authorizing a Payment with a Non-Default Shipping Address.
Card Art
Updated the information about where to retrieve card art content. See Retrieve Card Art.

25.07.01

TMS
 Onboarding
Updated the steps for configuring network tokenization in the
Gateway Portal
 to include support for American Express. See Configure Network Tokenization Using the Gateway Portal
Added a note about using keys to authenticate
TMS
 requests. See Requesting the Token Management Service API.
Network Tokens
Added prerequisites for retrieving network token payment credentials. See Retrieve Network Token Payment Credentials

25.06.01

This revision contains only editorial changes and no technical updates.

25.04.01

TMS
 Workflows
Updated the PAN tokenization workflow and steps. See PAN Tokenization Process Using TMS.

25.01.01

Network Tokens
Added support for retrieving an AFT cryptogram as a network token payment credential. See Retrieve Network Token AFT Payment Credentials.
Updated the endpoint for generating a network token for an existing instrument identifier. See Provision a Network Token for an Existing Instrument Identifier.
TMS
 Workflows
Updated the MIT workflows for partners. See Network Token MIT for Partners.
Life-Cycle Management
Added a note about setting the organization ID to that of the vault owner when creating a new webhook subscription. See Create Webhook Subscription.

24.11.01

Instrument Identifier Tokens
Added push provisioning to the list of supported features for instrument identifier tokens. See Instrument Identifier Tokens.
Message-Level Encryption Keys
Added a statement about creating MLE keys for multiple merchants. See Message-Level Encryption Keys.
Network Tokens
Added support for push provisioning for network tokens. See Push Provisioning for Network Tokens.
Test Card numbers
Updated the list of test card numbers for network token provisioning. See Test Card Numbers.
Token Requestor IDs
Added steps for entering the acquirer ID during token requestor ID enrollment. See Token Requestor IDs.
Token Management Service
 Workflows
Added a workflow for push provisioning. See Push Provisioning Process.

24.10.01

Network Tokens
Added support for deleting a standalone network token. See Delete a Standalone Network Token.
HTTP Status Codes
Added the
502
 HTTP status code. See HTTP Status Codes.

24.09.01

Unmasked Payment Details
Network Tokens
Added support for provisioning a network token for a card and consumer ID. See Provision a Network Token for a Consumer.
Added support for provisioning a network token for a token. See Provision a Network Token for a Token.
Added support for retrieving a network token. See Retrieve a Standalone Network Token.

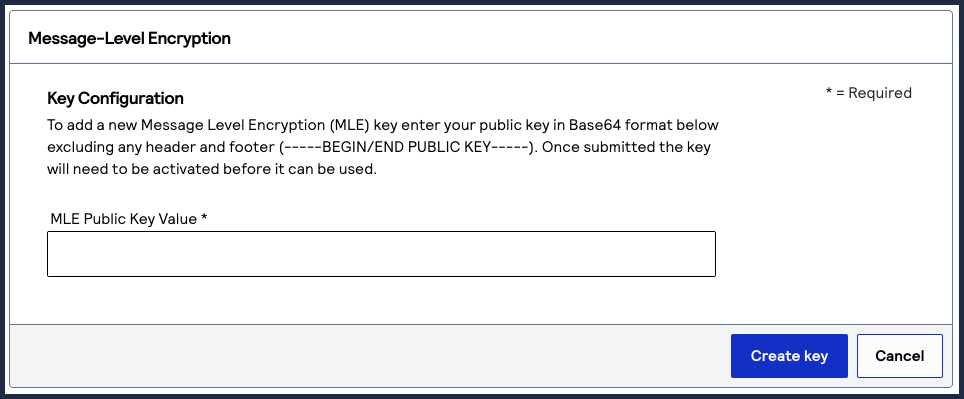

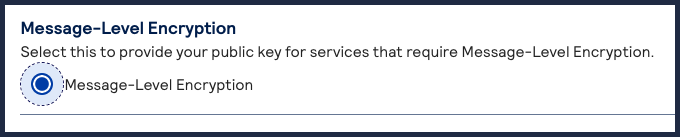

Message-Level Encryption Keys
Added information about extracting the public key. See Message-Level Encryption Keys.

24.08.01

Test Card Numbers
Updated test card numbers for provisioning network tokens. See Test Card Numbers.

VISA Platform Connect: Specifications and Conditions for Resellers/Partners

The following are specifications and conditions that apply to a Reseller/Partner enabling its merchants through
Cybersource for
VDC National Australia Bank Ltd
 (“VPC”) processing
. Failure to meet any of the specifications and conditions below is subject to the liability provisions and indemnification obligations under Reseller/Partner’s contract with Visa/Cybersource.
  1. Before boarding merchants for payment processing on a VPC acquirer’s connection, Reseller/Partner and the VPC acquirer must have a contract or other legal agreement that permits Reseller/Partner to enable its merchants to process payments with the acquirer through the dedicated VPC connection and/or traditional connection with such VPC acquirer.
  2. Reseller/Partner is responsible for boarding and enabling its merchants in accordance with the terms of the contract or other legal agreement with the relevant VPC acquirer.
  3. Reseller/Partner acknowledges and agrees that all considerations and fees associated with chargebacks, interchange downgrades, settlement issues, funding delays, and other processing related activities are strictly between Reseller and the relevant VPC acquirer.
  4. Reseller/Partner acknowledges and agrees that the relevant VPC acquirer is responsible for payment processing issues, including but not limited to, transaction declines by network/issuer, decline rates, and interchange qualification, as may be agreed to or outlined in the contract or other legal agreement between Reseller/Partner and such VPC acquirer.
DISCLAIMER: NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR ANY ERRORS OR OMISSIONS BY THE
VDC National Australia Bank Ltd
 ACQUIRER IN PROCESSING TRANSACTIONS. NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR RESELLER/PARTNER BOARDING MERCHANTS OR ENABLING MERCHANT PROCESSING IN VIOLATION OF THE TERMS AND CONDITIONS IMPOSED BY THE RELEVANT
VDC National Australia Bank Ltd
 ACQUIRER.

TERMS OF USE APPLICABLE TO CARD NETWORK TOKENS

The following terms and conditions govern your use, receipt and/or possession of Card Network Tokens.
  1. DEFINTIONS.
    Capitalized terms used herein shall have the following meanings:
    1. “
      Card Network PAN
      ” means a number that is associated with a Payment Network for purposes of card transactions, all in accordance with Payment Network Rules.
    2. “
      Card Network Token
      ” means a number provided by Visa pursuant to your use of Token Management Service (“TMS”) that (i) is mapped to and is a surrogate for a Card Network PAN; and (ii) to use the underlying Card Network PAN number in accordance with the Visa Documentation.
    3. “
      Payment Network Rules
      ” means the operating rules, bylaws, schedules, supplements and addenda, manuals, instructions, releases, specifications and other requirements, as may be amended from time to time, of any of the Payment Networks.
    4. “
      Payment Network(s)”
       means Visa, MasterCard, American Express, Discover Financial Services, and any affiliates thereof or any other payment network applicable to these Terms.
  2. LIMITATIONS ON USE OF CARD NETWORK TOKENS.
    You agree to the following with respect to your use, receipt and/or possession of Card Network Tokens:
    1. You shall not maintain or create a mapping of the Card Network Token to the associated Card Network PAN.
    2. Upon request by Visa and/or the applicable Payment Network, you shall use commercially reasonable efforts to delete any or all of the Card Network Tokens. You acknowledge and agree that Visa or the applicable Payment Network may request that you delete any Card Network Token at their sole discretion.
    3. You shall not initiate any transaction with a Card Network Token without appropriate consent from and disclosures to the cardholder, including any necessary consents in order for the applicable Payment Network to receive, store, process and share any data in order to deliver the token service. Except as authorized in accordance with the applicable Payment Network Rules, you must use the Card Network Token only for transactions that are authorized, cleared and settled through the applicable Payment Network.
    4. You shall not use a Card Network Token in a manner that a Card Network PAN cannot be used under the applicable Payment Network Rules. You agree that your responsibility for use of Card Network Tokens is the same as your responsibilities for use of Account Numbers under the applicable Payment Network Rules.
    5. You agree that the Payment Network Rules govern your relationship with the applicable Payment Network and use of Card Network Tokens as if the Card Network Tokens were Card Network PANs. You must comply with all applicable Payment Network Rules, as determined by the applicable Payment Network.
    6. You agree that any Card Network Tokens will be stored in compliance with PCI-DSS and such storage is subject to your representations and warranties set forth in the applicable agreement between you and Visa.
    7. If you are a Reseller or Partner, to enable American Express Network Tokens, you must have a direct acquiring or processing agreement signed with American Express in order to support American Express Network Tokens on behalf of your merchants.
  3. CARD ART.
    Cybersource
     may pass through rights allowing you to use, reproduce, display and provide issuers’ trademarks and issuer-provided card art (collectively, "Issuer IP") on a non- exclusive basis in strict accordance with the meta-data made available to you and such issuers’ branding guidelines (which may be updated by issuer from time to time), for use and display solely for use with Card Network Tokens provisioned via TMS. You agree that you will not and will not cause your affiliates or agents to alter the meta-data in any way.

Introduction to the
Token Management Service

The
Token Management Service
 (
TMS
) enables you to replace personally identifiable information (PII), such as the primary account numbers (PANs), with unique tokens. These tokens do not include the PII data, but act as a placeholder for the personal information that would otherwise need to be shared. By using tokens, businesses can provide a secure payment experience, reduce the risk of fraud, and comply with industry consumer security regulations such as PCI-DSS.
TMS
 links tokens across service providers, payment types, and channels for sellers, acquirers, and technology partners.
TMS
 tokenizes, securely stores, and manages the primary account number (PAN), the payment card expiration date, and customer data.
TMS
 also enables you to create a network token of a customer's payment card.
IMPORTANT
Due to mandates from the Reserve Bank of India, Indian merchants cannot store PANs. Use network tokenization instead.
You can manage sensitive data securely by creating, retrieving, updating, and deleting tokens through the TMS API.
TMS
 simplifies your PCI DSS compliance.
TMS
 passes tokens back to you that represent this data. You then store these tokens in your environment and databases instead of storing customer payment details.
TMS
 protects sensitive payment information through tokenization and secures and manages customer data using these token types:
  • Customer tokens
  • Instrument identifier tokens
  • Payment instrument tokens
  • Shipping address tokens
These
TMS
 tokens can be used individually, or they can be associated with one customer token:

Figure:

TMS
 Token Types
Diagram of the unified token identifier.

Types of Tokens

These tokens comprise the types of
TMS
 tokens:
  • Customer Token
    : Contains customer's email address, customer ID, shipping address (stored in a token), and other related data.
  • Shipping Address Token
    : Contains the shipping address associated with a customer token.
  • Payment Instrument Token
    : Contains the complete billing details for the payment type including cardholder name, expiration date, and billing address.
  • Instrument Identifier Token
    : Contains the tokenized primary account number (PAN) for card payments as well as the associated network token or US or Canadian bank account number and routing number.
  • Network Token
    : Network tokens pass through an acquirer and are de-tokenized by the payment network or issuer. For customer-initiated transactions, they require a cryptogram. Network tokens are mapped to instrument identifier tokens.

Figure:

TMS
 Token Types

Instrument Identifier Tokens

Instrument identifier tokens represent tokenized payment account numbers. Tokenized payment account information includes a primary account number (PAN) for card payments, or a US or Canadian bank account number and routing number for an ACH bank account. An instrument identifier token can exist independently, or it can be associated with a payment instrument.
An instrument identifier token can also contain an associated network token.
Instrument identifier tokens are associated with these features:
Card Art
TMS
 card art helps your customers select a card. See Card Art.
Enrollable Network Tokens
TMS
 can enroll certain
network tokens
 in an instrument identifier token to be used for future payments. Future payments require only the instrument identifier token for the payment information. The types of network tokens you can enroll into an instrument identifier are tokens used for in-app payment methods such as:
  • Android Pay
  • Apple Pay
  • Chase Pay
  • Google Pay
  • Samsung Pay
  • Visa Click to Pay
See Create an Instrument Identifier for Enrollable Network Tokens.
Push Provisioning
Push provisioning connects you with participating issuers to quickly provide credentials to your customers. See Push Provisioning for Network Tokens.

Customer Tokens

The customer token contains data about the merchant's customer including email address, customer ID, shipping address (stored in a token), and other related fields.

Shipping Address Tokens

The shipping address token contains the shipping address information associated with a customer token. This token includes any shipping address details, including the recipient's first and last name, company, shipping address, email, and phone number. A customer can have one or more shipping addresses, with one allocated as the customer's default shipping address.

Payment Instrument Tokens

The payment instrument token contains the complete billing details for the payment type including cardholder name, expiration date, and billing address. These are standalone payment instruments that cannot be associated with a customer.

Network Tokens

When a
TMS
 token is used in a transaction, the
TMS
 token is de-tokenized, and the PAN is sent to the issuer for authorization. The primary account number (PAN) is still exchanged as the transaction is processed. However, the PAN is removed from transaction processing and replaced with network tokens, making the transaction more secure.
The network scheme generates network tokens. A token replaces customer card information in order to ensure secure transactions. Network tokens are mapped to instrument identifier tokens. The minimum card data required in order to request a network token is the PAN and the expiration date.
Using a network token has benefits:
  • Improved authorization rates for credentials-on-file (COF) and recurring payments.
  • Improved customer tracking through the payment account reference (PAR), which is a consumer identifier that is less sensitive than the PAN. The PAR can be exchanged as the transaction is processed.
Network tokens can be provided for partners.
IMPORTANT
American Express does not support the payment facilitator (PayFac) model for processing network tokens. Contact your American Express representative for more information.

PAN Tokenization Process Using
TMS

This workflow shows the tokenization process for
TMS
 tokens.

Figure:

PAN Tokenization Process with
TMS
  1. The customer makes a purchase on the merchant's website using a PAN.
  2. The merchant sends the PAN to the
    National Australia Bank
     gateway.
  3. TMS
     creates a token for the merchant to store.
  4. National Australia Bank
     detokenizes the
    TMS
     token when it is used in a transaction.
  5. The detokenized PAN is exchanged across the payment ecosystem.

Network Token Tokenization Process

This workflow shows the tokenization process for network tokens.

Figure:

Network Token Tokenization Process
  1. The customer makes a purchase on the merchant's website using a PAN.
  2. The merchant sends the PAN to the gateway.
  3. TMS
     creates a token.
  4. TMS
     provisions a network token and links it to the
    TMS
     token.
  5. The merchant stores the
    TMS
     token for subsequent transactions.
  6. The network token and cryptogram are exchanged throughout the payment ecosystem.

Push Provisioning Process

This workflow shows the process for push provisioning.

Figure:

Push Provisioning Process
  1. The customer logs in to their bank account and chooses a card and merchant.
  2. The issuer sends the encrypted payment and user data to the network token provider.
  3. The network token provider sends the encrypted payment and user data to the issuer.
  4. The issuer invokes the merchant application with the token request push data.
  5. The customer registers for a merchant account or logs into an existing account.
  6. You decrypt the push data.
  7. You send a request to
    TMS
     to provision a network tokenized card.
  8. TMS
     sends a request to the network token provider to provision the tokenized card.
  9. The network token provider sends the provisioning response to
    TMS
    .
  10. TMS
     sends you the
    TMS
     token along with the provisioning status.
  11. Using the response sent from
    TMS
    , you send a request to
    TMS
     to retrieve the instrument identifier token. See Retrieve an Instrument Identifier.
  12. TMS
     sends you the instrument identifier token.
  13. You store the instrument identifier token for future transactions. Your designation as a merchant or a partner determines how you use an instrument identifier token in an authorization. For more information, see:

Network Token Provisioning for Partners

This workflow shows the process of network token provisioning for partners.

Figure:

Network Token Provisioning for Partners: Tokenizing PAN
Tokenizing PAN
  1. The customer enters their card data and sends the PAN to the merchant.
  2. The merchant sends the PAN to
    Token Management Service
    .
  3. Token Management Service
     generates a
    TMS
     token and synchronously provisions a network token from the card brand.
  4. Token Management Service
     sends the merchant the
    TMS
     token, expiration date, suffix, and payment account reference (PAR).
  5. The merchant stores the
    TMS
     token ID and network token flag and sends the customer the masked card number.

Figure:

Network Token Provisioning for Partners: Cryptogram Retrieval
Cryptogram Retrieval
  1. The merchant requests the payment credentials using a
    TMS
     token from
    Token Management Service
    .
  2. Token Management Service
    looks up the network token and sends the token metadata to the card brand.
  3. The card brand generates the cryptogram and sends it to
    Token Management Service
    .
  4. Token Management Service
     sends the network token and cryptogram to the merchant.
  5. The merchant uses the network token along with the cryptogram to start the authorization.

Figure:

Network Token Provisioning for Partners: PAR Retrieval
PAR Retrieval
  1. The merchant retrieves
    TMS
     token and sends it to
    Token Management Service
    .
  2. Token Management Service
     looks up the token and retrieves the PAR.
  3. Token Management Service
     sends the PAR to the merchant.
  4. The merchant stores the PAR.

Network Token CIT for Partners

This workflow shows a credentials-on-file (COF) authorization using a network token for a customer-initiated transaction (CIT).
The workflow begins when the customer makes a purchase from the merchant and selects a COF during payment.

Figure:

Network Token CIT Authorizations for Partners
  1. The customer makes a purchase and selects COF.
  2. The merchant requests the payment credentials and sends the
    TMS
     token to the payment processor.
  3. The payment processor uses the
    TMS
     token to look up the network token.
  4. The payment processor requests the cryptogram generated by the card brand.
  5. The payment processor sends the network token and cryptogram to the merchant.
  6. The merchant uses the network token along with the cryptogram to start the authorization.
  7. The merchant sends the network token, cryptogram, and 3-D Secure data to the acquirer in the authorization request.
  8. The acquirer processes the authorization and sends the authorization result to the merchant.
  9. The merchant sends the customer the authorization result from the acquirer.

Network Token MIT for Partners

This workflow shows a credentials-on-file (COF) authorization using a network token for a merchant-initiated transaction (MIT).
IMPORTANT
Before you can process a MIT, the customer must have previously made a purchase and given consent for you to store their payment credentials.

Figure:

Network Token MIT Authorizations for Partners
  1. The merchant requests the payment credentials and sends the
    TMS
     token to the payment processor.
  2. The payment processor uses the
    TMS
     token to look up the network token.
  3. The payment processor sends the network token and cryptogram to the merchant.
  4. The merchant uses the network token along with the cryptogram to start the authorization.
  5. The merchant sends the network token and MIT COF data to the acquirer in the authorization request.
  6. The acquirer processes the authorization and sends the authorization result to the merchant.
  7. The merchant sends the customer the authorization result from the acquirer.

Requesting the
Token Management Service
 API

Before requesting the
Token Management Service
 (
TMS
) API, you must already have a
Gateway Portal
 account. If you do not, you can create an evaluation account.
Follow these steps to request the
TMS
 API:
  1. Authenticate to the API using either HTTP signature authentication or JSON Web Token (JWT) authentication.

    ADDITIONAL INFORMATION

    1. A Base64-encoded shared secret key is passed in the headers you generate for HTTP signature authentication.
      See Shared Secret Key Pair in
      Getting Started with the REST API
       for instructions.
    2. A P12 Certificate is passed in the headers you generate for JWT authentication.
      See Create a P12 Certificate in the
      Getting Started with the REST API
       for instructions.
    IMPORTANT
    These keys are used to authenticate requests that are sent to the
    TMS
     API. You can create REST API keys at the portfolio or transacting organization level.
    Portfolio organizations that send requests to the
    TMS
     API on behalf of their transacting merchants can create Meta keys. Meta keys are used to transact on behalf of their multiple transacting MIDs with a single key. For more information on Meta keys, see Meta Key Creation and Management in the
    Creating and Using Security Keys
     developer guide.
  2. Specify one of the following hosts in the URL:

    ADDITIONAL INFORMATION

    1. Sandbox:
      POST
      https://nabgateway-api-test.nab.com.au
    2. Production:
      POST
      https://nabgateway-api.nab.com.au
  3. Append the resource, such as,
    /tms/v2/customer
     to the host URL. For example,
    https://nabgateway-api.nab.com.au
    /tms/v2/customer
    .
  4. Pass your request using a
    HTTP
    GET
    ,
    POST
    ,
    PATCH
     or
    DELETE
     method as specified in each API operation.

HTTP Response Headers

Response Header
Possible Values
Description
instrumentidentifier-created
true
 or
false
This value indicates whether a new instrument identifier was created. For example, you have never tokenized this PAN or bank account, or an existing one was returned.

Case Sensitivity

Token IDs are not case sensitive. The following requests return the same resource:
GET /instrumentidentifiers/49C26351BF7D8765E05333B9d30AA9DB
GET /instrumentidentifiers/49c26351bf7d8765e05333b9d30aa9db
IMPORTANT
Unlike the token ID in the request URL, all request fields are case sensitive.
List matching rules:
  • Accept any case (web, WEB, WeB).
  • Store the expected case (WEB).
  • Return the expected case (WEB) metadata.

Metadata

Token type structures such as instrument identifiers and payment instruments contain a metadata map that contains data about the creator.
A metadata map is returned for every token type in a response to an HTTP POST, GET, and PATCH request.

Example: Metadata from a Response

"metadata": {
"creator": "mid1"
}

Patching Considerations

Patching within
TMS
 is based on JSON Merge Patch (RFC7396), in which changes follow the same structure being modified as that of a POST request, rather than JavaScript Object Notation (JSON) Patch (RFC6902), in which changes are expressed as a set of actions.
A PATCH request is different from a PUT request in that only the fields that must be changed need to be provided in the request, and those changes are merged with the existing record.
Here are some rules to consider:
  • When a field is to be removed, you can remove a field by entering a value of
    null
    .
  • When a field is set to
    null
    , and it does not exist in the current record, it is ignored.
  • You can remove groups of fields by setting the parent container to
    null
    .
IMPORTANT
Array values are patched as a whole, so in the patch request, provide the final value that is expected after the patch.

Patching Examples

Below are some use-case examples of patching rules.
Example: Updating Expiration Month and Year Values
You can get the existing values by sending a GET request to the payment instrument ID as shown below:
GET /tms/v1/paymentinstrument/<id>
The response is shown below:
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/9000000000000000002001"
     }
  },
  "id": "9000000000000000002001",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "09",
    "expirationYear": "2017",
    "type": "visa",
    "issueNumber": "01"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/9000000000000000001001"
        }
      },
      "id": "9000000000000000001001",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXX11112"
      }
    }
  }
}
To update just the
card.expirationMonth
 and
card.expirationYear
 fields, send the following PATCH request:
PATCH /tms/v1/paymentinstrument/<id>
{
  "card": {
    "expirationMonth": "10",
    "expirationYear": "2020"
  }
}
You can see the new values by issuing another GET request to
/tms/v1/paymentinstrument/<id>
. The response is shown below.
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/9000000000000000002001"
    }
  },
  "id": "9000000000000000002001",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "10",
    "expirationYear": "2020",
    "type": "visa",
    "issueNumber": "01"
  },  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/9000000000000000001001"
        }
      },
      "id": "9000000000000000001001",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXX11112"
      }
    }
  }
}
Example: Removing Card Issue Number (Single Field) and Buyer Information (Container)
First, send a GET request to
/tms/v1/paymentinstrument/<id>
 to see the current values:
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/9000000000000000002001"
    }
  },
  "id": "9000000000000000002001",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "09",
    "expirationYear": "2017",
    "type": "visa",
    "issueNumber": "01"
  },
  "buyerInformation": {
    "companyTaxID": "12345",
    "currency": "USD"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/9000000000000000001001"
        }
      },
      "id": "9000000000000000001001",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXX11112"
      }
    }
  }
}
Then send a PATCH request to
/tms/v1/paymentinstrument/<id>
 and include the following payload:
{
  "card": {
    "issueNumber": null
  },
"buyerInformation": null
}
The result can be seen in the next GET request to
/tms/v1/paymentinstrument/<id>
:
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/9000000000000000002001"
    }
  },
  "id": "9000000000000000002001",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "09",
    "expirationYear": "2017",
    "type": "visa"
  }
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/9000000000000000001001"
        }
      },
      "id": "9000000000000000001001",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXX11112"
      }
    }
  }
}
Example: Patching an Array
Original value:
{
  "a": [
    {
      "b": "c",
      "d": "e"
    }
  ]
}
Patch payload:
{
  "a": [
    {
      "z": "y"
    }
  ]
}
Final value:
{
  "a": [
      {
      "z": "y"
    }
  ]
}

Pagination

Responses can indicate pagination if you include the
limit
 and
offset
 fields in your request.
Parameter
Description
limit
Controls the maximum number of items that can be returned for a single request. The default is 20; the maximum is 100.
If you set a limit greater than 100, the following error results:
Http Status: 400 Bad Request
Body
{
  "errors": [
    {
      "type": "invalidParameters",
      "message": "Invalid parameter values",
      "details": [
        {
          "name": "limit"
        }
      ]
    }
  ]
}
offset
Controls the starting point within the collection of results. Defaults to
0
.
Setting a zero offset retrieves the first item in the collection.
For example, if you have a collection of 15 items to be retrieved from a resource, and you specify
limit=5
 , you can retrieve the entire set of results in three successive requests by varying the offset value:
offset=0
,
offset=5
, and
offset=10
.
An offset greater than the number of results does not return an embedded object.

Pagination Response Header

Header
Description
X-total-count
Returns total records count regardless of pagination.

Pagination Response Body Fields

Field
Description
"object":"collection"
Shows that the response is a collection of objects.
"offset": 40
The offset parameter used in the request.
"limit": 20
The limit parameter used in the request.
"count": 20
The number of objects returned.
"total": 87
The total number of objects.

Examples

Pagination Example 1
This example shows a request for objects 41 to 60.
Request
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=40&limit=20
IMPORTANT
  • If you are on the first collection, the previous link would not be included.
  • If you are on the last collection, the next link would not be included.
  • All other links are always included. For example, if there was only one collection of results, the URL for
    self
    ,
    first
    , and
    last
     links would be the same.
Response
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=40&limit=20"
    },
    "first": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=0&limit=20"
    },
    "prev": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=20&limit=20"
    },
    "next": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=60&limit=20"
    },
    "last": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=80&limit=20"
    }
  },
  "object":"collection",
  "offset": 40,
  "limit": 20,
  "count": 20,
  "total": 87,
  "_embedded": {
    <array data>
  }
}
Pagination Example 2 - Offset to Limit Relationship
This example shows a request for objects 3 to 6, from a total of 8 objects.
The example below shows the second collection of results and highlights that the previous page link will not change the user’s original limit parameter value.
This means that the previous collection will contain objects 0-3, and therefore collection 1 and collection 2 will both contain object 3.
Request
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=3&limit=4

Figure:

Offset to Limit Relationship
Response
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=3&limit=4"
    },
    "first": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=0&limit=4"
    },
    "prev": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=0&limit=4"
    },
    "next": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=7&limit=4"
    },
    "last": {
      "href": "
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/5BAAD18F8091052CE0539399D30AAB2F/paymentinstruments?offset=7&limit=4"
    }
  },
  "object":"collection",
  "offset": 3,
  "limit": 4,
  "count": 4,
  "total": 8,
  "_embedded": {
    <array data>
  }
}

Supported Processors

The processors listed below support customer and instrument identifier tokens, unless noted otherwise.
Processor
Payment Method
VDC National Australia Bank Ltd
  • Credit card—supports 0.00 pre-authorizations for Visa and Mastercard cards.
  • Credit card—supports 1.00 pre-authorizations for American Express, Discover, Diners Club, and JCB card types.
  • Debit card and prepaid card.
  • Payouts.

Test Card Numbers

Use these test card numbers to provision and test
TMS
 tokens and network tokens.
All of the test card numbers listed here are enabled for card art. For more information on card art, see Card Art.

Successful Network Token Provisioning

Use these test card numbers to provision network tokens. For Mastercard and Visa cards, replace the X in the card number with 0. For Mastercard cards, you can use any future date for the expiration date.
Test Card Numbers for Successful Network Token Provisioning
Card Brand
Number
Expiration Date
CVV
American Express
Any
Any
Any
Mastercard
512X342233150747
Any
Any
Mastercard
512X343287499758
Any
Any
Mastercard
51203501XXX64594
Any
Any
Visa
46229431231XX639
12/26
242
Visa
46229431231XX647
12/26
749
Visa
46229431231XX654
12/26
972
Visa
46229431231XX662
12/26
344
Visa
46229431231XX67X
12/26
306
Visa
46229431231XX688
12/26
065
Visa
46229431231XX696
12/26
264
IMPORTANT
Once a network token has been successfully provisioned for one of the above test PANs there is no way to delete the network token to further attempt successful provisioning. Please be aware of this when testing.

Unsuccessful Network Token Provisioning

Use these test card numbers to test unsuccessful provisioning of network tokens.
For American Express cards, replace the X in the PAN with a 0. For Visa cards, replace the X in the PAN with any number. You can use any future date for the expiration date.
Test Card Numbers for Unsuccessful Network Token Provisioning
Card Brand
PAN
Expiration Date
CVV
Failure Reason
American Express
370000000XXXX28
Any
Any
CARD_NOT_ELIGIBLE
American Express
3700000000XXXX2
Any
Any
DECLINED
American Express
37000000XXXX119
Any
Any
SERVICE_UNAVAILABLE
American Express
370000000XXXX36
Any
Any
CARD_NOT_ALLOWED
Visa
4000000011XXXXXX
Any
Any
CARD_VERIFICATION_FAILED
Visa
4001770011XXXXXX
Any
Any
CARD_NOT_ELIGIBLE
Visa
4010057011XXXXXX
Any
Any
CARD_NOT_ALLOWED
Visa
4010057022XXXXXX
Any
Any
DECLINED
Visa
4020057022XXXXXX
Any
Any
DECLINED
Visa
4010057033XXXXXX
Any
Any
SERVICE_UNAVAILABLE
Visa
4020057033XXXXXX
Any
Any
SERVICE_UNAVAILABLE
Visa
4010057044XXXXXX
Any
Any
SYSTEM_ERROR
Visa
4020057044XXXXXX
Any
Any
SYSTEM_ERROR
Visa
4020057055XXXXXX
Any
Any
INVALID_REQUEST

Visa Token for Token

Use these Visa test card numbers to test token for token provisioning of network tokens. Replace the X in the card number with any number and use any future date for the expiration date.
Test Card Numbers for Token for Token
Card Brand
Number
Expiration Date
CVV
Response
Mastercard
Any
Any
Any
SUCCESS
Visa
4000010011XXXXXX
Any
Any
CARD_VERIFICATION_FAILED
Visa
4000010022XXXXXX
Any
Any
CARD_NOT_ELIGIBLE
Visa
4000010033XXXXXX
Any
Any
CARD_NOT_ALLOWED
Visa
4000010044XXXXXX
Any
Any
SERVICE_UNAVAILABLE
Visa
4000010055XXXXXX
Any
Any
SYSTEM_ERROR
Visa
4000010088XXXXXX
Any
Any
INVALID_REQUEST

Visa Push Provisioning

Use these Visa account reference ID numbers to test unsuccessful push provisioning of network tokens. To successfully test token provisioning for Visa, you can use any 16-digit alphanumeric account reference ID.
Test Card Numbers for Push Provisioning
Card Brand
Account Reference ID
Response
Visa
Any
Success
Visa
aaaaac907033097c2ec91c3cea9d6d02
cardVerificationFailed
Visa
bbbbbc907033097c2ec91c3cea9d6d02
cardNotEligible
Visa
cccccc907033097c2ec91c3cea9d6d02
cardNotAllowed
Visa
dddddd907033097c2ec91c3cea9d6d02
provisionDataExpired
Visa
ffffff907033097c2ec91c3cea9d6d02
SERVICE_UNAVAILABLE
Visa
gggggg907033097c2ec91c3cea9d6d02
SYSTEM_ERROR

Token Management Service
 Onboarding

This section contains information necessary to onboard merchants and
TMS
 vault management:

Merchant ID Hierarchy

The
Gateway Portal
 is an online portal provisioned to partners and end merchants. This portal can be used to onboard merchants, view transactional activity and generate and download reports among other things.
There are two environments associated with the
Gateway Portal
. Each has its own corresponding URL in order to gain access to the
Gateway Portal
 for the relevant environment:
Test
:
https://nabgateway-portal-test.nab.com.au/ebc2
Production
:
https://nabgateway-portal.nab.com.au/ebc2
In order to gain access to
Gateway Portal
 partners/merchants must be provisioned with an Organization ID, otherwise known as a merchant ID (MID). There are multiple types of MIDs:
  • Portfolio
    : This is typically a MID that is provisioned to partners. Portfolio MIDs enable partners to onboard merchants into either a test or production environment.
  • Merchant
    : This is a parent MID that can house multiple transactional MIDs. This will be directly associated with the end merchant and will be created by the partner under the portfolio MID. This MID will be attached to specific functionality such as the token vault (
    Token Management Service
     vault).
  • Transactional
    : This is a child MID. Each partner’s end merchant may have multiple transactional MIDs. The transactional MID is typically used for processing into
    Token Management Service
    , for example, to provision a network token via the
    Token Management Service
     API. This will be directly associated with the partners end merchant and will be created by the partner under the portfolio MID.

Merchant ID Registration

A
National Australia Bank
 MID is a unique value within
National Australia Bank
 that you define during account registration. Your MID identifies your merchant account and payment configuration within
National Australia Bank
 systems. You provide this identifier when you sign in to the
Gateway Portal
 and submit transactions to
National Australia Bank
.
Multiple MIDs can be configured for various token types. You receive the instrument identifier token regardless of your account’s token type. Reasons for multiple MIDs include:
  • You have multiple processors.
  • Point-of-sale terminals have unique MIDs, which are usually configured for the PAN-only instrument identifier token.
When you have multiple MIDs, you can set up one token vault to which all of your MIDs have access or set up multiple vaults to limit access to tokens. See Token Vault Management for more information on setting up and managing your token vault.

Create an Evaluation Account

To create an evaluation account, visit the
Gateway Portal
 Evaluation Account Sign-Up
 page.
To complete the registration process, follow the email instructions that you received to activate your merchant account, and log in to the
Gateway Portal
.
Send your
merchantID
 to
TMS
 representative supporting you with integration to create a vault and enable
Token Management Service
 with network tokens.

Portfolio MIDs for Partners

Customer support will respond with a questionnaire. The below information will need to be completed:
  • Organization ID
    : Portfolio MID name
  • Environment
    : Test and Production
  • Business information
    : The business name and address
  • Business contact
    : The contact that receives an email registration link to gain access to
    Gateway Portal
     through the portfolio MID.
  • Technical contact
    : The contact that receives automatically generated notifications, such as product updates, as well as non-urgent notifications.
  • Emergency contact
    : The contact that receives urgent messages such as service outage notifications
  • Merchant notifications
    : This will send a welcome email to the business contact associated with the end merchant.
  • Processing information
    : Not applicable.
  • Product information
    :
    TMS
     only
  • Customer Support
    : Not applicable.
  • Branding
    : Not applicable.

Token Vault Management

Token vaults are where merchants store their customer and payment data. A
Gateway Portal
 internal user can enable the
TMS
 vault.
Vaults are assigned to an owner, and all data within the vault belongs to the owner. You can grant permission to individual MIDs to create, retrieve, update, and delete tokens within a vault. Created tokens belong to the owner of the vault, not the creator of the token. If you remove a MID from a vault, it can no longer access any tokens within that vault, including tokens created under that MID.
IMPORTANT
It is not currently possible to merge vaults, so ensure that merchants are set up with the correct vault by creating a new vault or granting access to an existing vault.

Configure the Token Vault Settings Using the
Gateway Portal

Follow these steps to configure your merchant token vault settings:
  1. Log in to the
    Gateway Portal
     test environment or production environment.
    • Test:
      https://nabgateway-portal-test.nab.com.au/ebc2
    • Production:
      https://nabgateway-portal.nab.com.au/ebc2
  2. In the left navigation panel, click the
    Token Management
     icon ( ).
  3. Click
    Vault Management New
    . The Vault Management page appears.
  4. From the Vault Owner drop-down list, select the vault owner..
  5. In the Details column, click
    Vault Settings
    . The Edit Vault page appears.
  6. Click
    Edit
    .
    A dialog box appears with a message to warn you that changing your vault settings could result in your merchants being unable to access tokens, which could result in failing transactions. Click
    Yes
     if you want to continue.
  7. Enter the vault name, supported payment methods, supported token types and formats, card number masking format, payment instrument storing configuration, and the webhook URL.
    For each token type, you can choose from these token formats:
    • 32 Character Hex
    • 22 Digits
    • 19 Digits Luhn Check Passing
    • 16 Digits Luhn Check Passing
    IMPORTANT
    Account Updater is incompatible with instrument identifier tokens in the 22-digit format.
  8. Click
    SAVE
    .
  9. To return to the vault management page, click
    VAULT MANAGEMENT
    .

Configure the Token Vault Access Using the
Gateway Portal

Follow these steps to configure your merchant token vault access settings:
  1. Log in to the
    Gateway Portal
     test environment or production environment.
    • Test:
      https://nabgateway-portal-test.nab.com.au/ebc2
    • Production:
      https://nabgateway-portal.nab.com.au/ebc2
  2. In the left navigation panel, click the
    Token Management
     icon ( ).
  3. Click
    Vault Management New
    . The Vault Management page appears.
  4. Select the vault owner that you want to configure from the Vault Owner drop-down list.
  5. In the Details column, click
    Access Settings
    . The MID Access page appears.
  6. Check the box for the vault settings you want to enable for each merchant you want to configure:
    • Visa Token
    • Mastercard Token
    • Card Unmasked
    • Create
    • Update
    • Retrieve
  7. Click
    Submit
     to save your settings.

Configure Network Tokenization Using the
Gateway Portal

Follow these steps to configure a merchant's token vault network tokenization settings:
  1. Log in to the
    Gateway Portal
     test environment or production environment.
    • Test:
      https://nabgateway-portal-test.nab.com.au/ebc2
    • Production:
      https://nabgateway-portal.nab.com.au/ebc2
  2. In the left navigation panel, click the
    Token Management
     icon ( ).
  3. Click
    Vault Management New
    . The Vault Management page appears.
  4. Select the vault owner that you want to configure from the Vault Owner drop-down list.
  5. In the Details column, click
    Network Tokenization
    . The Network Tokenization page appears.
  6. On the VISA tab, switch the
    Enroll to VISA Token Services
     button to On to enable Visa token services.
    The required business information for the merchant information will be populated:
    • Merchant name
    • Website URL
    • Country code
  7. Click
    Onboard with Acquirer ID
     and enter the required information:
    • Acquirer ID: Set the value to
      40010052242
      . This is a static acquirer ID that is used for
      TMS
      .
    • Acquirer merchant ID: Enter your organization ID.
  8. Click
    Manage Details
    .
    1. Check
      Enable Visa Token Provisioning
       to enable Visa network token provisioning.
    2. Check
      Enable Visa Token Transactions
       to enable Visa transaction processing using network tokens.
    3. Enter the token requestor ID (TRID) if necessary:

      ADDITIONAL INFORMATION

      • TRID
      • Relationship ID
  9. On the MASTERCARD tab, switch the
    Enroll to MASTERCARD Token Services
     button to On to enable Mastercard token services.
  10. Click
    Manage Details
    .
    1. Check
      Enable Mastercard Token Provisioning
       to enable Mastercard network token provisioning.
    2. Check
      Enable Mastercard Token Transactions
       to enable Mastercard transaction processing using network tokens.
    3. Enter the token TRID if necessary:

      ADDITIONAL INFORMATION

      • TRID
      • Relationship ID
  11. On the AMERICAN EXPRESS tab, switch the
    Enroll to AMERICAN EXPRESS Token Services
     button to On to enable American Express token services.
    1. Check
      Enable American Express Token Provisioning
       to enable American Express network token provisioning.
    2. Check
      Enable American Express Token Transactions
       to enable American Express transaction processing using network tokens.
    3. Enter the token TRID if necessary:

      ADDITIONAL INFORMATION

      • TRID
      • SE number
  12. Click
    Submit
     to save your settings.

Message-Level Encryption Keys

You must use message-level encryption (MLE) in order for personally identifiable information, such as payment information, to be returned unmasked by
TMS
. You must create an MLE security key for your
National Australia Bank
 merchant account in the
Gateway Portal
 before a
TMS
 response can return unmasked payment information using MLE.
MLE keys can be created at the portfolio and transacting levels of an organization. You must create an MLE key at the portfolio level of an organization if you want to use a single MLE key for the encryption and decryption of payment information for multiple merchants. To do so, you must log in to the
Gateway Portal
 using your portfolio credentials and ensure that the MLE key is generated for your organization.
MLE keys expire after 3 years.
Security keys can be used to make any request, including payments. Treat your security keys as you would any secure password.
You must use separate keys for the test and production environments.

Prerequisite

You must have a tool such as OpenSSL installed on your system.
To create an MLE key, you must first extract a public key. You can use a tool such as OpenSSL to extract the key:
openssl genrsa -out private.pem 2048 && openssl rsa -in private.pem -outform PEM -pubout -out public.pem
For information creating an MLE key, see Creating a Message-Level Encryption Key.

Creating a Message-Level Encryption Key

Follow these steps to create a message-level encryption key:
  1. Log in to the
    Gateway Portal
    :
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate Key
    .
    The Create Key page appears.
  4. Select
    Message-Level Encryption
     and click
    Generate Key
    .
  5. Enter the public key value into the text field, and click
    Create Key
    .

Network Tokenization

This section contains information on network tokenization:

Network Token Enablement

Network token enablement is currently a manual process and requires a request to be sent to
National Australia Bank
 support. For more information about network token enablement, visit the Support Center:
IMPORTANT
Before sending the request, you must ensure that the merchant/parent MID has been created and the
TMS
 product is enabled.

Network Token Onboarding—Partner Model

This workflow shows the merchant onboarding process.
The workflow begins when the partner creates a merchant profile on the
National Australia Bank
 platform using
TMS
 templates.

Figure:

Network Token Onboarding for Partners
  1. The gateway sets up templates for TMS.
  2. partner creates merchant profile using TMS templates.
  3. The partner submits a request to
    National Australia Bank
     via API.
  4. National Australia Bank
     creates a merchant based on the API request and confirms boarding success with partner.
  5. The partner provides merchant details via email to enable network tokenization and submits email to
    National Australia Bank
     support.
  6. National Australia Bank
     verifies the request, generates the onboarding request, and sends the request to the card brand.
  7. The card brand completes the registration process and responds to
    National Australia Bank
     with the confirmation and token requestor ID (TRID).
  8. National Australia Bank
     notifies the partner that onboarding is complete.
  9. The partner completes merchant setup.

Network Token Life-Cycle Management

Life-cycle management is a key feature of credentials-on-file (COF) network tokenization. Issuers can keep COF network tokens updated as changes are made to their cardholders' accounts.
TMS
 notifies you in real time when updates are made to a card represented by the COF network token in your
TMS
 vault. Issuers push the life-cycle management updates either in real time or via a batch process to the card brands. Life-cycle updates and timelines will vary by issuer based on their update process. For example,
TMS
 notifies you when a card becomes inactive.
You can simulate life-cycle management for Visa cards using the
simulator. For more information see
Simulate Life-Cycle Management Events.
There are three distinct types of life-cycle management events:
  • COF token status changes. Token statuses are:
    • ACTIVE
      : The account and network token are active and in good standing.
      When COF network tokens are active, merchants can process transactions according to their COF agreement.
    • DELETED
      : This is the final state for a network token. A network token can be deleted when the account is closed or on cardholder instruction.
      Merchants must request a new credential from the cardholder.
    • EXPIRED
      : This is a temporary status for COF network tokens where the token has passed its expiration date. This is not a status that results from a life-cycle management update.
      National Australia Bank
       does not process transactions with network tokens that have an
      EXPIRED
       status and merchants should not send transactions with network tokens that have an
      EXPIRED
       status. When the network token status is
      EXPIRED
      , there should be a life-cycle management notification to update the status of the token, or the merchant can submit a re-provision.
    • SUSPENDED
      : This status is temporary for COF network tokens and can change to
      ACTIVE
       or
      DELETED
      . Merchants should not send authorizations on suspended tokens. However, these tokens can be re-activated by the issuer later. Suspended COF network token events are usually triggered according to cardholder instruction or flagged by the issuer for suspected fraudulent activity. When the status changes from
      SUSPENDED
       to
      ACTIVE
       or
      DELETED
      , a merchant receives a life-cycle management update.
      Merchants can proactively contact a cardholder to update the credential or have them contact the issuer to reactivate the credential.
  • PAN updates to the COF network token:
    • NEW PAYMENT ACCOUNT EXPIRY
      : A new expiration date has been provided by the issuer associated with the PAN.
      Merchants can retrieve the new expiration date and store it in their cardholder records.
    • NEW PAYMENT ACCOUNT NUMBER
      :  A new PAN has been provisioned for the network token.
      Merchants can retrieve the new PAN suffix (last four digits) and the new expiration date to store in their cardholder records.
  • Life-cycle management reason values:
    • CARD_UPDATED
      : The card expiration date or last four digits have been updated.
    • METADATA_UPDATE
      : The card metadata has been updated.
    • PROVISIONED
      : A network token has been provisioned. This reason value is only available when the
      eventType
       is set to
      tms.networktoken.provisioned
      . For more information, see Manage Webhook Subscriptions.
    • TOKEN_STATUS_UPDATE
      : The network token status has been updated.
    • TOKEN_UPDATED
      : The token expiration date has been updated.

REST Examples: Life-Cycle Management Notifications

Network Token Enrollment Notification
{
 "eventType": "tms.networktoken.provisioned",
 "webhookId": "261d2616-xxxx-9ba8-q3456-8b588d0a5f2a",
 "productId": "tokenManagement",
 "organizationId": "mid",
 "eventDate": "2025-02-24T16:46:27",
 "transactionTraceId": "234234234234234c14e374c2b5a31e26c4316f0dc-0",
 "retryNumber": 0,
 "payload": {
   "data": {
     "reason": "PROVISIONED",
     "id": "2EE7067B2F015632E0631E588E0A1987",
     "type": "tokenizedCardEnrollments",
     "version": "1.0",
     "_links": {
       "tokenized-cards": [
         {
           "href": "/tms/v2/tokenized-cards/2E8B371F931C4B9BE0631D588D0AF123",
           "id": "2E8B371F931C4B9BE0631D588D0AF123",
           "state": "ACTIVE"
         }
       ],
       "instrumentIdentifiers": [
         {
           "href": "/tms/v1/instrumentidentifiers/7045450003485829870",
           "id": "7045450003485829870"
         }
       ]
     }
   },
   "organizationId": "mid"
 },
 "requestType": "NEW"
}
Network Token Update Notification
{
 "eventType": "tms.networktoken.updated",
 "webhookId": "261d2616-xxxx-9ba8-q3456-8b588d0a5f2a",
 "productId": "tokenManagement",
 "organizationId": "mid",
 "eventDate": "2025-02-24T16:46:27",
 "transactionTraceId": "234234234234234c14e374c2b5a31e26c4316f0dc-0",
 "retryNumber": 0,
 "payload": {
   "data": {
     "reason": "TOKEN_STATUS_UPDATED",
     "id": "2EE7067B2F015632E0631E588E0A1987",
     "type": "tokenizedCardUpdates",
     "version": "1.0",
     "_links": {
       "tokenized-cards": [
         {
           "href": "/tms/v2/tokenized-cards/2E8B371F931C4B9BE0631D588D0AF123",
           "id": "2E8B371F931C4B9BE0631D588D0AF123",
           "state": "DELETED"
         }
       ],
       "instrumentIdentifiers": [
         {
           "href": "/tms/v1/instrumentidentifiers/7045450003485829870",
           "id": "7045450003485829870"
         }
       ]
     }
   },
   "organizationId": "mid"
 },
 "requestType": "NEW"
}

Network Token Life-Cycle Management Reports

You can generate reports that contain Life-Cycle Management events for Network Tokens. These reports include network token-related fields that are updated as a result of the Life-Cycle Management events sent to the
Token Management Service
.

Token Requestor IDs

A token requestor ID (TRID) is a unique identifier that entities such as merchants use to request network tokens from token providers. Having a TRID is a prerequisite for enabling network tokenization.
Each entity must register with the token provider to get a TRID. Contact a
National Australia Bank
 representative to enroll a merchant as a token requestor.

Visa and Mastercard TRIDs

An internal user can enroll a merchant as a VISA or Mastercard token requestor through the
Gateway Portal
.
Follow these steps to enroll a merchant as a token requestor in the
Gateway Portal
:
  1. Log in to the test environment or production environment.
    • Test
      :
      https://nabgateway-portal-test.nab.com.au/ebc2
    • Production
      :
      https://nabgateway-portal.nab.com.au/ebc2
  2. Navigate to
    Token Management
    .
  3. Click
    Vault Management
    .
  4. Use the Vault Owner filter to search for the merchant account that has
    TMS
     enabled.
  5. Choose the merchant account to view the
    TMS
     vaults that are configured for the merchant.
  6. Click
    Network Tokenization
    .
  7. Click
    Enroll to VISA/Mastercard token services
    .
  8. Enter the required information for each card type:
    Mastercard
    Business entity name
    Visa
    Merchant name
    Merchant website URL
    Merchant country code
  9. Click
    Onboard with Acquirer ID
    .
  10. Enter the required information:
    Acquirer ID
    Set the value to
    40010052242
    . It is a static acquirer ID that is used for
    TMS
    .
    Acquirer Merchant ID
    Enter your organization ID.
  11. Click
    Enroll to Network Token Services
     to complete enrollment.
When the enrollment is submitted, the relationship ID and token requestor ID appear on the page for Visa Token Service (VTS) and the token requestor ID appears for Mastercard.
In order to request a TRID from the token provider,
National Australia Bank
 uses merchant business details already stored. If any of the details are not present, a dialog form should appear prompting you to complete the missing information.

American Express TRIDs

Enrollment as a token requestor for American Express is a manual process. Contact your
National Australia Bank
 representative to request the TRID for American Express.
Allow 2 to 3 days for the completion of your request.
IMPORTANT
Service establishment (SE) Numbers
 are required in order to process American Express card transactions.

Manage Webhook Subscriptions

This section contains information on creating, retrieving, and updating webhook subscriptions. You can create, retrieve, update, or delete notification subscriptions for various events by submitting an HTTP POST, GET, PATCH, or DELETE request to the
notification-subscriptions/v1/webhooks
 endpoint. Use the webhooks REST API to:
When you send an API request to create a webhooks subscription, you must include the product and its associated events to which you are subscribing.
You can create webhooks subscriptions for these
Token Management Service
 network token events:
Token Management Service
Product ID
Event Types
Description
tokenManagement
tms.networktoken.updated
Notifies you of a network token's change in expiration date or status (suspend, resume, or deactivate).
tms.networktoken.provisioned
Notifies you when a network token provision for an instrument identifier token has been successful.
tms.networktoken.binding
Notifies you of the binding status of the network token with the device.
Example: Product and Network Token Events in a Webhook Subscription
  "productId": "tokenManagement",
  "eventTypes": [
    "tms.networktoken.provisioned",
    "tms.networktoken.updated",
    "tms.networktoken.binding"
  ]

Create Keys for Digital Signature

This section describes how to create keys for digital signature.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/kms/egress/v2/keys-sym
Production:
POST
https://nabgateway-api.nab.com.au
/kms/egress/v2/keys-sym

Required Fields for Creating Keys for Digital Signature

clientRequestAction
keyInformation.provider
keyInformation.tenant
keyInformation.keyType
keyInformation.organizationId

REST Example: Creating Keys for Digital Signature

Request
{
  "clientRequestAction": "CREATE",
  "keyInformation": {
    "provider": "nrtd",
    "tenant": "testrest",
    "keyType": "sharedSecret",
    "organizationId": "testrest"
  }
}
Response to a Successful Request
{
    "submitTimeUtc": "2023-02-10T21:26:58Z",
    "status": "SUCCESS",
    "keyInformation": {
        "provider": "nrtd",
        "tenant": "testrest",
        "organizationId": "testrest",
        "keyId": "f4602849-1466-7937-e053-5a588d0ac970",
        "key": "CWK8MHJbHldt74kftIP/+0tTG89We+SWkS7qXjiVJJA=",
        "keyType": "sharedSecret",
        "status": "active",
        "expirationDate": "2026-02-09T21:26:58Z"
    }
}

Create Webhook Subscription

This section describes how to create a webhook subscription.
IMPORTANT
You must set the
organizationId
 field value to that of the
TMS
 vault owner. To receive life-cycle management notifications for network tokens that are created by transacting merchant IDs (MIDs) under that
TMS
 vault, you must set the scope of the field value to
descendants
.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks
Production:
POST
https://nabgateway-api.nab.com.au
/notification-subscriptions/v1/webhooks

Required Fields for Creating Webhook Subscription

clientRequestAction
keyInformation.provider
keyInformation.tenant
The value must be set to
nrtd
.
keyInformation.keyType
keyInformation.organizationId
keyInformation.expiryDuration

REST Example: Creating a Webhook Subscription

Request
{
   "organization": {"organizationId": "TMSVaultOwnerOrgID"},
   "product": {"productId": "tokenManagement"},
   "webhook":    {
      "webhookId": "e33b4ff7-f94a-2de4-e053-a2588e0a0403",
      "webhookUrl": "https://URL",
      "createdOn": "2021-12-15 23:46:00.053",
      "eventTypes":       [
         {"name": "tms.networktoken.binding"},
         {"name": "tms.networktoken.provisioned"},
         {"name": "tms.networktoken.updated"}
      ],
      "status": "ACTIVE",
      "retryPolicy":       {
         "algorithm": "ARITHMETIC",
         "firstRetry": 5,
         "interval": 5,
         "numberOfRetries": 4,
         "deactivateFlag": false,
         "repeatSequenceCount": 4,
         "repeatSequenceWaitTime": 5
      },
      "securityPolicy": [      {
         "digitalSignatureEnabled": "yes",
         "proxyType": "external",
         "security_id": "c05cc30a-ce9b-487f-be38-65ab5977b5bc",
         "security_type": "key"
      }]
   }
}
Response to a Successful Request
{
  "organizationId": "TMSVaultOwnerOrgID",
  "productId": "terminalManagement",
  "eventTypes": [
    "tms.networktoken.binding",
    "tms.networktoken.provisioned",
    "tms.networktoken.updated"
  ],
  "webhookId": "e33b4ff7-f94a-2de4-e053-a2588e0a0403",
  "webhookUrl": "https://NewURL",
  "healthCheckUrl": "https://URL",
  "createdOn": "2022-07-07 17:24:05.116",
  "status": "ACTIVE",
  "retryPolicy": {
    "algorithm": "ARITHMETIC",
    "firstRetry": 1,
    "interval": 1,
    "numberOfRetries": 3,
    "deactivateFlag": false,
    "repeatSequenceCount": 0,
    "repeatSequenceWaitTime": 0
  },
  "securityPolicy": {
    "securityType": "KEY",
    "proxyType": "external",
    "digitalSignatureEnabled": "yes"
  },
  "version": "3",
  "deliveryType": "nrtdCentral",
  "notificationScope": "DESCENDANTS"
}

Retrieve Webhook Subscription Details

This section describes how to retrieve webhook subscription details.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}
Production:
GET
https://nabgateway-api.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}

Required Field for Retrieving Webhook Subscription Details

webhookID
Include the ID of the webhook you would like to update.

REST Example: Retrieving Webhook Subscription Details

Request
GET
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks/e33b4ff7-f94a-2de4-e053-a2588e0a0403
Response to a Successful Request
{
  "organizationId": "testrest",
  "productId": "tokenManagement",
  "eventTypes": [
    "tms.networktoken.binding",
    "tms.networktoken.provisioned",
    "tms.networktoken.updated"
  ],
  "webhookId": "e33b4ff7-f94a-2de4-e053-a2588e0a0403",
  "webhookUrl": "https://URL",
  "healthCheckUrl": "https://jURL",
  "createdOn": "2022-07-07 17:24:05.116",
  "status": "ACTIVE",
  "retryPolicy": {
    "algorithm": "ARITHMETIC",
    "firstRetry": 1,
    "interval": 1,
    "numberOfRetries": 3,
    "deactivateFlag": false,
    "repeatSequenceCount": 0,
    "repeatSequenceWaitTime": 0
  },
  "securityPolicy": {
    "securityType": "KEY",
    "proxyType": "external",
    "digitalSignatureEnabled": "yes"
  },
  "version": "3",
  "deliveryType": "nrtdCentral",
  "notificationScope": "DESCENDANTS"
}

Update Webhook Subscription

This section describes how to update a webhook subscription.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}
Production:
PATCH
https://nabgateway-api.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}

Required Field for Updating Webhook Subscription

webhookID
Include the ID of the webhook you would like to update.

REST Example: Updating Webhook Subscriptions

Request
{
  "description": "Update to my sample webhook",
  "organizationId": "testrest",
  "productId": "terminalManagement",
  "webhookUrl": "https://NewURL"
}
Response to a Successful Request
{
  "organizationId": "testrest",
  "productId": "terminalManagement",
  "eventTypes": [
    "tms.networktoken.binding",
    "tms.networktoken.provisioned",
    "tms.networktoken.updated"
  ],
  "webhookId": "e33b4ff7-f94a-2de4-e053-a2588e0a0403",
  "webhookUrl": "https://NewURL",
  "healthCheckUrl": "https://URL",
  "createdOn": "2022-07-07 17:24:05.116",
  "status": "ACTIVE",
  "retryPolicy": {
    "algorithm": "ARITHMETIC",
    "firstRetry": 1,
    "interval": 1,
    "numberOfRetries": 3,
    "deactivateFlag": false,
    "repeatSequenceCount": 0,
    "repeatSequenceWaitTime": 0
  },
  "securityPolicy": {
    "securityType": "KEY",
    "proxyType": "external",
    "digitalSignatureEnabled": "yes"
  },
  "version": "3",
  "deliveryType": "nrtdCentral",
  "notificationScope": "DESCENDANTS"
}

Delete Webhook Subscription

This section describes how to delete a webhook subscription.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}
Production:
DELETE
https://nabgateway-api.nab.com.au
/notification-subscriptions/v1/webhooks/{webhookID}

Required Field for Deleting a Webhook Subscription

webhookID
Include the ID of the webhook you would like to update.

REST Example: Deleting a Webhook Subscription

Request
DELETE
https://nabgateway-api-test.nab.com.au
/notification-subscriptions/v1/webhooks/{{tms-webhook-id}}
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Network Tokens

Authorize a Payment While Ignoring Network Token

This section describes how to authorize a payment ignoring a network token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments
Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment While Ignoring Network Token

clientReferenceInformation.code
paymentInformation.customer.id
paymentInformation.paymentInformation.id
paymentInformation.shippingAddress.id
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
processingInformation.capture
processingInformation.commerceIndicator
tokenInformation.networkTokenOption
Set value to
ignore
.

REST Example: Authorizing a Payment While Ignoring Network Token

Request
{
    "clientReferenceInformation": {
        "code": "RTS-Auth"
    },
    "paymentInformation": {
        "card": {
            "expirationYear": "2031",
            "expirationMonth": "12",
            "type": "001"
        },
        "instrumentIdentifier": {
            "id": "7010000000016241111"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "1.00"
        }
    },
    "processingInformation": {
        "capture": "false",
        "commerceIndicator": "internet"
    },
    "tokenInformation": {
        "networkTokenOption": "ignore"
    }
}
Response to a Successful Request
{
    "_links": {
        "authReversal": {
            "method": "POST",
            "href": "/pts/v2/payments/6769913443166412604951/reversals"
        },
        "self": {
            "method": "GET",
            "href": "/pts/v2/payments/6769913443166412604951"
        },
        "capture": {
            "method": "POST",
            "href": "/pts/v2/payments/6769913443166412604951/captures"
        }
    },
    "clientReferenceInformation": {
        "code": "RTS-Auth"
    },
    "id": "6769913443166412604951",
    "orderInformation": {
        "amountDetails": {
            "authorizedAmount": "1.00",
            "currency": "USD"
        }
    },
    "paymentAccountInformation": {
        "card": {
            "type": "001"
        }
    },
    "paymentInformation": {
        "tokenizedCard": {
            "type": "001"
        },
        "instrumentIdentifier": {
            "id": "7030000000014911515",
            "state": "ACTIVE"
        },
        "shippingAddress": {
            "id": "F537CE8DBA2F032CE053AF598E0A64F2"
        },
        "paymentInstrument": {
            "id": "F537E3D12322416EE053AF598E0AD771"
        },
        "card": {
            "type": "001"
        },
        "customer": {
            "id": "F537CE8DBA2C032CE053AF598E0A64F2"
        }
    },
    "pointOfSaleInformation": {
        "terminalId": "111111"
    },
    "processorInformation": {
        "paymentAccountReferenceNumber": "V0010013019326121174070050420",
        "approvalCode": "888888",
        "networkTransactionId": "123456789619999",
        "transactionId": "123456789619999",
        "responseCode": "100",
        "avs": {
            "code": "X",
            "codeRaw": "I1"
        }
    },
    "reconciliationId": "744295942E2LY3F8",
    "status": "AUTHORIZED",
    "submitTimeUtc": "2023-02-21T14:55:44Z"
}

Provision a Network Token for a Card Number

This section describes how to provision a network token for a card number.
Network tokens that are provisioned by
TMS
 are card-on-file (COF) tokens.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers

Required Fields for Provisioning a Network Token for a Card Number

card.number
card.expirationMonth
card.expirationYear
type

Optional Fields for Provisioning a Network Token for a Card Number

card.securityCode

REST Example: Provisioning a Network Token for a Card Number

Request
{
  "type": "enrollable card",
  "card": {
    "number": "4895379987X11515",
    "expirationMonth": "12",
    "expirationYear": "2031",
    "securityCode": "089"
  }
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515"
        },
        "paymentInstruments": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515/paymentinstruments"
        }
    },
    "id": "7030000000014911515",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
    "state": "ACTIVE",
    "number": "489537XXXXXX5914",
    "expirationMonth": "12",
    "expirationYear": "2022",
    "type": "visa",
    "card": {
      "suffix": "1515",
      "expirationMonth": "12",
      "expirationYear": "2031"
    },
    "metadata": {
      "cardArt": {
        "combinedAsset": {
          "id": "84cfb836af434859be62c766bdc9e510",
          "_links": {
            "self": {
              "href": "/tms/v2/tokens/7030080000051311515/vts/assets/card-art-combined"
            }
          }
        }
      },
      "issuer": {
        "name": "issuing bank name",
        "shortDescription": "The Bank Card",
        "longDescription": "The Bank Card Platinum Rewards",
        "country": "Country of issuing Bank",
        "accountPrefix": "BIN",
        "email": "issuer@example.com",
        "phoneNumber": "1112223333",
        "url": "http://www.example.com"
      }
    }
  },
    "card": {
        "number": "489537XXXXXX1515"
    },
    "issuer": {
        "paymentAccountReference": "V0010013019326121174070050420"
    },
    "metadata": {
        "creator": "testrest"
    }
}

Provision a Network Token for an Existing Instrument Identifier

This section describes how to provision a network token for an existing instrument identifier.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/enrollment
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/enrollment
instrumentIdentifierTokenId
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.

Required Fields for Provisioning a Network Token for an Existing Instrument Identifier

card.expirationMonth
card.expirationYear
card.securityCode
instrumentIdentifierTokenId
Include the ID of the instrument identifier token you want to retrieve in the URL path.
type

Optional Fields for Provisioning a Network Token for an Existing Instrument Identifier

card.securityCode

REST Example: Provisioning a Network Token for an Existing Instrument Identifier

Request
{
  "type": "enrollable card",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "securityCode": "089"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
    },
    "paymentInstruments": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
    }
  },
  "id": "7010000000016241111",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "tokenizedCard": {
    "state": "ACTIVE",
    "type": "visa",
    "metadata": {
      "cardArt": {
        "combinedAsset": {
          "id": "84cfb836af434859be62c766bdc9e510",
          "_links": {
            "self": {
              "href": "
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/7030080000051311515/vts/assets/card-art-combined"
            }
          }
        }
      },
      "issuer": {
        "name": "issuing bank name",
        "shortDescription": "The Bank Card",
        "longDescription": "The Bank Card Platinum Rewards",
        "country": "Country of issuing Bank",
        "accountPrefix": "BIN",
        "email": "issuer@example.com",
        "phoneNumber": "1112223333",
        "url": "http://www.example.com"
      }
    }
  },
  "card": {
    "number": "411111XXXXXX1111"
  },
  "metadata": {
    "creator": "testrest"
  }
}

Provision a Network Token for a Consumer

When you provision a network token for an individual consumer in a wallet, you can manage the network token and payment credentials separately for that consumer. Provisioning network tokens for a consumer is supported for American Express, Mastercard, and Visa. This section describes how to provision a network token for a card number and a consumer ID.
Network tokens that are provisioned by
TMS
 are card-on-file (COF) tokens.
IMPORTANT
You must be enabled as an ECOM enabler in the Visa Token Service (VTS) to provision a network token with a consumer ID. For more information, contact your
National Australia Bank
 account representative.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokenized-cards

Required Fields for Provisioning a COF Network Token for a Consumer

card.number
card.expirationMonth
card.expirationYear
card.securityCode
createInstrumentIdentifier
Set to
true
.
source
Set to
ONFILE
.
consumerId
When this field is not included, a network token is provisioned only for the PAN in the request.

REST Example: Provisioning a Network Token for a Consumer

Request
{
  "createInstrumentIdentifier": true,
  "source": "ONFILE",
  "consumerId": "123456",
  "card": {
    "number": "X895379980000580",
    "expirationMonth": "12",
    "expirationYear": "2023",
    "securityCode": "123"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/tokenized-cards/7030000000014911515"
    },
    "instrumentidentifier": {
      "href": "/tms/v1/instrument-identifier/7030000000042974378"
    }
  },
  "id": "7030000000014911515",
  "object": "tokenizedCard",
  "state": "ACTIVE",
  "source": "ONFILE",
  "enrollmentId": "96eb80a56b76ae1d486e14f40b3d7a01",
  "tokenReferenceId": "059ae2f74835647400c219884b7bc601",
  "paymentAccountReference": "V0010013022298169667504231315",
  "number": "489537XXXXXX9215",
  "expirationMonth": "10",
  "expirationYear": "2031",
  "type": "001",
  "card": {
    "suffix": "0580",
    "expirationMonth": "12",
    "expirationYear": "2023"
  },
  "metadata": {
    "cardArt": {
      "combinedAsset": {
        "id": "d3225702-354a-4f17-8c40-1727de7ffa57",
        "_links": {
          "self": {
            "href": "/tms/v2/tokens/7030000000042974378/mdes/assets/card-art-combined"
          }
        }
      }
    },
    "issuer": {
      "name": "METROBANK CARD CORPORATION (A FINANCE COMPANY)",
      "shortDescription": "METROBANK CARD CORPORATION"
    },
    "creator": "testrest"
  }
}

Provision a Network Token for a Token

This section describes how to create a network token for a given token.
Network tokens that are provisioned by
TMS
 are card-on-file (COF) tokens.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokenized-cards

Required Fields for Provisioning a Network Token for a Token

card.number
Set to the tokenized card number. When
source
 is set to
TOKEN
, this field value must be a digital network token to provision a COF network token.
card.expirationMonth
card.expirationYear
card.securityCode
createInstrumentIdentifier
Set to
true
.
source
Set to
TOKEN
. The value set for
card.number
 must be a digital network token to provision a COF network token.
consumerId
When this field is not included, a network token is provisioned only for the PAN in the request.

REST Example: Provisioning a Network Token for a Token

Request
{
  "createInstrumentIdentifier": true,
  "source": "TOKEN",
  "card": {
    "number": "X621943123037127",
    "expirationMonth": "12",
    "expirationYear": "2025",
    "securityCode": "123"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/tokenized-cards/7030000000014911515"
    },
    "instrumentidentifier": {
      "href": "/tms/v1/instrument-identifier/7030000000042974378"
    }
  },
  "id": "7030000000014911515",
  "object": "tokenizedCard",
  "state": "ACTIVE",
  "source": "TOKEN",
  "enrollmentId": "96eb80a56b76ae1d486e14f40b3d7a01",
  "tokenReferenceId": "059ae2f74835647400c219884b7bc601",
  "paymentAccountReference": "V0010013022298169667504231315",
  "number": "489537XXXXXX9215",
  "expirationMonth": "10",
  "expirationYear": "2031",
  "type": "001",
  "card": {
    "suffix": "0580",
    "expirationMonth": "12",
    "expirationYear": "2023"
  },
  "metadata": {
    "cardArt": {
      "combinedAsset": {
        "id": "d3225702-354a-4f17-8c40-1727de7ffa57",
        "_links": {
          "self": {
            "href": "/tms/v2/tokens/7030000000042974378/mdes/assets/card-art-combined"
          }
        }
      }
    },
    "issuer": {
      "name": "METROBANK CARD CORPORATION (A FINANCE COMPANY)",
      "shortDescription": "METROBANK CARD CORPORATION"
    },
    "creator": "testrest"
  }
}

Retrieve a Standalone Network Token

This section contains the required information for partners, merchants, and acquirers to retrieve a standalone network token.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/{tokenizedCardId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/tokenized-cards/{tokenizedCardId}
{tokenizedCardId}
 is the tokenized card ID returned in the
id
 field when you provisioned the network token. For more information, see Provision a Network Token for a Consumer.

REST Example: Retrieving a Standalone Network Token

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/223ACDECF1681954E063A2598D0A786D
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/tokenized-cards/223ACDECF1681954E063A2598D0A786D"
        },
        "instrumentIdentifier": {
            "href": "/tms/v1/instrumentidentifiers/7040890000006625091"
        }
    },
    "id": "223ACDECF1681954E063A2598D0A786D",
    "object": "tokenizedCard",
    "state": "ACTIVE",
    "enrollmentId": "FM4MMC00001441368fa429c85a5d4df5ad1875bfd2faa5eb",
    "tokenReferenceId": "DM4MMC1US0000000a7fab5f3a27e49daaf1984f7b49ab2f6",
    "number": "521415XXXXXX5091",
    "expirationMonth": "10",
    "expirationYear": "2027",
    "type": "mastercard",
    "card": {
        "suffix": "0747",
        "expirationMonth": "12",
        "expirationYear": "2025"
    },
    "metadata": {
        "cardArt": {
            "combinedAsset": {
                "id": "9a90ad5f-8577-4a7a-856f-eb66e5437671",
                "_links": {
                    "self": {
                        "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/card-art-combined"
                    }
                }
            },
            "brandLogoAsset": {
                "id": "3d7c2517-6b98-4eac-a099-9bd407830e0e",
                "_links": {
                    "self": {
                        "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/brand-logo"
                    }
                }
            },
            "issuerLogoAsset": {
                "id": "f607c880-ceaa-4e88-86a7-de854abc8417",
                "_links": {
                    "self": {
                        "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/issuer-logo"
                    }
                }
            },
            "iconAsset": {
                "id": "549a3034-12da-4e85-b0d9-9ad19fec6e2b",
                "_links": {
                    "self": {
                        "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/icon"
                    }
                }
            },
            "foregroundColor": "0F0F0F"
        },
        "issuer": {
            "name": "Test Issuer®",
            "shortDescription": "MasterCard Test Bank",
            "longDescription": "Test Bank for MasterCard MTF"
        }
    },
    "source": "ONFILE"
}

Delete a Standalone Network Token

This section contains the required information for partners, merchants, and acquirers to delete a standalone network token.
A successful delete response returns an empty
HTTP 204 No Content
 status. For information on status codes, see HTTP Status Codes.
IMPORTANT
This is only available for Visa network tokens. You cannot use this feature to delete American Express or Mastercard network tokens.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/{tokenizedCardId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v2/tokenized-cards/{tokenizedCardId}
{tokenizedCardId}
 is the tokenized card ID returned in the
id
 field when you provisioned the network token. For more information, see Provision a Network Token for a Consumer.

REST Example: Deleting a Standalone Network Token

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/223ACDECF1681954E063A2598D0A786D
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status.

Retrieve Network Token Payment Credentials

This section describes how to retrieve network token payment credentials such as:
  • Network token value
  • Cryptogram (Visa and Mastercard only)
  • Dynamic card verification value (CVV) (American Express only)
Network token payment credentials are returned as a JSON web encryption (JWE) response.

Prerequisites

You must have the payment credentials service enabled for the
TMS
 vault from which the network token is retrieved. For information on how to enable the payment credentials service, see Token Vault Management.
You must have a message-level encryption (MLE) key from the
Gateway Portal
 to retrieve network token data. For information on how to create an MLE key, see Message-Level Encryption Keys.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/
{tokenId}/
payment-credentials
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokens/
{tokenId}
/payment-credentials
The
{tokenId}
 is the token ID returned in the
id
 field when you created the customer, payment instrument or instrument identifier token. See Create an Instrument Identifier for more information.

REST Example: Retrieving Network Token Payment Credentials

Request
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/7040890000006625091/payment-credentials
Response to a Successful Request: BASE 64
JraWQiOiI5OWY5YmVjOTlmMzQ1MDJmMDE2NWIyYmJhYWYyODAxNDNhOTI0OWNjIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.uYCE2zysWJB8E562FGJl4YyotZEHw4Az-2fvhjaUWubuAZ2tmZm44oKUdsfsBLYWInxpMDUsiENTTHG_UJJ25Snhcft6eZGj79gW_S55ZAGAi1eYIJA08gr01U7P-1QIzQ5t6dlkTRZElYDiNjypSaVfQPQPODaGNfB04Li7Pt88i-PIspGafq9P7TgacPyKoIkvM5CwLWbwSZYN_jdFq8hEu4Dy7gqDpf0z-rCdtWggWpFbGwdurDrKCbLBoQ4dY7OckJoe2OOWH-O1h_7uZymDDUjnqWFRcHgjxY7bmWJz94i_r4QUaoTQiaaqgyP6A2H3Gmt6Dy4VpIzO2XgLQA._cLex9BPstYqqnfe.RMbdjAqWR6HaVZ7USbp6j-KWPC1jGc3Wzk4M_CwJ58X2NNZ5ekUpAvU28_MbqQ2W6MLhJ7ulgfU5mk9_Y5nvAW6Yh68Ctye2yOhgu_V_33aLmz3iZP5AEGi7HeJVng0hy4EaQHNb92XYXUV1mvFHJokA4cRaj3eKwh6v-1lRhB4uIgXU62ZanVGGu5c7UkVkf6JiigZarGJiY2DKCRjYnbQYkj4JNFY94JlS50wTnGrk3MiAJN9DYIU-6US98zWGJ8VhBwhMuXk1juqVBfifjJMFa_-vnJjGpq1ri2buZ7hMJG-x0PIYoHUGSFeqNrcLUjJxI0o8lnXfhj7DtfYvNc0e4g5U39xtk-T2TDnQfdekRVxgdxcVR4mZdEqUHBxYUWTSW4AbgV-fjuCGDCkUoPIgkZ95y4RJhSPZzjZHdulf2Fk3L7e-nto2PB25zUTt_aXeNBSH8zjmaI2ve6D3VN0ScduRMl_9PXv1876opHEGqgkKLSTXcTUasXKlzMEiUzLl3p5pN30KnVbryAzuU3hhmIMyyPpEQkp9h3WlD4sc5oH1E8YtihLlSTtTUNwX5dJuR6iVwpKqFxECqYPtDWlzXQDTedFqdTA4isE3MCs.th9qWPzsevuDYp--06oPOw
Response to a Successful Request: Decrypted
{
    "_links": {
      "self": {
        "href": "/tms/v2/tokens/7040890000006625091/payment-credentials"
      },
      "tokenized-cards": {
        "href": "/tms/v2/tokenized-cards/223ACDECF1681954E063A2598D0A786D"
      }
    },
    "tokenizedCard": {
      "id": "223ACDECF1681954E063A2598D0A786D",
      "state": "ACTIVE",
      "enrollmentId": "FM4MMC00001441368fa429c85a5d4df5ad1875bfd2faa5eb",
      "tokenReferenceId": "DM4MMC1US0000000a7fab5f3a27e49daaf1984f7b49ab2f6",
      "number": “X214150083525091",
      "expirationMonth": "10",
      "expirationYear": "2027",
      "type": "mastercard",
      "cryptogram": "AJnA9YsVfmS8AAFHiRkBAAADFA==",
      "requestorId": "50162233570",
      "card": {
        "suffix": "0747",
        "expirationMonth": "12",
        "expirationYear": "2025"
      },
      "metadata": {
        "cardArt": {
          "combinedAsset": {
            "id": "9a90ad5f-8577-4a7a-856f-eb66e5437671",
            "_links": {
              "self": {
                "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/card-art-combined"
              }
            }
          },
          "brandLogoAsset": {
            "id": "3d7c2517-6b98-4eac-a099-9bd407830e0e",
            "_links": {
              "self": {
                "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/brand-logo"
              }
            }
          },
          "issuerLogoAsset": {
            "id": "f607c880-ceaa-4e88-86a7-de854abc8417",
            "_links": {
              "self": {
                "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/issuer-logo"
              }
            }
          },
          "iconAsset": {
            "id": "549a3034-12da-4e85-b0d9-9ad19fec6e2b",
            "_links": {
              "self": {
                "href": "/tms/v2/tokens/7040890000006625091/mdes/assets/icon"
              }
            }
          },
          "foregroundColor": "0F0F0F"
        },
        "issuer": {
          "name": "Test Issuer®",
          "shortDescription": "MasterCard Test Bank",
          "longDescription": "Test Bank for MasterCard MTF"
        }
      },
      "source": "ONFILE"
    },
    "card": {
      "number": "521415XXXXXX5091"
    },
    "issuer": {
      "paymentAccountReference": "50015018T6JE5ZORJON0QTP9HHMYN"
    },
    "processingInformation": {}
  }
For more information on decrypting data, see Encrypt and Decrypt Data.

Retrieve Network Token AFT Payment Credentials

This section describes how to retrieve the payment credentials for a Visa Token Service (VTS) network token that is used for account funding transactions (AFTs). You can retrieve these payment credentials for a VTS network token:
  • VTS network token value
  • AFT cryptogram (Visa only)
The VTS network token payment credentials are returned as a JSON Web Encryption (JWE) response.
IMPORTANT
You must contact your Visa representative to ensure that your system is enabled to retrieve an AFT cryptogram.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/
{tokenId}/
payment-credentials
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokens/
{tokenId}
/payment-credentials
The
{tokenId}
 is the token ID returned in the
id
 field when you create the customer, payment instrument, or instrument identifier token. For more information, see Create an Instrument Identifier.

Required Fields for Retrieving Network Token AFT Payment Credentials

paymentCredentialType
Set to
CRYPTOGRAM
.
transactionType
Set to
AFT
.

REST Example: Retrieving Network Token AFT Payment Credentials

Request
{
  "paymentCredentialType": "CRYPTOGRAM",
  "transactionType": "AFT"
}
Response to a Successful Request: BASE 64
eyJraWQiOiJmOTdmOWIyMDZkYzQxNzJmZGRlOWRlNjM5NjMyMWViZTI2NjY4NDc0IiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.VH168JF7g104i2dDQ_NAfPEDakHYI54C5mJ-YJItC1VKN3zLlpEZf9VJrUcYrTew6zCNNRKs3treD-Mn3VNK6eYm2YAhkeuryYIU2NXZVW3CsZsqeOu5y3c2eO_AiDHRYIKG9MJLoXYqgb-oIotvsmN3p4nYuiYIL21FkdssBV-V66kyMWPaVZpTqFp0lZBm0NN6p1MoUEybPc5vBpY2I24QZFHJjtX6jxdivA5XmgBgj2DEnue7KlsS3AtMsixmSGOd46FR0iadGQFQHAvs8lDjfcUj5-vxcFopp8wBOd1sNsItCnqj4WTZFbZGyTe-GnouSCfNX7uC-oHHdxRGdA.z8TDop4oz778UEUI.yNSpacqPUTGVScMLQJNDjFEvlWdY7YrywJNh7_hCgQBPeW-a1wPnKRsg_9qubr6_2xYldoNTzrGgiuTj5_cToO5sZF0zFoaDjN9zZMVeppYTB9dfgvQd8AF0AFemhm9lfJVLgjbejPTAHHtJspIUGbV4QUPQTAQLLrlT_WSRf-hjQRUHrqoXpkXg-Fjzf1SLNTJb8aFWuvLjNtQMoau-CwSBeJSbCluDuOKU56TFCZn-9UtE67uDoSgPMgs8XVyAPdSdHLFK8yXzp0mvYqEcR3_p75-MHXsA4qQJuAfXoHjEFsUpqyCkUBPLE7meGfiuQE9fnlqmtVAtvrdlwdqTVJc_388UJLIGqm0KDuD4gGhdzYuCEnNSrV8VnQ87IggFPMl4kqtbfCjJ-qvowC6m1a1Wv8rzRo9AqAFXmUpkTaE4vCaPMnRbXuzY0dss81LQlyGri0_eBy6WfOvXe-0yOviDKFxT_GVeF4nSwkbpxMGGI7aWbVXJ-_r6LBgALtgIbiQZqrWrgLv_FV7DDhY7HnN39R14gve6yxNPu7RCFEViy6RUldo_JxPCjNBL6xGXn1ccnxSCQwyvFGvrF1wvm-Ed8vCnImimX4ClV0_ba9lyOUYGIIS7-CWrra7TvtISVdYL4J0vPnOHvr8RCwEi5Y6iBtV-Ew6BhHpVd8aFdSTTOfHI7bUtUUE8mFmtnLD1atC-sa2sBjrw4PlB-NQMEE4uAGeeccYmYdfPUQdLuMRkzkoPFoNwqnJJ5UC8T6GzEQxZCzfxgTyn_m2toU-Sbb42QKB0BI01czad24FuILk93QaVv2SwRX_OQWb8lCxbWFIaxGrHEGLL5YpgqrVKFDLWETD9o-ysQzFweiW-SORrbLhmKs2xp3GT75d_wxE5IOvLl_A7tJl8I5BQ-aBnTtyZofEJsd6inYHM0TYzj-9YRK4r-grA3xvytI50dwkJJJ4Ju9wJGuxAdKvbxYrkwKgn0HKBE58BGjKElT6j0gLXU0bsuDPo1E_OSj9NGyUeB9LKGIptGNQOBeNi06pYwTGMkjfPZi9S1Zv9wnr7CwcSe_xImu4f192co8hJKUIXosbAZturQ-8tR5BOZSKrLgO4vCQfJmYxYC1IVaDWknhTe78ev9qVZD0HP7H_gqXPHY5O5DfBr-pxFCnYt-oQwt24hc2_r13JvzekYP3bjoUV9YsoO8-eJ1A4NyO8Bk2qUZMEWca_szCz_uCiozwdXWc0HVIUWsn1BvrbRKzM91UxrEZkKmP3xaOPQv91FMTgVvJEG7pxrObH49gGgNO8rU-J46Hd01YcAFzvgqYTSxGaCF5lgmgbXzPK16AWfGYKPXEUExZERvVhIxhQRKpBKD3KJFO772blKdfTjPl_QqnUJ5_wy7QScUP_7okJZduC9JgNy-S4htThQHL4AW2XO6RzInaup4fZ3tkaIdNTacQQwFcd-kJ3Bj049VcV2BkMR1oP2__P2siMQ8H3oD8IZAb9S0buFezp1KVNflKNW2fTQDXEESzFZi-aL4OxMSll6yujkXtKtjOZoMYZawNeuLGtltZQZ8BkhvzRTrwuBHWNcbhCN9-0qwC4YuBZ8FD1Rpd1vPNOPMpEMblq9BKf_wlGeXUMK0XzsVdQLfcBd6aDHAysFnt8Y961oYTX8kA.uT1yJ32LL_T1TifxlH3HdA
Response to a Successful Request: Decrypted
{
  "_links": {
    "self": {
      "href": "/tms/v2/tokens/1CD10F58FB7C7DB8E063A2598D0A1405/payment-credentials"
    },
    "tokenized-cards": {
      "href": "/tms/v2/tokenized-cards/1CD10F58FB837DB8E063A2598D0A1405"
    }
  },
  "tokenizedCard": {
    "id": "1CD10F58FB837DB8E063A2598D0A1405",
    "state": "ACTIVE",
    "enrollmentId": "da1fb810b1b3e01db5b215de5261df01",
    "tokenReferenceId": "090673c4811a91960f021ad3a24e2e01",
    "number": "X895370017256311",
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa",
    "cryptogram": "AwAAAADi9THGeHw4ARJ4QAoAAAA=",
    "eci": "07",
    "requestorId": "40010052236",
    "card": {
      "suffix": "7161",
      "expirationMonth": "12",
      "expirationYear": "2030"
    },
    "metadata": {
      "cardArt": {
        "combinedAsset": {
          "id": "8f64614def1a41d39ea8acae4616bf6f",
          "_links": {
            "self": {
              "href": "/tms/v2/tokens/1CD10F58FB7C7DB8E063A2598D0A1405/vts/assets/card-art-combined"
            }
          }
        },
        "brandLogoAsset": {
          "id": "00000000000000000000000000001071",
          "_links": {
            "self": {
              "href": "/tms/v2/tokens/1CD10F58FB7C7DB8E063A2598D0A1405/vts/assets/brand-logo"
            }
          }
        },
        "foregroundColor": "1af0f0"
      },
      "issuer": {
        "shortDescription": "shortDescription",
        "longDescription": "longDescription"
      }
    },
    "source": "ONFILE"
  },
  "card": {
    "number": "X622943123037161"
  },
  "issuer": {
    "paymentAccountReference": "V0010013024026372674590402581"
  },
  "processingInformation": {
    "commerceIndicator": "internet"
  }
}
For more information on decrypting data, see Encrypt and Decrypt Data.

Provision a Network Token with Push Provisioning

This section describes how to provision a network token with push provisioning.
IMPORTANT
This feature is in pilot phase. You have early access to this feature even though it might contain bugs or unfinished work. Please consider the risk when using this feature.
Push provisioning connects you with participating banks to enable the secure transfer of customer and payment information that is stored by banks. Using push provisioning, the issuer can provide credentials straight to your customer in seconds.

Prerequisites

Before using the push provisioning service, you must meet these requirements:

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokenized-cards

Use the Push Provisioning Instrument Identifier in Authorizations

You can include the instrument identifier that is returned when you create or retrieve a network tokenized card with push provisioning in an authorization. For more information, see Authorize a Payment with an Instrument Identifier.
You can also create other token types, such as customer, shipping address, and payment instrument tokens, when you send the authorization request. For more information, see REST Example: Authorizing a Payment with an Instrument Identifier While Creating TMS Tokens

Required Fields for Provisioning a Network Token with Push Provisioning

accountReferenceId
card.type
Set to
001
.
createInstrumentIdentifier
Set to
true
.
source
Set to
ISSUER
.

Optional Fields for Provisioning a Network Token with Push Provisioning

passcode.value

REST Example: Provisioning a Network Token with Push Provisioning

Request
{
  "accountReferenceId": "703699458563818460001",
  "createInstrumentIdentifier": true,
  "source": "ISSUER",
  "card": {
    "type": "001"
  }
}
Request with Passcode
{
  "source": "ISSUER",
  "accountReferenceId": "703699458563818460001",
  "card": {
    "type": "001"
  },
  "passcode": {
    "value": "123456"
  },
  "createInstrumentIdentifier": true
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/139C09B1970689FAE0633F36CF0A2D7B"
        },
        "instrumentIdentifier": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
        }
    },
    "id": "139C09B1970689FAE0633F36CF0A2D7B",
    "object": "tokenizedCard",
    "state": "ACTIVE",
    "enrollmentId": "ja9mejoqszrqfubwy9mqz4ot4fnlvgpp",
    "tokenReferenceId": "uvfofwjor4nobycjf5cy9cwfyzu5pipa",
    "number": "404626XXXXXX0572",
    "expirationMonth": "03",
    "expirationYear": "2025",
    "type": "visa",
    "card": {
        "suffix": "4608",
        "expirationMonth": "03",
        "expirationYear": "2025"
    },
    "source": "ISSUER",
    "accountReferenceId": "703699458563818460001"
}

Simulate Life-Cycle Management Events

This section describes how to simulate network token life-cycle management events.
IMPORTANT
This feature is available only for Visa cards.
You can use the Visa Token Service (VTS) simulator to simulate life-cycle management events for network tokens. For information about network token life-cycle management, see

Prerequisites

Before you can simulate life-cycle management events, you must meet these requirements:

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenized-cards/{tokenizedCardId}/issuer-life-cycle-event-simulations

Available Fields for Simulating Life-Cycle Management Events

state
Required when you request a network token status update.
card.last4
Required when you request an update to the last four digits of underlying PAN associated tokenized card.
card.expirationYear
Required when you request a tokenized card update.
card.expirationMonth
Required when you request a tokenized card update.
metadata.cardArt.combinedAsset.update
Required when you request an updated to the card art associated with the network token.

REST Example: Simulating Life-Cycle Management Events

Request to Simulate the Network Token Status Update
{
    "state":"SUSPENDED"
}
Request to Simulate Card Metadata Update
{
    "card": {
	"last4": "1234"
        "expirationMonth": "05",
        "expirationYear": "2032"
    }
}
Request to Simulate Card Art Metadata Updates
{
    "metadata":{
        "cardArt": {
            "combinedAsset": {
                "update": "true"
            }
        }
    }
}
Request to Simulate Token and Card Metadata Updates
{
    "expirationMonth": "05",
    "expirationYear": "2032",
	"state": "SUSPENDED",
    "card": {
        "last4": "1234",
        "expirationMonth": "05",
        "expirationYear": "2032"
    },
    "metadata":{
        "cardArt": {
            "combinedAsset": {
                "update": "true"
            }
        }
    }
}
Response to a Successful Request
A successful response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Network Token Provision Failures

Network Token Provision Failure Reason Codes and Descriptions
Reason Code
Description
INVALID_REQUEST
The network token provision request contained invalid data.
CARD_VERIFICATION_FAILED
The network token provision request contained data that could not be verified.
CARD_NOT_ELIGIBLE
Card cannot be used currently with issuer for tokenization.
CARD_NOT_ALLOWED
Card cannot be used currently with card association for tokenization.
DECLINED
Card cannot be used currently with issuer for tokenization.
SERVICE_UNAVAILABLE
The network token service was unavailable or timed out.
SYSTEM_ERROR
An unexpected error occurred with network token service, check configuration.
Lost and Stolen Card Response
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000041554452"
        },
        "paymentInstruments": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000041554452/paymentinstruments"
        }
    },
    "id": "7030000000041554452",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
        "state": "UNPROVISIONED",
        "reason": "CARD_NOT_ELIGIBLE",
        "type": "visa"
    },
    "card": {
        "number": "400555XXXXXX4452"
    },
    "metadata": {
        "creator": "testrest"
    }
}
Issuer Decline Response
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000051790079"
        },
        "paymentInstruments": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000051790079/paymentinstruments"
        }
    },
    "id": "7030000000051790079",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
        "state": "UNPROVISIONED",
        "reason": "CARD_NOT_ALLOWED",
        "type": "visa"
    },
    "card": {
        "number": "462294XXXXXX0079"
    },
    "metadata": {
        "creator": "testrest"
    }
}
Past Expiration Date Response
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000224170019"
        },
        "paymentInstruments": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000224170019/paymentinstruments"
        }
    },
    "id": "7030000000224170019",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
        "state": "UNPROVISIONED",
        "reason": "CARD_NOT_ALLOWED",
        "type": "visa"
    },
    "card": {
        "number": "476134XXXXXX0019"
    },
    "metadata": {
        "creator": "testrest"
    }
}
Issuer Not Participating Response
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000224170019"
        },
        "paymentInstruments": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000224170019/paymentinstruments"
        }
    },
    "id": "7030000000224170019",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
        "state": "UNPROVISIONED",
        "reason": "CARD_NOT_ALLOWED",
        "type": "visa"
    },
    "card": {
        "number": "476134XXXXXX0019"
    },
    "metadata": {
        "creator": "testrest"
    }
}

Create Multiple Tokens

This section describes how to create multiple tokens in one
TMS
 request.
You can create these
TMS
 tokens in a single request:
  • Customer token
  • Payment instrument
  • Shipping address token
  • Instrument identifier
You can also include information that is retrieved from a transient token. For information on transient tokens, see the
Microform Integration
 and
Unified Checkout
 developer guides.
A successful response to a request returns status and identifiers for each token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokenize
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokenize

Required Fields for Creating Multiple Tokens

processingInformation.actionList
Set to
TOKEN_CREATE
.
processingInformation.actionTokenTypes.customer
Required when creating a customer token.
processingInformation.actionTokenTypes.instrumentIdentifier
Required when creating an instrument identifier.
processingInformation.actionTokenTypes.paymentInstrument
Required when creating a payment instrument.
processingInformation.actionTokenTypes.shippingAddress
Required when creating a shipping address token.
tokenInformation.customer.buyerInformation.email
Required when creating a customer token.
tokenInformation.customer.buyerInformation.merchantCustomerID
Required when creating a customer token.
tokenInformation.customer.clientReferenceInformation.code
Required when creating a customer token.
tokenInformation.customer.merchantDefinedInformation.name
Required when creating a customer token.
tokenInformation.customer.merchantDefinedInformation.value
Required when creating a customer token.
tokenInformation.instrumentIdentifier.card.expirationMonth
Required when creating an instrument identifier.
tokenInformation.instrumentIdentifier.card.expirationYear
Required when creating an instrument identifier.
tokenInformation.instrumentIdentifier.card.number
Required when creating an instrument identifier.
tokenInformation.instrumentIdentifier.type
Set to
enrollable card
.
Required when creating an instrument identifier.
tokenInformation.paymentInstrument.billTo.address1
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.administrativeArea
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.company
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.country
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.email
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.firstName
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.lastName
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.locality
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.phoneNumber
Required when creating a payment instrument.
tokenInformation.paymentInstrument.billTo.postalCode
Required when creating a payment instrument.
tokenInformation.paymentInstrument.card.expirationMonth
Required when creating a payment instrument.
tokenInformation.paymentInstrument.card.expirationYear
Required when creating a payment instrument.
tokenInformation.paymentInstrument.card.type
Required when creating a payment instrument.
tokenInformation.paymentInstrument.default
Set to
true
.
Required when creating a payment instrument.
tokenInformation.shippingAddress.default
Set to
true
.
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.address1
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.administrativeArea
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.company
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.country
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.email
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.firstName
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.lastName
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.locality
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.phoneNumber
Required when creating a shipping address tolken.
tokenInformation.shippingAddress.shipTo.postalCode
Required when creating a shipping address tolken.

REST Example: Creating Multiple Tokens

Request
{
  "processingInformation": {
    "actionList": [
      "TOKEN_CREATE"
    ],
    "actionTokenTypes": [
      "customer",
      "shippingAddress",
      "paymentInstrument",
      "instrumentIdentifier"
    ]
  },
  "tokenInformation": {
    "customer": {
      "buyerInformation": {
        "merchantCustomerID": "Your customer identifier",
        "email": "test@cybs.com"
      },
      "clientReferenceInformation": {
        "code": "TC50171_3"
      },
      "merchantDefinedInformation": [
        {
          "name": "data1",
          "value": "Your customer data"
        }
      ]
    },
    "shippingAddress": {
      "default": "true",
      "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Cybersource",
        "address1": "1 Market St",
        "locality": "San Francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "test@cybs.com",
        "phoneNumber": "4158880000"
      }
    },
    "paymentInstrument": {
      "default": "true",
      "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
      },
      "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Cybersource",
        "address1": "1 Market St",
        "locality": "San Francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "test@cybs.com",
        "phoneNumber": "4158880000"
      }
    },
    "instrumentIdentifier": {
      "type": "enrollable card",
      "card": {
        "number": "4622943123116478",
        "expirationMonth": "12",
        "expirationYear": "2026"
      }
    }
  }
}
Response to a Successful Request
{
  "responses": [
    {
      "resource": "instrumentIdentifier",
      "id": "7019519999950381111",
      "httpStatus": 200
    },
    {
      "resource": "customer",
      "id": "3A886029D05E7FC0E0634136CF0A038D",
      "httpStatus": 201
    },
    {
      "resource": "shippingAddress",
      "id": "3A886029D0617FC0E0634136CF0A038D",
      "httpStatus": 201
    },
    {
      "resource": "paymentInstrument",
      "id": "3A886029D0667FC0E0634136CF0A038D",
      "httpStatus": 201
    }
  ]
}

Instrument Identifier Tokens

Instrument identifier tokens represent tokenized payment account numbers. Tokenized payment account information includes a primary account number (PAN) for card payments, or a US or Canadian bank account number and routing number for an ACH bank account. An instrument identifier token can exist independently, or it can be associated with a payment instrument.
An instrument identifier token can also contain an associated network token.
Instrument identifier tokens are associated with these features:
Card Art
TMS
 card art helps your customers select a card. See Card Art.
Enrollable Network Tokens
TMS
 can enroll certain
network tokens
 in an instrument identifier token to be used for future payments. Future payments require only the instrument identifier token for the payment information. The types of network tokens you can enroll into an instrument identifier are tokens used for in-app payment methods such as:
  • Android Pay
  • Apple Pay
  • Chase Pay
  • Google Pay
  • Samsung Pay
  • Visa Click to Pay
See Create an Instrument Identifier for Enrollable Network Tokens.
Push Provisioning
Push provisioning connects you with participating issuers to quickly provide credentials to your customers. See Push Provisioning for Network Tokens.

Manage Instrument Identifier Tokens

This section contains information on managing instrument identifier tokens.
The instrument identifier token type represents the tokenized Primary Account Number (PAN) for card payments, or US or Canadian bank account number and routing number. An instrument identifier can contain a credit card, ACH bank account, or tokenized card such as Apple Pay or Android Pay. You can create, retrieve, update, or delete an instrument identifier by submitting an HTTP
POST
,
GET
,
PATCH
, or
DELETE
 operation to the
/tms/v1/instrumentidentifiers
 endpoint.
Use the
TMS
 REST API instrument identifier endpoint to:
For more information on instrument identifier tokens, see Instrument Identifier Tokens.

Create an Instrument Identifier

This section describes how to create an instrument identifier.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers

Required Fields for Creating an Instrument Identifier

card.number

Optional Fields for Creating an Instrument Identifier

bankAccount.number
bankAccount.routingNumber
billTo.address1
billTo.address2
billTo.administrativeArea
billTo.country
billTo.locality
billTo.postalCode
card.expirationMonth
card.expirationYear
card.securityCode
processingInformation.authorizationOptions.initiator. merchantInitiatedTransaction.previousTransactionID

REST Example: Creating a Card Instrument Identifier

Request
{
  "card": {
    "number": "4111XXXX11111111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
    },
    "paymentInstruments": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
    }
  },
  "id": "7010000000016241111",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "card": {
    "number": "411111XXXXXX1111"
  },
  "metadata": {
    "creator": "testrest"
  }
}

REST Example: Creating a Bank Account Instrument Identifier

Request
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers
{
  "bankAccount": {
    "number": "4100",
    "routingNumber": "X71923284"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/A7A91A2CA872B272E05340588D0A0699"
    },
    "paymentInstruments": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/A7A91A2CA872B272E05340588D0A0699/paymentinstruments"
    }
  },
  "id": "A7A91A2CA872B272E05340588D0A0699",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "bankAccount": {
    "number": "XXXX",
    "routingNumber": "X71923284"
  },
  "metadata": {
    "creator": "testrest"
  }
}

Create an Instrument Identifier for Enrollable Network Tokens

IMPORTANT
To create an instrument identifier for an enrollable network token using the
Token Management Service
 (
TMS
), you must send the request using message-level encryption (MLE). For more information about MLE, see Message-Level Encryption Keys.
TMS
 can enroll certain network tokens into an instrument identifier token for future payments. Any future payments will require only the instrument identifier token for the payment information.
Enrollable network tokens can be used for these in-app payment methods:
  • Android Pay
  • Apple Pay
  • Chase Pay
  • Google Pay
  • Samsung Pay
  • Visa Click to Pay
These tokenized payment methods are also referred to as
digital payments
,
digital wallets
, and
tokenized cards
.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers

Header

Set the component type in the request header to
application/jose
.

Response to a Successful Request

A successful response includes the instrument identifier in the
id
 field and the
TOKEN
 indicator in the
tokenizedCard.source
 field. The
TOKEN
 indicator denotes that the instrument identifier was created from a device token. A payment account reference (PAR) number is also returned in the
issuer.paymentAccountReference
 field.

Merchant-Initiated Transactions

You can create an instrument identifier that stores a device token while you are requesting an authorization. Such requests are typically performed for follow-on merchant-initiated transactions. For more information about how to create an instrument identifier within an authorization request, see these sections in the
Payments Developer Guide
:

Required Fields for Creating an Instrument Identifier for a Device Token

card.number
type
Set to
enrollable token
.

Optional Fields for Creating an Instrument Identifier

bankAccount.number
bankAccount.routingNumber
billTo.address1
billTo.address2
billTo.administrativeArea
billTo.country
billTo.locality
billTo.postalCode
card.expirationMonth
card.expirationYear
card.securityCode
processingInformation.authorizationOptions.initiator. merchantInitiatedTransaction.previousTransactionID

REST Example: Creating an Instrument Identifier for a Device Token

Request
{
  "type": "enrollable token",
  "card": {
    "number": "41111XXXX1111111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515"
    },
    "paymentInstruments": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515/paymentinstruments"
    }
  },
   "id": "7040000000015027161",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "tokenizedCard": {
    "source": "TOKEN",
    "state": "ACTIVE",
    "enrollmentId": "da1fb810b1b3e01db5b215de5261df01",
    "tokenReferenceId": "090673c4811a91960f021ad3a24e2e01",
    "number": "41111XXXX1111111",
    "type": "visa",
    "card": {
      "suffix": "1111"
    },
"metadata": {
            "cardArt": {
                "combinedAsset": {
                    "id": "8f64614def1a41d39ea8acae4616bf6f",
                    "_links": {
                        "self": {
                        "href": "tms/v2/tokens/7030800000051400580/vts/assets/card-art-combined"
                        }
                    }
                },
                "brandLogoAsset": {
                    "id": "00000000000000000000000000001070",
                    "_links": {
                        "self": {
                        "href": "tms/v2/tokens/7030800000051400580/vts/assets/brand-logo"
                        }
                    }
                },
                "foregroundColor": "1af0f0"
            },
            "issuer": {
                "name": "Test Issuer",
                "shortDescription": "shortDescription",
                "longDescription": "longDescription",
                "country": "US"
            },
            "features": {
                "accountFundingSource": "debit card"
            },
            "creator": "sim"
        }
  },
  "card": {
    "number": "41111XXXX1111111"
  },
  "issuer": {
    "paymentAccountReference": "V0010013024026372674590402581"
  },
  "metadata": {
    "creator": "testrest"
  }
}

Create an Instrument Identifier and Network Token Using EMV Tags

This section describes how to create an instrument identifier and a network token using EMV tags.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers

Required Fields for Creating an Instrument Identifier and Network Token Using EMV Tags

type
Set to
enrollable card
 when you are provisioning a network token.
pointOfSaleInformation.emvTags.tag
pointOfSaleInformation.emvTags.value
pointOfSaleInformation.emvTags.source
Set to one of these values:
  • CARD
  • TERMINAL

Optional Field for Creating an Instrument Identifier and Network Token Using EMV Tags

card.securityCode

REST Example: Creating an Instrument Identifier and Network Token Using EMV Tags

These examples include the minimum required EMV tags for card information. You can include more EMV tags for the card tap in your request.
Request to Create an Instrument Identifier with EMV Tag 5A
{
  "pointOfSaleInformation": {
    "emvTags": [
      {
        "tag": "5A",
        "value": "4111111111111111",
        "source": "CARD"
      }
    ]
  }
}
Request to Create an Instrument Identifier with EMV Tag 57
{
  "pointOfSaleInformation": {
    "emvTags": [
      {
        "tag": "57",
        "value": "4111111111111111D30092011234567890F",
        "source": "CARD"
      }
    ]
  }
}
Request to Create an Instrument Identifier and Provision a Network Token with EMV Tags 5A and 5F24
{
  "type": "enrollable card",
  "card": {
    "securityCode": "123"
  },
  "pointOfSaleInformation": {
    "emvTags": [
      {
        "tag": "5A",
        "value": "4111111111111111",
        "source": "CARD"
      },
      {
        "tag": "5F24",
        "value": "YYMMDD",
        "source": "CARD"
      }
    ]
  }
}
Request to Create an Instrument Identifier and Provision a Network Token with EMV Tag 57
{
  "type": "enrollable card",
  "card": {
    "securityCode": "123"
  },
  "pointOfSaleInformation": {
    "emvTags": [
      {
        "tag": "57",
        "value": "4111111111111111D30092011234567890F",
        "source": "CARD"
      }
    ]
  }
}
Request to Create an Instrument Identifier and Provision a Network Token with Multiple EMV Tags
{
  "type": "enrollable card",
  "source": "CONTACTLESS",
  "card": {
    "securityCode": "123"
  },
  "pointOfSaleInformation": {
    "emvTags": [
      {
        "tag": "5A",
        "value": "4111111111111111",
        "source": "CARD"
      },
      {
        "tag": "5F24",
        "value": "YYMMDD",
        "source": "CARD"
      },
      {
        "tag": "57",
        "value": "4111111111111111D30092011234567890F",
        "source": "CARD"
      },
      {
        "tag": "9F35",
        "value": "22",
        "source": "TERMINAL"
      }
    ]
  }
}
Response to a Successful Request
{
  "id": "7030080000051311515",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "tokenizedCard": {
    "id": "09CBCE20D414BB07E063AF598E0A4F1F",
    "state": "ACTIVE",
    "enrollmentId": "93e7ccff2d64fb4500b4158e45059d02",
    "tokenReferenceId": "5eaec012172e13a9aabd19549bde5a02",
    "paymentAccountReference": "V0010013019326121174070050420",
    "number": "489537XXXXXX0711",
    "expirationMonth": "09",
    "expirationYear": "2030",
    "type": "visa",
    "card": {
      "suffix": "1111",
      "expirationMonth": "09",
      "expirationYear": "2030",
      "issueDate": "2025-01-01",
      "activationDate": "2025-01-01",
      "expirationPrinted": "Y",
      "securityCodePrinted": "Y",
      "termsAndConditions": {
        "id": "09CBCE20D414BB07E063AF598E0A4F1F",
        "url": "<cardMetaData.contactWebsite>"
      }
    },
    "metadata": {
      "cardArt": {
        "combinedAsset": {
          "id": "84cfb836af434859be62c766bdc9e510",
          "_links": {
            "self": {
              "href": "/tms/v2/tokens/7030080000051311515/vts/assets/card-art-combined"
            }
          }
        }
      },
      "issuer": {
        "name": "issuing bank name",
        "shortDescription": "The Bank Card",
        "longDescription": "The Bank Card Platinum Rewards",
        "country": "Country of issuing Bank",
        "accountPrefix": "BIN",
        "email": "issuer@example.com",
        "phoneNumber": "1112223333",
        "url": "http://www.example.com"
      }
    }
  },
  "card": {
    "number": "489537XXXXXX1515"
  },
  "issuer": {
    "paymentAccountReference": "V0010013019326121174070050420"
  },
  "metadata": {
    "creator": "creator"
  }
}

Retrieve an Instrument Identifier

This section describes how to retrieve an instrument identifier.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
{instrumentIdentifierTokenId}
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.

REST Example: Retrieving an Instrument Identifier

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030800000051400580
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v1/instrumentidentifiers/7030800000051400580"
        },
        "paymentInstruments": {
            "href": "/tms/v1/instrumentidentifiers/7030800000051400580/paymentinstruments"
        },
        "tokenized-cards": {
            "href": "/tms/v2/tokenized-cards/3DED4656FD5B61CEE063AF598E0AF444"
        }
    },
    "id": "7030800000051400580",
    "object": "instrumentIdentifier",
    "state": "ACTIVE",
    "tokenizedCard": {
        "id": "3DED4656FD5B61CEE063AF598E0AF444",
        "state": "ACTIVE",
        "enrollmentId": "5768a5660d69a0383874bc80e93848bc4f24",
        "tokenReferenceId": "9f2683a1a91c3ec3c6a56e16c48bc4f24fff",
        "paymentAccountReference": "fc6479f5082e1039ce0b08f08b64f",
        "number": "471633XXXXXX3346",
        "expirationMonth": "12",
        "expirationYear": "2030",
        "type": "visa",
        "card": {
            "suffix": "0580",
            "expirationMonth": "12",
            "expirationYear": "2030"
        },
        "metadata": {
            "cardArt": {
                "combinedAsset": {
                    "id": "8f64614def1a41d39ea8acae4616bf6f",
                    "_links": {
                        "self": {
                            "href": "/tms/v2/tokens/7030800000051400580/vts/assets/card-art-combined"
                        }
                    }
                },
                "brandLogoAsset": {
                    "id": "00000000000000000000000000001070",
                    "_links": {
                        "self": {
                            "href": "/tms/v2/tokens/7030800000051400580/vts/assets/brand-logo"
                        }
                    }
                },
                "foregroundColor": "1af0f0"
            },
            "issuer": {
                "name": "Test Issuer",
                "shortDescription": "shortDescription",
                "longDescription": "longDescription",
                "country": "US"
            },
            "features": {
                "accountFundingSource": "debit card"
            },
            "creator": "sim"
        },
        "source": "ONFILE"
    },
    "card": {
        "number": "489537XXXXXX0580"
    },
    "issuer": {
        "paymentAccountReference": "fc6479f5082e1039ce0b08f08b64f"
    },
    "metadata": {
        "creator": "sim"
    }
}

Update an Instrument Identifier

This section describes how to update an instrument identifier.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
{instrumentIdentifierTokenId}
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.

Optional Fields for Updating an Instrument Identifier

bankAccount.number
bankAccount.routingNumber
billTo.address1
billTo.address2
billTo.administrativeArea
billTo.country
billTo.locality
billTo.postalCode
card.expirationMonth
card.expirationYear
card.securityCode

REST Example: Updating an Instrument Identifier

Request
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
    },
    "paymentInstruments": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
    }
  },
  "id": "7010000000016241111",
  "object": "instrumentIdentifier",
  "state": "ACTIVE",
  "card": {
    "number": "411111XXXXXX1111"
  },
  "processingInformation": {
    "authorizationOptions": {
      "initiator": {
        "merchantInitiatedTransaction": {
          "previousTransactionId": "123456789012345"
        }
      }
    }
  },
  "metadata": {
    "creator": "testrest"
  }
}

Retrieve an Instrument Identifier's Payment Instruments

This section describes how to retrieve the payment instrument tokens associated with an instrument identifier token.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/paymentinstruments?
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/paymentinstruments?
{instrumentIdentifierTokenId}
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.
Use these query string parameters to filter the list of payment instrument tokens:
  • offset
     — Page offset number.
  • limit
     — Maximum number of items you would like returned.

REST Example: Retrieving an Instrument Identifier's Payment Instruments

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5"
    },
    "first": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5"
    },
    "next": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=5&limit=5"
    },
    "last": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=120820&limit=5"
    }
  },
  "object": "collection",
  "offset": 0,
  "limit": 5,
  "count": 5,
  "total": 120825,
  "_embedded": {
    "paymentInstruments": [
      {
        "_links": {
          "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F396A4DD49CA23ADE053A2598D0AECC4"
          },
          "customer": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F396A4DD49CB23ADE053A2598D0AECC4"
          }
        },
        "id": "F396A4DD49CA23ADE053A2598D0AECC4",
        "object": "paymentInstrument",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "12",
          "expirationYear": "2031",
          "type": "visa"
        },
        "buyerInformation": {
          "currency": "USD"
        },
        "billTo": {
          "firstName": "JOHN",
          "lastName": "DOE",
          "address1": "1 Market St",
          "locality": "san francisco",
          "administrativeArea": "CA",
          "postalCode": "94105",
          "country": "US",
          "email": "
test@nab.com.au
",
          "phoneNumber": "4158880000"
        },
        "processingInformation": {
          "billPaymentProgramEnabled": false
        },
        "metadata": {
          "creator": "testrest"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
              },
              "paymentInstruments": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
              }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXXX1111"
            },
            "processingInformation": {
              "authorizationOptions": {
                "initiator": {
                  "merchantInitiatedTransaction": {
                    "previousTransactionId": "123456789012345"
                  }
                }
              }
            },
            "metadata": {
              "creator": "testrest"
            }
          }
        }
      },
      {
        "_links": {
          "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F3969009C44DED0DE053AF598E0AD4E0"
          },
          "customer": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F396A109D27377A5E053AF598E0AA34A"
          }
        },
        "id": "F3969009C44DED0DE053AF598E0AD4E0",
        "object": "paymentInstrument",
        "state": "ACTIVE",
        "card": {
          "type": "visa"
        },
        "metadata": {
          "creator": "testrest"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
              },
              "paymentInstruments": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
              }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXXX1111"
            },
            "processingInformation": {
              "authorizationOptions": {
                "initiator": {
                  "merchantInitiatedTransaction": {
                    "previousTransactionId": "123456789012345"
                  }
                }
              }
            },
            "metadata": {
              "creator": "testrest"
            }
          }
        }
      },
      {
        "_links": {
          "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F396A109F3637776E053AF598E0A87E4"
          },
          "customer": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F396A109D27377A5E053AF598E0AA34A"
          }
        },
        "id": "F396A109F3637776E053AF598E0A87E4",
        "object": "paymentInstrument",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "12",
          "expirationYear": "2031",
          "type": "visa"
        },
        "billTo": {
          "firstName": "John",
          "lastName": "Doe",
          "company": "Company Name",
          "address1": "1 Market St",
          "locality": "San Francisco",
          "administrativeArea": "CA",
          "postalCode": "94105",
          "country": "US",
          "email": "
test@nab.com.au
",
          "phoneNumber": "4158880000"
        },
        "metadata": {
          "creator": "testrest"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
              },
              "paymentInstruments": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
              }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXXX1111"
            },
            "processingInformation": {
              "authorizationOptions": {
                "initiator": {
                  "merchantInitiatedTransaction": {
                    "previousTransactionId": "123456789012345"
                  }
                }
              }
            },
            "metadata": {
              "creator": "testrest"
            }
          }
        }
      },
      {
        "_links": {
          "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F3965253C47640F5E053AF598E0AA05A"
          }
        },
        "id": "F3965253C47640F5E053AF598E0AA05A",
        "object": "paymentInstrument",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "02",
          "expirationYear": "2028",
          "type": "visa"
        },
        "billTo": {
          "firstName": "John",
          "lastName": "Snow"
        },
        "metadata": {
          "creator": "testrest"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
              },
              "paymentInstruments": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
              }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXXX1111"
            },
            "processingInformation": {
              "authorizationOptions": {
                "initiator": {
                  "merchantInitiatedTransaction": {
                    "previousTransactionId": "123456789012345"
                  }
                }
              }
            },
            "metadata": {
              "creator": "testrest"
            }
          }
        }
      },
      {
        "_links": {
          "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F395F6426D9A30AEE053AF598E0A5BD4"
          }
        },
        "id": "F395F6426D9A30AEE053AF598E0A5BD4",
        "object": "paymentInstrument",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "12",
          "expirationYear": "2031",
          "type": "visa"
        },
        "billTo": {
          "firstName": "John",
          "lastName": "Doe",
          "company": "Company Name",
          "address1": "1 Market St",
          "locality": "San Francisco",
          "administrativeArea": "CA",
          "postalCode": "94105",
          "country": "US",
          "email": "
test@nab.com.au
",
          "phoneNumber": "4158880000"
        },
        "metadata": {
          "creator": "testrest"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
              },
              "paymentInstruments": {
                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
              }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXXX1111"
            },
            "processingInformation": {
              "authorizationOptions": {
                "initiator": {
                  "merchantInitiatedTransaction": {
                    "previousTransactionId": "123456789012345"
                  }
                }
              }
            },
            "metadata": {
              "creator": "testrest"
            }
          }
        }
      }
    ]
  }
}

Retrieve an Instrument Identifier with an Unmasked Card Number

This section describes how retrieve an instrument identifier with an unmasked card number.
IMPORTANT
To retrieve unmasked payment details, you must ensure that your MLE key pair and your token vault are configured correctly. For more information on MLE keys, see Message-Level Encryption Keys. For more information on token vaults, see Token Vault Management. If necessary, contact your
National Australia Bank
 account manager or customer support.
The response is BASE 64-encoded JSON web encryption (JWE) token. The decoded JWE has these elements:
{ "alg": "RSA-OAEP-256", //The algorithm used to encrypt the CEK
    "cty": "json", //The content type
    "typ": "JWT", //The token type
    "enc": "A256GCM", //The algorithm that is used to encrypt the message
    "kid": "keyId" //The serial number of shared public cert for encryption of CEK
}
<Encrypted Data> //The encrypted payload that matches the JSON response normally returned by the
TMS
 API, except with an unmasked payment details

Header Configuration

You must pass this request header to retrieve unmasked payment details:
Accept: application/jose
.
The term
application/jose
 refers to Javascript Object Signing and Encryption (JOSE). JOSE is a framework that provides end-to-end security to JavaScript Object Notation (JSON)-based data structures. JOSE achieves this by offering a collection of specifications to encrypt and digitally sign JSON payloads. In this case, the response is message-level encrypted using a JSON Web Token (JWT).

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
{instrumentIdentifierTokenId}
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.

REST Example: Retrieving an Instrument Identifier with an Unmasked Card Number

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111
Response to a Successful Request
eyJraWQiOiJiYTE1ZDRmMTIzMTM0NjlkZjg5MDM1Nzk2YWE4Nzc4ZGM0NTY4ODlkIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.N_XRPaRJACKNHBAUvXIu11eoB kgouHb5mrA1LL-WHVfKRpfUoGpHRVp0WRy7b1NLh4-qAlLI3QKnxxplx4tzSaJCn3kQDNt0BnRmKecRvFTGKXk09eATF8J7lLfNjYZEgZgA4qe3FdIEWIMN_BwQMJMEy0cMJdpyGtvUt9G6rgmQUDsjwSDU5tQNMopjgqjDUw6rBjbxTprNtBLpNCqjbSe4-vW_xiZIfFpQs_45YPWV4fRn5YuH7ebfckB1evTdfGRlBMHXfjac_QA8a1gMv_50T2y1VXllam2OSC2hSabOtd43pGDsFwj5HhOGjobb6GprbNedlIBL5Mlo-2_wCg.OkTe1Z7OredhIrF_.3eEeC9OUfz7uXxl1FLSZZNFGUiX7vk77SGVCW7cypDuVpy5QpK2wVJzTYrjJFgGlEiE05GwXP04gOsOOp5C6OEhCXKbdGMZO_V0FAyxk1dnx28ur-cSG-86HdbBRbWsvcuh4ghMqx8WTlA-M13YKubY6L2LcK0yWROn9MrYlUWzgJFjXFZDkpCxsHpMtvXRxcF6nTQkJD4rw_SHGuHqWbVlQKyIEBcvbuyecjYtz7iZtP_HS349TOOmpbJDxJ-X8exZy3LLTmD7PHjpySYGx-svlkP-Qu4yi_xFtzmkwf7T7O56SAa9DidDeH9ftGi7V67MBMBGK6Ndl8nK4sn6SieBDMWxnFthNdHZFEhlSONIywGfE-mYI5nuagrNVOo-ZQqJ2woYXdocdEvyTQ7oDvRy432872l6nUDTZcVdYlVj79KDrW73LjvUYWcAvXZr0bDgI-e1YNziInqgi3DlNNeL6W2srYrSuqJG5-NnWIISt3Pb8qfa2ve06uRhztpyWisWEZOCVG1SLg_LZTPjaDoe2woJ1kyP2VaEM4VoRynQ0dCZsLlpu8_s24rj96T-qoi2QkUybUQ3rpYiUUPl1-jhhimMpar4wsJJRIsVfsf6KVz876ReMgvW1Jzm5G0Ypj7acvvqnDAeMEfRzXvpLvAVpGXP6RbVXuyg3wyUg_8-PqOlllRiavS8eg9-ZdeuAkPQ.4vZxOPrGjw51SFJmn_cF3g

Delete an Instrument Identifier

This section describes how to delete an instrument identifier.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}
{instrumentIdentifierTokenId}
 is the instrument identifier token ID returned in the
id
 field in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.

REST Example: Deleting an Instrument Identifier

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Payments with Instrument Identifier Tokens

This section contains information on making payments using instrument identifier tokens.
An instrument identifier token represents either a payment card number or, in the case of an ACH bank account, the routing and account numbers. The expiration date and billing address fields are pass through fields. The pass-through fields are used for payment network token enrollment with card associations.
You can make a payment using an existing instrument identifier token or create one. To make a payment using a new instrument identifier token, you must include token creation in the authorization request. For example:
To process a payment using an existing instrument identifier token, you must include the instrument identifier token ID as the value in the
paymentInformation.instrumentIdentifier.id
 field. For example:
For more information on instrument identifier tokens, see Instrument Identifier Tokens.

Authorize a Payment with an Instrument Identifier

This section provides the information you need in order to authorize a payment with an instrument identifier token.

Endpoint

Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment with an Instrument Identifier

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.instrumentIdentifier.id
Set to the ID of the instrument identifier token you want to use.

REST Example: Authorizing a Payment with an Instrument Identifier

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "instrumentIdentifier": {
            "id": "7010000000016241111"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/7055955288186053404953/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/7055955288186053404953"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/7055955288186053404953/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "id": "7055955288186053404953",
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "10.00",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "card": {
      "type": "001"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "111111"
  },
  "processorInformation": {
    "approvalCode": "888888",
    "networkTransactionId": "123456789619999",
    "transactionId": "123456789619999",
    "responseCode": "100",
    "avs": {
      "code": "1"
    }
  },
  "reconciliationId": "67468271CRIL0U24",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2024-01-18T16:32:09Z"
}

REST Example: Authorizing a Payment with an Instrument Identifier While Creating
TMS
 Tokens

Request
{
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "processingInformation": {
    "actionList": [
      "TOKEN_CREATE"
    ],
    "actionTokenTypes": [
      "customer",
      "paymentInstrument",
      "shippingAddress"
    ]
  },
  "paymentInformation": {
    "instrumentIdentifier": {
      "id": "7010000000016241111"
    }
  },
  "orderInformation": {
    "amountDetails": {
      "totalAmount": "102.21",
      "currency": "USD"
    },
    "billTo": {
      "firstName": "John",
      "lastName": "Doe",
      "address1": "1 Market St",
      "locality": "san francisco",
      "administrativeArea": "CA",
      "postalCode": "94105",
      "country": "US",
      "email": "test@cybs.com",
      "phoneNumber": "4158880000"
    },
    "shipTo": {
      "firstName": "John",
      "lastName": "Doe",
      "address1": "1 Market St",
      "locality": "san francisco",
      "administrativeArea": "CA",
      "postalCode": "94105",
      "country": "US"
    }
  }
}
Response to a Successful Request
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/7114679840376687203955/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/7114679840376687203955"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/7114679840376687203955/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "id": "7114679840376687203955",
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "102.21",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "card": {
      "type": "001"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "111111"
  },
  "processorInformation": {
    "approvalCode": "888888",
    "networkTransactionId": "123456789619999",
    "transactionId": "123456789619999",
    "responseCode": "100",
    "avs": {
      "code": "X",
      "codeRaw": "I1"
    }
  },
  "reconciliationId": "623971212U7PN4IU",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2024-03-26T15:46:24Z",
  "tokenInformation": {
    "shippingAddress": {
      "id": "14930C904FC4D97BE063A2598D0AE0F1"
    },
    "paymentInstrument": {
      "id": "149310A4A924E911E063A2598D0A47AD"
    },
    "customer": {
      "id": "14930C904FC1D97BE063A2598D0AE0F1"
    }
  }
}

Making a Credit with an Instrument Identifier

This section describes how to make a credit with an instrument identifier token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/credits
Production:
POST
https://nabgateway-api.nab.com.au
pts/v2/credits

Required Fields for Making a Credit with an Instrument Identifier

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.paymentInstrument.id
Set to the ID of the payment instrument token you want to use.

REST Example: Making a Credit with an Instrument Identifier

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "instrumentIdentifier": {
            "id": "7010000000016241111"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "void": {
      "method": "POST",
      "href": "/pts/v2/credits/7055970261066212404951/voids"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/credits/7055970261066212404951"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "creditAmountDetails": {
    "currency": "USD",
    "creditAmount": "10.00"
  },
  "id": "7055970261066212404951",
  "orderInformation": {
    "amountDetails": {
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "card": {
      "type": "001"
    }
  },
  "processorInformation": {
    "approvalCode": "888888",
    "responseCode": "100"
  },
  "reconciliationId": "67445198PRILCQCQ",
  "status": "PENDING",
  "submitTimeUtc": "2024-01-18T16:57:06Z"
}

Payment Instrument Tokens

The payment instrument token contains the complete billing details for the payment type including cardholder name, expiration date, and billing address. These are standalone payment instruments that cannot be associated with a customer.

Manage Payment Instrument Tokens

This section contains information on managing payment instrument tokens.
A payment instrument represents a means of payment and a payment instrument token stores this information using an instrument identifier token. It does not store the card number and cannot exist without an associated instrument identifier. It can include an instrument identifier, expiration date, billing address, and card type.
You can create, retrieve, update, or delete an instrument identifier by submitting an HTTP POST,
GET
,
PATCH
, or
DELETE
 operation to the
tms/v1/paymentinstruments
 endpoint. Use the
TMS
 REST API payment instrument endpoint to:
For more information on payment instrument tokens, see Payment Instrument Tokens.

Create a Payment Instrument

This section describes how to create a payment instrument token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments

Required Fields for Creating a Payment Instrument

card.type
instrumentIdentifier.id
Include the ID of the instrument identifier token you want to use to create a payment instrument.

Optional Fields for Creating a Payment Instrument

default
Set value to
true
 if default, otherwise set value to
false
.
bankAccount.type
billTo.firstName
billTo.lastName
billTo.company
billTo.address1
billTo.locality
billTo.administrativeArea
billTo.postalCode
billTo.country
billTo.email
billTo.phoneNumber
card.expirationMonth
card.expirationYear
card.issueNumber
card.startMonth
card.startYear
card.useAs
tokenizedInformation.requestorID
tokenizedInformation.transactionType
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.type
buyerInformation.personalIdentification.issuedBy.administrativeArea
billTo.address2
processingInformation.billPaymentProgramEnabled
processingInformation.bankTransferOptions.SECCode
merchantInformation.merchantDescriptor.alternateName

REST Example: Creating a Payment Instrument

Request
{
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href":
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684"
    }
  },
  "id": "F39763E8CFDF2354E053AF598E0AF684",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789619999"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}

Retrieve a Payment Instrument

This section describes how to retrieve a payment instrument token.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Payment Instrument.

REST Example: Retrieving a Payment Instrument

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684"
    }
  },
  "id": "F39763E8CFDF2354E053AF598E0AF684",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "
https://nabgateway-api-test.nab.com.au
tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789619999"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}

Find Payment Instruments by Card Number

This section describes how to find payment instruments by card number.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/paymentinstruments?offset=0&limit=20
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/instrumentidentifiers/{instrumentIdentifierTokenId}/paymentinstruments?offset=0&limit=20
instrumentIdentifierTokenId
 is the instrument identifier token ID returned in the
id
 field when you created the instrument identifier token. For more information, see Create an Instrument Identifier.
Use these query string parameters to filter the list of payment instrument tokens:
  • offset
     — Page offset number.
  • limit
     — Maximum number of items you would like returned.

Required Fields for Finding Payment Instruments by Card Number

instrumentIdentifierTokenId
Include the ID of the instrument identifier token you want to retrieve in the URL path.

REST Example: Finding Payment Instruments by Card Number

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5"
        },
        "first": {
            "href": "
https://nabgateway-api-test.nab.com.au
tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=0&limit=5"
        },
        "next": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=5&limit=5"
        },
        "last": {
            "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments?offset=121265&limit=5"
        }
    },
    "object": "collection",
    "offset": 0,
    "limit": 5,
    "count": 5,
    "total": 121269,
    "_embedded": {
        "paymentInstruments": [
            {
                "_links": {
                    "self": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F4D5E715F7BD9910E053A2598D0A7278"
                    },
                    "customer": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F4D5E715F75E9910E053A2598D0A7278"
                    }
                },
                "id": "F4D5E715F7BD9910E053A2598D0A7278",
                "object": "paymentInstrument",
                "state": "ACTIVE",
                "card": {
                    "expirationMonth": "12",
                    "expirationYear": "2031",
                    "type": "visa"
                },
                "billTo": {
                    "firstName": "John",
                    "lastName": "Doe",
                    "company": "Visa",
                    "address1": "1 Market St",
                    "locality": "san francisco",
                    "administrativeArea": "CA",
                    "postalCode": "94105",
                    "country": "US",
                    "email": "
test@nab.com.au
",
                    "phoneNumber": "4158880000"
                },
                "metadata": {
                    "creator": "testrest"
                },
                "_embedded": {
                    "instrumentIdentifier": {
                        "_links": {
                            "self": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
                            },
                            "paymentInstruments": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                            }
                        },
                        "id": "7010000000016241111",
                        "object": "instrumentIdentifier",
                        "state": "ACTIVE",
                        "card": {
                            "number": "411111XXXXXX1111"
                        },
                        "processingInformation": {
                            "authorizationOptions": {
                                "initiator": {
                                    "merchantInitiatedTransaction": {
                                        "previousTransactionId": "123456789619999"
                                    }
                                }
                            }
                        },
                        "metadata": {
                            "creator": "testrest"
                        }
                    }
                }
            },
            {
                "_links": {
                    "self": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F4D5E70505B30CF9E053AF598E0A005F"
                    },
                    "customer": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F4D5E70505B40CF9E053AF598E0A005F"
                    }
                },
                "id": "F4D5E70505B30CF9E053AF598E0A005F",
                "object": "paymentInstrument",
                "state": "ACTIVE",
                "card": {
                    "expirationMonth": "02",
                    "expirationYear": "2024",
                    "type": "visa"
                },
                "buyerInformation": {
                    "currency": "USD"
                },
                "billTo": {
                    "firstName": "NOREAL",
                    "lastName": "NAME",
                    "address1": "1295 Charleston Road",
                    "locality": "Mountain View",
                    "administrativeArea": "CA",
                    "postalCode": "94043",
                    "country": "US",
                    "email": "
customer_email=null@nab.com.au
"
                },
                "metadata": {
                    "creator": "testrest"
                },
                "_embedded": {
                    "instrumentIdentifier": {
                        "_links": {
                            "self": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
                            },
                            "paymentInstruments": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                            }
                        },
                        "id": "7010000000016241111",
                        "object": "instrumentIdentifier",
                        "state": "ACTIVE",
                        "card": {
                            "number": "411111XXXXXX1111"
                        },
                        "processingInformation": {
                            "authorizationOptions": {
                                "initiator": {
                                    "merchantInitiatedTransaction": {
                                        "previousTransactionId": "123456789619999"
                                    }
                                }
                            }
                        },
                        "metadata": {
                            "creator": "testrest"
                        }
                    }
                }
            },
            {
                "_links": {
                    "self": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F4D566EED6D369CCE053AF598E0A495B"
                    },
                    "customer": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F4D5523603862EE0E053AF598E0AE5FE"
                    }
                },
                "id": "F4D566EED6D369CCE053AF598E0A495B",
                "object": "paymentInstrument",
                "state": "ACTIVE",
                "card": {
                    "expirationMonth": "12",
                    "expirationYear": "2031",
                    "type": "visa"
                },
                "buyerInformation": {
                    "currency": "USD"
                },
                "billTo": {
                    "firstName": "JOHN",
                    "lastName": "DOE",
                    "address1": "1 Market St",
                    "locality": "san francisco",
                    "administrativeArea": "CA",
                    "postalCode": "94105",
                    "country": "US",
                    "email": "
test@nab.com.au
",
                    "phoneNumber": "4158880000"
                },
                "processingInformation": {
                    "billPaymentProgramEnabled": false
                },
                "metadata": {
                    "creator": "testrest"
                },
                "_embedded": {
                    "instrumentIdentifier": {
                        "_links": {
                            "self": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
                            },
                            "paymentInstruments": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                            }
                        },
                        "id": "7010000000016241111",
                        "object": "instrumentIdentifier",
                        "state": "ACTIVE",
                        "card": {
                            "number": "411111XXXXXX1111"
                        },
                        "processingInformation": {
                            "authorizationOptions": {
                                "initiator": {
                                    "merchantInitiatedTransaction": {
                                        "previousTransactionId": "123456789619999"
                                    }
                                }
                            }
                        },
                        "metadata": {
                            "creator": "testrest"
                        }
                    }
                }
            },
            {
                "_links": {
                    "self": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F4CDBDD6E0A57EC9E053AF598E0AB69F"
                    },
                    "customer": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F4CDBCA630247B2EE053AF598E0ADC91"
                    }
                },
                "id": "F4CDBDD6E0A57EC9E053AF598E0AB69F",
                "object": "paymentInstrument",
                "state": "ACTIVE",
                "card": {
                    "expirationMonth": "12",
                    "expirationYear": "2034",
                    "type": "visa"
                },
                "buyerInformation": {
                    "currency": "USD"
                },
                "billTo": {
                    "firstName": "JOHN",
                    "lastName": "DOE",
                    "address1": "1 Market St",
                    "locality": "san francisco",
                    "administrativeArea": "CA",
                    "postalCode": "94105",
                    "country": "US",
                    "email": "
test@nab.com.au
",
                    "phoneNumber": "4158880000"
                },
                "processingInformation": {
                    "billPaymentProgramEnabled": false
                },
                "metadata": {
                    "creator": "testrest"
                },
                "_embedded": {
                    "instrumentIdentifier": {
                        "_links": {
                            "self": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
                            },
                            "paymentInstruments": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                            }
                        },
                        "id": "7010000000016241111",
                        "object": "instrumentIdentifier",
                        "state": "ACTIVE",
                        "card": {
                            "number": "411111XXXXXX1111"
                        },
                        "processingInformation": {
                            "authorizationOptions": {
                                "initiator": {
                                    "merchantInitiatedTransaction": {
                                        "previousTransactionId": "123456789619999"
                                    }
                                }
                            }
                        },
                        "metadata": {
                            "creator": "testrest"
                        }
                    }
                }
            },
            {
                "_links": {
                    "self": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F4CDEF212EAA0B13E053AF598E0AB8F4"
                    },
                    "customer": {
                        "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/customers/F4CDBCA630247B2EE053AF598E0ADC91"
                    }
                },
                "id": "F4CDEF212EAA0B13E053AF598E0AB8F4",
                "object": "paymentInstrument",
                "state": "ACTIVE",
                "card": {
                    "expirationMonth": "12",
                    "expirationYear": "2031",
                    "type": "visa"
                },
                "buyerInformation": {
                    "currency": "USD"
                },
                "billTo": {
                    "firstName": "JOHN",
                    "lastName": "DOE",
                    "address1": "1 Market St",
                    "locality": "san francisco",
                    "administrativeArea": "CA",
                    "postalCode": "94105",
                    "country": "US",
                    "email": "
test@nab.com.au
",
                    "phoneNumber": "4158880000"
                },
                "processingInformation": {
                    "billPaymentProgramEnabled": false
                },
                "metadata": {
                    "creator": "testrest"
                },
                "_embedded": {
                    "instrumentIdentifier": {
                        "_links": {
                            "self": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
                            },
                            "paymentInstruments": {
                                "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                            }
                        },
                        "id": "7010000000016241111",
                        "object": "instrumentIdentifier",
                        "state": "ACTIVE",
                        "card": {
                            "number": "411111XXXXXX1111"
                        },
                        "processingInformation": {
                            "authorizationOptions": {
                                "initiator": {
                                    "merchantInitiatedTransaction": {
                                        "previousTransactionId": "123456789619999"
                                    }
                                }
                            }
                        },
                        "metadata": {
                            "creator": "testrest"
                        }
                    }
                }
            }
        ]
    }
}

Retrieve a Payment Instrument with an Unmasked Card Number

This section describes how to retrieve a payment instrument with an unmasked card number.
IMPORTANT
To retrieve unmasked payment details, you must ensure that your MLE key pair and your token vault are configured correctly. For more information on MLE keys, see Message-Level Encryption Keys. For more information on token vaults, see Token Vault Management. If necessary, contact your
National Australia Bank
 account manager or customer support.
The response is BASE 64-encoded JSON web encryption (JWE) token. The decoded JWE has these elements:
{ "alg": "RSA-OAEP-256", //The algorithm used to encrypt the CEK
    "cty": "json", //The content type
    "typ": "JWT", //The token type
    "enc": "A256GCM", //The algorithm that is used to encrypt the message
    "kid": "keyId" //The serial number of shared public cert for encryption of CEK
}
<Encrypted Data> //The encrypted payload that matches the JSON response normally returned by the
TMS
 API, except with an unmasked payment details

Header Configuration

You must pass this request header to retrieve unmasked payment details:
Accept: application/jose
.
The term
application/jose
 refers to Javascript Object Signing and Encryption (JOSE). JOSE is a framework that provides end-to-end security to JavaScript Object Notation (JSON)-based data structures. JOSE achieves this by offering a collection of specifications to encrypt and digitally sign JSON payloads. In this case, the response is message-level encrypted using a JSON Web Token (JWT).

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Payment Instrument.

REST Example: Retrieving a Payment Instrument with an Unmasked Card Number

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684
Response to a Successful Request
eyJraWQiOiJiYTE1ZDRmMTIzMTM0NjlkZjg5MDM1Nzk2YWE4Nzc4ZGM0NTY4ODlkIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.sPdY7WNX0jWady6jdHytYj8WmAyBLq401OeNNc3-cb2LWyOo11LY3r2mcJo_foZN3W175B0LzEH1IgYT96eQ8qpct7UXvvQLqdB25XCQIsRMU0tqugAox9QKDk1q0DMZpeki8O0_HWu1Nk6vGKwQP2XrCPDs9eZ4tHQCoId_8bffjHFOOgVDgFtG7pJ0MpIC7eeadJZCQKsEp5ZEwzTaGmyJrVLpwMKPMKh63eLYNSTndQihOpMXlWZS1yMvZJzgdf18qQdBB-bINs2jGhgTAGhPaorRsFpHPqvOQm9WRAMFJU0nq1zzEd2xyf9nG45Wl6VXEOZi87c7riyketm0lA.mxf5cgCFa2NwXuS1._NBdqbu4r0glrtKkIOLkGdiu1AzmbNLloKFY7-tMIaQ2xA1IpgR1tDHQOfQbumPS752jtjPPvXpHnXHp3pxifM8TJR_F76NcMI0SO3r5_PLePiLtQeyZJnaW6o6ENTrFNnhgG80TNLFS4NqsX6sIQsgm5D2S2Kf1yQL4B3goxHJTMulngvTBVJBGUf6rw5zr-q-w7buAA8NoquyIfGx0wORSFO8e_392aX5AWbySFoUobJ1arQJARsfKdoyHsskmfsCJAwRZF6_uvFbw7uoq60TmBjwfGTdsJffqGEYSuU8ZzXWl6Q9sPAGptwHj-JuWVnEZAq3362Cgqv3DfZtEAS-ewBd8DpzCQXatC4pUz1xj3sE5RzBQtzt8IY_exCL970UsMxh5pJc8eqT61z5Sf7nxaNj1limcnH7_rnR1LaJ8foQAvZo8rJl8PuLe3inNOqYhAMpu6UURNB126LPHi0W7F7o4MtFa8fm5rNF7Mbk-z4Xwx4b-FNKr3g_5JyYbJgOSAF9Kwbg7GzOGLyIPwTvXpUbFkyWoGWCgvfRDTVTBrbdlwcuFFDlFA4B-i9L79DcMRgHb6VqgVuy-A4fA9990ctmwChY0kkfnJYcFcEaT0bgLpJw6hadtmGgyW62yJMCRLF4GtU_PUyZ6k9s64KH6Ulro7Cbu_wcXiqklqymgCr50Ifx-gDtL3tAv_YoiI-numvNsk0EY8JZtmI4YOUK9V1SbrVy354X3rhPzUt2k5F8LHnExOnKugsACoFFOjpDaEBe1kI7X6UfKZU876m1H0lS5-ccZ3VVDbdpxHlMKrSrMehno6g4ba9phdqtvuajef6P73yF3kvHoHhXvxxrEUYcUGIlef9HMvN6NS9sxj2j5Q9LsED1XuyGBoRd5JO-gjeIHx0P__6SPiX2WdfqvVNIaS9f1k1eOOmCTERz9Esmb7vS13XzKyaN5DAFM9R3Tl2PUmDN-AtlRN5A9moTsvvQKci-CsGTUeEYUWfpbU4UHtzXic06BygAaFJat1plfeJy1u1qhVLUWkC4Jo6i_KryvAiJ8qb8urb_TFGWHhs2-JLQs8e3e20Ze4AkayQW-hypmshrsMgi86mqcD4o7IOY_27H4PYD2rVNPw0lSUuxDYCp87ILro_ROiMKu3Gi1jlX-MDqJ-v3PCf21EjgEsB8kV4L1O8ZKFCVOFGpVaXTvhKXjeEUyYVSB9uM6UTWcYGJznkClJV3vio1xpnRVpeppmTc4x0FABt7xPXCI_B81Q2q2mR9MS_Az7l-XTRIPz6skcMMjSyS6HI4f-zg__TVWw78gupg4O0xFT1Mpbcs3HxQPtcBHoQ3EWenIcB1Pnso9IOwN3z4bSDj1OI3-cgMRFPwUKLhJvOh0I5Jql_BKSdEnTJ4WyqY2EswrlG7dZ4fVexoMOi9UX117GqQcmdj0mboOnXDPKfclfv55nkg7ogHhz5OvsonLxXA9LwCnL0iyISowImm1pUc-Gx1gnEPXvx1Xew7ARamkJIam3MAqhLmxwE0E6CO9xw8AG3wDSznPK3RyE6JeiuVxhRbr5hJGQLIfH-gu13NTMh3JtPNsnmz0uvF2nZKmcWj8QmuHE76L3qYD7xCwXbGwSDPHp7AhAPueCG8D0sG6Ilf_0S9P3-mTM1PhL2_AFpF_r9L-R-3-QrgJXVGYTbQaIFJvGG_swpS_o6s2c9iEKI7WK3nZG0pfjiFw0UGTF4cNEj2DWzgLCj21pcKgqUDbncf3hYbqnHgNUmxHGjjOxZdiaL31-ccfNodHg6O8kvRr_hhEA9IKG49uCJoPqJtJmOFa4MuSEdIuWBF_lSc.fenpFUQKAgR4qz7Ft_6Igg

Update a Payment Instrument

This section describes how to update a payment instrument token.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Payment Instrument.

Optional Fields for Updating a Payment Instrument

default
bankAccount.type
card.issueNumber
card.startMonth
card.startYear
card.useAs
tokenizedInformation.requestorID
tokenizedInformation.transactionType
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.type
buyerInformation.personalIdentification.issuedBy.administrativeArea
billTo.address2
processingInformation.billPaymentProgramEnabled
processingInformation.bankTransferOptions.SECCode
merchantInformation.merchantDescriptor.alternateName

REST Example: Updating a Payment Instrument

Request
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684


{
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "address2": "Unit B"
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684"
    }
  },
  "id": "F39763E8CFDF2354E053AF598E0AF684",
  "object": "paymentInstrument",
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "visa"
  },
  "billTo": {
    "firstName": "Jack",
    "lastName": "Smith",
    "company": "Company Name",
    "address1": "1 Market St",
    "address2": "Unit B",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "updatedemail@vas.com",
    "phoneNumber": "4158888674"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789619999"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}

Delete a Payment Instrument

This section describes how to delete a payment instrument token.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v1/paymentinstruments/
{paymentInstrumentTokenId}
The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Payment Instrument.

Required Fields for Deleting a Payment Instrument

paymentInstrumentTokenId
Include the ID of the payment instrument token you want to retrieve in the URL path.

REST Example: Deleting a Payment Instrument

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v1/paymentinstruments/F39763E8CFDF2354E053AF598E0AF684
Successful Response
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Payments with Payment Instrument Tokens

This section contains information on making payments with payment instrument tokens.
A payment instrument represents a means of payment and a payment instrument token stores this information using an instrument identifier token. It does not store the card number and cannot exist without an associated instrument identifier. It can include an instrument identifier, expiration date, billing address, and card type. In the case of non-network token transactions, you can use card or bank account information fields with a payment instrument to make a payment transaction.
To process a payment using a payment instrument token, you must include the customer token ID as the value in the
paymentInformation.paymentInstrument.id
 field. For example:
For more information on payment instrument tokens, see Payment Instrument Tokens.

Authorizing a Payment with a Payment Instrument

This section provides the information you need in order to authorize a payment with a payment instrument.

Endpoint

Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment with a Payment Instrument

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.paymentInstrument.id
Set to the ID of the payment instrument token you want to use.

Optional Fields for Authorizing a Payment with a Payment Instrument

You can use these optional fields to include additional information when authorizing a payment with a payment instrument.
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
orderInformation.billTo.address1
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.locality
orderInformation.billTo.postalCode
paymentInformation.card.expirationMonth
paymentInformation.card.expirationYear
paymentInformation.card.number
paymentInformation.card.type

REST Example: Authorizing a Payment with a Payment Instrument

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "paymentInstrument": {
            "id": "F4D5E715F7BD9910E053A2598D0A7278"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
    "_links": {
        "authReversal": {
            "method": "POST",
            "href": "/pts/v2/payments/6765713628736138103955/reversals"
        },
        "self": {
            "method": "GET",
            "href": "/pts/v2/payments/6765713628736138103955"
        },
        "capture": {
            "method": "POST",
            "href": "/pts/v2/payments/6765713628736138103955/captures"
        }
    },
    "clientReferenceInformation": {
        "code": "12345678"
    },
    "id": "6765713628736138103955",
    "orderInformation": {
        "amountDetails": {
            "authorizedAmount": "10.00",
            "currency": "USD"
        }
    },
    "paymentAccountInformation": {
        "card": {
            "type": "001"
        }
    },
    "paymentInformation": {
        "tokenizedCard": {
            "type": "001"
        },
        "instrumentIdentifier": {
            "id": "7010000000016241111",
            "state": "ACTIVE"
        },
        "paymentInstrument": {
            "id": "F4D5E715F7BD9910E053A2598D0A7278"
        },
        "card": {
            "type": "001"
        },
        "customer": {
            "id": "F4D5E715F75E9910E053A2598D0A7278"
        }
    },
    "pointOfSaleInformation": {
        "terminalId": "111111"
    },
    "processorInformation": {
        "approvalCode": "888888",
        "networkTransactionId": "123456789619999",
        "transactionId": "123456789619999",
        "responseCode": "100",
        "avs": {
            "code": "X",
            "codeRaw": "I1"
        }
    },
    "reconciliationId": "60561224BE37KN5W",
    "status": "AUTHORIZED",
    "submitTimeUtc": "2023-02-16T18:16:03Z"
}

Making a Credit with a Payment Instrument

This section describes how to make a credit with a payment instrument.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/credits
Production:
POST
https://nabgateway-api.nab.com.au
pts/v2/credits

Required Fields for Making a Credit with a Payment Instrument

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.paymentInstrument.id
Set to the ID of the payment instrument token you want to use.

REST Example: Making a Credit with a Payment Instrument

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "paymentInstrument": {
            "id": "F4D5E715F7BD9910E053A2598D0A7278"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "void": {
      "method": "POST",
      "href": "/pts/v2/credits/7055969586686467104953/voids"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/credits/7055969586686467104953"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "creditAmountDetails": {
    "currency": "USD",
    "creditAmount": "10.00"
  },
  "id": "7055969586686467104953",
  "orderInformation": {
    "amountDetails": {
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "paymentInstrument": {
      "id": "F4D5E715F7BD9910E053A2598D0A7278"
    },
    "card": {
      "type": "001"
    }
  },
  "processorInformation": {
    "approvalCode": "888888",
    "responseCode": "100"
  },
  "reconciliationId": "67446174JRIKXXHB",
  "status": "PENDING",
  "submitTimeUtc": "2024-01-18T16:55:59Z"
}

Customer Tokens

The customer token contains data about the merchant's customer including email address, customer ID, shipping address (stored in a token), and other related fields.

Manage Customer Tokens

This section contains information on managing customer tokens.
The customer token represents customer-related information including details for a payment card, billing address, shipping address, and merchant defined data. You can create, retrieve, update, or delete a customer by submitting an HTTP
POST
,
GET
,
PATCH
, or
DELETE
 operation to the
tms/v2/customers
 endpoint. Use the
TMS
 REST API to:
For more information on customer tokens, see Customer Tokens.

Create a Customer

This section describes how to create a customer token with no payment details.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers

Required Fields for Creating a Customer

You can include any of the following fields in the body of the request:
buyerInformation.merchantCustomerID
buyerInformation.email
clientReferenceInformation.code
merchantDefinedInformation.name
merchantDefinedInformation.value

REST Example: Creating a Customer

Request
{
  "buyerInformation": {
    "merchantCustomerID": "Your customer identifier",
    "email": "
test@nab.com.au
"
  },
  "clientReferenceInformation": {
    "code": "123456"
  },
  "merchantDefinedInformation": [
    {
      "name": "data1",
      "value": "Your customer data"
    }
  ]
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    },
    "paymentInstruments": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments"
    },
    "shippingAddresses": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses"
    }
  },
  "id": "F2F3ADA770102B51E053A2598D0A9078",
  "buyerInformation": {
    "merchantCustomerID": "Your customer identifier",
    "email": "
test@nab.com.au
"
  },
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "merchantDefinedInformation": [
    {
      "name": "data1",
      "value": "Your customer data"
    }
  ],
  "metadata": {
    "creator": "testrest"
  }
}

Retrieve a Customer

This section describes how to retrieve a customer token.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

REST Example: Retrieving a Customer

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    },
    "paymentInstruments": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments"
    },
    "shippingAddresses": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses"
    }
  },
  "id": "F2F3ADA770102B51E053A2598D0A9078",
  "buyerInformation": {
    "merchantCustomerID": "Your customer identifier",
    "email": "
test@nab.com.au
"
  },
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "merchantDefinedInformation": [
    {
      "name": "data1",
      "value": "Your customer data"
    }
  ],
  "metadata": {
    "creator": "testrest"
  }
}

Update a Customer

This section describes how to update a customer token.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer. Include only the fields you want to add or update in the request.

Optional Fields for Updating a Customer

You can include any of the following fields in the body of the request:
buyerInformation.merchantCustomerID
buyerInformation.email
clientReferenceInformation.code
merchantDefinedInformation.name
merchantDefinedInformation.value

REST Example: Updating a Customer

Request
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    },
    "paymentInstruments": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments"
    },
    "shippingAddresses": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses"
    }
  },
  "id": "F2F3ADA770102B51E053A2598D0A9078",
  "buyerInformation": {
    "merchantCustomerID": "Your customer identifier",
    "email": "
test@nab.com.au
"
  },
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "merchantDefinedInformation": [
    {
      "name": "data1",
      "value": "Your customer data"
    }
  ],
  "metadata": {
    "creator": "testrest"
  }
}

Delete a Customer

This section describes how to delete a customer token.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Required Fields for Deleting a Customer Token

customerTokenId
Include the ID of the customer token you want to retrieve in the URL path.

REST Example: Deleting a Customer

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Retrieve a Customer's Default Payment with an Unmasked Card Number

This section describes how to retrieve a customer's default payment with an unmasked card number.
IMPORTANT
To retrieve unmasked payment details, you must ensure that your MLE key pair and your token vault are configured correctly. For more information on MLE keys, see Message-Level Encryption Keys. For more information on token vaults, see Token Vault Management. If necessary, contact your
National Australia Bank
 account manager or customer support.
The response is BASE 64-encoded JSON web encryption (JWE) token. The decoded JWE has these elements:
{ "alg": "RSA-OAEP-256", //The algorithm used to encrypt the CEK
    "cty": "json", //The content type
    "typ": "JWT", //The token type
    "enc": "A256GCM", //The algorithm that is used to encrypt the message
    "kid": "keyId" //The serial number of shared public cert for encryption of CEK
}
<Encrypted Data> //The encrypted payload that matches the JSON response normally returned by the
TMS
 API, except with an unmasked payment details

Header Configuration

You must pass this request header to retrieve unmasked payment details:
Accept: application/jose
.
The term
application/jose
 refers to Javascript Object Signing and Encryption (JOSE). JOSE is a framework that provides end-to-end security to JavaScript Object Notation (JSON)-based data structures. JOSE achieves this by offering a collection of specifications to encrypt and digitally sign JSON payloads. In this case, the response is message-level encrypted using a JSON Web Token (JWT).

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

REST Example: Retrieving a Customer's Default Payment with an Unmasked Card Number

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF
Response to a Successful Request
eyJraWQiOiJiYTE1ZDRmMTIzMTM0NjlkZjg5MDM1Nzk2YWE4Nzc4ZGM0NTY4ODlkIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI
6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.zxPTNWvHt40Dbtwlx2T53Jd-vazzEeN7v_6nyyPE8FpAylO9dMCQL0XOG_1AQZR
ZPhrAvilhV2Gp8xc1OuF6w0w8LtDQGcgoTVQM0HitMXSs05b_0FzYNZXHr9OPwmJxzizNoptI-Arlw55yfJNM8QNBLYGIEJkKI061P84Dk9
by-c3bfo8z8D0xO4LpA51dndSkk5QFIWaNSz5CC0nuANyPPJzGVLguBx8HYNLMH4g_dx6SEVw-QYBO0-s_Xfmv3wRjGpH0STzn7j_1MxpW7
tfXaYcrglPNCoOiSHc6dg141lHGSdvALS71qZTo49WVWbuO2kBYyhxVD1x_1P4ztQ.D1H34AH9Rwu1cr5F.dqCwRR8Ug8uv1Ow437anK8br
Ye7KPWfcw_R7ShoIlNhWCmQcQ9mVK8UCKcbuVbxt7S6_whJHOfWlm1jqwIvA7ZYtHfVyVHsG11wRZZd3vn4HGJ4rAUa3T0d_EnvF2Jeffpj
cTG6MZN5_nB4z2Ism4dLcxsnWIdzU2993hscS5641wvX3GYAhqD5OqweT1hqW8URyuSQh27WDJSlMmARE0s3hVq6O0XcdejOmulyVKMNFFp
Wpcif3G-VnTMzDI7iMx448u2tClA895cvG-E4ISDvRZ3eIjH4wgRE5Btxy5SwbS7VfCYDyRLa9z1LewRV3EwFxvb6_POtq2Da5QYSG7U-XO
aSNie6bZ7oTYKn7lD-1-crcfQY6ieSWUxMKcsi3bD0_yz1Y_Lc0Wc4M7MCIRwDmbctmZvxZuRwiBiSMsKll9gQdKTn8sEeGv7DWooJBxqiZ
kbPlzkHnw2El4Z9HETIGH1Iq0nsKC78NzTiT96i0SHN22iqZGYdIUPwB9zZJQGJNxZ3ag_Cf4C6ATAubJG4jVtdQ_JtbhHLYwhXlQFTiPMQ
rqnoh7GZDaOX3jEP9_LQiNam8U-ZNGuQby2jgqPyLQKb4dsB31eBz9TLCa7SkXqWp5_a18QVpNxeQEB0mJC7s0iy3XXB7GxxzrKLgqsxhmJ
ZjLaKUo1-Sen3HG_9oWTlXXh2r2C0b3AzX1HQ8POC5E8RcK7e-tLtvMJrLNHMZXRVAeREbVah13b1Fs-CIDWnw9QcCUxjfYNCwwOZUAZTIX
tq4YnaQYkSE6OJV-yRrajbo7CzM1HXZEioW9S9eFRJmqKpu_vtatwJXme3XjyjAqahSYCBtIx2__8688MpTmSm1_WEOZrNXoV0-htOqQAQ4
IIza4FpWfpevUJUs8hOu2FIr_Adm0-IIE2MsSptXrNvxmahuDwNpmapNUeLg7aZoQVlp33TrwcQ0AfQeD36s1nkWOhRmPfjVfXvKCeJxmD2
ndXBJxLzko0BkqWwe9WSH-RDyaN3u7TXHgyp2EDO0p6rRO8F2veRv76T6ppMrGWK9xjZLFaA1kNNt_RTlsn1hedb_R-ztOw-4y4u405yv8E
2z0W0mE58FLlWJ7AORSQjEtVANrlnwzLjE4xi_xv41CrwI8_uhlyQFfy0aj13bOyFg5nQd7k1MsawzFJfsNBRrCNwf07cpP_4nH_yv4UvV4
qSaf1DR0epfQ4iWvaZOWqhN_vJeAxXAasChiuZJ8gN2qrq_p1fO4lGIUjLcyvn9W1fqDVcgLLZUVCcHdHiFpZT7C6iKqDQBjUaAQ6E-jsES
0t2EmwkkJ21jxnwUtwCQLShXNUjXDjwKrbAiFAiHrBALXJnBY5Yd0JkJ7srB4dWR4lZxb5M5g9n-gUkto8O_u1JtII34EgbKbOHbpbOgCEN
rGUnjaIXrTVHy1uWBBTV7gmkkqd1HD9lwqbmj4IDyIdUwjkUJ4ZX9MB_E7PJ_asWnye5-RO3vFlL7_dSQkmJAiseNrve0bTlynMZW-KsC9s
0We-jjDqJP52uZ-jmJwL1hhIUef3Yt40IytfuyxiIWkGJB0qM2cppdh6F8bdbFxomWeOxFW8qllZ-1hhp5ISoW6oy8f6OyvIxFQMjkXMfoh
CdBwB3wOZYoCPq2JmrXYExQcStI3MHMkvBkNP5slTX-uT-mJlx5XHLLOPdO9io58D0CEcmdDAiZqPtQssaFKsj4Z6EMlgewmC8E7mO6LLhF
Fcof_qDaJ7d6ZNnUiVUq0tAQnxiBH6NfKybQ64O_j2yq4bE1Fzc_aOM5YcQqch8riYU0VWeS0xzgdetta8AYTjmIGE1SKhvEh_KxngNK6Rn
4GiE_-g6tQaI65ZJ9OMfVdzVbuBJ04IU1VI9KPZhAAd_xZYOnKzkaKHlogkMOaI-Pz-CKP4Ij-hrjzNIHHI8dHtXcLT5e4BGFksN87UGvJu
PDJEqpCOXcvxRKe5C0129SSMGq_MefP04pkHAnKQ1qg_gIlxz7H2lvCKGBrgnm6yfE1kD9CYqtHdDZlgcZY_dl56MRpW8fOs5xtaDVgTlme
kd4qtt59R6FpN1LQFmpKIqza5AJqPinUaZJSxvF6nkK76xx8ozxFIFitygAkK6eh8fTiuArXkTul0E3277fg-gCv9h2xz0CnDnNV5ubLfJp
2QDboy-JRE_NFN3E0eqr5MkGETtiXeGyQTGwFtr0KuvsZu4V8qg1DxiF_pPdlszTyhGL2q21Vcr2IBDzrgNKkGDLPvPXUVIjHA1XM-4dnv9
ZIx0Eb5jsGQhecQrmQaH4wcM3ZE2sWPGwLJutbVuywSnQg6YWz-PAQDk2Er4icNuybTrdw4RoZPNzY-2BGxWrpbo4J4SMK84jmsxPatCI1s
I12uhXp27LrtHEUfHHLVlFw2KHIpCWirQ7mLicp7Be1dAx3ak-RapHaH9qTVkDuMVuWIzvaj6ulY2mBltcSMyFpr7_vEGYY3LEU8_Udnvyn
SwKuXqt3MiHE0h2bEeL6X6YXC2D8iOEgsIEh6naEyKxhdfzk0BpM1MyLnAqkr34BoJhyrM_P0ZfRF4YNauqVqvr0qAZN757nRwHcPfDal22
jnVdxd65TRUtymqV5gnfKNVBFF5NfjU0zcuK3kr3llkSHaULobBOlJ3W-tBx37-0cjuXqci_ZgbRnVCbF3TnOe_kULrPLrGakcjOfVOXNhg
ckSR6Rz3At7MIhzAhKCtZm3qyxcARxrMGMrIcW3ShE62DfOOlTLotq9TJCkyI6LI93TBtQOlYnDZNcU4KW9hFqo0ZACy9cbEHA_LNUFtwUL
spFw_gu3AlUTFp3LDRDAGu9_4Ip-aw4xCPOWN7-oNuzfpasdFx7IioHahxvBi1HmMUsn09p96finQndMoByC8enwwBILNKJ9BBEgS0jaQn7
Ymag4G1xArMNnECF2ip7CDWc9dvivhHxS_AftERedVYksH7XP3YEMUoOlsOrwVhGGArZrWpHmNcX0woTvK9lJLjxHMl9w6lhhcvY3X-glV5
AKJczoDnVJe-6Q9cnH0BYE8b_0LgdlcN7dVGEXkjR9EAm0bsytEO6zm53u-zRwq5wzBVBA7WMBuQLPjyvUB9WPueBfKPhJhnYIYKCZZplRw
RxGg04RKkwl8nKGMSfpITD0L6NiYWg-aS7aSQVa21RpYxZoCr9t2lFo8gxe0Lhr5mGZRLv_toZ5wuxViHUPTvtG-UVv6IS3M4k6GTzSh90j
OOBeDfChJzPLXzQWLsIYTUfzmEbkcncuo7c8auEgEabcfo4q7loiCuK_QODY_wB6_PDh6rWhINsAN0KC27sPcv0rIkADo9uDGhKCPb314EK
9RhUUsGBJjOvxX1oKfy0OXfURdYeG8DC6zCZtazrX6DO12rcsZlCPu2Fj1ZPWoAdKYqUAaeX8DdYBAFhvmhxuLlmXYW4zPj89ZhDrbSDCxs
e0w6rlWbXTaEkiqc3-4S8Az3DJG73jSMB58PtAKUHfpjWR9sp0TLtpfxw_XPtwbE_7EHmchQqNq9zFiB0F6Cxu1eF-5eObABh-EEpQ68Ppp
3zuorFSSNUuW-nKGl_Eio6gPyUYuMSen8zA.BARlPgBMj068Dt6OGEiPnA

Retrieve a Customer's Default Payment and Shipping Details

This section describes how to retrieve a customer's default payment and shipping details.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

REST Example: Retrieving a Customer's Default Payment and Shipping Details

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF
Response to a Successful Request
{"_links": {
    "self": {
      "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
    },
    "paymentInstruments": {
      "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/payment-instruments"
    },
    "shippingAddresses": {
      "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/shipping-addresses"
    }
  },
  "id",
  ":",
  "F45FB3E443AC3C57E053A2598D0A9CFF",
  "clientReferenceInformation",
  ":",
  {
    "code": "TC50171_3"
  },
  "defaultPaymentInstrument",
  ":",
  {
    "id": "F45FC6785E3C31A2E053A2598D0A5346"
  },
  "defaultShippingAddress",
  ":",
  {
    "id": "F45FB3E443AF3C57E053A2598D0A9CFF"
  },
  "metadata",
  ":",
  {
    "creator": "testrest"
  },
  "_embedded",
  ":",
  {
    "defaultPaymentInstrument": {
      "_links": {
        "self": {
          "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/payment-instruments/F45FC6785E3C31A2E053A2598D0A5346"
        },
        "customer": {
          "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
      },
      "id": "F45FC6785E3C31A2E053A2598D0A5346",
      "default": true,
      "state": "ACTIVE",
      "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
      },
      "buyerInformation": {
        "currency": "USD"
      },
      "billTo": {
        "firstName": "JOHN",
        "lastName": "DEO",
        "address1": "201 S. Division St.",
        "address2": "Address 2",
        "locality": "Ann Arbor",
        "administrativeArea": "MI",
        "postalCode": "48104-2201",
        "country": "US",
        "email": "",
        "phoneNumber": "999999999"
      },
      "processingInformation": {
        "billPaymentProgramEnabled": false
      },
      "instrumentIdentifier": {
        "id": "7030000000014911515"
      },
      "metadata": {
        "creator": "testrest"
      },
      "_embedded": {
        "instrumentIdentifier": {
          "_links": {
            "self": {
              "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515"
            },
            "paymentInstruments": {
              "href": "
https://nabgateway-api-test.nab.com.au
/tms/v1/instrumentidentifiers/7030000000014911515/paymentinstruments"
            }
          },
          "id": "7030000000014911515",
          "object": "instrumentIdentifier",
          "state": "ACTIVE",
          "tokenizedCard": {
            "state": "ACTIVE",
            "number": "489537XXXXXX5914",
            "expirationMonth": "12",
            "expirationYear": "2022",
            "type": "visa",
            "requestorId": "40010052236",
            "card": {
              "suffix": "1515",
              "expirationMonth": "12",
              "expirationYear": "2031"
            },
            "metadata": {
              "cardArt": {
                "combinedAsset": {
                  "id": "84cfb836af434859be62c766bdc9e510",
                  "_links": {
                    "self": {
                      "href": "/tms/v2/tokens/7030080000051311515/vts/assets/card-art-combined"
                    }
                  }
                }
              },
              "issuer": {
                "name": "issuing bank name",
                "shortDescription": "The Bank Card",
                "longDescription": "The Bank Card Platinum Rewards",
                "country": "Country of issuing Bank",
                "accountPrefix": "BIN",
                "email": "issuer@example.com",
                "phoneNumber": "1112223333",
                "url": "http://www.example.com"
              }
            }
          },
          "card": {
            "number": "489537XXXXXX1515"
          },
          "issuer": {
            "paymentAccountReference": "V0010013019326121174070050420"
          },
          "processingInformation": {
            "authorizationOptions": {
              "initiator": {
                "merchantInitiatedTransaction": {
                  "previousTransactionId": "123456789619999"
                }
              }
            }
          },
          "metadata": {
            "creator": "testrest"
          }
        }
      }
    },
    "defaultShippingAddress": {
      "_links": {
        "self": {
          "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/shipping-addresses/F45FB3E443AF3C57E053A2598D0A9CFF"
        },
        "customer": {
          "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
      },
      "id": "F45FB3E443AF3C57E053A2598D0A9CFF",
      "default": true,
      "shipTo": {
        "firstName": "JOHN",
        "lastName": "DEO",
        "company": "Visa",
        "address1": "201 S. Division St.",
        "address2": "Address 2",
        "locality": "Ann Arbor",
        "administrativeArea": "MI",
        "postalCode": "48104-2201",
        "country": "US"
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }

Payments with Customer Tokens

This section contains information on making payments with customer tokens.
The customer token represents customer-related information including details for a payment card, billing address, shipping address, and merchant defined data.
You can make a payment using an existing customer token or create one. To make a payment using a new customer token, you must include token creation in the authorization request. For example:
To process a payment using an existing customer token, you must include the customer token ID as the value in the
paymentInformation.customer.id
 field. For example:
For more information on customer tokens, see Customer Tokens.

Authorizing a Payment with a Customer Token

This section provides the information you need to authorize a payment with a customer token.

Endpoint

Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment with a Customer Token

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.customer.id
Set to the ID of the customer token you want to use.

REST Example: Authorizing a Payment with a Customer Token

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "customer": {
            "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
        }

    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
The request response returns the payment instrument and shipping address IDs that are used as the customer's defaults.
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/7055928871556818104953/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/7055928871556818104953"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/7055928871556818104953/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "id": "7055928871556818104953",
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "10.00",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "shippingAddress": {
      "id": "0F35F0D99AD088B5E063A2598D0AE066"
    },
    "paymentInstrument": {
      "id": "0F35E9CFEA463E34E063A2598D0A3FC2"
    },
    "card": {
      "type": "001"
    },
    "customer": {
      "id": "B21E6717A6F03479E05341588E0A303F"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "111111"
  },
  "processorInformation": {
    "approvalCode": "888888",
    "networkTransactionId": "123456789619999",
    "transactionId": "123456789619999",
    "responseCode": "100",
    "avs": {
      "code": "X",
      "codeRaw": "I1"
    }
  },
  "reconciliationId": "67467352CRIISD1G",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2024-01-18T15:48:07Z"
}

REST Example: Authorizing a Payment Using a Customer Token Linked to a Network Token

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "paymentInformation": {
    "customer": {
      "id": "F60328413BAB09A4E053AF598E0A33DB"
    }
  },
  "orderInformation": {
    "amountDetails": {
      "totalAmount": "102.21",
      "currency": "USD"
    }
  }
}
Response to a Successful Request
The request response returns the payment instrument and shipping address IDs that are used as the customer's defaults.
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/6778647071126384904953/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/6778647071126384904953"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/6778647071126384904953/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "TC50171_3"
  },
  "id": "6778647071126384904953",
  "issuerInformation": {
    "responseRaw": "0110322000000E100002000....."
  },
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "102.21",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "002"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "002"
    },
    "instrumentIdentifier": {
      "id": "7020000000010603216",
      "state": "ACTIVE"
    },
    "shippingAddress": {
      "id": "F60328413BAE09A4E053AF598E0A33DB"
    },
    "paymentInstrument": {
      "id": "F6032841BE33098EE053AF598E0AB0A5"
    },
    "card": {
      "type": "002"
    },
    "customer": {
      "id": "F60328413BAB09A4E053AF598E0A33DB"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "08244117"
  },  "processingInformation": {    "paymentSolution": "014"  },
  "processorInformation": {
    "paymentAccountReferenceNumber": "50015OU4U5UYXLV127XTONYN49CL1",
    "merchantNumber": "000844028303882",
    "approvalCode": "831000",
    "networkTransactionId": "0602MCC603474",
    "transactionId": "0602MCC603474",
    "responseCode": "00",
    "avs": {
      "code": "Y",
      "codeRaw": "Y"
    }
  },
  "reconciliationId": "EUHW1EMHIZ3O",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2023-03-03T17:31:48Z"
}

Making a Credit with a Customer Token

This section describes how to make a credit with a customer token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/credits
Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/credits

Required Fields for Making a Credit with a Customer Token

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.customer.id
Set to the ID of the customer token you want to use.

REST Example: Making a Credit with a Customer Token

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "customer": {
            "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "void": {
      "method": "POST",
      "href": "/pts/v2/credits/7055967677826132904951/voids"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/credits/7055967677826132904951"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "creditAmountDetails": {
    "currency": "USD",
    "creditAmount": "10.00"
  },
  "id": "7055967677826132904951",
  "orderInformation": {
    "amountDetails": {
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7030000000014831523",
      "state": "ACTIVE"
    },
    "shippingAddress": {
      "id": "F45FD8DE51B99E9CE053A2598D0AFDFA"
    },
    "paymentInstrument": {
      "id": "F45FE45E7993C7DBE053A2598D0AED19"
    },
    "card": {
      "type": "001"
    },
    "customer": {
      "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
    }
  },
  "processorInformation": {
    "paymentAccountReferenceNumber": "V0010013019326121538313096266",
    "approvalCode": "888888",
    "responseCode": "100"
  },
  "reconciliationId": "67444961BRIL0BB8",
  "status": "PENDING",
  "submitTimeUtc": "2024-01-18T16:52:48Z"
}

Shipping Address Tokens

The shipping address token contains the shipping address information associated with a customer token. This token includes any shipping address details, including the recipient's first and last name, company, shipping address, email, and phone number. A customer can have one or more shipping addresses, with one allocated as the customer's default shipping address.

Manage Shipping Address Tokens

This section contains information managing shipping address tokens.
A shipping address token is associated with a customer token. You can create, retrieve, update, or delete an instrument identifier by submitting an HTTP
POST
,
GET
,
PATCH
, or
DELETE
 operation to the
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
 endpoint. Use the
TMS
 REST API shipping address endpoint to:
For more information on shipping address tokens, see Shipping Address Tokens.

Create a Customer Shipping Address

This section describes how to create a customer shipping address.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.
If the default field is not supplied and the customer does not already have a shipping address, then the shipping address will become the default. Otherwise, it will become a customer's non-default shipping address.

Required Fields for Creating a Customer Shipping Address

You can include any of the following fields in the body of the request:
shipTo.address1
shipTo.address2
shipTo.administrativeArea
shipTo.company
shipTo.country
shipTo.email
shipTo.firstName
shipTo.lastName
shipTo.locality
shipTo.phoneNumber
shipTo.postalCode

REST Example: Creating a Customer Shipping Address

Request
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses/F2F4C2D1B966D631E053A2598D0AB155"
    },
    "customer": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    }
  },
  "id": "F2F4C2D1B966D631E053A2598D0AB155",
  "default": true,
  "shipTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "metadata": {
    "creator": "testrest"
  }
}

Add a Default Shipping Address

This section describes how to add a default customer shipping address.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Required Fields for Adding a Default Shipping Address

You can include any of the following fields in the body of the request:
default
Set to
true
.
shipTo.address1
shipTo.address2
shipTo.administrativeArea
shipTo.company
shipTo.country
shipTo.email
shipTo.firstName
shipTo.lastName
shipTo.locality
shipTo.phoneNumber
shipTo.postalCode

REST Example: Adding a Default Shipping Address

Request
{
    "default": true,
    "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "phoneNumber": "4158880000",
        "email": "
test@nab.com.au
"
    }
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/shipping-addresses/F45FD8DE51A89E9CE053A2598D0AFDFA"
        },
        "customer": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "id": "F45FD8DE51A89E9CE053A2598D0AFDFA",
    "default": true,
    "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "metadata": {
        "creator": "testrest"
    }
}

Add a Non-Default Shipping Address

This section describes how to add a non-default customer shipping address.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer Shipping Address.

Required Fields for Adding a Non-Default Shipping Address

You can include any of the following fields in the body of the request:
default
Set to
false
.
shipTo.address1
shipTo.address2
shipTo.administrativeArea
shipTo.company
shipTo.country
shipTo.email
shipTo.firstName
shipTo.lastName
shipTo.locality
shipTo.phoneNumber
shipTo.postalCode

REST Example: Adding a Non-Default Shipping Address

Request
{
	"default": false,
        "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "phoneNumber": "4158880000",
        "email": "
test@nab.com.au
"
    }
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/shipping-addresses/F45FD8DE51B99E9CE053A2598D0AFDFA"
        },
        "customer": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "id": "F45FD8DE51B99E9CE053A2598D0AFDFA",
    "default": false,
    "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "metadata": {
        "creator": "testrest"
    }
}

Change a Default Shipping Address

This section describes how to change a default customer shipping address.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. In the
{shippingAddressTokenId}
 path parameter, pass the shipping address token ID response field returned when you created a shipping address token. For more information, see Create a Customer and Create a Customer Shipping Address.

Required Fields for Changing a Default Shipping Address

default
Set to
true
.

REST Example: Changing Default Shipping Address

Request
{
    "default": true
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/shipping-addresses/F45FD8DE51B99E9CE053A2598D0AFDFA"
        },
        "customer": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "id": "F45FD8DE51B99E9CE053A2598D0AFDFA",
    "default": true,
    "shipTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "metadata": {
        "creator": "testrest"
    }
}

Retrieve a Customer Shipping Address

This section describes how to retrieve a customer shipping address.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. In the
{shippingAddressTokenId}
 path parameter, pass the shipping address token ID response field returned when you created a shipping address token. For more information, see Create a Customer and Create a Customer Shipping Address.

REST Example: Retrieving a Shipping Address

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses/F2F4C2D1B966D631E053A2598D0AB155
Response to a Successful Request
{
  "shipTo": {
    "firstName": "Jane",
    "lastName": "Smith",
    "company": "Lear Group, LLC",
    "address1": "123 Mountain Peaks Rd",
    "address2": "",
    "locality": "Mountain Peaks",
    "administrativeArea": "CA",
    "postalCode": "90212",
    "country": "US",
    "email": "jane.smith@leargroupllc.world",
    "phoneNumber": "123-456-7890"
  }
}

Retrieve All Customer Shipping Addresses

This section describes how to retrieve all customer shipping addresses.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.
Use these query string parameters to filter the list of payment instrument tokens:
  • offset
     — Page offset number.
  • limit
     — Maximum number of items you would like returned.

REST Example: Retrieving All Customer Shipping Addresses

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses?offset=0&limit=20
Response to a Successful Request
The shipping address in the first array element is the default shipping address.
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses?offset=0&limit=20"
    },
    "first": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses?offset=0&limit=20"
    },
    "last": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses?offset=0&limit=20"
    }
  },
  "offset": 0,
  "limit": 20,
  "count": 1,
  "total": 1,
  "_embedded": {
    "shippingAddresses": [
      {
        "_links": {
          "self": {
            "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses/F2F4C2D1B966D631E053A2598D0AB155"
          },
          "customer": {
            "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
          }
        },
        "id": "F2F4C2D1B966D631E053A2598D0AB155",
        "default": true,
        "shipTo": {
          "firstName": "John",
          "lastName": "Doe",
          "company": "Company Name",
          "address1": "1 Market St",
          "locality": "San Francisco",
          "administrativeArea": "CA",
          "postalCode": "94105",
          "country": "US",
          "email": "
test@nab.com.au
",
          "phoneNumber": "4158880000"
        },
        "metadata": {
          "creator": "testrest"
        }
      }
    ]
  }
}

Update a Customer Shipping Address

This section describes how to update a customer shipping address.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. In the
{shippingAddressTokenId}
 path parameter, pass the shipping address token ID response field returned when you created a shipping address token. For more information, see Create a Customer and Create a Customer Shipping Address.

Required Fields for Updating a Customer Shipping Address

shipTo.address1
shipTo.address2
shipTo.administrativeArea
shipTo.company
shipTo.country
shipTo.email
shipTo.firstName
shipTo.lastName
shipTo.locality
shipTo.phoneNumber
shipTo.postalCode

REST Example: Updating a Customer Shipping Address

Request
{
  "shipTo": {
    "firstName": "Jane",
    "lastName": "Smith",
    "company": "Lear Group, LLC",
    "address1": "123 Mountain Peaks Rd",
    "address2": "Unit B",
    "locality": "Mountain Peaks",
    "administrativeArea": "CA",
    "postalCode": "90212",
    "country": "US",
    "email": "jane.smith@leargroupllc.world",
    "phoneNumber": "123-456-7890"
  }
}
Response to a Successful Request
{
  "shipTo": {
    "firstName": "Jane",
    "lastName": "Smith",
    "company": "Lear Group, LLC",
    "address1": "123 Mountain Peaks Rd",
    "address2": "Unit B",
    "locality": "Mountain Peaks",
    "administrativeArea": "CA",
    "postalCode": "90212",
    "country": "US",
    "email": "jane.smith@leargroupllc.world",
    "phoneNumber": "123-456-7890"
  }
}

Delete a Customer Shipping Address

This section describes how to delete a customer shipping address.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/shipping-addresses/{shippingAddressTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. In the
{shippingAddressTokenId}
 path parameter, pass the shipping address token ID response field returned when you created a shipping address token. For more information, see Create a Customer and Create a Customer Shipping Address.
IMPORTANT
If you have more than one shipping address, the default shipping address cannot be deleted without first selecting a new default shipping address.

Required Fields for Deleting a Customer Shipping Address

customerTokenId
Include the ID of the customer token you want to retrieve in the URL path.
shippingAddressTokenId
Include the ID of the shipping address token you want to retrieve in the URL path.

REST Example: Deleting a Customer Shipping Address

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/shipping-addresses/F2F4C2D1B966D631E053A2598D0AB155
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Payments with Shipping Address Tokens

This section contains information on making payments with shipping address tokens.
A shipping address token is associated with a specific customer token. This includes any shipping address details, including first and last name, company, shipping address, email, and phone number.
To make a payment using a shipping address token, you must either create the token in the authorization request or include the customer token ID as the value in the
paymentInformation.customer.id
 and
paymentInformation.shippingAddress.id
 fields. You can make payments using non-default shipping address tokens. For example:
For more information on shipping address tokens, see Shipping Address Tokens.

Authorizing a Payment with a Non-Default Shipping Address

This section provides the information you need in order to make a payment with a non-default shipping address.

Endpoint

Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment with a Non-Default Shipping Address

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.customer.id
Set to the ID of the customer token you want to use.
paymentInformation.shippingAddress.id
Set to the ID of the shipping address token you want to use.

REST Example: Authorizing a Payment with a Non-Default Shipping Address

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "customer": {
            "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
        },
        "shippingAddress": {
            "id": "F45FD8DE51B99E9CE053A2598D0AFDFA"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/7055949037316786904953/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/7055949037316786904953"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/7055949037316786904953/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "id": "7055949037316786904953",
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "10.00",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7030000000014831523",
      "state": "ACTIVE"
    },
    "shippingAddress": {
      "id": "F45FD8DE51B99E9CE053A2598D0AFDFA"
    },
    "paymentInstrument": {
      "id": "F45FE45E7993C7DBE053A2598D0AED19"
    },
    "card": {
      "type": "001"
    },
    "customer": {
      "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "111111"
  },
  "processorInformation": {
    "approvalCode": "888888",
    "networkTransactionId": "123456789619999",
    "transactionId": "123456789619999",
    "responseCode": "100",
    "avs": {
      "code": "X",
      "codeRaw": "I1"
    }
  },
  "reconciliationId": "674679208RIKQ52K",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2024-01-18T16:21:44Z"
}

Customer Payment Instruments

Customer payment instruments are payment instruments that are linked to a specific customer token. Supported payment instruments include payment cards, tokenized cards (Apple Pay and Android Pay), or ACH bank accounts.

Manage Customer Payment Instruments

This section contains information on managing customer payment instrument tokens.
Customer payment instruments are payment instruments that are linked to a specific customer token. The following payment instruments are supported:
  • Payment card
  • Tokenized card (Apple Pay and Android Pay)
  • ACH bank account
You can create, retrieve, update, or delete a payment instrument by submitting an HTTP
POST
,
GET
,
PATCH
, or
DELETE
 operation to the
tms/v2/customers/
{customerTokenId}
/payment-instruments
 endpoint. Use the
TMS
 REST API payment instrument endpoint to:
For more information on customer tokens and payment instrument tokens, see Customer Tokens and Payment Instrument Tokens, respectively.

Create a Customer Payment Instrument

This section describes how to create a customer payment instrument token.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Required Fields for Creating a Customer Payment Instrument

card.type
Required if the instrument identifier ID being linked to is card-based.

Optional Fields for Creating a Customer Payment Instrument

bankAccount.type
billTo.address1
billTo.address2
billTo.aminstrativeArea
billTo.company
billTo.country
billTo.email
billTo.firstName
billTo.lastName
billTo.locality
billTo.phoneNumber
billTo.postalCode
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.issuedBy.administrativeArea
buyerInformation.personalIdentification.type
card.expirationMonth
card.expirationYear
card.issueNumber
card.startMonth
card.startYear
card.useAs
card.tokenizedInformation.requestorID
card.tokenizedInformation.transactionType
default
If you do not include this field, the first payment instrument for a customer becomes the default. A subsequent payment instrument becomes the non-default option.
instrumentIdentifier.id
processingInformation.billPaymentProgramEnabled
merchantInformation.merchantDescriptor.alternateName

REST Example: Creating a Customer Payment Instrument

Request
{
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "001"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081"
    },
    "customer": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    }
  },
  "id": "F39732BE4BDA9A1EE053AF598E0A4081",
  "default": true,
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "001"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789012345"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}
}

Add a Default Payment Instrument Using Instrument Identifier

This section describes how add a default payment instrument using an instrument identifier.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Required Fields for Adding a Default Payment Instrument Using Instrument Identifier Using the REST API

default
Set value to
true
.

Optional Fields for Adding a Default Payment Instrument Using Instrument Identifier Using the REST API

bankAccount.type
billTo.address1
billTo.address2
billTo.aminstrativeArea
billTo.company
billTo.country
billTo.email
billTo.firstName
billTo.lastName
billTo.locality
billTo.phoneNumber
billTo.postalCode
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.issuedBy.administrativeArea
buyerInformation.personalIdentification.type
card.expirationMonth
card.expirationYear
card.issueNumber
card.startMonth
card.startYear
card.type
card.useAs
card.tokenizedInformation.requestorID
card.tokenizedInformation.transactionType
instrumentIdentifier.id
processingInformation.billPaymentProgramEnabled
merchantInformation.merchantDescriptor.alternateName

REST Example: Adding a Default Payment Instrument Using Instrument Identifier

Request
{
    "default": true,
    "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
    },
    "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "phoneNumber": "4158880000",
        "email": "
test@nab.com.au
"
    },
    "instrumentIdentifier": {
        "id": "7010000000016241111"
    }
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/payment-instruments/F45FD8DE542A9E9CE053A2598D0AFDFA"
        },
        "customer": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "id": "F45FD8DE542A9E9CE053A2598D0AFDFA",
    "default": true,
    "state": "ACTIVE",
    "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
    },
    "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "instrumentIdentifier": {
        "id": "7030000000014911515"
    },
    "metadata": {
        "creator": "testrest"
    },
    "_embedded": {
        "instrumentIdentifier": {
            "_links": {
                "self": {
                    "href": "/tms/v1/instrumentidentifiers/7030000000014911515"
                },
                "paymentInstruments": {
                    "href": "/tms/v1/instrumentidentifiers/7030000000014911515/paymentinstruments"
                }
            },
            "id": "7030000000014911515",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
                "number": "489537XXXXXX1515"
            },
            "issuer": {
                "paymentAccountReference": "V0010013019326121174070050420"
            },
            "processingInformation": {
                "authorizationOptions": {
                    "initiator": {
                        "merchantInitiatedTransaction": {
                            "previousTransactionId": "123456789619999"
                        }
                    }
                }
            },
            "metadata": {
                "creator": "testrest"
            }
        }
    }
}

Add a Default Payment Instrument with Validated Payment

This section describes how to add a default payment instrument with a validated payment method.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments
Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments

Required Fields for Adding a Default Payment Instrument with Validated Payment Using the REST API

orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
orderInformation.billTo.address1
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.locality
orderInformation.billTo.postalCode
paymentInformation.card.expirationMonth
paymentInformation.card.expirationYear
paymentInformation.card.number
paymentInformation.card.type
paymentInformation.customer.id
Set the value to the ID of the customer token.
processingInformation.actionList
Set the value to
TOKEN_CREATE
.
processingInformation.actionTokenTypes
Set the value to
paymentInstrument
.
tokenInformation.paymentInstrument.default
Set value to
true
.

REST Example: Adding a Default Payment Instrument with Validated Payment

Request
{
    "clientReferenceInformation": {
        "code": "TC50171_3"
    },
    "processingInformation": {
        "commerceIndicator": "internet",
        "actionList": [
            "TOKEN_CREATE"
        ],
        "actionTokenTypes": [
            "paymentInstrument"
        ]
    },
    "orderInformation": {
        "billTo": {
            "country": "US",
            "lastName": "Deo",
            "address2": "Address 2",
            "address1": "201 S. Division St.",
            "postalCode": "48104-2201",
            "locality": "Ann Arbor",
            "administrativeArea": "MI",
            "firstName": "John",
            "phoneNumber": "999999999",
            "district": "MI",
            "buildingNumber": "123",
            "company": "Visa",
            "email": "
test@nab.com.au
"
        },
        "shipTo": {
            "country": "US",
            "lastName": "Deo",
            "address2": "Address 2",
            "address1": "201 S. Division St.",
            "postalCode": "48104-2201",
            "locality": "Ann Arbor",
            "administrativeArea": "MI",
            "firstName": "John",
            "phoneNumber": "999999999",
            "district": "MI",
            "buildingNumber": "123",
            "company": "Visa",
            "email": "
test@nab.com.au
"
        },
        "amountDetails": {
            "totalAmount": "102.00",
            "currency": "USD"
        }
    },
    "paymentInformation": {
        "customer": {
            "id": "{{tms-customer-id}}"
        },
        "card": {
            "expirationYear": "2031",
            "number": "4895379987X11523",
            "securityCode": "965",
            "expirationMonth": "12",
            "type": "001"
        }
    },
    "tokenInformation": {
        "paymentInstrument": {
            "default": "true"
        }
    }
}
Response to a Successful Request
{
    "_links": {
        "authReversal": {
            "method": "POST",
            "href": "/pts/v2/payments/6760637747316173203955/reversals"
        },
        "self": {
            "method": "GET",
            "href": "/pts/v2/payments/6760637747316173203955"
        },
        "capture": {
            "method": "POST",
            "href": "/pts/v2/payments/6760637747316173203955/captures"
        }
    },
    "clientReferenceInformation": {
        "code": "TC50171_3"
    },
    "id": "6760637747316173203955",
    "orderInformation": {
        "amountDetails": {
            "authorizedAmount": "102.00",
            "currency": "USD"
        }
    },
    "paymentAccountInformation": {
        "card": {
            "type": "001"
        }
    },
    "paymentInformation": {
        "tokenizedCard": {
            "type": "001"
        },
        "shippingAddress": {
            "id": "F45FD8DE51B99E9CE053A2598D0AFDFA"
        },
        "card": {
            "type": "001"
        },
        "customer": {
            "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "pointOfSaleInformation": {
        "terminalId": "111111"
    },
    "processorInformation": {
        "paymentAccountReferenceNumber": "V0010013019326121538313096266",
        "approvalCode": "888888",
        "networkTransactionId": "123456789619999",
        "transactionId": "123456789619999",
        "responseCode": "100",
        "avs": {
            "code": "X",
            "codeRaw": "I1"
        }
    },
    "reconciliationId": "69815876LDTHD4XU",
    "status": "AUTHORIZED",
    "submitTimeUtc": "2023-02-10T21:16:15Z",
    "tokenInformation": {
        "instrumentidentifierNew": false,
        "instrumentIdentifier": {
            "state": "ACTIVE",
            "id": "7030000000014831523"
        },
        "paymentInstrument": {
            "id": "F45FE45E7993C7DBE053A2598D0AED19"
        }
    }
}

Add a Non-Default Payment Instrument Using Instrument Identifier

This section describes how to add a non-default payment instrument using instrument identifier.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.

Required Fields for Adding a Non-Default Payment Instrument Using Instrument Identifier

customerTokenId
Include the ID of the customer token you want to retrieve in the URL path.
paymentInstrumentTokenId
Include the ID of the payment instrument token you want to retrieve in the URL path.

Optional Fields for Adding a Non-Default Payment Instrument Using Instrument Identifier

bankAccount.type
billTo.address1
billTo.address2
billTo.aminstrativeArea
billTo.company
billTo.country
billTo.email
billTo.firstName
billTo.lastName
billTo.locality
billTo.phoneNumber
billTo.postalCode
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.issuedBy.administrativeArea
buyerInformation.personalIdentification.type
card.expirationMonth
card.expirationYear
card.issueNumber
card.startMonth
card.startYear
card.type
card.useAs
card.tokenizedInformation.requestorID
card.tokenizedInformation.transactionType
default
Set value to
true
 if default, otherwise set value to
false
.
instrumentIdentifier.id
Set the value to the ID of the instrument identifier token.
processingInformation.billPaymentProgramEnabled
merchantInformation.merchantDescriptor.alternateName

REST Example: Adding a Non-Default Payment Instrument Using Instrument Identifier

Request
{
    "default": false,
    "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
    },
    "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "phoneNumber": "4158880000",
        "email": "
test@nab.com.au
"
    },
    "instrumentIdentifier": {
        "id": "{{tms-instrumentIdentifier-id}}"
    }
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF/payment-instruments/F45FE3A5DAD6CF8CE053A2598D0AA1EF"
        },
        "customer": {
            "href": "/tms/v2/customers/F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "id": "F45FE3A5DAD6CF8CE053A2598D0AA1EF",
    "default": false,
    "state": "ACTIVE",
    "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
    },
    "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "instrumentIdentifier": {
        "id": "7030000000012931531"
    },
    "metadata": {
        "creator": "testrest"
    },
    "_embedded": {
        "instrumentIdentifier": {
            "_links": {
                "self": {
                    "href": "/tms/v1/instrumentidentifiers/7030000000012931531"
                },
                "paymentInstruments": {
                    "href": "/tms/v1/instrumentidentifiers/7030000000012931531/paymentinstruments"
                }
            },
            "id": "7030000000012931531",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
                "number": "489537XXXXXX1531"
            },
            "issuer": {
                "paymentAccountReference": "V0010013019326121921451482293"
            },
            "processingInformation": {
                "authorizationOptions": {
                    "initiator": {
                        "merchantInitiatedTransaction": {
                            "previousTransactionId": "123456789619999"
                        }
                    }
                }
            },
            "metadata": {
                "creator": "testrest"
            }
        }
    }
}

Add a Non-Default Payment Instrument with Validated Payment

This section describes how to add a non-default payment instrument with a validated payment.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/pts/v2/payments
Production:
GET
https://nabgateway-api.nab.com.au
/pts/v2/payments
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Required Fields for Adding a Non-Default Payment Instrument with Validated Payment Using the REST API

orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
orderInformation.billTo.address1
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.locality
orderInformation.billTo.postalCode
paymentInformation.card.expirationMonth
paymentInformation.card.expirationYear
paymentInformation.card.number
paymentInformation.card.type
paymentInformation.customer.id
Set the value to the ID of the customer token.
processingInformation.actionList
Set the value to
TOKEN_CREATE
.
processingInformation.actionTokenTypes
Set the value to
paymentInstrument
.
tokenInformation.paymentInstrument.default
Set value to
false
.

REST Example: Adding a Non-Default Payment Instrument with Validated Payment

Request
{
    "clientReferenceInformation": {
        "code": "TC50171_3"
    },
    "processingInformation": {
        "commerceIndicator": "internet",
        "actionList": [
            "TOKEN_CREATE"
        ],
        "actionTokenTypes": [
            "paymentInstrument"
        ]
    },
    "orderInformation": {
        "billTo": {
            "country": "US",
            "lastName": "Deo",
            "address2": "Address 2",
            "address1": "201 S. Division St.",
            "postalCode": "48104-2201",
            "locality": "Ann Arbor",
            "administrativeArea": "MI",
            "firstName": "John",
            "phoneNumber": "999999999",
            "district": "MI",
            "buildingNumber": "123",
            "company": "Visa",
            "email": "
test@nab.com.au
"
        },
        "shipTo": {
            "country": "US",
            "lastName": "Deo",
            "address2": "Address 2",
            "address1": "201 S. Division St.",
            "postalCode": "48104-2201",
            "locality": "Ann Arbor",
            "administrativeArea": "MI",
            "firstName": "John",
            "phoneNumber": "999999999",
            "district": "MI",
            "buildingNumber": "123",
            "company": "Visa",
            "email": "
test@nab.com.au
"
        },
        "amountDetails": {
            "totalAmount": "102.00",
            "currency": "USD"
        }
    },
    "paymentInformation": {
        "customer": {
            "id": "{{tms-customer-id}}"
        },
        "card": {
            "expirationYear": "2031",
            "number": "4895379987X11531",
            "securityCode": "258",
            "expirationMonth": "12",
            "type": "001"
        }
    },
    "tokenInformation": {
        "paymentInstrument": {
            "default": "false"
        }
    }
}
Response to a Successful Request
{
    "_links": {
        "authReversal": {
            "method": "POST",
            "href": "/pts/v2/payments/6760638084316175703955/reversals"
        },
        "self": {
            "method": "GET",
            "href": "/pts/v2/payments/6760638084316175703955"
        },
        "capture": {
            "method": "POST",
            "href": "/pts/v2/payments/6760638084316175703955/captures"
        }
    },
    "clientReferenceInformation": {
        "code": "TC50171_3"
    },
    "id": "6760638084316175703955",
    "orderInformation": {
        "amountDetails": {
            "authorizedAmount": "102.00",
            "currency": "USD"
        }
    },
    "paymentAccountInformation": {
        "card": {
            "type": "001"
        }
    },
    "paymentInformation": {
        "tokenizedCard": {
            "type": "001"
        },
        "shippingAddress": {
            "id": "F45FD8DE51B99E9CE053A2598D0AFDFA"
        },
        "card": {
            "type": "001"
        },
        "customer": {
            "id": "F45FB3E443AC3C57E053A2598D0A9CFF"
        }
    },
    "pointOfSaleInformation": {
        "terminalId": "111111"
    },
    "processorInformation": {
        "paymentAccountReferenceNumber": "V0010013019326121921451482293",
        "approvalCode": "888888",
        "networkTransactionId": "123456789619999",
        "transactionId": "123456789619999",
        "responseCode": "100",
        "avs": {
            "code": "X",
            "codeRaw": "I1"
        }
    },
    "reconciliationId": "698162754DTIATRS",
    "status": "AUTHORIZED",
    "submitTimeUtc": "2023-02-10T21:16:48Z",
    "tokenInformation": {
        "instrumentidentifierNew": false,
        "instrumentIdentifier": {
            "state": "ACTIVE",
            "id": "7030000000012931531"
        },
        "paymentInstrument": {
            "id": "F45FE45E79DCC7DBE053A2598D0AED19"
        }
    }
}

Change a Customer's Default Payment Instrument

This section describes how to change a customer's default payment instrument.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.

Required Fields for Changing a Customer's Default Payment Instrument

default
Set value to
true
.

REST Example: Changing a Customer's Default Payment Instrument

Request
{
    "default": true
}
Response to a Successful Request
{
    "_links": {
        "self": {
            "href": "/tms/v2/customers/F4D5E715F75E9910E053A2598D0A7278/payment-instruments/F4D5E715F7BD9910E053A2598D0A7278"
        },
        "customer": {
            "href": "/tms/v2/customers/F4D5E715F75E9910E053A2598D0A7278"
        }
    },
    "id": "F4D5E715F7BD9910E053A2598D0A7278",
    "default": true,
    "state": "ACTIVE",
    "card": {
        "expirationMonth": "12",
        "expirationYear": "2031",
        "type": "001"
    },
    "billTo": {
        "firstName": "John",
        "lastName": "Doe",
        "company": "Visa",
        "address1": "1 Market St",
        "locality": "san francisco",
        "administrativeArea": "CA",
        "postalCode": "94105",
        "country": "US",
        "email": "
test@nab.com.au
",
        "phoneNumber": "4158880000"
    },
    "instrumentIdentifier": {
        "id": "7010000000016241111"
    },
    "metadata": {
        "creator": "testrest"
    },
    "_embedded": {
        "instrumentIdentifier": {
            "_links": {
                "self": {
                    "href": "/tms/v1/instrumentidentifiers/7010000000016241111"
                },
                "paymentInstruments": {
                    "href": "/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
                }
            },
            "id": "7010000000016241111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
                "number": "411111XXXXXX1111"
            },
            "processingInformation": {
                "authorizationOptions": {
                    "initiator": {
                        "merchantInitiatedTransaction": {
                            "previousTransactionId": "123456789619999"
                        }
                    }
                }
            },
            "metadata": {
                "creator": "testrest"
            }
        }
    }
}

Retrieve a Customer Payment Instrument

This section describes how to retrieve a customer payment instrument token.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.

REST Example: Retrieving a Customer Payment Instrument

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081"
    },
    "customer": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    }
  },
  "id": "F39732BE4BDA9A1EE053AF598E0A4081",
  "default": true,
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "001"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789012345"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}

Retrieve a Customer Payment Instrument with an Unmasked Card Number

This section describes how to retrieve a payment instrument with an unmasked card number.
IMPORTANT
To retrieve unmasked payment details, you must ensure that your MLE key pair and your token vault are configured correctly. For more information on MLE keys, see Message-Level Encryption Keys. For more information on token vaults, see Token Vault Management. If necessary, contact your
National Australia Bank
 account manager or customer support.
The response is BASE 64-encoded JSON web encryption (JWE) token. The decoded JWE has these elements:
{ "alg": "RSA-OAEP-256", //The algorithm used to encrypt the CEK
    "cty": "json", //The content type
    "typ": "JWT", //The token type
    "enc": "A256GCM", //The algorithm that is used to encrypt the message
    "kid": "keyId" //The serial number of shared public cert for encryption of CEK
}
<Encrypted Data> //The encrypted payload that matches the JSON response normally returned by the
TMS
 API, except with an unmasked payment details

Header Configuration

You must pass this request header to retrieve unmasked payment details:
Accept: application/jose
.
The term
application/jose
 refers to Javascript Object Signing and Encryption (JOSE). JOSE is a framework that provides end-to-end security to JavaScript Object Notation (JSON)-based data structures. JOSE achieves this by offering a collection of specifications to encrypt and digitally sign JSON payloads. In this case, the response is message-level encrypted using a JSON Web Token (JWT).

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.

REST Example: Retrieving a Customer Payment Instrument with an Unmasked Card Number

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081
Response to a Successful Request
eyJraWQiOiJiYTE1ZDRmMTIzMTM0NjlkZjg5MDM1Nzk2YWE4Nzc4ZGM0NTY4ODlkIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.FZbQse7mPcf255vpZFXM4Zy8DGalqehCYUi6h6ett2WqfP2XA0uzPeRxE-P6O8Ju1trkSOJcZ4PqBcX4xwYmSs8PUmhkakncpjXSvYUaq4RY39kj9BRzvn47F18OWCW4CDzaTkOxi7ynGN6vb_Y3_wn5KLXAQVTUCM7Lke45oAFrCnVACBJtQgONKM7GZwLwRiWp_HP6D4IMUZe5Qw8Qz438scq9DQtOBum_JK_xx_IKA-r1XOkWdvnCasQnK1eEc2jPo3EL9GDe6w3zQFEbhNtC4Rsa33-lc0lxjfuAsI8YmmtHYKeITvQ-6mB7cOP-guKnRAJk2SUPkMOL6UIfg.zvgReLHE0ybDfWRp.bCMwJgHEV9B9xHrL9Ej1en8xZCiYEuCN6H4mcKOqxJAxZocO1AtR1xgyrfDIINAi6Jq9UJedIvLJFyMfXx2D2x4njHmxOKzC2KJS_KTpXR1s1-pJNG68jwZ-g_zPqj1PLa_EGSu73NWhJYalGvhDuo6Ek8bkGVUtNm9OZ89oX2KbxuWc2LQ0JbBBa_dfQWAjkRcM-URlEbhf1nvlzLwTXhRN2wfB7L1BcAsao51DyYXowOJpWwSK1StC2EKDXSzgpfXP1ZwSKA8SSkpVSmwOkb0n6DZNkwtKlg4eGDok9atJpbZ3qCEqqKDYCy1levJQ7w-In2OPLpSpFGyPRUGPBMTnzQo-GtGEM1tiKbpDUzaCL_0iFSGjJCPeottP-B98R2YKdmGa3IwyVWgzhAMJBkAfEGAx0TCWwqZE5xFW9uT2MzdX3_Mz9qBgCRa101km9dHYwajClVb1VETlHjS7zpQ1OtXPKmluAGTvGSr6PWn9ZiqkOd4R5LC7oA4OdVlpPhY2mJhektLOZj1uUIr5AaHyjHx-BnnFio0CDjM03t8gl9gIeQ44ugUMwYc19Mvkiikxsvl8h9Ua2hCSFbvvq1cCOcZwb2UtI8EZcJdltw2utoiO5IbsSkE9hU2b16QMXoVIMxiFN0OdTfJqMzJfPnyVBIkN3nmHmwLwKSek5HqdujU1hFhMJxDRdtmLD__5L0iAxuz1Sm3yx5HmjXWjCpzIfT9vT-pSfIdIwBakF9pBRXDSCZsAEqlwddS1DbjfNk43E_wKTmwQW96OlnUX7SK70gICydciHsSsrElcp6lGFpbPMGs8QN1czKPrH0lrnkD21xkxhXjmC7Iqa0-XFXIU8qSV7PsBtUjOnz7oKOzXvIli2SV2gzPEKOQ449HKPXDoBynaT5pWi4WC3JmOwAhyx2f05ABZF9-Nj_EGLe7H5EoBaCohbKkc3j24nNQ4r_n5cC5weBCxIdkrSKh54pFQdRr72pqEW2XoOTy1Jafi3EJdC_GF0BKI3AFVw3fGEJq_rpe8PxgkkliAuywVJ43iG_uzD-6Ib5jIA8RcDFah2jh_3tYeWws2EW3qnCuAUXREKebdGlH2BTgcgxzDn9Y6AJi3Zrdc948qxXpowiYWr5t_5xN8x5kJcOzKVNOCzi5LggcIN-FmZsyB4rRjv9aGPrscoC1pL7xlLEnyHRnIOUy96NTG7qOQbhV3dzawvzZN_UZ6LTyTMV9X0679NNGS2RrjxFsrYuMHdQr3SeVcTKe5FL3QBiKFgFjnYMdh73ztYW5tn6rAx2Daq5G-FkQnD8PnHnzCplGRXopja00xEkL9lugeKxSEorDPaO8ov499M191BrTqc6XaBl7kYuelWfAoVEfCT9FvNf28H0xA5vXJNqKFye2ExkMyk3jjfCn3pkoFwmbyha1gmaLgz788GxMyKtH9K6KMKfgSCfj-w5eJbTl7QJeyYjFuVUqixZI024YAUoo4OrcCZag1IzLNkpOo_xOqf1iMbREnDcp2MKxMdkJWI72uB5XWztHaQPnzBAxJcBw0_gB5AHy_AIk.ogA-QQ53MEu1VwH6_H-DQA

List Payment Instruments for a Customer

This section describes how to retrieve a customer's payment instruments.

Endpoint

Test:
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
Production:
GET
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. For more information, see Create a Customer and Create a Customer Payment Instrument.
Use these query string parameters to filter the list of payment instrument tokens:
  • offset
     — Page offset number.
  • limit
     — Maximum number of items you would like returned.

Required Fields for Listing Payment Instruments for a Customer

customerTokenId
Include the ID of the customer token you want to retrieve in the URL path.

REST Example: Listing Payment Instruments for a Customer

Request
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=4&limit=2
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=4&limit=2"
    },
    "first": {
      "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=0&limit=2"
    },
    "prev": {
      "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=2&limit=2"
    },
    "next": {
      "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=6&limit=2"
    },
      "last": {
        "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments?offset=8&limit=2"
      }
  },
  "offset": 4,
  "limit": 2,
  "count": 2,
  "total": 10,
  "_embedded": {
    "paymentInstruments": [
      {
        "_links": {
          "self": {
            "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1/payment-instruments/7A906EC3D0F73581E0539599D30AAPI1"
          },
          "customer": {
            "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AADC1"
          }
        },
        "id": "7A906EC3D0F73581E0539599D30AAPI1",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "09",
          "expirationYear": "2017",
          "type": "001",
          "issueNumber": "01",
          "startMonth": "01",
          "startYear": "2016",
          "useAs": "pinless debit",
          "tokenizedInformation": {
            "requestorID": "12345",
            "transactionType": "1"
          }
        },
        "buyerInformation": {
          "companyTaxID": "12345",
          "currency": "USD",
          "dateOfBirth": "2000-12-13",
          "personalIdentification": [
            {
              "id": "57684432111321",
              "type": "driver license",
              "issuedBy": {
                "administrativeArea": "CA"
              }
            }
          ]
        },
        "billTo": {
          "firstName": "John",
          "lastName": "Smith",
          "company": "Company Name",
          "address1": "8310 Capital of Texas Highwas North",
          "address2": "Bluffstone Drive",
          "locality": "Austin",
          "administrativeArea": "TX",
          "postalCode": "78731",
          "country": "US",
          "email": "john.smith@test.com",
          "phoneNumber": "+44 2890447951"
        },
        "processingInformation": {
          "billPaymentProgramEnabled": true,
          "bankTransferOptions": {
            "SECCode": "WEB"
          }
        },
        "merchantInformation": {
          "merchantDescriptor": {
            "alternateName": "Branch Name"
          }
        },
        "metadata": {
          "creator": "mid"
        },
        "instrumentIdentifier": {
          "id": "7040000000057621111"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "/tms/v1/instrumentidentifiers/7040000000057621111"
              },
              "paymentInstruments": {
                "href": "/tms/v1/instrumentidentifiers/7040000000057621111/paymentinstruments"
              }
            },
            "id": "7040000000057621111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXX1111"
            },
            "issuer": {
              "paymentAccountReference": "V000000000000411111111111111"
            },
            "metadata": {
              "creator": "mid"
            }
          }
        }
      },
      {
        "_links": {
          "self": {
            "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AAPI1/payment-instruments/7A906EC3D0F73581E0539599D30AAPI2"
          },
          "customer": {
            "href": "/tms/v2/customers/7A906EC3D0F73581E0539599D30AAPI2"
          }
        },
        "id": "7A906EC3D0F73581E0539599D30AAPI2",
        "state": "ACTIVE",
        "card": {
          "expirationMonth": "09",
          "expirationYear": "2017",
          "type": "001",
          "issueNumber": "01",
          "startMonth": "01",
          "startYear": "2016",
          "useAs": "pinless debit",
          "tokenizedInformation": {
            "requestorID": "12345",
            "transactionType": "1"
          }
        },
        "buyerInformation": {
          "companyTaxID": "12345",
          "currency": "USD",
          "dateOfBirth": "2000-12-13",
          "personalIdentification": [
            {
              "id": "57684432111321",
              "type": "driver license",
              "issuedBy": {
                "administrativeArea": "CA"
              }
            }
          ]
        },
        "billTo": {
          "firstName": "John",
          "lastName": "Smith",
          "company": "Company Name",
          "address1": "8310 Capital of Texas Highway North",
          "address2": "Bluffstone Drive",
          "locality": "Austin",
          "administrativeArea": "TX",
          "postalCode": "78731",
          "country": "US",
          "email": "john.smith@test.com",
          "phoneNumber": "+44 2890447951"
        },
        "processingInformation": {
          "billPaymentProgramEnabled": true,
          "bankTransferOptions": {
            "SECCode": "WEB"
          }
        },
        "merchantInformation": {
          "merchantDescriptor": {
            "alternateName": "Branch Name"
          }
        },
        "metadata": {
          "creator": "mid"
        },
        "instrumentIdentifier": {
          "id": "7040000000057621111"
        },
        "_embedded": {
          "instrumentIdentifier": {
            "_links": {
              "self": {
                "href": "/tms/v1/instrumentidentifiers/7040000000057621111"
              },
              "paymentInstruments": {
                "href": "/tms/v1/instrumentidentifiers/7040000000057621111/paymentinstruments"
              }
            },
            "id": "7040000000057621111",
            "object": "instrumentIdentifier",
            "state": "ACTIVE",
            "card": {
              "number": "411111XXXXX1111"
            },
            "issuer": {
              "paymentAccountReference": "V000000000000411111111111111"
            },
            "metadata": {
              "creator": "mid"
            }
          }
        }
      }
    ]
  }
}

Update a Customer Payment Instrument

This section describes how to update a customer payment instrument token.

Endpoint

Test:
PATCH
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
PATCH
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.

Required Fields for Updating a Customer Payment Instrument

customerTokenId
Include the ID of the customer token you want to retrieve in the URL path.
paymentInstrumentTokenId
Include the ID of the payment instrument token you want to retrieve in the URL path.

Optional Fields for Updating a Customer Payment Instrument

bankAccount.type
billTo.address1
billTo.address2
billTo.aminstrativeArea
billTo.company
billTo.country
billTo.email
billTo.firstName
billTo.lastName
billTo.locality
billTo.phoneNumber
billTo.postalCode
buyerInformation.companyTaxID
buyerInformation.currency
buyerInformation.dateOfBirth
buyerInformation.personalIdentification.id
buyerInformation.personalIdentification.issuedBy.administrativeArea
buyerInformation.personalIdentification.type
card.expirationMonth
card.expirationYear
card.issueNumber
card.startMonth
card.startYear
card.type
card.useAs
card.tokenizedInformation.requestorID
card.tokenizedInformation.transactionType
default
Set value to
true
 if default, otherwise set value to
false
.
instrumentIdentifier.id
processingInformation.billPaymentProgramEnabled
merchantInformation.merchantDescriptor.alternateName

REST Example: Updating a Customer Payment Instrument

Request
{
  "default": "true",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "001"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "address2": "Unit B",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  }
}
Response to a Successful Request
{
  "_links": {
    "self": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081"
    },
    "customer": {
      "href": "/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078"
    }
  },
  "id": "F39732BE4BDA9A1EE053AF598E0A4081",
  "default": true,
  "state": "ACTIVE",
  "card": {
    "expirationMonth": "12",
    "expirationYear": "2031",
    "type": "001"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "company": "Company Name",
    "address1": "1 Market St",
    "address2": "Unit B",
    "locality": "San Francisco",
    "administrativeArea": "CA",
    "postalCode": "94105",
    "country": "US",
    "email": "
test@nab.com.au
",
    "phoneNumber": "4158880000"
  },
  "instrumentIdentifier": {
    "id": "7010000000016241111"
  },
  "metadata": {
    "creator": "testrest"
  },
  "_embedded": {
    "instrumentIdentifier": {
      "_links": {
        "self": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111"
        },
        "paymentInstruments": {
          "href": "/tms/v1/instrumentidentifiers/7010000000016241111/paymentinstruments"
        }
      },
      "id": "7010000000016241111",
      "object": "instrumentIdentifier",
      "state": "ACTIVE",
      "card": {
        "number": "411111XXXXXX1111"
      },
      "processingInformation": {
        "authorizationOptions": {
          "initiator": {
            "merchantInitiatedTransaction": {
              "previousTransactionId": "123456789012345"
            }
          }
        }
      },
      "metadata": {
        "creator": "testrest"
      }
    }
  }
}

Delete a Customer Payment Instrument

This section describes how to delete a customer payment instrument token.

Endpoint

Test:
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
Production:
DELETE
https://nabgateway-api.nab.com.au
/tms/v2/customers/
{customerTokenId}
/payment-instruments/
{paymentInstrumentTokenId}
The
{customerTokenId}
 is the customer token ID returned in the
id
 field when you created the customer token. The
{paymentInstrumentTokenId}
 is the payment instrument token ID you want to retrieve. For more information, see Create a Customer and Create a Customer Payment Instrument.
IMPORTANT
If you have more than one payment Instrument, then the default payment Instrument cannot be deleted without first selecting a new default payment instrument.

REST Example: Deleting a Customer Payment Instrument

Request
DELETE
https://nabgateway-api-test.nab.com.au
/tms/v2/customers/F2F3ADA770102B51E053A2598D0A9078/payment-instruments/F39732BE4BDA9A1EE053AF598E0A4081
Response to a Successful Request
A successful delete response returns an empty
HTTP 204 No Content
 status. For more information, see HTTP Status Codes.

Payments with Customer Payment Instruments

This section contains information on making payments with customer payment instrument tokens.
Customer payment instruments are payment instruments that are linked to a specific customer token. The following payment instruments are supported:
  • Payment card
  • Tokenized card (Apple Pay and Android Pay)
  • ACH bank account
To process a payment using a payment instrument token, you must include the customer token ID as the value in the
paymentInformation.paymentInstrument.id
 field. You can make payments using non-default payment instruments associated with the customer. For example:
For more information on customer tokens and payment instrument tokens, see Customer Tokens and Payment Instrument Tokens, respectively.

Authorizing a Payment with a Non-Default Payment Instrument

This section provides the information you need in order to authorize a payment with a non-default payment instrument.

Endpoint

Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments

Required Fields for Authorizing a Payment with a Non-Default Payment Instrument

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.paymentInstrument.id
Set to the ID of the payment instrument token you want to use.

Optional Fields for Authorizing a Payment with a Non-Default Payment Instrument

You can use these optional fields to include additional information when authorizing a payment with a non-default payment instrument.
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
orderInformation.billTo.address1
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.locality
orderInformation.billTo.postalCode
paymentInformation.card.expirationMonth
paymentInformation.card.expirationYear
paymentInformation.card.number
paymentInformation.card.type

REST Example: Authorizing a Payment with a Non-Default Payment Instrument

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "paymentInstrument": {
            "id": "0F3BB131F8143A58E063A2598D0AB921"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "authReversal": {
      "method": "POST",
      "href": "/pts/v2/payments/7055952648586653304951/reversals"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/payments/7055952648586653304951"
    },
    "capture": {
      "method": "POST",
      "href": "/pts/v2/payments/7055952648586653304951/captures"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "id": "7055952648586653304951",
  "orderInformation": {
    "amountDetails": {
      "authorizedAmount": "10.00",
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "paymentInstrument": {
      "id": "0F3BB131F8143A58E063A2598D0AB921"
    },
    "card": {
      "type": "001"
    }
  },
  "pointOfSaleInformation": {
    "terminalId": "111111"
  },
  "processorInformation": {
    "approvalCode": "888888",
    "networkTransactionId": "123456789619999",
    "transactionId": "123456789619999",
    "responseCode": "100",
    "avs": {
      "code": "X",
      "codeRaw": "I1"
    }
  },
  "reconciliationId": "67468244CRIL0U0Y",
  "status": "AUTHORIZED",
  "submitTimeUtc": "2024-01-18T16:27:45Z"
}

Making a Credit with a Non-Default Payment Instrument

This section describes how to make a credit with a non-default payment instrument.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/credits
Production:
POST
https://nabgateway-api.nab.com.au
pts/v2/credits

Required Fields for Making a Credit with a Non-Default Payment Instrument

clientReferenceInformation.code
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
paymentInformation.paymentInstrument.id
Set to the ID of the payment instrument token that you want to use.

Optional Fields for Making a Credit with a Non-Default Payment Instrument

You can use these optional fields to include additional information when making a credit with a non-default payment instrument.
orderInformation.amountDetails.currency
orderInformation.amountDetails.totalAmount
orderInformation.billTo.address1
orderInformation.billTo.administrativeArea
orderInformation.billTo.country
orderInformation.billTo.email
orderInformation.billTo.firstName
orderInformation.billTo.lastName
orderInformation.billTo.locality
orderInformation.billTo.postalCode
paymentInformation.card.expirationMonth
paymentInformation.card.expirationYear
paymentInformation.card.number
paymentInformation.card.type

REST Example: Making a Credit with a Non-Default Payment Instrument

Request
{
  "clientReferenceInformation": {
    "code": "12345678"
  },
    "paymentInformation": {
        "paymentInstrument": {
            "id": "0F3BB131F8143A58E063A2598D0AB921"
        }
    },
    "orderInformation": {
        "amountDetails": {
            "currency": "USD",
            "totalAmount": "10.00"
        }
    }
}
Response to a Successful Request
{
  "_links": {
    "void": {
      "method": "POST",
      "href": "/pts/v2/credits/7055968581386446104953/voids"
    },
    "self": {
      "method": "GET",
      "href": "/pts/v2/credits/7055968581386446104953"
    }
  },
  "clientReferenceInformation": {
    "code": "12345678"
  },
  "creditAmountDetails": {
    "currency": "USD",
    "creditAmount": "10.00"
  },
  "id": "7055968581386446104953",
  "orderInformation": {
    "amountDetails": {
      "currency": "USD"
    }
  },
  "paymentAccountInformation": {
    "card": {
      "type": "001"
    }
  },
  "paymentInformation": {
    "tokenizedCard": {
      "type": "001"
    },
    "instrumentIdentifier": {
      "id": "7010000000016241111",
      "state": "ACTIVE"
    },
    "paymentInstrument": {
      "id": "0F3BB131F8143A58E063A2598D0AB921"
    },
    "card": {
      "type": "001"
    }
  },
  "processorInformation": {
    "approvalCode": "888888",
    "responseCode": "100"
  },
  "reconciliationId": "67445196PRILCQCN",
  "status": "PENDING",
  "submitTimeUtc": "2024-01-18T16:54:18Z"
}

Card Art

IMPORTANT
This feature is in pilot phase. You have early access to this feature even though it might contain bugs or unfinished work. Please consider the risk when using this feature.
You can choose to display card art provided by
TMS
 to help your customers identify the card that they are selecting.
National Australia Bank
 recommends that card art be shown in all cardholder-facing interactions where it applies.
Card art is available for these card types:
  • American Express
  • Mastercard
  • Visa

Retrieve Card Art

This section describes how to retrieve card assets.
You can retrieve card art content when you retrieve a
TMS
 token that is linked to a network token, such as an instrument identifier. For more information, see Retrieve an Instrument Identifier.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/
{tokenId}
/
{provider}
/assets/
{asset.type}
Production:
POST
https://nabgateway-api.nab.com.au
/tms/v2/tokens/
{tokenId}
/
{provider}
/assets/
{asset.type}
The
{tokenId}
 is the instrument identifier ID returned in the
id
 field when you created the
TMS
 token.
The
{provider}
 is the provider of the card for which you want to retrieve card art. Possible values:
  • aets
    : American Express
  • mdes
    : Mastercard
  • mscof
    : Mastercard
  • vts
    : Visa
The
{asset.types}
 is the card art asset that you retrieve. Possible values:
  • card-art-combined
    : background image, brand logo, and issuer logo
  • card-background
    : background image
  • card-issuer-logo
    : issuer logo
  • card-brand-logo
    : brand logo
  • card-co-brand-logo
    : co-branded card logo
  • card-icon
    : card brand icon
The availability of card asset types depends on the provider:
Card Art Assets and Providers
Card Art Asset
aets
mdes
mscof
vts
card-art-combined
card-background
card-issuer-logo
card-brand-logo
card-co-brand-logo
card-icon

REST Example: Retrieving Card Art Assets

Request for the Issuer Logo
GET
https://nabgateway-api-test.nab.com.au
/tms/v2/tokens/
{tokenId}
/
{provider}
/assets/
card-issuer-logo
Response to a Successful Request
{
    "id": "3883d6a112284123b8b23ec595670eb7",
    "type": "issuerLogo",
    "provider": "vts",
    "content": [
        {
            "type": "image/png",
            "data": "R0l...aP=",	        //Base-64 encoded data
            "width": 200,			// Include if provided by the issuer
            "height": 200			// Include if provided by the issuer
        }
    ]
}

Reference Information

Encrypt and Decrypt Data

  1. Send a POST request to token cryptogram resource at
    /tms/v2/tokens/instrumentIdentifierTokenId/payment-credentials
    . The response is BASE 64 encoded text. For example:

    ADDITIONAL INFORMATION

    JraWQiOiI5OWY5YmVjOTlmMzQ1MDJmMDE2NWIyYmJhYWYyODAxNDNhOTI0OWNjIiwiY3R5IjoianNvbiIsInR5cCI6IkpXVCIsImVuYyI6IkEyNTZHQ00iLCJhbGciOiJSU0EtT0FFUC0yNTYifQ.uYCE2zysWJB8E562FGJl4YyotZEHw4Az-2fvhjaUWubuAZ2tmZm44oKUdsfsBLYWInxpMDUsiENTTHG_UJJ25Snhcft6eZGj79gW_S55ZAGAi1eYIJA08gr01U7P-1QIzQ5t6dlkTRZElYDiNjypSaVfQPQPODaGNfB04Li7Pt88i-PIspGafq9P7TgacPyKoIkvM5CwLWbwSZYN_jdFq8hEu4Dy7gqDpf0z-rCdtWggWpFbGwdurDrKCbLBoQ4dY7OckJoe2OOWH-O1h_7uZymDDUjnqWFRcHgjxY7bmWJz94i_r4QUaoTQiaaqgyP6A2H3Gmt6Dy4VpIzO2XgLQA._cLex9BPstYqqnfe.RMbdjAqWR6HaVZ7USbp6j-KWPC1jGc3Wzk4M_CwJ58X2NNZ5ekUpAvU28_MbqQ2W6MLhJ7ulgfU5mk9_Y5nvAW6Yh68Ctye2yOhgu_V_33aLmz3iZP5AEGi7HeJVng0hy4EaQHNb92XYXUV1mvFHJokA4cRaj3eKwh6v-1lRhB4uIgXU62ZanVGGu5c7UkVkf6JiigZarGJiY2DKCRjYnbQYkj4JNFY94JlS50wTnGrk3MiAJN9DYIU-6US98zWGJ8VhBwhMuXk1juqVBfifjJMFa_-vnJjGpq1ri2buZ7hMJG-x0PIYoHUGSFeqNrcLUjJxI0o8lnXfhj7DtfYvNc0e4g5U39xtk-T2TDnQfdekRVxgdxcVR4mZdEqUHBxYUWTSW4AbgV-fjuCGDCkUoPIgkZ95y4RJhSPZzjZHdulf2Fk3L7e-nto2PB25zUTt_aXeNBSH8zjmaI2ve6D3VN0ScduRMl_9PXv1876opHEGqgkKLSTXcTUasXKlzMEiUzLl3p5pN30KnVbryAzuU3hhmIMyyPpEQkp9h3WlD4sc5oH1E8YtihLlSTtTUNwX5dJuR6iVwpKqFxECqYPtDWlzXQDTedFqdTA4isE3MCs.th9qWPzsevuDYp--06oPOw
  2. Decode the BASE 64 encoded response. The response is a decoded JWE response with an encrypted payload. For example:

    ADDITIONAL INFORMATION

    {
  "kid": "99f9bec99f34502f0165b2bbaaf280143a9249",
  "cty": "json",
  "typ": "JWT",
  "enc": "A256GCM",
  "alg": "RSA-OAEP-256"
}
<Encrypted payload>
  3. Decrypt the JWE encrypted payload. The response is the decrypted payload. For example:

    ADDITIONAL INFORMATION

    {
  "_links": {
    "self": {
      "href": "/tms/v2/tokens/A560EECDED74936DE0533F36CF0ACEBC/payment-credentials"
    }
  },
  "tokenizedCard": {
    "state": "ACTIVE",
    "number": "4X24XX7118382281",
    "expirationMonth": "11",
    "expirationYear": "2022",
    "type": "visa",
    "cryptogram": "AF1ajnoLKKj8AAKhssPUGgADFA==",
    "requestorId": "ABCD",
    "card": {
      "suffix": "2382",
      "expirationMonth": "12",
      "expirationYear": "2018"
    },
    "metadata": {
      "cardArt": {
        "combinedAsset": {
          "id": "84cfb836af434859be62c766bdc9e510",
          "_links": {
            "self": {
              "href": "tms/v2/tokens/7030080000051311515/vts/assets/card-art-combined"
            }
          }
        }
      },
      "issuer": {
        "name": "issuing bank name",
        "shortDescription": "The Bank Card",
        "longDescription": "The Bank Card Platinum Rewards",
        "country": "Country of issuing Bank",
        "accountPrefix": "BIN",
        "email": "issuer@example.com",
        "phoneNumber": "1112223333",
        "url": "http://www.example.com"
      }
    }
  },
  "card": {
    "number": "402400XXXXXX2382"
  },
  "issuer": {
    "paymentAccountReference": "V0000000000005109162731718000"
  }
}

HTTP Status Codes

A request response returns one of the following HTTP status codes:
  • 200
    : The standard response for a successful HTTP request. In a
    GET
     request, the response will contain an empty entity corresponding to the requested resource. In a
    POST
     request, the response will contain an entity describing or containing the result of the action.
  • 201
    : The request was fulfilled and resulted in a new resource being created. If you get this HTTP status code for an unsuccessful transaction,
    National Australia Bank
     or the merchant's processor probably marked this transaction as under review, declined, or failed.
  • 204
    : The server fulfilled the request but does not need to return a body.
  • 400
    : Bad request.
  • 403
    : Forbidden Response: The profile might not have permission to perform the operation.
  • 404
    : Token Not Found. The token ID may not exist or was entered incorrectly.
  • 409
    : Conflict. The token is linked to a Payment Instrument.
  • 410
    : Token not available The token has been deleted.
  • 424
    : Failed Dependency: The profile represented by the profile ID may not exist or the profile ID was entered incorrectly.
  • 500
    : Unexpected error.
  • 502
    : Bad gateway. There was a token deletion error from the Visa Token Service (VTS).

Create an Instrument Identifier Token with Validated Payment Details

This section describes how to create a instrument identifier token with validated payment details.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments
Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments
customerTokenId
 is the customer tokenID returned in the
id
 field when you created the customer token. For more information, see Create a Customer.

Create a Customer Token with Validated Payment Details

This section describes how to create a customer with validated payment details.

Endpoint

Test:
POST
https://nabgateway-api-test.nab.com.au
/pts/v2/payments
Production:
POST
https://nabgateway-api.nab.com.au
/pts/v2/payments

Push Provisioning for Network Tokens

IMPORTANT
This feature is in pilot phase. You have early access to this feature even though it might contain bugs or unfinished work. Please consider the risk when using this feature.
Push provisioning connects you with participating banks to enable the secure transfer of customer and payment information that is stored by banks. Using push provisioning, the issuer can provide credentials straight to your customer in seconds.

Prerequisites

Before using the push provisioning service, you must meet these requirements:

Network Token MIT for Merchants

This workflow shows a credentials-on-file (COF) authorization using a network token for a merchant-initiated transaction (MIT).
IMPORTANT
Before you can process a MIT, the customer must have previously made a purchase and given consent for you to store their payment credentials.

Figure:

Network Token MIT Authorizations for Merchants
  1. The merchant sends the
    TMS
     token to the payment processor.
  2. The payment processor looks up the network token associated with the
    TMS
     token.
  3. The payment processor sends the network token and MIT COF data to the acquirer in the authorization request.
  4. The acquirer processes the authorization and sends the authorization result to the payment processor.
  5. The payment processor sends the authorization result to the merchant.
  6. The merchant updates the system to reflect the status of the transaction.
  7. The customer provides goods/service.
