Customizing the Default User Interface

Use the information in this section to customize the Default UI so that it matches your brand’s visual identity. The included screenshots highlight several style elements with labels for reference. Note that not all available style elements are shown. A detailed description of the style elements follows the screenshots.

Figure:

Tap to Pay on Android Default UI Style Elements
Example 1, Tap to Pay on Android Default UI style elements showing icons, labeled buttons, colors, and text

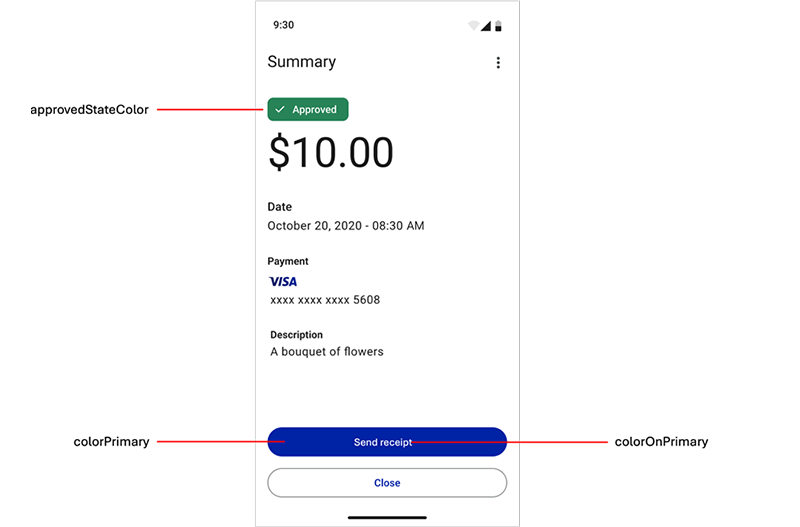

Figure:

Tap to Pay on Android Default UI Style Elements
Example 2, Tap to Pay on Android Default UI style elements showing icons, labeled buttons, colors, and text

Figure:

Tap to Pay on Android Default UI Style Elements
Example 3, Tap to Pay on Android Default UI style elements showing icons, labeled buttons, colors, and text
This list describes the style elements that you can customize in the Default UI:
animationStrokeColor
Stroke or outline color for animations.
approvedStateColor
Indicator color that appears for the approved transaction badge and animation.
cardPresentAnimationStrokeColor
Overrides the
animationStrokeColor
 style element in the card reader drawing on present-card animations. By default, this element is the same color as the
animationStrokeColor
 style element.
colorControlActivated
Color applied to switch controls in their active state.
colorOnPrimary
Primary color that appears for the filled button text and animation details.
colorOnSurface
Color for text that appears over the content view, transaction status badges text, and outlined button stroke.
colorPrimary
Primary color that appears for the filled buttons and animations.
colorSurface
Background color that appears for the content view.
colorSurfaceOnSurface
Background color for displayed lists such as transaction history.
contactlessStateActiveColor
Active indicator color that appears when the contactless interface is ready or when a payment card is tapped on the device.
contactlessStateErrorColor
Error indicator color that appears when a problem occurs when the device attempts to read a card on the contactless interface.
contactlessStateInactiveColor
Inactive indicator color that appears when the contactless interface is not active.
declinedErrorStateColor
Indicator color that appears for these elements:
  • Declined transaction badges and animation
  • Error transaction badges and animation
  • Error dialog boxes
  • Input field error messages
notificationColor
Alert notification color that appears with
Poor connection
 and
Low battery
 notifications. The default color is yellow.
preAuthorizedStateColor
Indicator color that appears for the pre-authorized transaction badge.
smallComponentCornerSize
Defines the corner radius of the buttons and transaction status badge. Set this element to
0dp
 for square corners,
4dp
 for slightly square corners (default), or
32dp
 for round corners.
toolBarLogo
Logo that appears during transaction processing. The image must be rectangular, have the minimum dimensions of 144 x 36 pixels, and a 4:1 ratio.

Customize Style Elements Using a Theme

Follow these steps to customize the Default UI style elements.
  1. Introduce a new theme to your application that includes the
    Theme.PayButton2
     theme as a parent theme.
    <!-- Paybutton theme -->
<style name="Theme.AppTheme.SampleTheme" parent="Theme.PayButton2">
    <!-- Text color -->
    <item name="colorOnSurface">@color/black</item>

    <!-- Background color -->
    <item name="colorSurface">@color/white</item>

    <!-- Contactless indicators -->
    <item name="contactlessStateActiveColor">@color/dui_green</item>
    <item name="contactlessStateInactiveColor">@color/dui_light_gray2</item>
    <item name="contactlessStateErrorColor">@color/dui_red</item>

    <!-- Transaction status -->
    <item name="approvedStateColor">@color/dui_green</item>
    <item name="declinedErrorStateColor">@color/dui_red</item> <!-- Also used for error messages and dialogs -->
    <item name="preAuthorizedStateColor">@color/dui_dark_gray</item>

    <!-- Filled buttons and animations primary color -->
    <item name="colorPrimary">@color/dui_blue</item>

    <!-- Used over the primary color for text on filled buttons and details on animations -->
    <item name="colorOnPrimary">@color/dui_white</item>

    <!-- Corner radius for the buttons and transaction status badges -->
    <item name="smallComponentCornerSize">4dp</item>

    <!-- Company logo -->
    <item name="toolBarLogo">@drawable/logo_140x36</item>

    <!-- Stroke color for icons and animations -->
    <item name="animationStrokeColor">@color/dui_black</item>
</style>
  2. Call one of these methods to set the theme:
    mposUi.themeRes = R.style.Theme_AppTheme_SampleTheme

Customize Style Elements Using a
UiConfiguration
 Instance

Use this customization feature to dynamically change some Default UI style elements while the app is in use. These style elements can be customized using a
UiConfiguration
 instance:
  • toolbarLogo
  • colorScheme
     (and its sub-elements)
  • cornerRadius
Follow this step to customize Default User Interface style elements using a
UiConfiguration
 instance:
  1. Create the
    UiConfiguration
     instance.
        mposUi.configuration = UiConfiguration(
      // other UiConfiguration parameters
      toolbarLogo = "....",
      colorScheme = UiConfiguration.ColorScheme(
        colorPrimary = 0xFF1A1F71,
        colorOnPrimary = 0xFFFFFFFF,
        colorSurface = 0xFFFFFFFF,
        colorOnSurface = 0xFF1C1B1B,
      ),
      cornerRadius = UiConfiguration.CornerRadius.ROUND
    )

Enable Dark Mode in the Default User Interface

When the payment device is set to dark mode, the Default UI payment screens automatically adjust to display darker, high-contrast colors compared to the default light mode settings. This feature is particularly useful in low-light environments such as restaurants and bars.
By default, the dark mode background color is dark gray (
#121212
). To customize the background to pure black (
#000000
), define a new
Theme.PayButton2
 theme in the
values-night
 resource folder.
For more information about the dark mode setting on Android devices, see the Android documentation.
Follow this step to change dark mode behavior:
  1. Use this Android method to enforce light or dark mode across your entire application and the Default UI, regardless of the system setting on the device. This example enforces night mode.
    AppCompatDelegate.setDefaultNightMode(AppCompatDelegate.MODE_NIGHT_YES)
